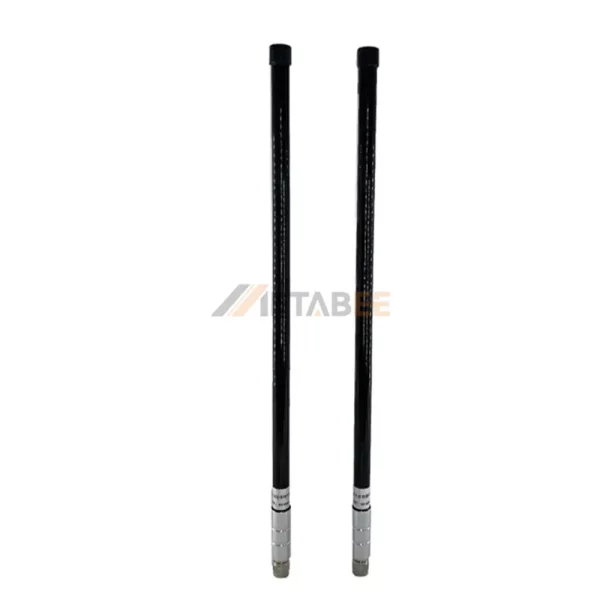

800-900MHz 3dBi omni-directional UAV Fiberglass Antenna with RG174 Cable, SMA Male
Introduction:
The 800–900MHz 3dBi Omni-directional UAV Fiberglass Antenna is designed to deliver stable and efficient wireless connectivity for drone communication systems. Operating across the 800–900MHz band, it provides reliable signal transmission with a balanced 3dBi gain and true omni-directional radiation pattern, ensuring consistent 360° coverage during flight. The vertical polarization enhances signal integrity and reduces interference, making it suitable for UAV telemetry, control links, and sub-GHz IoT applications.
Built with a robust fiberglass radome, this antenna ensures durability in harsh outdoor environments. It features an IP65-rated enclosure for protection against dust and water ingress, while maintaining excellent RF performance with a VSWR of ≤1.92 and 50 Ohm impedance. Equipped with an RG174 cable and SMA Male connector (customizable), it supports up to 50W input power. With an operating temperature range of -40°C to +85°C, wind resistance up to 60 m/s, and integrated DC grounding, it guarantees reliable performance and enhanced lightning protection in demanding conditions.
Key Features
General Information:
| Product No.: | YC-FG00075 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or customized | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 600*20*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 800-900MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 800-900MHz 3dBi omni-directional UAV Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
