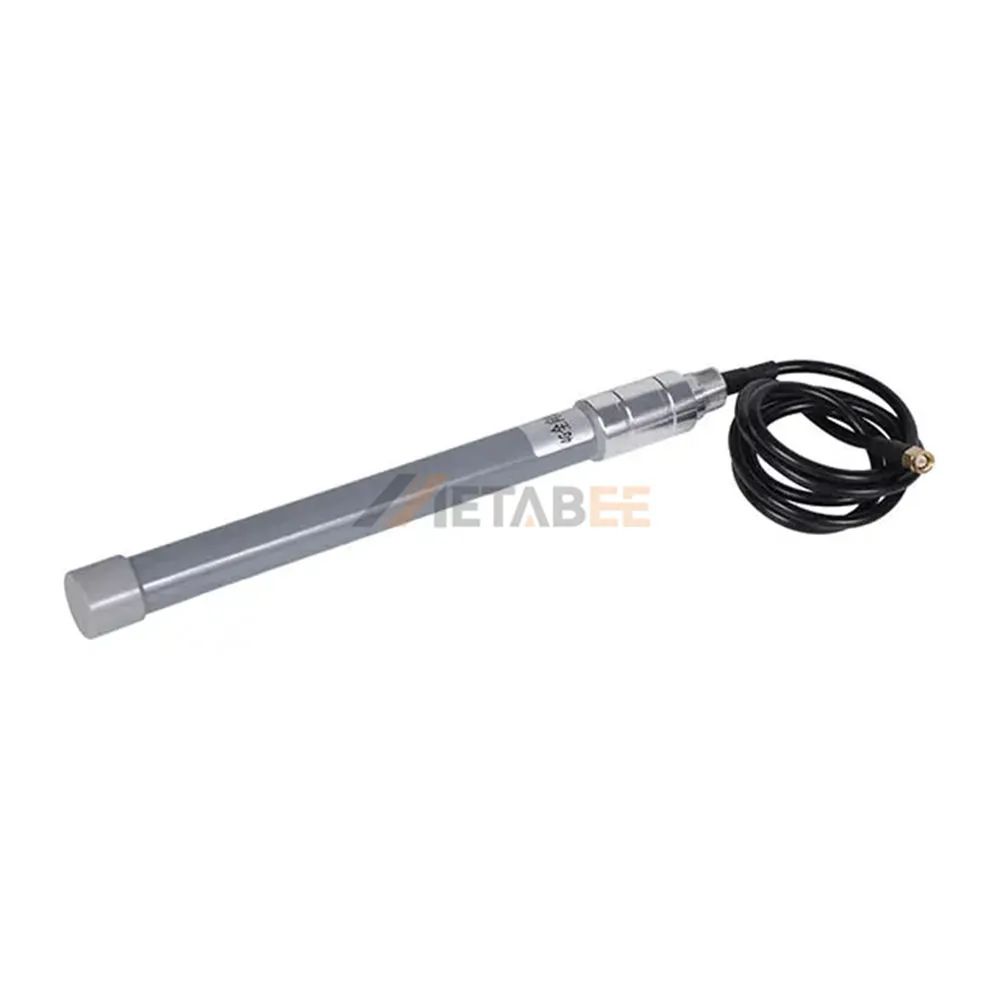

915MHz Outdoor Wall/Pole Mount Fiberglass Antenna with RG141 Cable, SMA Female, IP65
Introduction:
Engineered for robust outdoor deployments, the 915MHz Wall/Pole Mount Fiberglass Antenna delivers dependable, omni-directional wireless connectivity for a range of applications, including IoT, LoRaWAN, and other 915MHz systems. With a gain of 3±1dBi and vertical polarization, this antenna ensures efficient signal transmission and reception, providing consistent and expansive coverage. An optimized VSWR of ≤1.92 guarantees minimal signal loss, maximizing system performance and reliability in critical communication infrastructure.
This antenna is constructed with a durable Fiberglass radome, offering superior protection against environmental elements. Its IP65 rating confirms full resistance to dust and water ingress, making it suitable for even the most challenging outdoor conditions. Designed for resilience, it operates flawlessly across a wide temperature spectrum from -40°C to 85°C and withstands wind speeds up to 60 m/s. The unit features a 50 Ohm impedance, handles a maximum input power of 50W, and incorporates DC Grounding for comprehensive lightning protection. Equipped with an integrated RG141 cable terminated with an SMA Female connector, it offers straightforward and secure installation on walls or poles.
Key Features
General Information:
| Product No.: | YC-FG00016-B | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 300*20*20mm | |
| Color: | Customized | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 915MHz | |
| Gain: | 3±1dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 915MHz Outdoor Wall/Pole Mount Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
