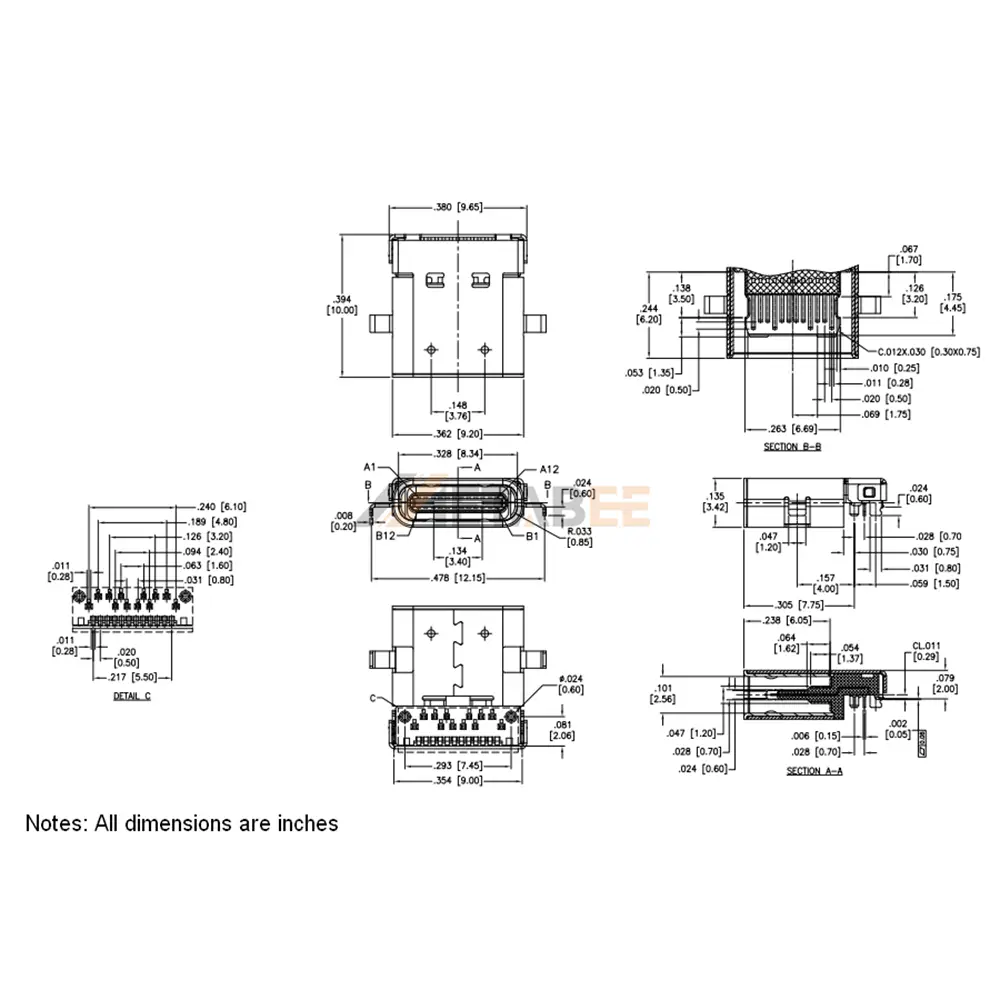

90 Degree USB 3.1 Type-C Receptacle, 24 Pin, 10 Gbps, PCB Edge Mount
Introduction:
Optimize your PCB layout with our high-performance 90 Degree USB 3.1 Type-C Receptacle, designed for modern electronic devices requiring high-speed data transfer in a compact form factor. This 24-pin female connector features a right-angle (R/A) mounting orientation with a PCB edge-mount design, allowing for a low-profile interface that sits parallel to the board. Ideal for space-constrained applications, this configuration enables seamless external port access while conserving valuable internal space. Supporting USB 3.1 Gen 2 standards, it delivers rapid data transfer speeds of up to 10 Gbps, ensuring efficient handling of large media files and quick device synchronization.
Engineered for long-term durability and consistent performance, this USB Type-C socket is constructed from premium materials. The outer shell is crafted from stainless steel with a nickel-plated finish, providing excellent structural integrity and resistance to corrosion from repeated use. The contacts are made from high-quality copper alloy with a gold-plated surface, guaranteeing superior conductivity and reliable signal transmission. With a versatile current rating supporting both 1.25A and 3A, it accommodates a range of power requirements. Additionally, it is UL94V-0 certified for flame retardancy and operates reliably across an extended temperature range from -40°C to 85°C, making it suitable for industrial, commercial, and consumer applications.
Key Features
- Space-Saving Design: 90-degree (right-angle) orientation with PCB edge mount for low-profile, space-efficient layouts.
- High-Speed Data Transfer: USB 3.1 Gen 2 compliant, supporting speeds up to 10 Gbps for fast data syncing.
- Versatile Power Handling: Supports dual current ratings of 1.25A and 3A for flexible power delivery options.
- Durable Contact Interface: Gold-plated copper alloy contacts ensure excellent conductivity and long mating cycle life.
- Robust Outer Shell: Stainless steel construction with nickel plating offers superior protection against wear and corrosion.
- Wide Temperature Tolerance: Rated for reliable operation in extreme environments from -40°C to 85°C with UL94V-0 safety compliance.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH2.0-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 90 Degree USB 3.1 Type-C Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
