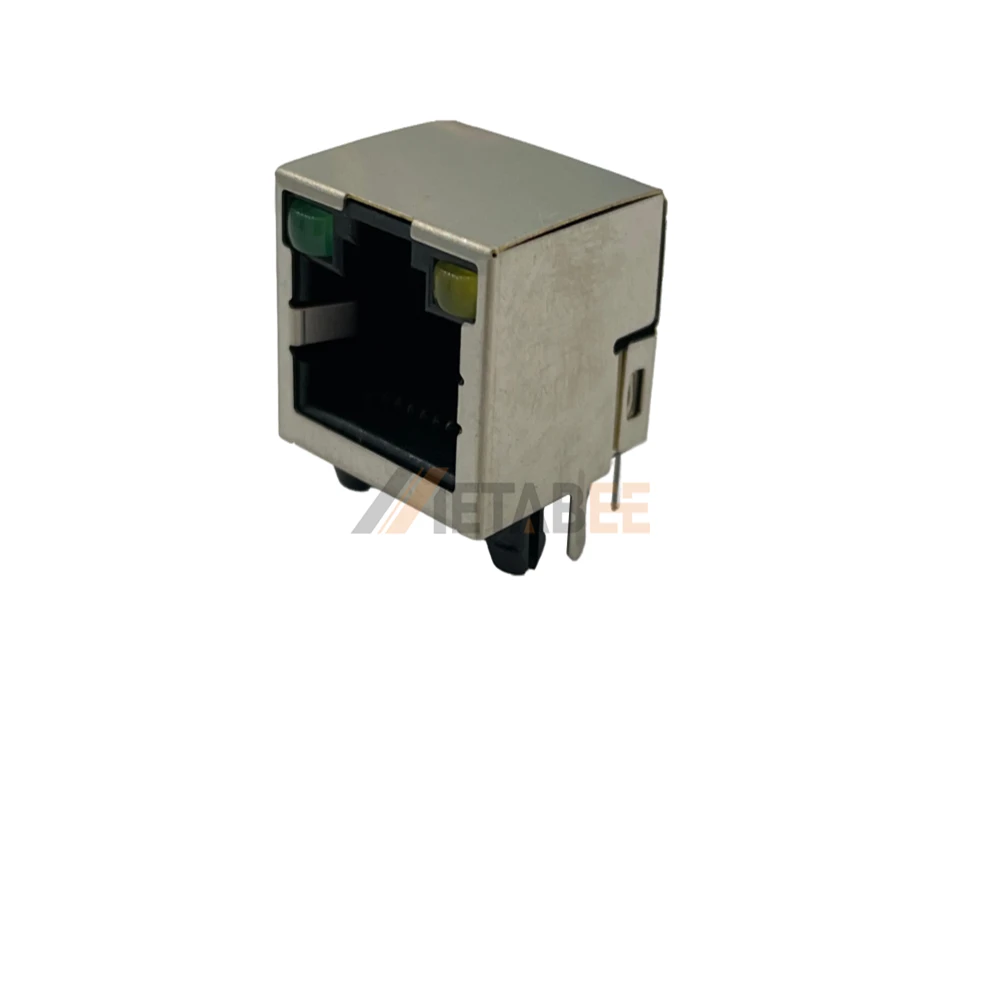

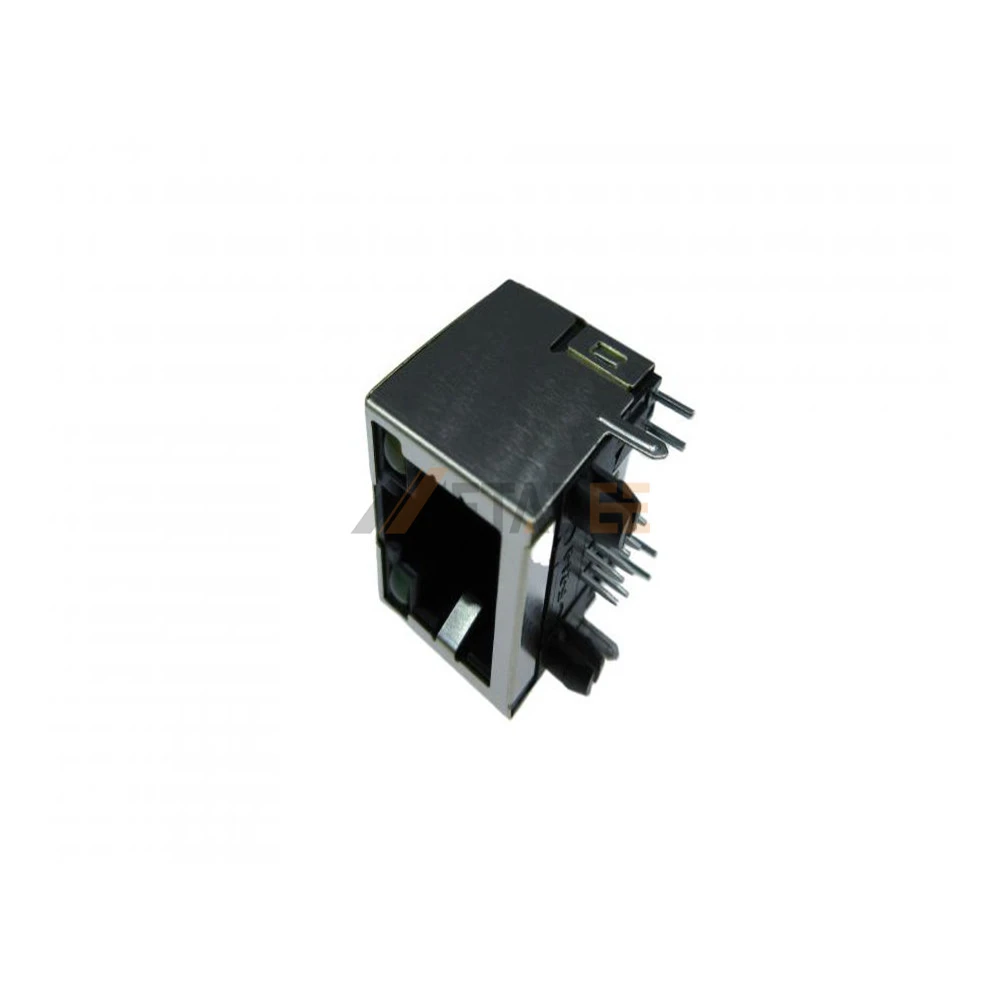

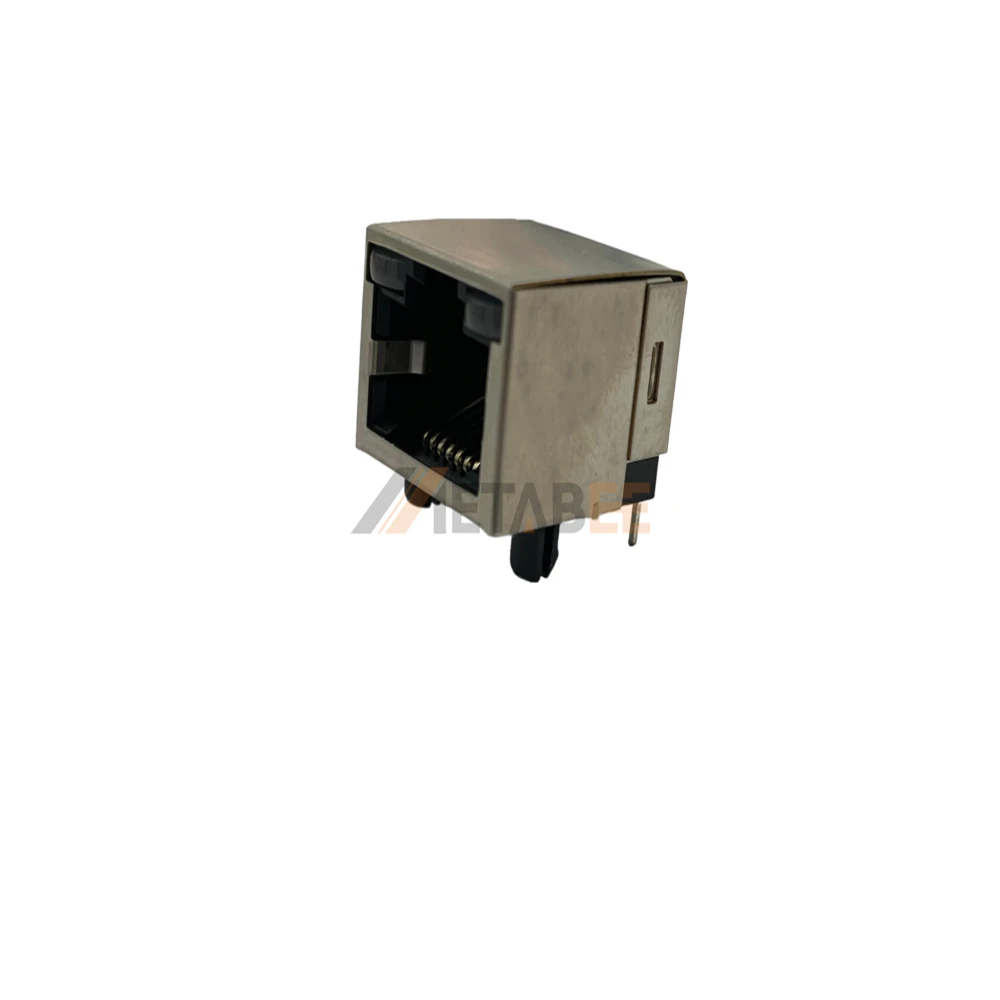

8P8C Shielded RJ45 Female Connector with LEDs, 1 Port, Tab-Up, Through Hole, R/A, Green/Yellow
Introduction:
This is a single port 8P8C shielded RJ45 female connector designed for durable through hole mounting on networking circuit boards. It utilizes a glass-reinforced PBT housing to ensure high mechanical strength and thermal stability during industrial soldering processes. The full brass shield with nickel plating provides an effective barrier against electromagnetic interference for clear data transmission. Integrated Green and Yellow LEDs offer instant link status monitoring while the Gold over Nickel plated Phosphor Bronze contacts support a consistent 1.5A current rating. This Tab-Up right angle configuration effectively optimizes board space and maintains a superior 1000MΩ Min insulation resistance. Technicians utilize this reliable interface for industrial networking systems and telecommunication gear requiring secure shielded connectivity.
Key Features
- Full EMI Shielding: Metallic shell blocks signal interference effectively.
- Integrated Status LEDs: Yellow and Green lights show connectivity status.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures high conductivity and lasting signal integrity.
- Glass-Reinforced PBT: High-strength housing withstands industrial assembly heat.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min / 1000MΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

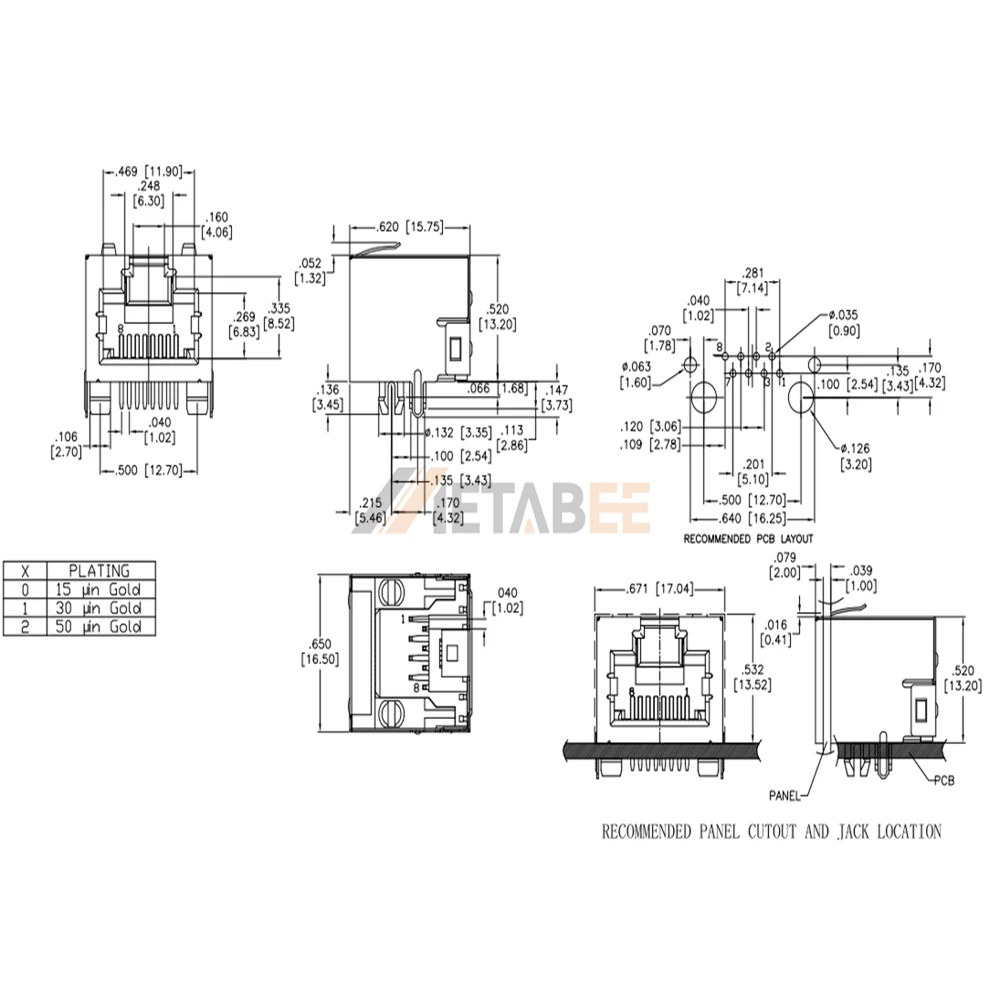

Structure of Modular Jack

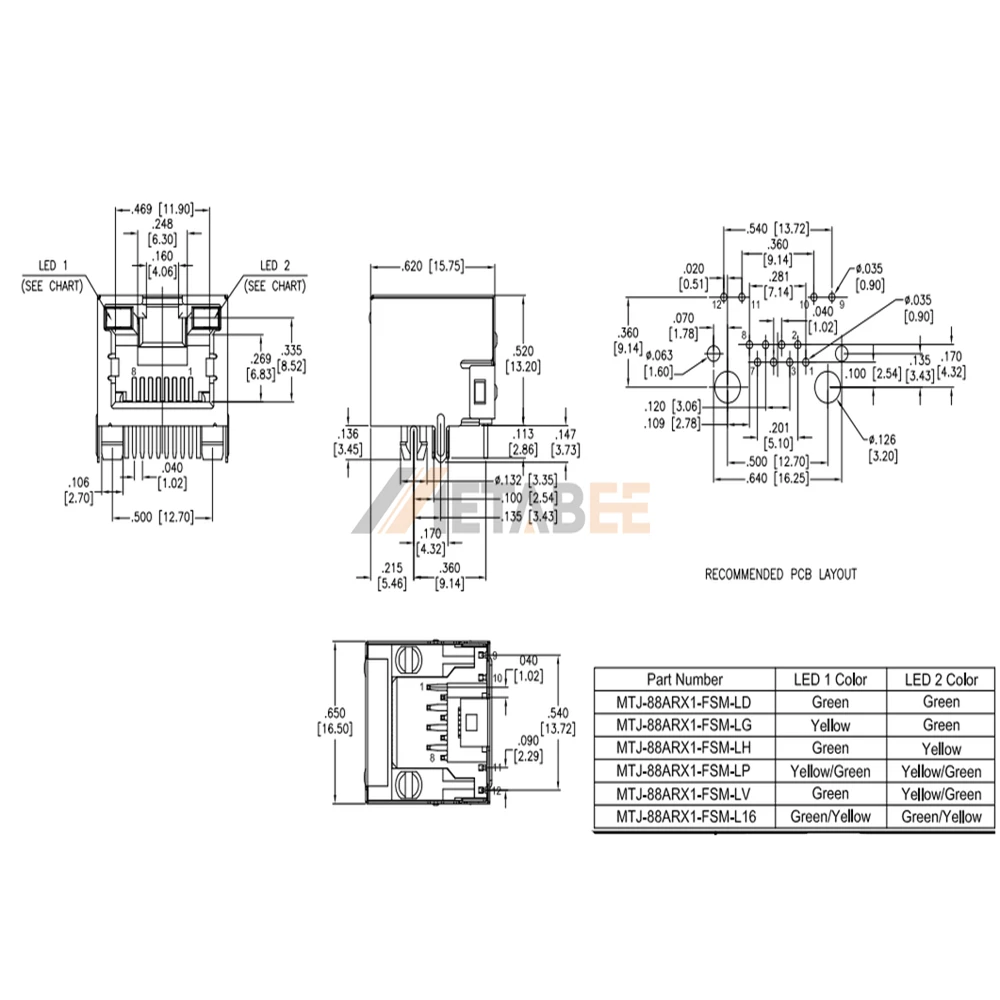

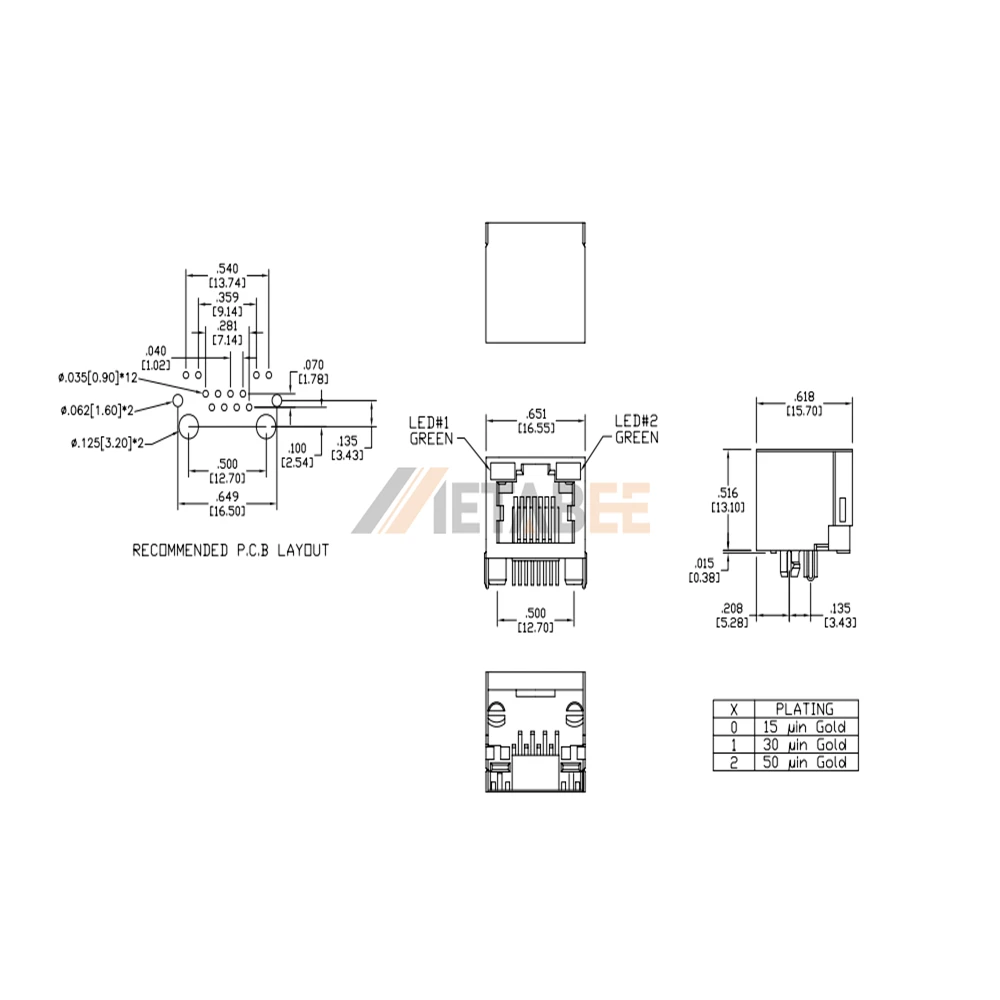

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
