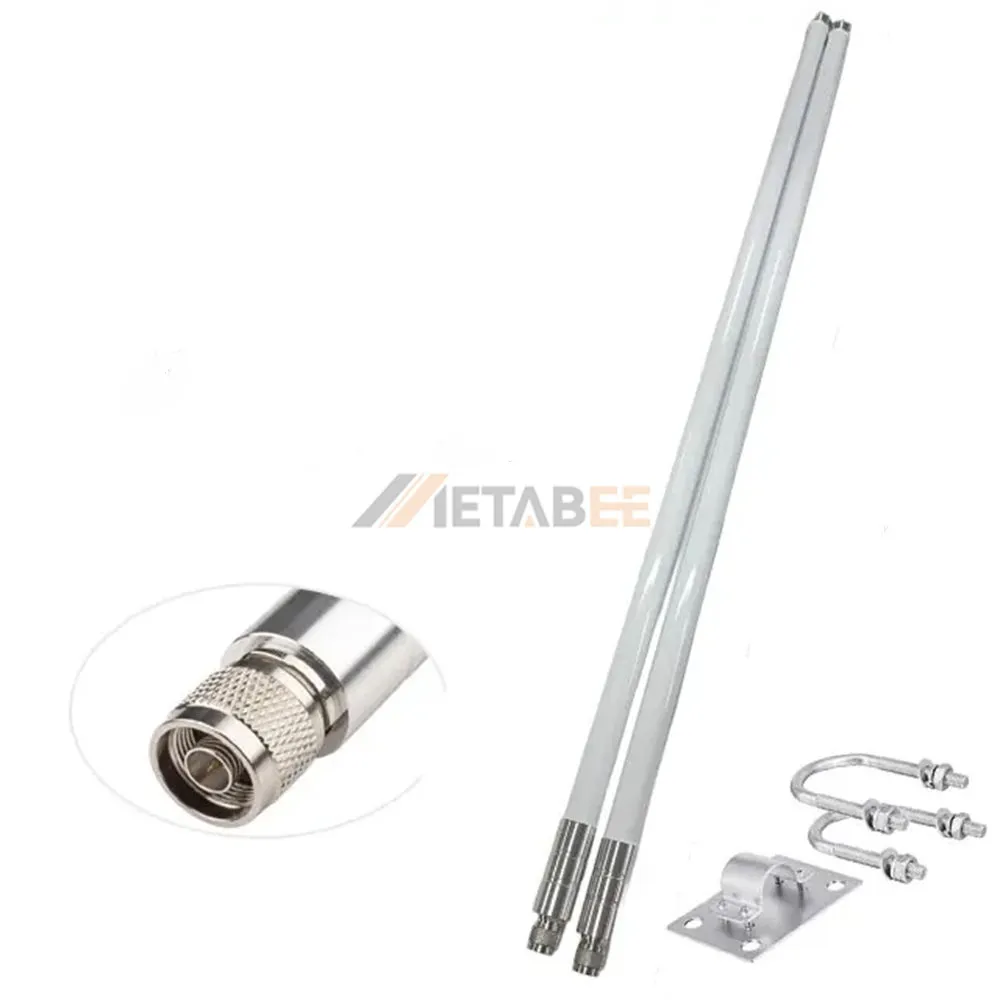

863-870MHz 5dBi High Gain Fiberglass Antenna, N Male, IP65
Introduction:
Designed for the 863–870 MHz band (ideal for LoRa, IoT, and ISM applications), this 5dBi high-gain fiberglass antenna delivers reliable omni-directional coverage with vertical polarization. The durable fiberglass radome encloses a robust internal radiator, ensuring consistent performance in outdoor environments. With a VSWR of ≤1.9, low signal loss is guaranteed, while the N Male connector provides secure, weather-resistant installation. The antenna also features DC grounding for lightning protection, making it a safe choice for remote telemetry, smart agriculture, and base station deployments.
Engineered for extreme conditions, this IP66-rated antenna operates flawlessly from -40°C to +85°C and withstands wind speeds up to 60 m/s. Maximum input power is 50W with 50 Ohm impedance. Whether mounted on a tower, vehicle, or rooftop, its fiberglass construction resists UV and corrosion, ensuring years of maintenance-free operation.
Key Features
General Information:
| Product No.: | YC-FG00301 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 200*20*20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 863-870MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 863-730MHz 5dBi High Gain Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
Factory pricing and exceptional product quality. Get a free quote now!
