860-930MHz 6dBi RFID IoT Fiberglass Antenna with N Female, IP65
Introduction:
The 860–930MHz 6dBi RFID IoT Fiberglass Antenna is optimized for UHF RFID and IoT deployments, delivering stable long-range connectivity across the global 860–930MHz band. With a 6 dBi gain and true omnidirectional radiation pattern, it ensures consistent 360° signal coverage, making it ideal for asset tracking, smart logistics, and industrial IoT networks. The vertical polarization enhances signal alignment with typical RFID systems, while a VSWR of ≤1.92 minimizes reflection and maximizes transmission efficiency.
Built for demanding outdoor environments, this antenna features a rugged fiberglass radome that provides excellent durability and weather resistance. Its IP65 rating ensures protection against dust and water ingress, enabling reliable operation in harsh conditions. Designed to handle up to 50W input power, it operates within a wide temperature range of -40°C to +85°C. The N Male connector ensures secure and low-loss integration, while DC grounding offers effective lightning protection. With wind survivability up to 60 m/s, it guarantees stable performance in extreme weather scenarios.
Key Features
- 860–930MHz UHF band for RFID and IoT applications
- 6 dBi gain with omnidirectional 360° coverage
- VSWR ≤1.92 for optimized RF performance
- Durable fiberglass radome with IP65 protection
- Wide operating temperature: -40°C to +85°C
- DC grounding, lightning protection, and 60 m/s wind resistance
Main Specifications:
General Information:
| Product No.: | YC-FG00019 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |

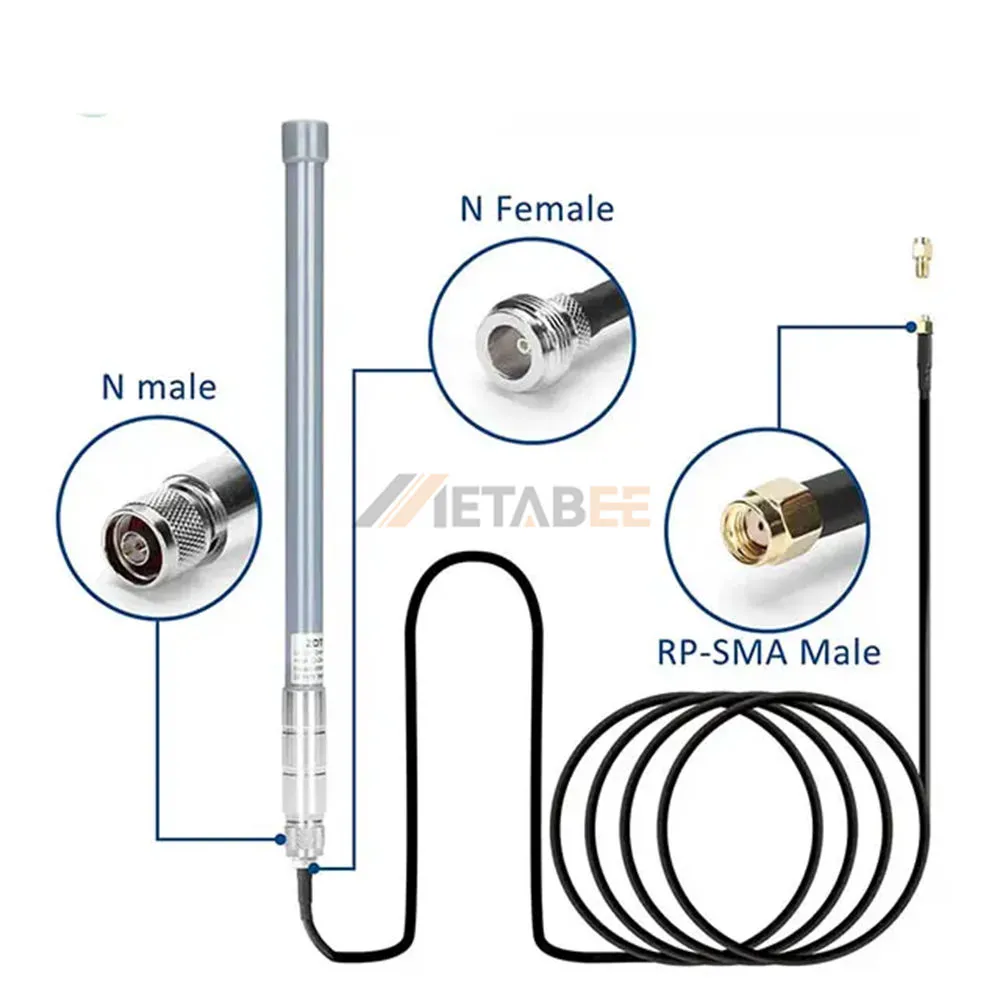

| Connector Type: | N-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 300*20*20mm | |
| Color: | Customized | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 860-930MHz | |
| Gain: | 5±1dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 860-930MHz 6dBi RFID IoT Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
