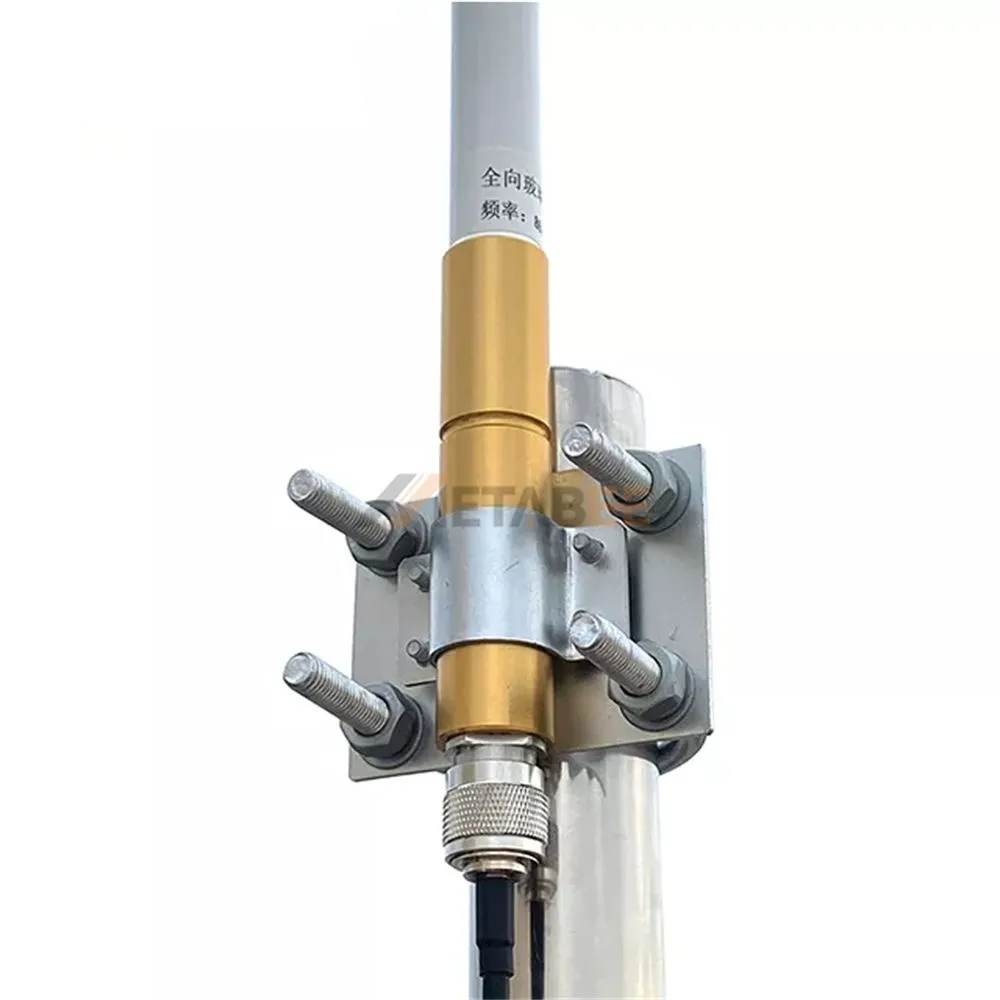

860-930MHz 6dBi Omni-directional Fiberglass Antenna for UAV, N Female, IP65
Introduction:
Designed specifically for UAV (Unmanned Aerial Vehicle) applications, this 860-930MHz 6dBi Omni-directional Fiberglass Antenna provides reliable 360° signal coverage for telemetry, control, and data transmission. The antenna operates within the 860–930MHz frequency band, featuring a vertical polarization and a low VSWR of ≤1.92 to minimize signal loss. Built with a durable fiberglass radome, the unit is rated IP65 for complete dust protection and water jet resistance. It supports a maximum input power of 50W at 50 Ohm impedance, with an N Female connector for secure, low-loss connectivity. Engineered for extreme environments, it operates from -40°C to 85°C and withstands wind speeds up to 60 m/s, while the DC grounding design offers effective lightning protection.
Key Features
- Omni-directional Pattern – 360° signal coverage ideal for moving UAV platforms.
- High Durability – Fiberglass radome with IP65 rating (dust-tight & water-resistant).
- Low VSWR (≤1.92) – Ensures efficient power transmission and low reflection.
- Wide Temperature Range – Operates reliably from -40°C to 85°C.
- DC Grounding – Built-in lightning protection for outdoor safety.
- N Female Connector – Secure, weather-resistant RF interface.
Main Specifications:
General Information:
| Product No.: | YC-FG00070 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 860-930MHz | |
| Gain: | 6dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 860-930MHz 6dBi Omni-directional Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
