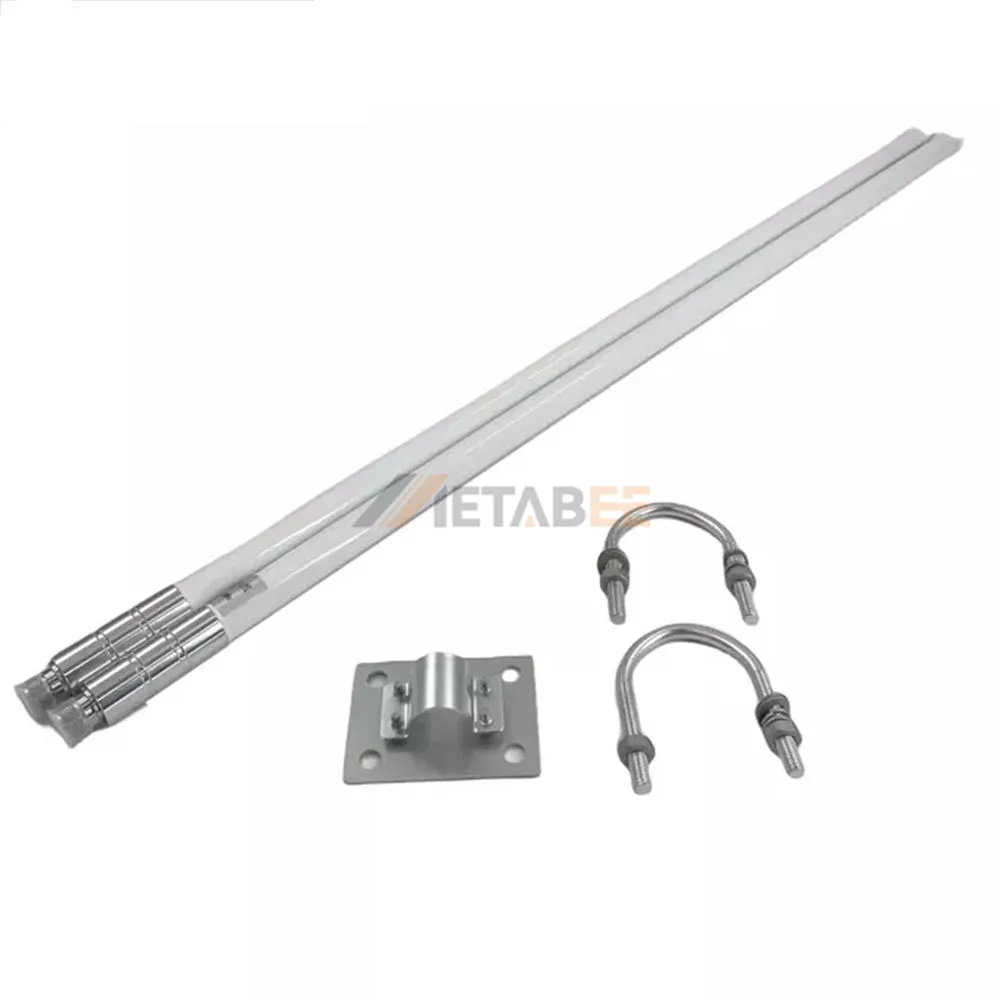

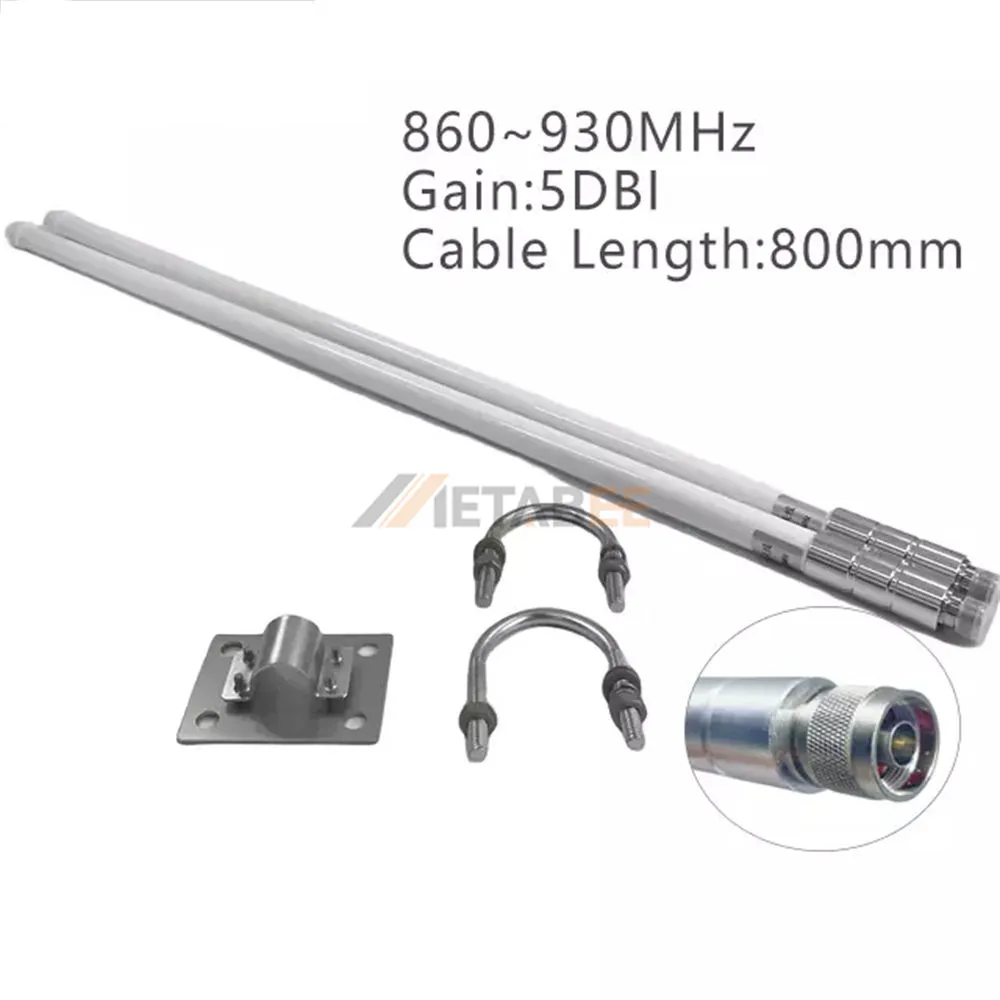

860-930MHz 5dBi Waterproof Fiberglass Antenna for Drone, N-Female/Male, IP65
Introduction:
Designed specifically for UAV (Unmanned Aerial Vehicle) applications, this 860-930MHz 6dBi Omni-directional Fiberglass Antenna provides reliable 360° signal coverage for telemetry, control, and data transmission. The antenna operates within the 860–930MHz frequency band, featuring a vertical polarization and a low VSWR of ≤1.92 to minimize signal loss. Built with a durable fiberglass radome, the unit is rated IP65 for complete dust protection and water jet resistance. It supports a maximum input power of 50W at 50 Ohm impedance, with an N Female connector for secure, low-loss connectivity. Engineered for extreme environments, it operates from -40°C to 85°C and withstands wind speeds up to 60 m/s, while the DC grounding design offers effective lightning protection.
Key Features
- Optimized Drone Communication: Tailored for 860-930MHz frequencies, delivering enhanced 5dBi gain for critical UAV links.
- Omni-directional Coverage: Provides 360-degree signal propagation, ensuring comprehensive connectivity for drones.
- Waterproof & Dustproof: Features an IP65-rated Fiberglass radome for extreme environmental resilience.
- All-Weather Reliability: Operates robustly from -40°C to 85°C and withstands winds up to 60 m/s.
- Integrated Safety Features: Incorporates DC Grounding for effective lightning protection and equipment safeguarding.
- Versatile Connectivity: Offered with both N-Female and N-Male connector options for flexible integration
Main Specifications:
General Information:
| Product No.: | YC-FG00066 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female/Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 800*20*20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 860-930MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 860-930MHz 5dBi Waterproof Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
