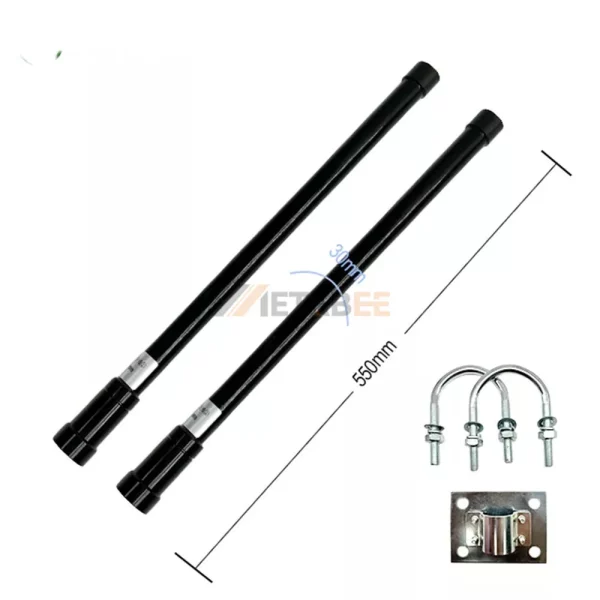

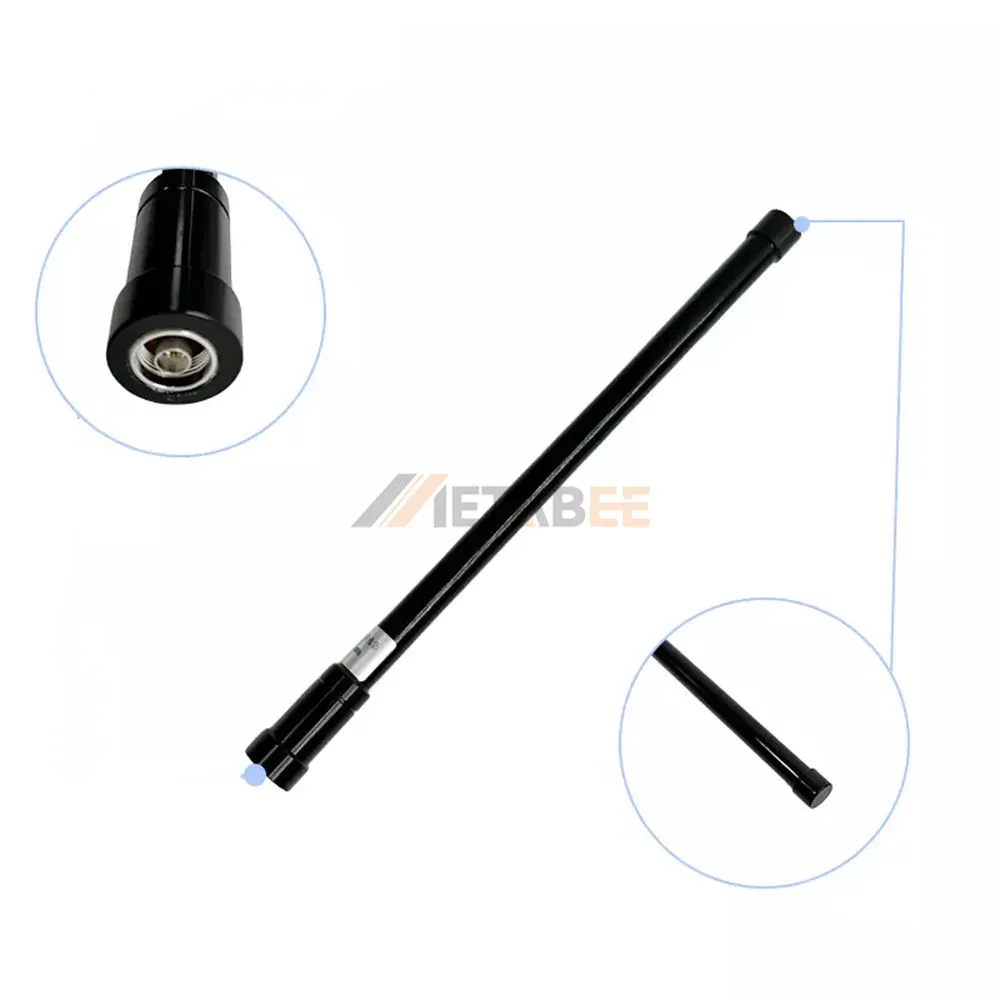

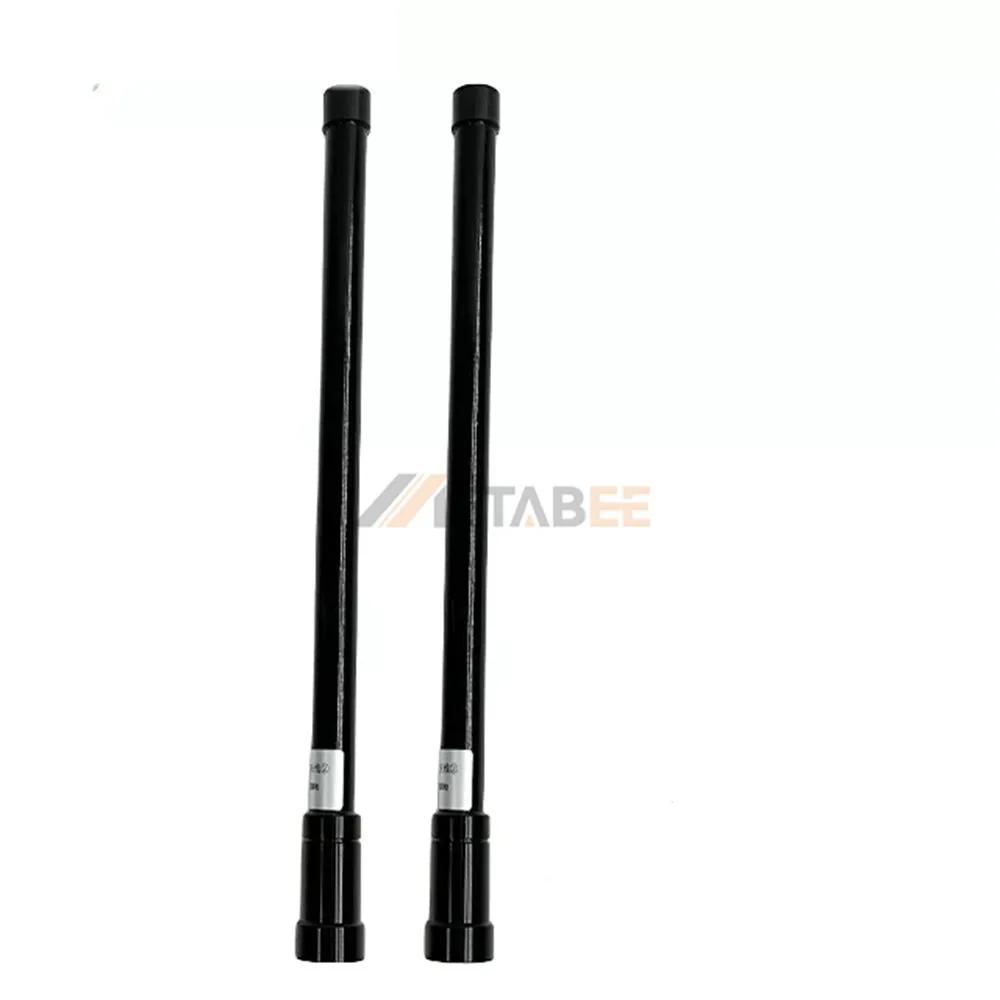

860-930MHz 5dBi Outdoor 4G Fiberglass Antenna, N Male, IP65
Introduction:
The 860–930MHz 5dBi Outdoor 4G fiberglass antenna is engineered for reliable long-range wireless communication across UHF and 4G frequency bands. Covering 860–930MHz, it delivers stable signal transmission with a consistent 5dBi gain and an omni-directional radiation pattern, ensuring uniform 360° coverage. The vertical polarization design enhances signal penetration and minimizes multipath interference, making it ideal for IoT, RFID, and cellular network deployments.
Built with a durable fiberglass radome, this antenna is optimized for harsh outdoor environments. With an IP65-rated enclosure, it provides excellent protection against dust and water ingress. The antenna supports a maximum input power of 50W and maintains efficient performance with a VSWR of ≤1.92 and 50 Ohm impedance. Its wide operating temperature range from -40°C to +85°C and wind survivability up to 60 m/s ensure stable operation in extreme weather conditions. Integrated DC grounding offers reliable lightning protection for enhanced system safety.
Key Features
- Wideband coverage: 860–930MHz for UHF/4G applications
- 5dBi gain with omni-directional 360° signal coverage
- Rugged fiberglass radome with IP65 protection
- Stable performance: VSWR ≤1.92, 50 Ohm impedance
- High durability: -40°C to +85°C, wind resistance up to 60 m/s
- N Male connector with DC grounding for lightning protection
Main Specifications:
General Information:
| Product No.: | YC-FG00040 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 550*20*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 860-930MHz | |
| Gain: | 5±1dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 860-930MHz 5dBi Outdoor 4G Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
