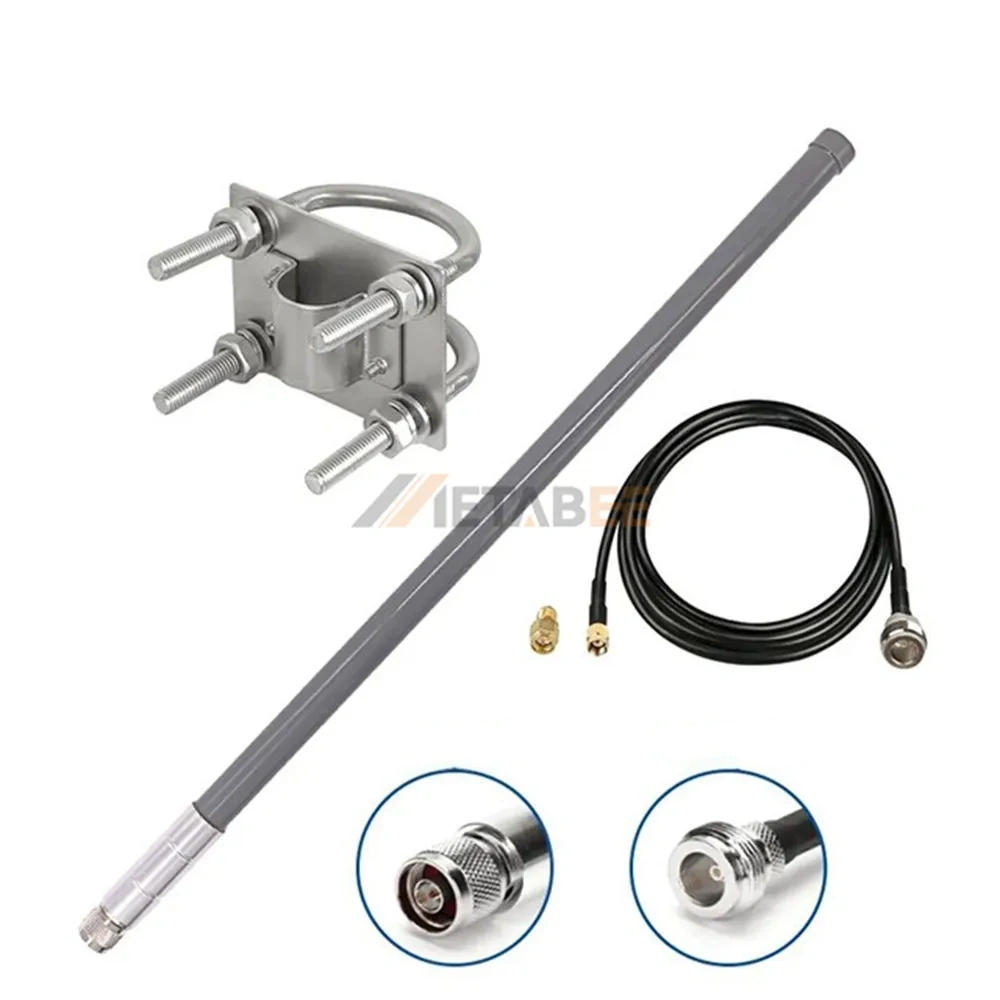

860-930MHz 5dBi Omni-directional GSM Fiberglass Antenna, N Male/Female, IP65
Introduction:
860-930MHz 6dBi omni-directional GSM fiberglass antenna, N Male, IP65 delivers reliable 5dBi gain across the 860–930MHz band. With an omnidirectional pattern and vertical polarization, it ensures consistent 360° coverage for GSM, RFID, and IoT applications. The low VSWR (≤1.92) and 50‑ohm impedance minimize signal loss, while 50W max input power supports stable transmission.
Engineered for harsh outdoor environments, the fiberglass radome meets an IP65 rating, operating from -40°C to 85°C. It withstands 60 m/s wind and includes DC grounding for lightning protection. The N Male connector provides a secure, low-loss interface for professional installations.
Key Features
- 860–930MHz band – Optimized for GSM, RFID, and IoT.
- 5dBi gain – Balanced coverage and range.
- Omnidirectional pattern – 360° signal without aiming.
- IP65 fiberglass – Weatherproof, -40°C to 85°C, 60 m/s wind.
- DC grounding – Built-in lightning protection.
- N Male / Female connector – Secure, low-loss RF interface.
Main Specifications:
General Information:
| Product No.: | YC-FG00020 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male/Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 450*20*20mm | |
| Color: | Customized | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 860-930MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas

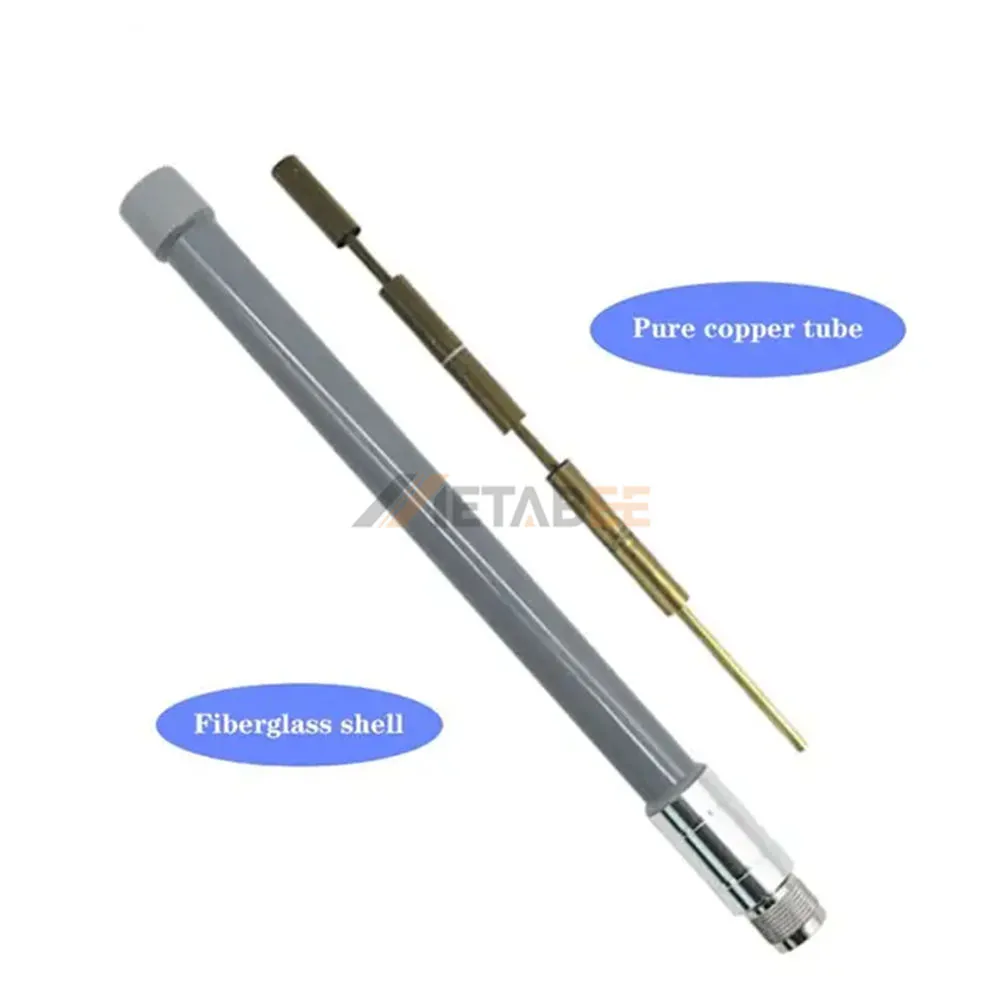

Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 860-930MHz 5dBi Omni-directional GSM Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
