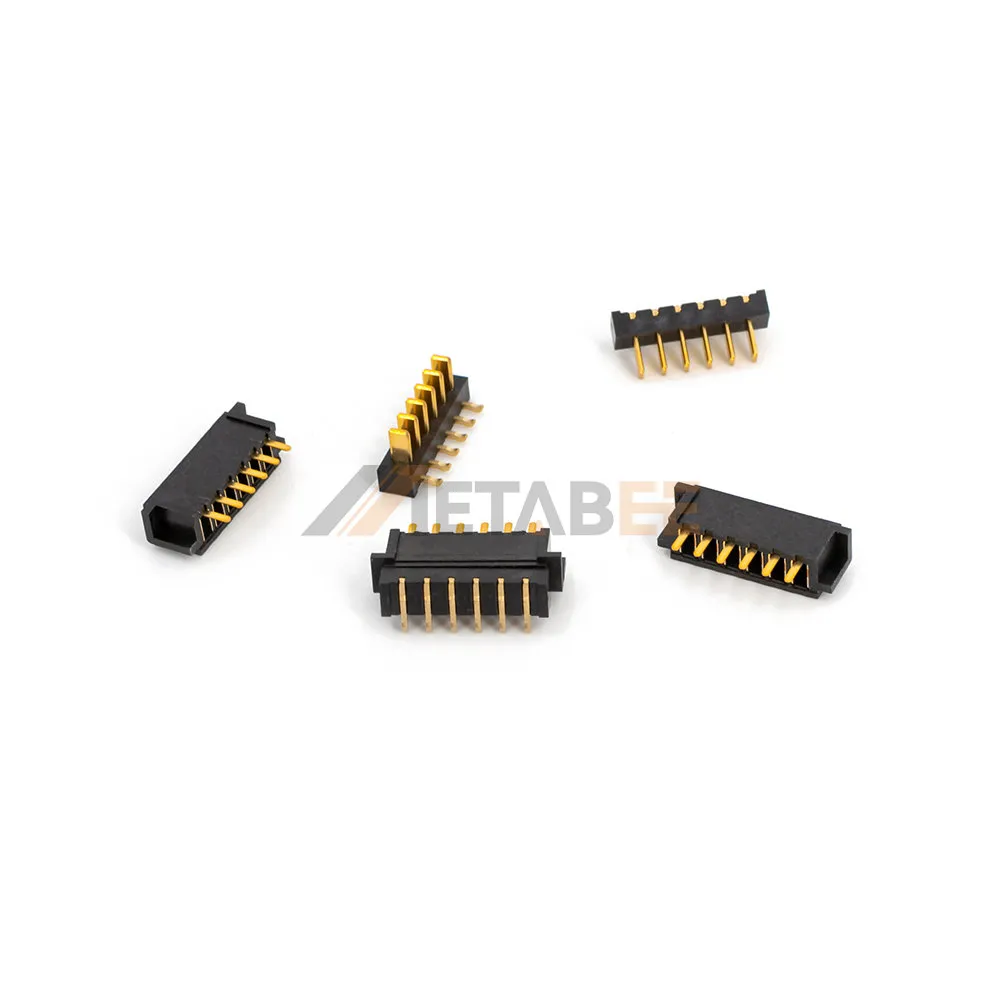

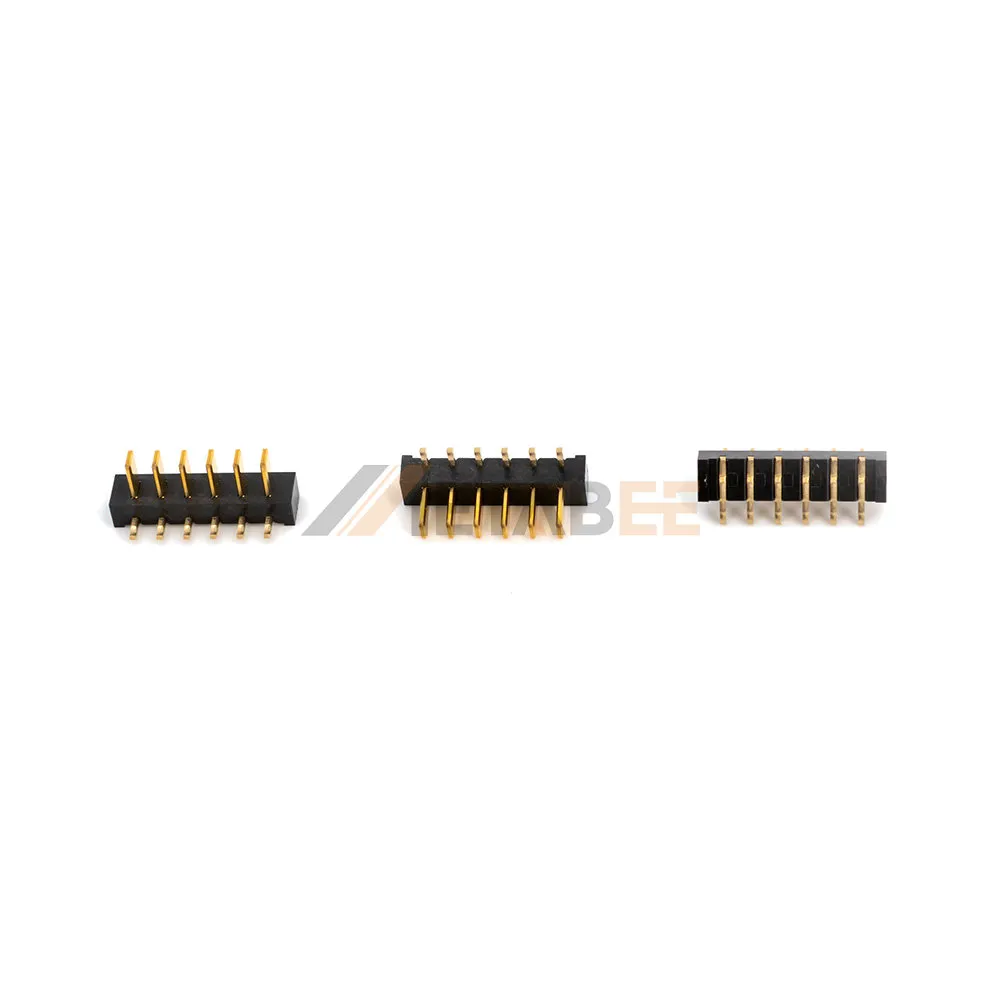

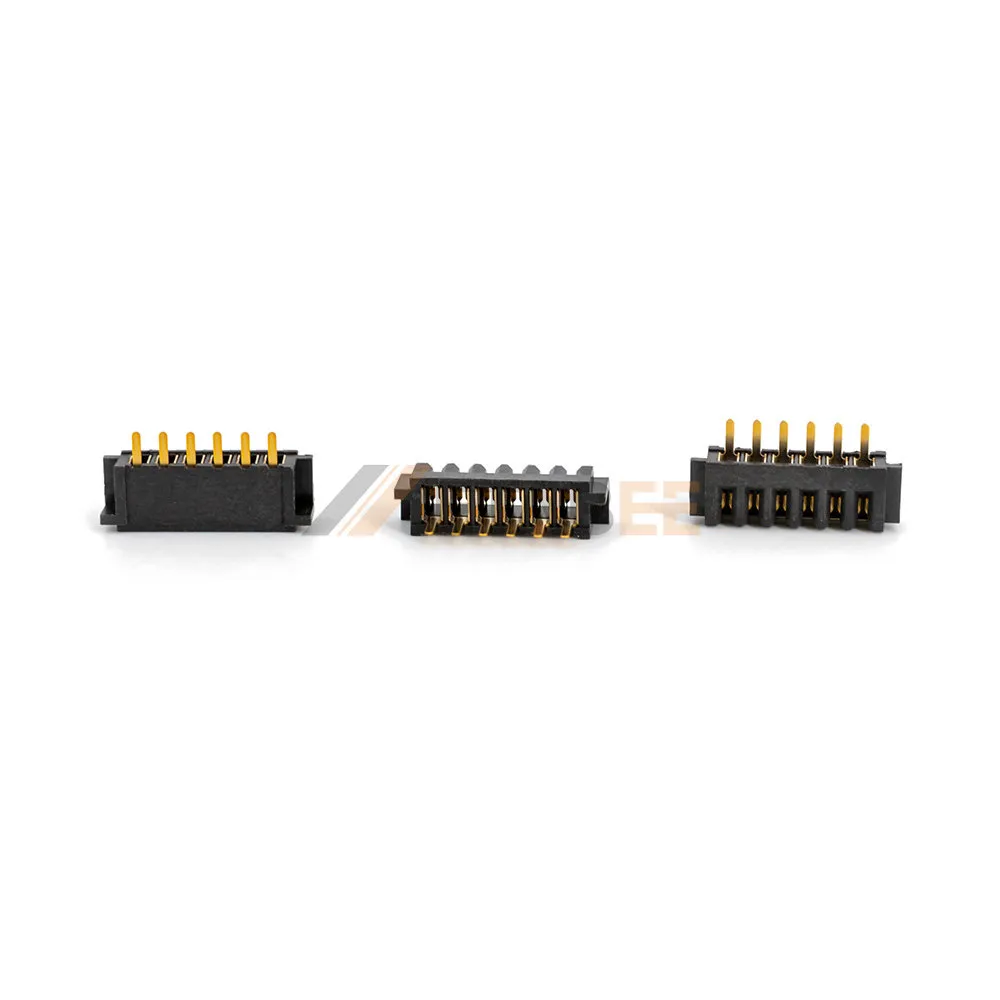

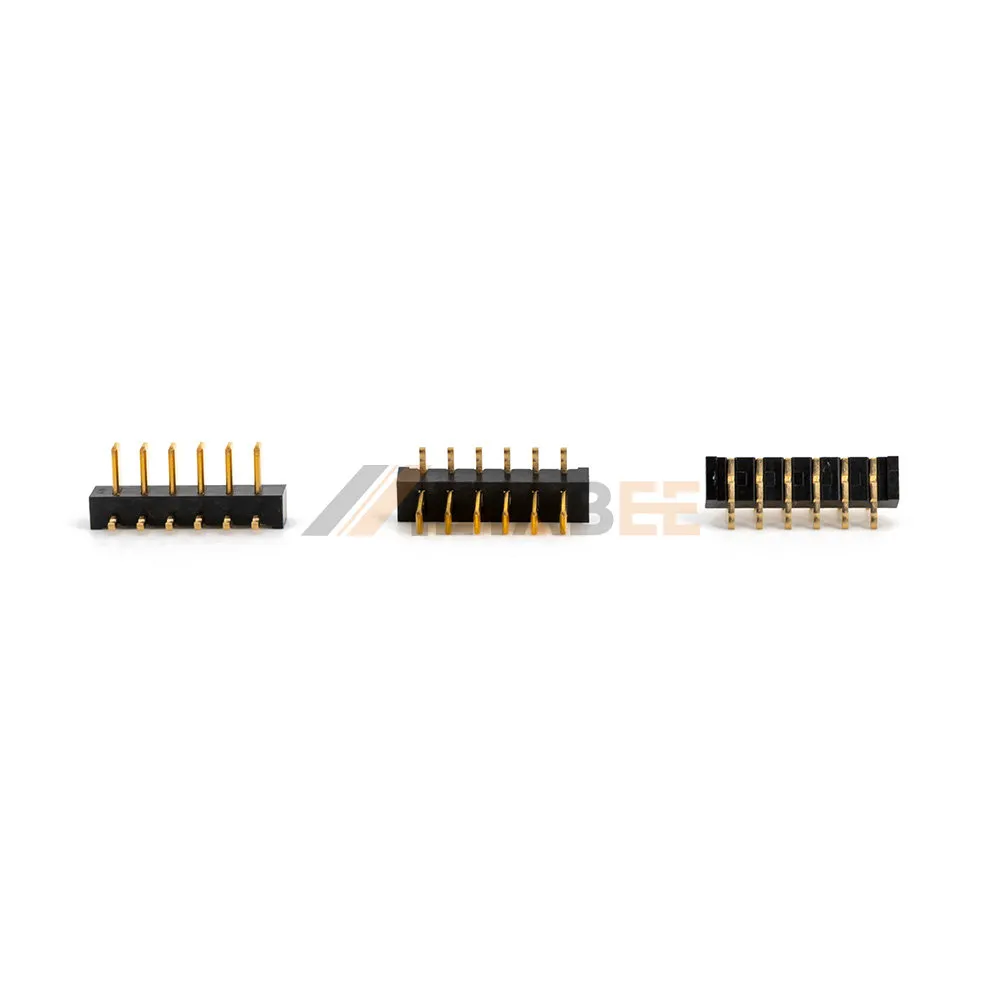

6P Blade Battery Connector for Laptop, PCB Mount, Through Hole, 2.5mm Pitch
Introduction:
Our 6P Blade Battery Connector is the ideal solution for reliable power connections in modern laptops. Engineered for durability and high performance, this connector features a robust design that ensures a stable and secure link between the battery and the main circuit board. The through-hole and PCB mount design allows for easy and secure installation on your circuit board, while the 2.5mm pitch ensures compatibility with standard layouts. This connector is perfect for manufacturers seeking a high-quality, long-lasting component that can withstand the demands of daily use.
Features:
- Secure, through-hole PCB mount design
- Durable for reliable power connection
- 5mm pitch for easy integration
- Ideal for laptop battery applications
- Ensures stable and secure power flow
Main Specifications:
| Part Number: | YC-B01MF-A-6P-R4S2 | |
| Product Type: | Blade Battery Connector | |
| Pitch: | 2.5 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Phosphor Bronze C5191 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Current Rating: | 7A | |
| Voltage Rating: | 30V AC | |
| Insulation Resistance: | 100 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -40℃ to +105℃ | |
| Durability: | 5000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 6P Blade Battery Connector
Some common applications of blade-type laptop battery connectors include:
- Standard and Ultrathin Laptops
- Gaming Laptops
- 2-in-1 Devices and Convertibles
- Custom-Built Laptops and Mini PCs
