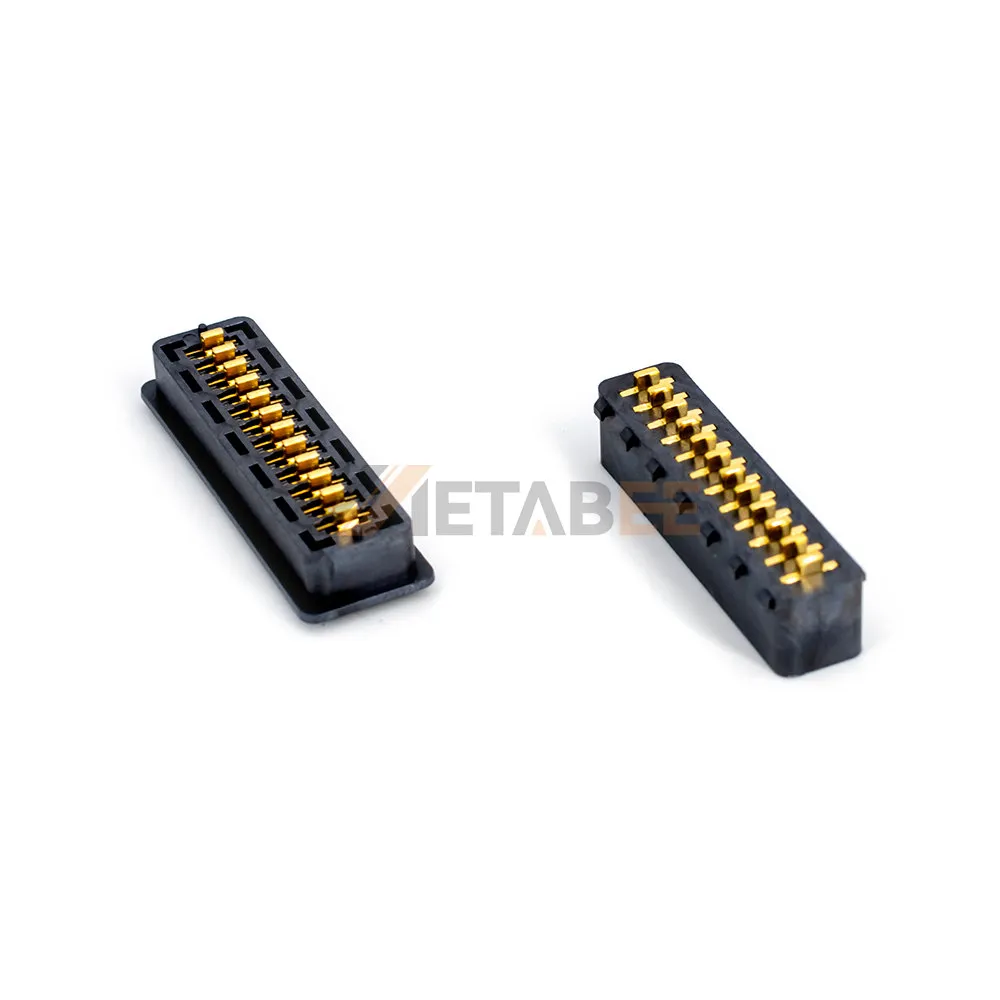

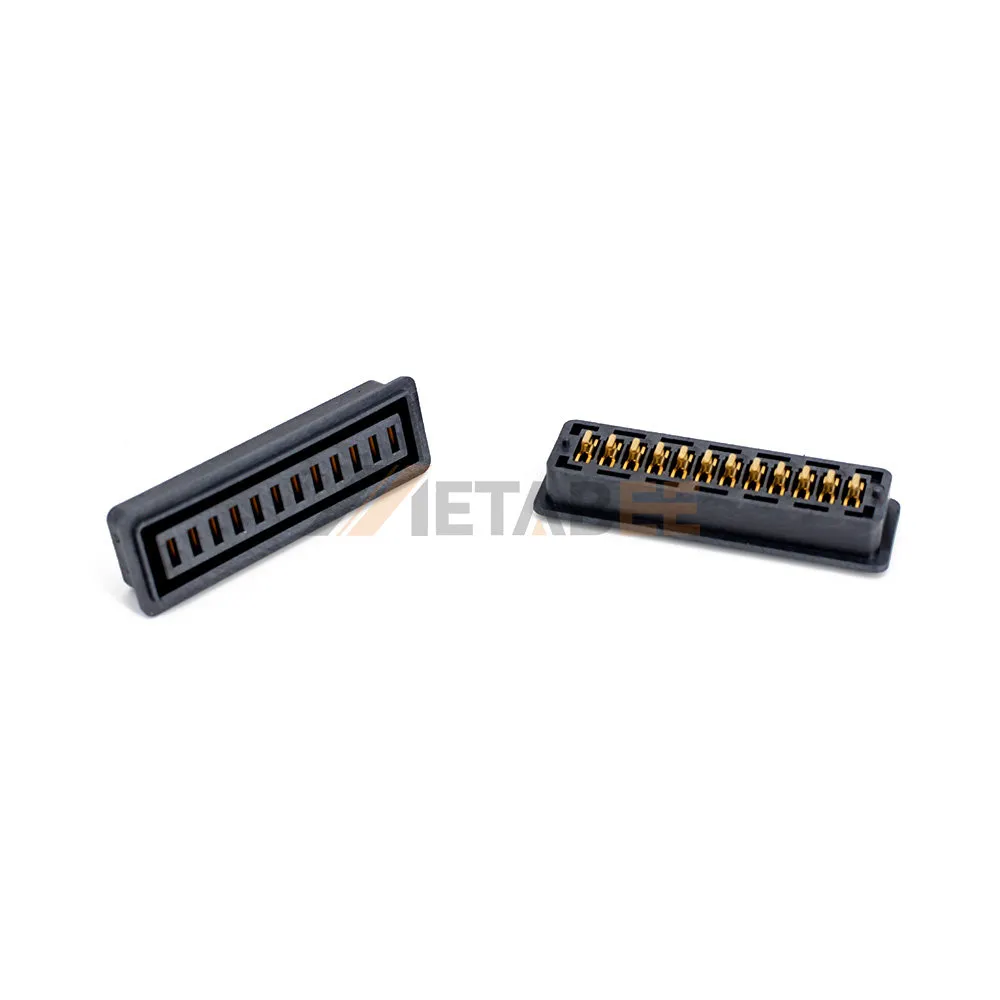

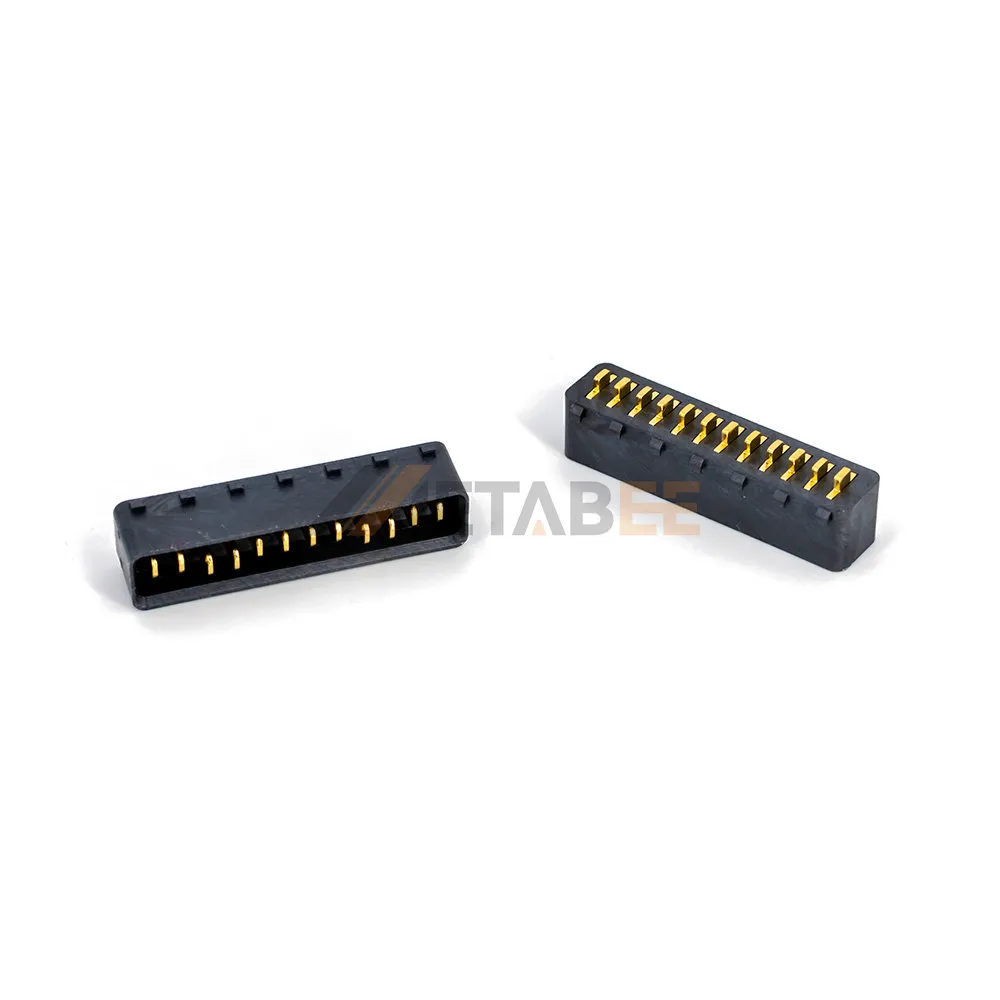

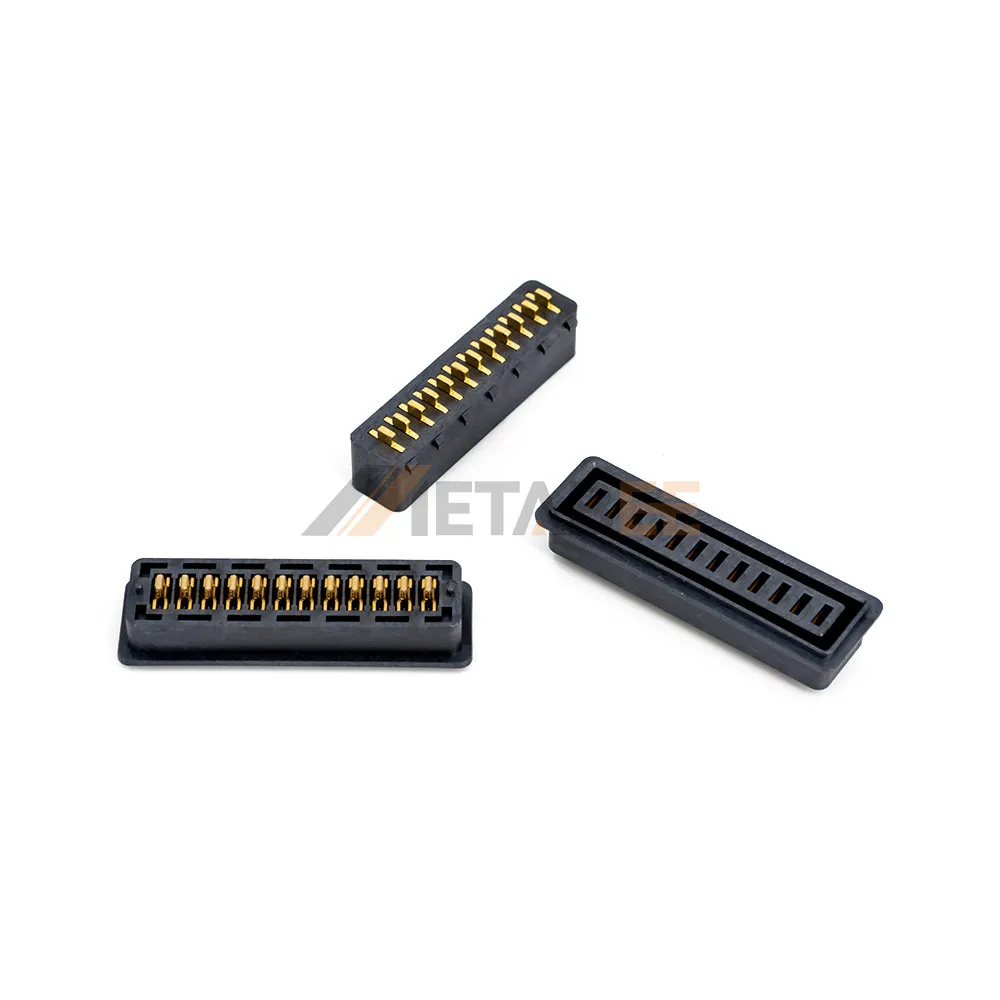

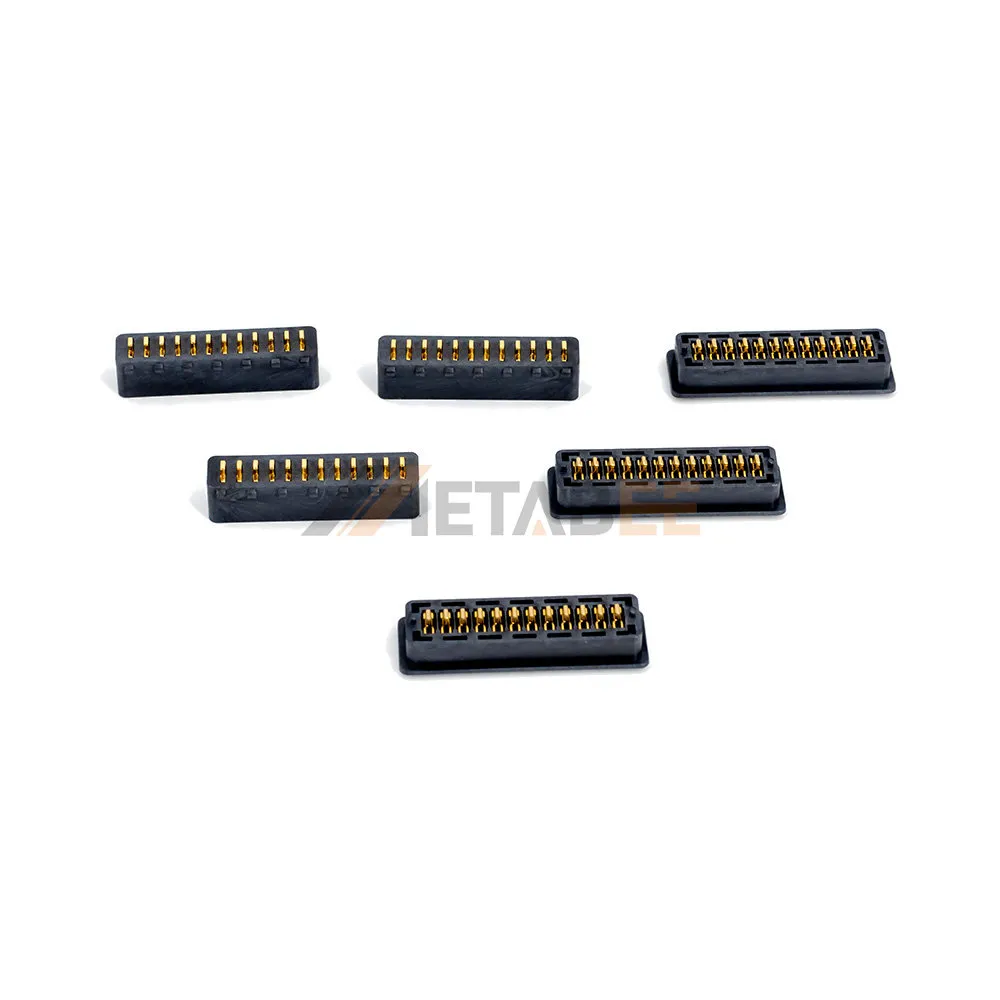

12P Blade Battery Connector for Drone, PCB Mount, SMT, 2.7mm Pitch
Introduction:
This 12-pin Blade Battery Connector is engineered for high-performance drone applications. Featuring a PCB mount and SMT (Surface Mount Technology) design, it ensures a secure and low-profile connection. With a 2.7mm pitch, this connector provides a compact solution without compromising on reliability. Its robust construction is ideal for handling the demands of drone flight, offering stable power transmission and quick, reliable connections for your battery systems. Perfect for professional drone builders seeking superior quality and performance.
Features:
- 12-pin for versatile power and signal.
- PCB mount and SMT for compact design.
- 7mm pitch provides a space-saving solution.
- Secure, reliable connection for drone batteries.
- Engineered for durability in demanding applications.
Main Specifications:
| Part Number: | YC-TB50.51.55 | |
| Product Type: | Blade Battery Connector | |
| Pitch: | 2.7 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Phosphor Bronze C5191 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | SMT | |
| Current Rating: | 15A per Pin | |
| Voltage Rating: | 12V AC | |
| Insulation Resistance: | 100 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -40℃ to +105℃ | |
| Durability: | 5000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 12P Blade Battery Connector for Drone
Some common applications of blade-type laptop battery connectors include:
- Standard and Ultrathin Laptops
- Gaming Laptops
- 2-in-1 Devices and Convertibles
- Custom-Built Laptops and Mini PCs
