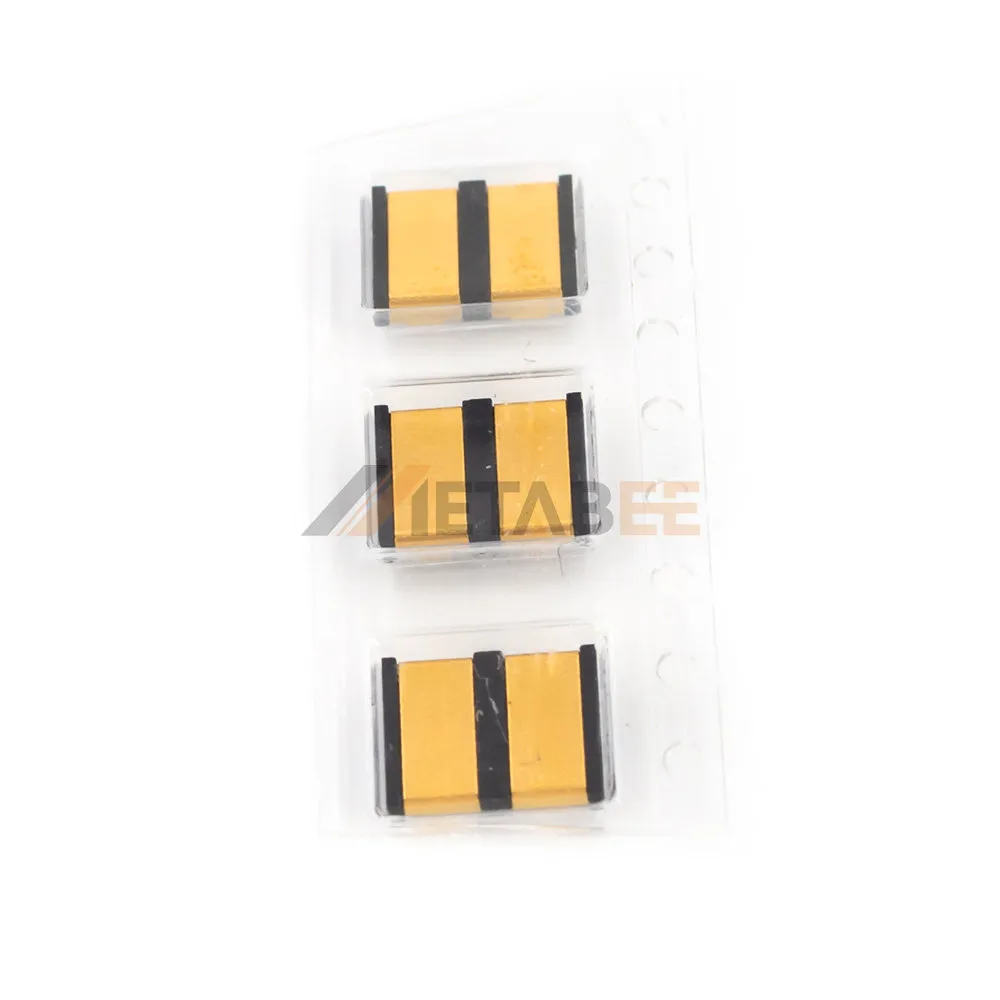

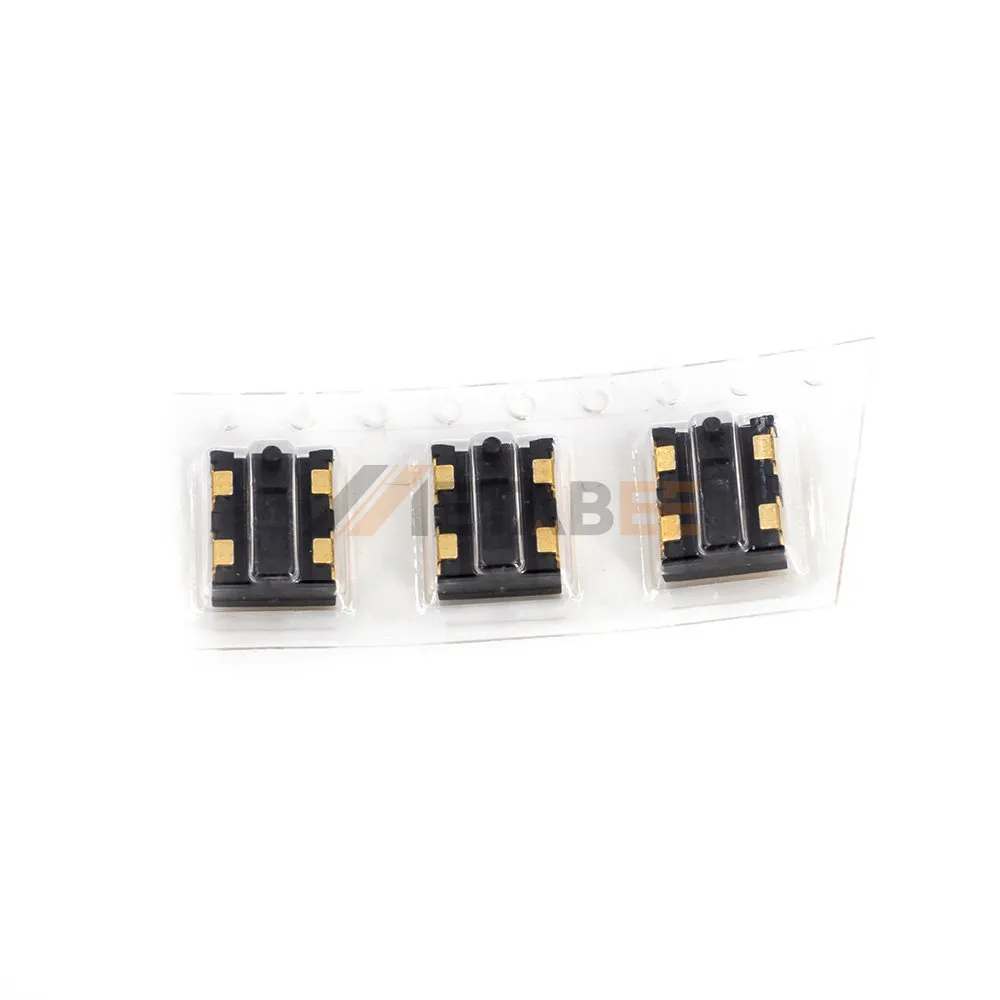

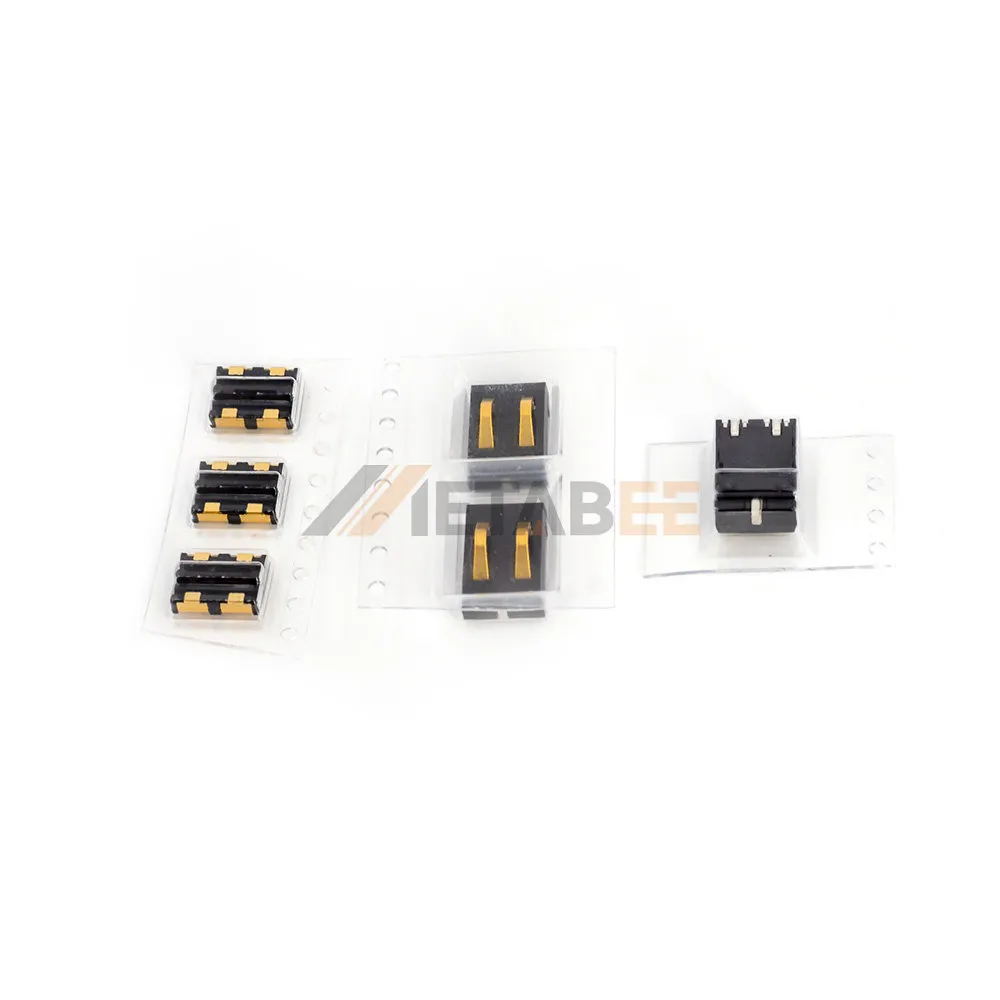

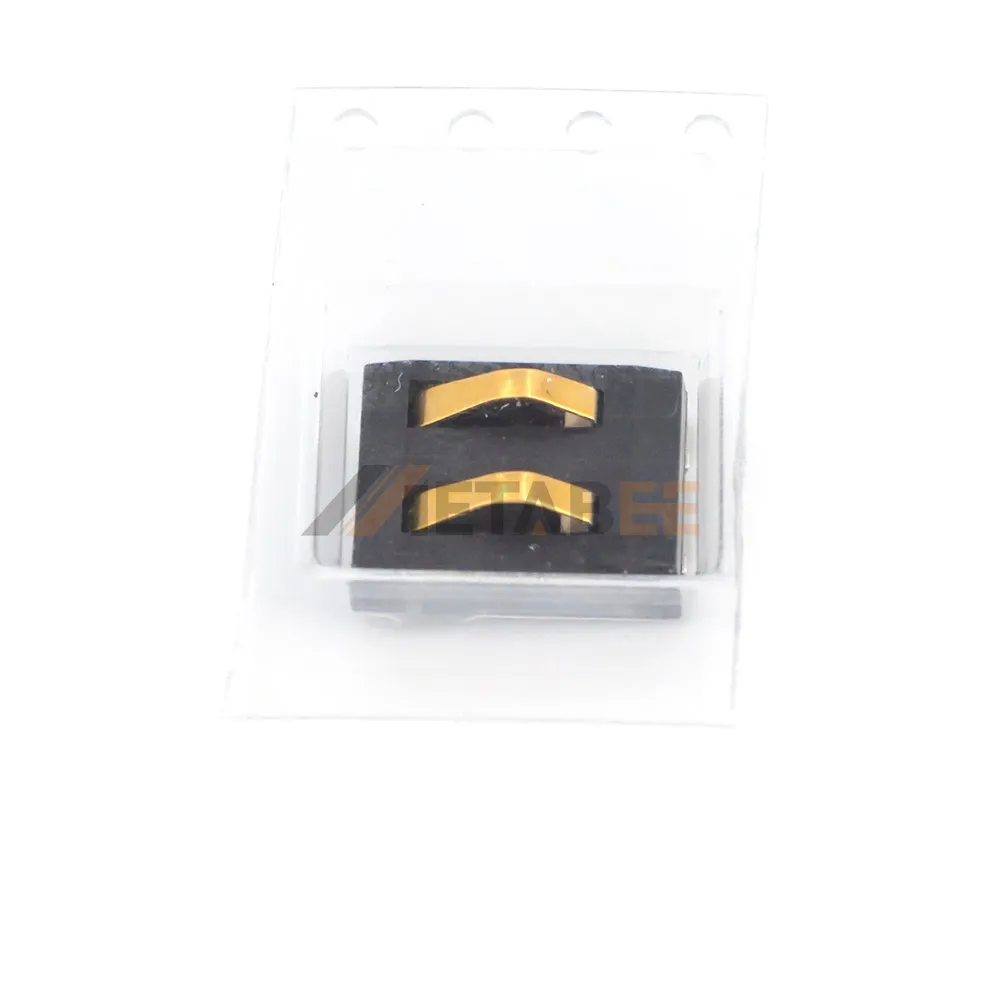

2P Spring Loaded Battery Connector for PCB Mount, SMT, 4.0mm Pitch
Introduction:
Designed for efficiency and reliability, this 2P spring-loaded battery connector is a perfect solution for secure power connections on your PCB. The SMT (Surface Mount Technology) design allows for easy, high-speed automated assembly, saving you valuable production time. With a 4.0mm pitch, it ensures stable and precise alignment. The spring-loaded contacts provide a strong and consistent connection, making it ideal for devices that require frequent battery changes. This connector is engineered to deliver dependable performance in a compact, durable package.
Features:
- Reliable spring-loaded connection for stable power.
- SMT design for fast, automated PCB assembly.
- Compact, durable, and vibration-resistant.
- 0mm pitch ensures precise alignment.
- Ideal for devices with frequent battery changes.
Main Specifications:
| Part Number: | YC-2P-4.0PH-5.65H-1.9H | |
| Product Type: | Spring Battery Connector | |
| Pitch: | 4.0 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Brass C2680 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | SMT | |
| Current Rating: | 5A | |
| Voltage Rating: | 30V | |
| Insulation Resistance: | 500 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -55℃ to +125℃ | |
| Durability: | 10000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 2P Spring Loaded Battery Connector
Here are a few applications for a spring mobile battery connector:
- Smartphones and Tablets
- Wearable Devices
- Medical Devices
- Consumer Electronics
