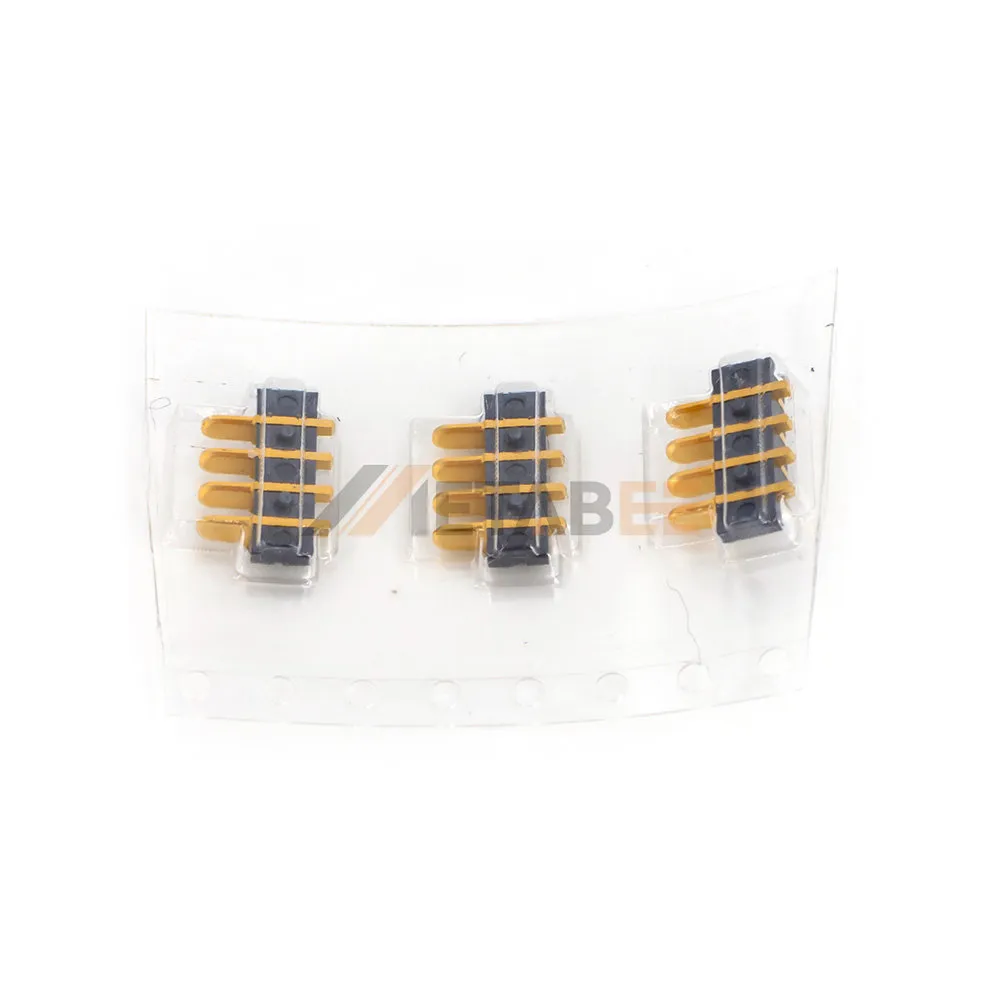

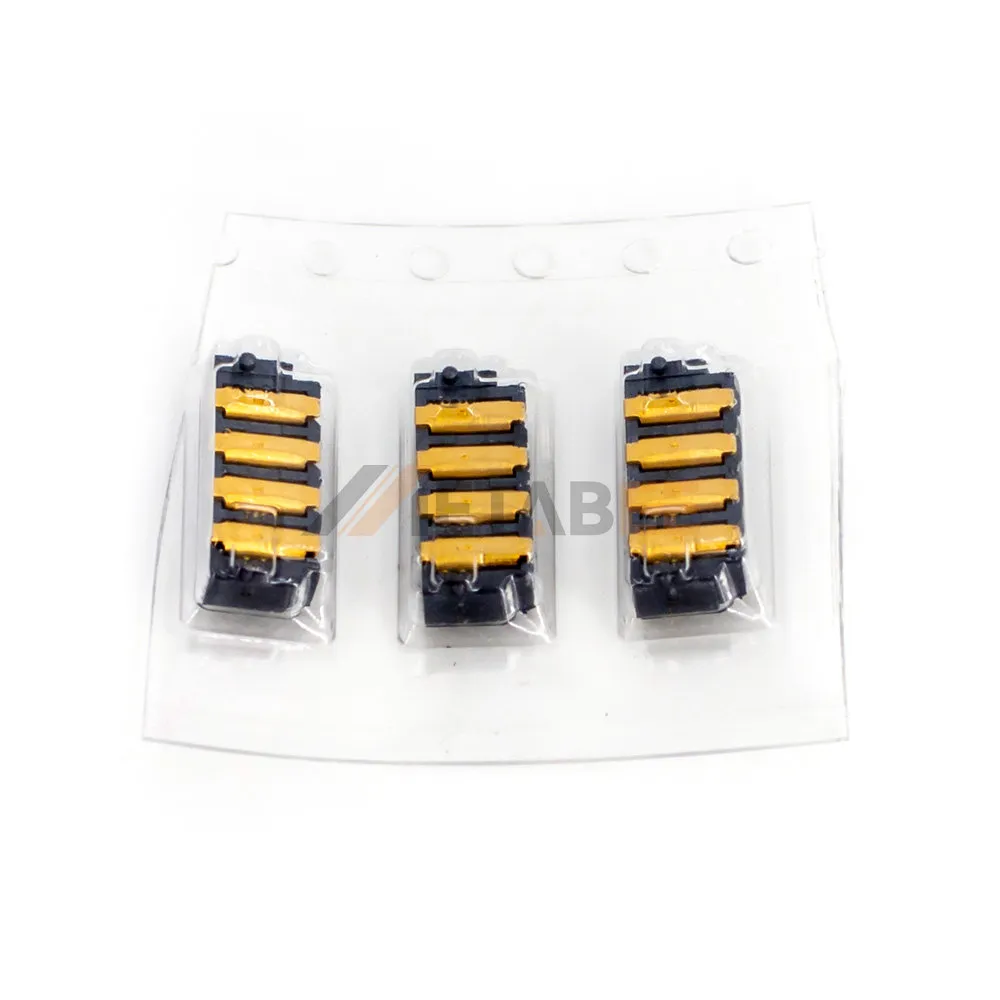

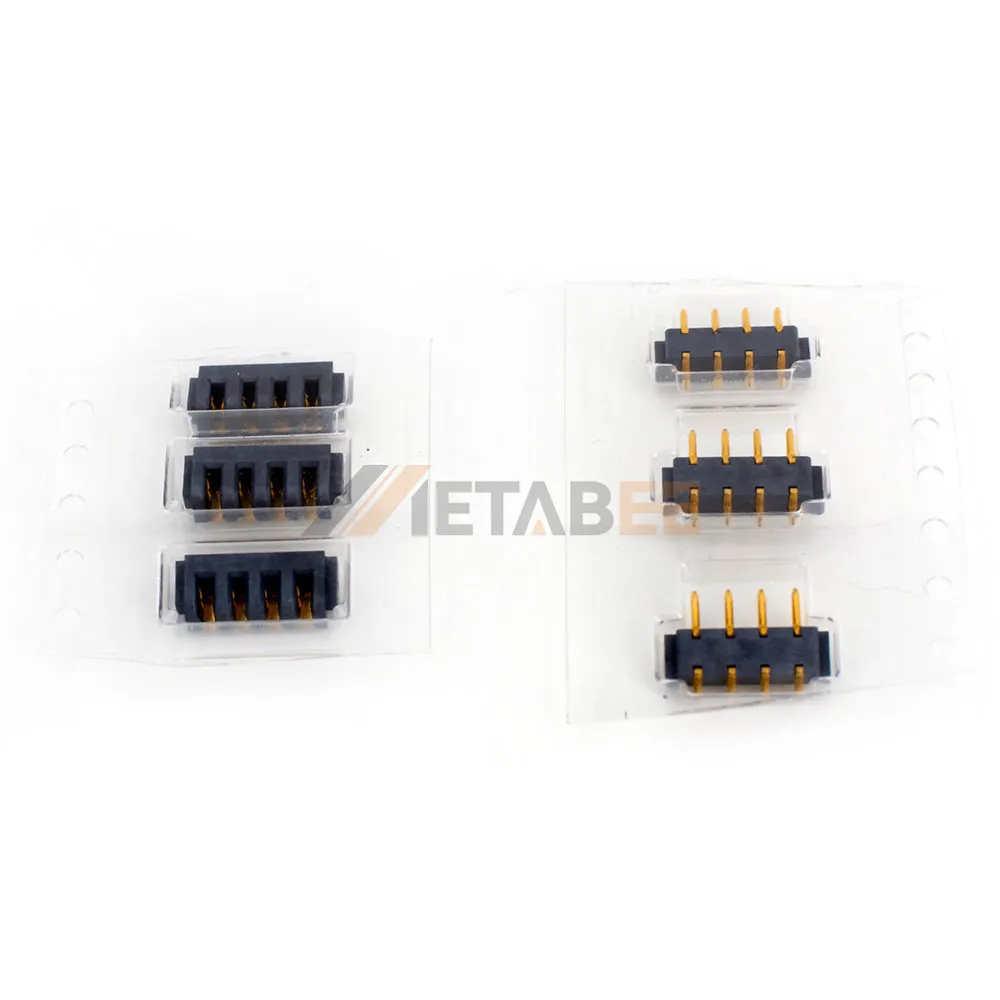

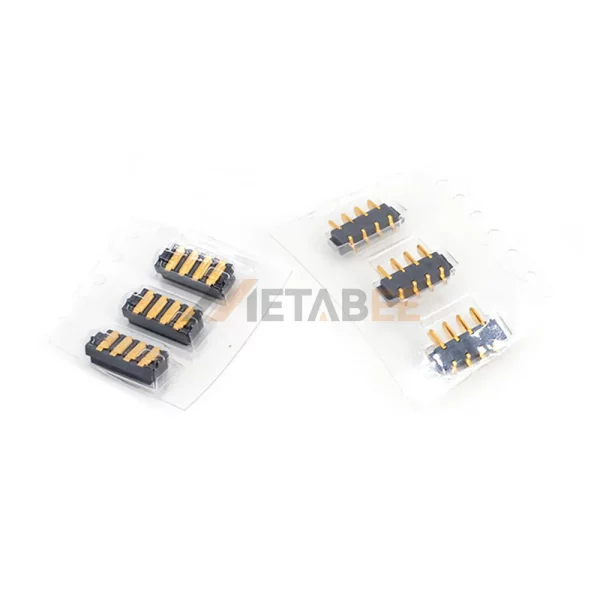

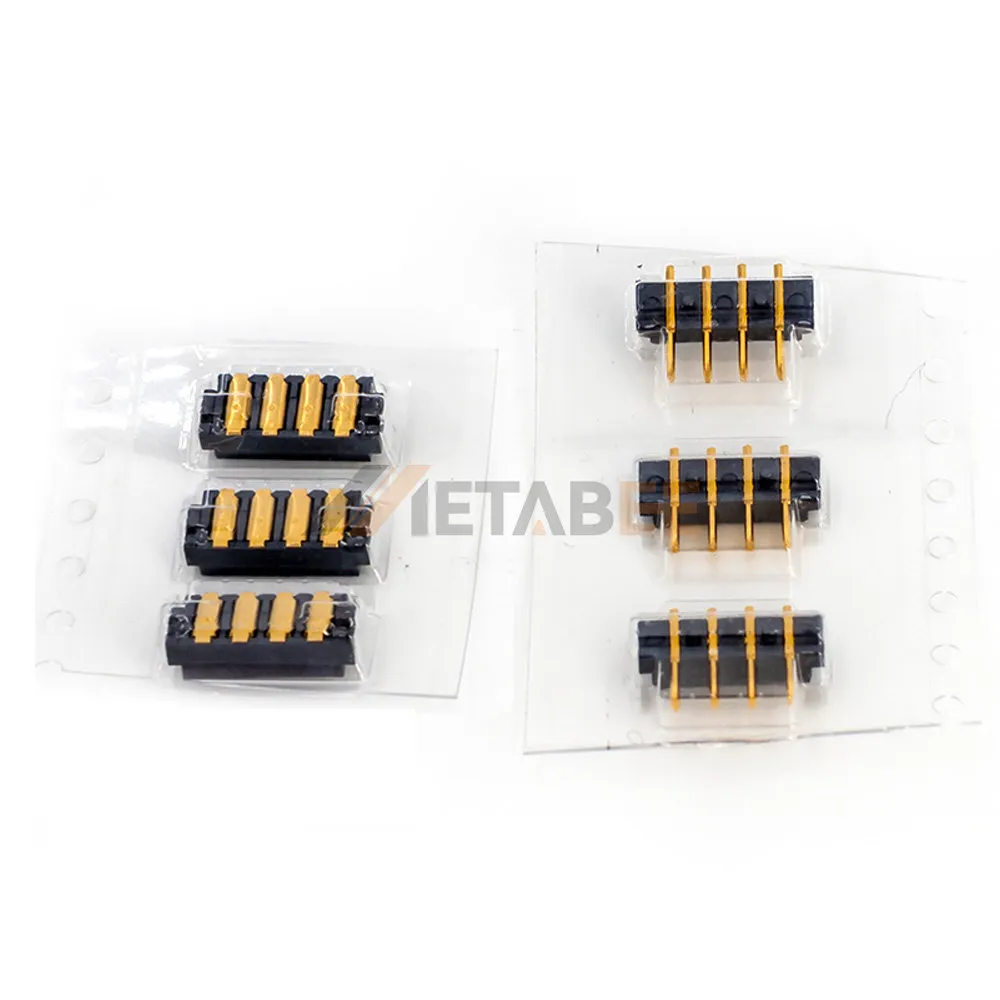

4P Battery Terminal Blade Connector for Laptop, PCB Mount, Through Hole, 2.0mm Pitch
Introduction:
Experience reliable and efficient power transfer with our 4P Battery Terminal Blade Connector. This compact connector is specifically designed for laptop and PCB applications, ensuring a secure and stable connection. Featuring a through-hole mounting style for superior mechanical strength and a 2.0mm pitch for space-constrained designs, this connector is an ideal choice for a variety of electronic devices. Made from high-quality materials, it guarantees durability and long-lasting performance.
Features:
- Secure 4P battery connection
- Ideal for laptop and PCB applications
- Reliable through-hole mounting
- 0mm pitch for compact designs
- Durable and long-lasting performance
Main Specifications:
| Part Number: | YC-A00MF-A-4P-WT | |
| Product Type: | Blade Battery Connector | |
| Pitch: | 2.0 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Phosphor Bronze C5191 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Current Rating: | 7A | |
| Voltage Rating: | 30V AC | |
| Insulation Resistance: | 100 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -25℃ to +80℃ | |
| Durability: | 5000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 4P Battery Terminal Blade Connector
Some common applications of blade-type laptop battery connectors include:
- Standard and Ultrathin Laptops
- Gaming Laptops
- 2-in-1 Devices and Convertibles
- Custom-Built Laptops and Mini PCs
