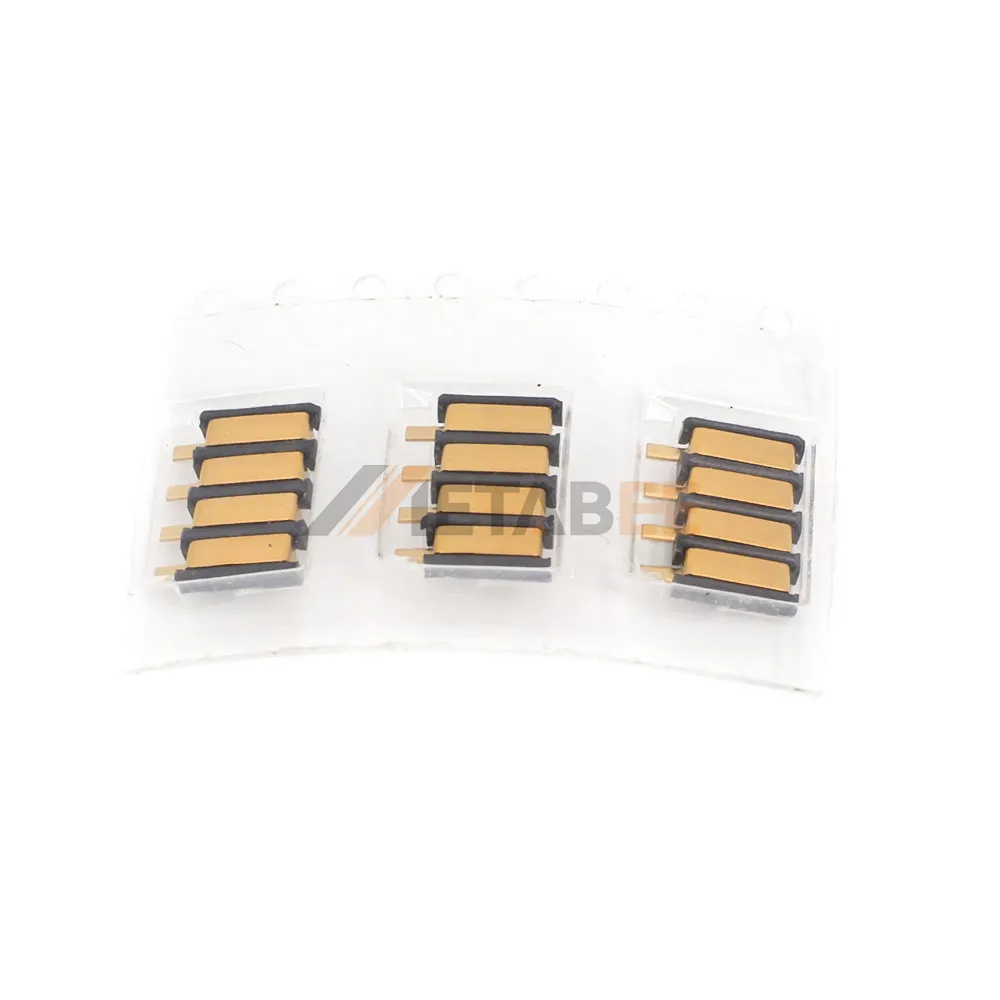

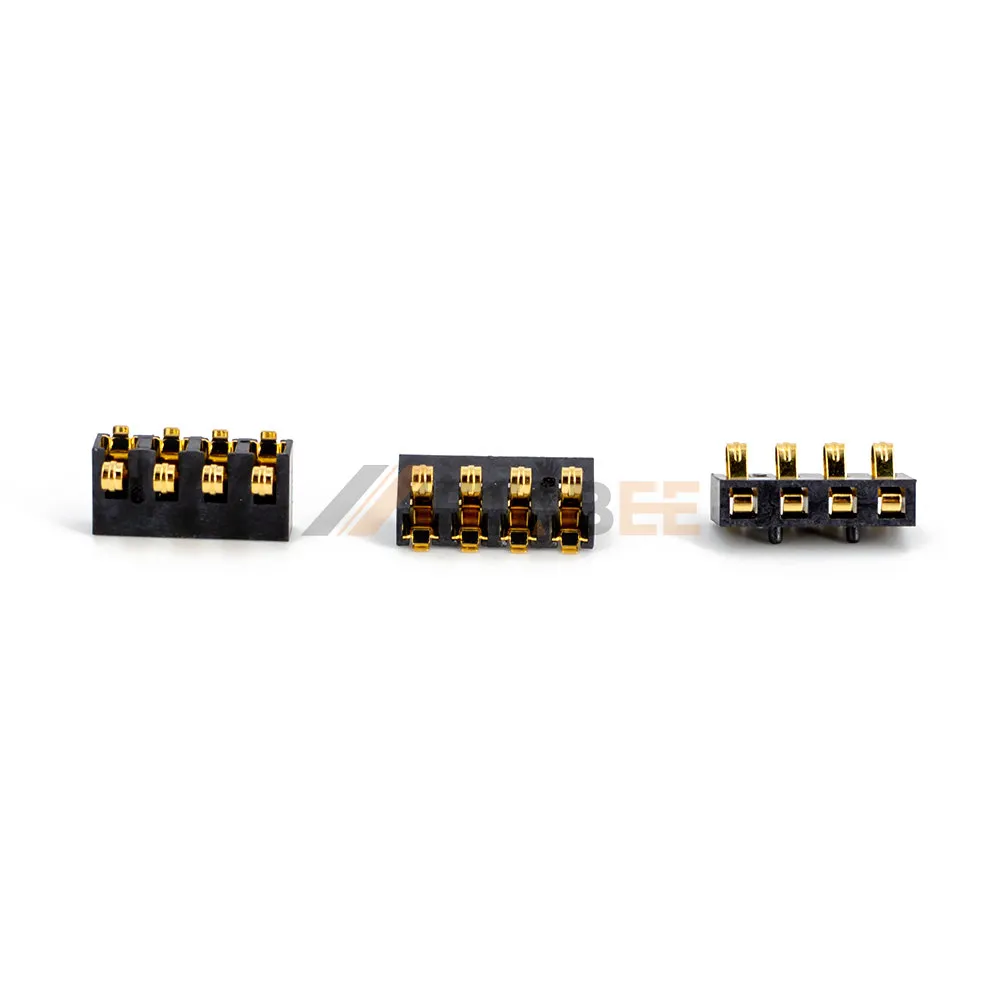

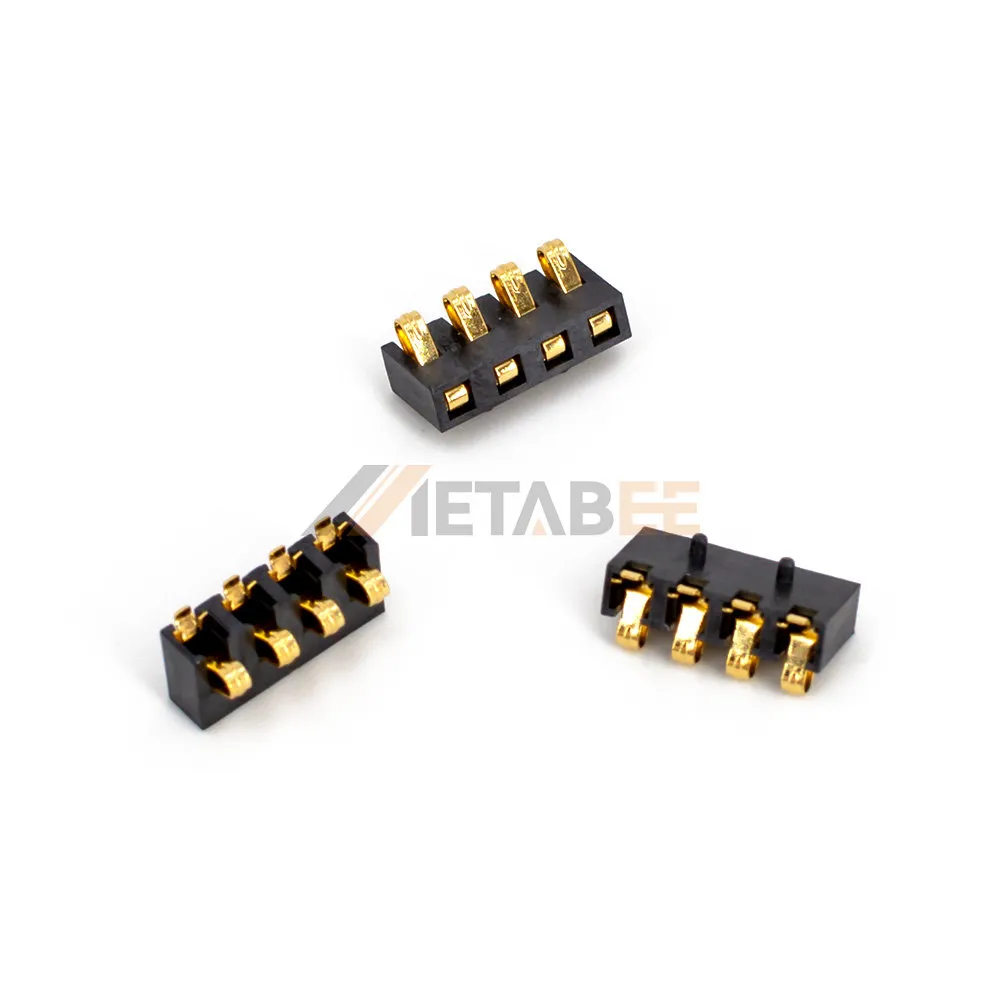

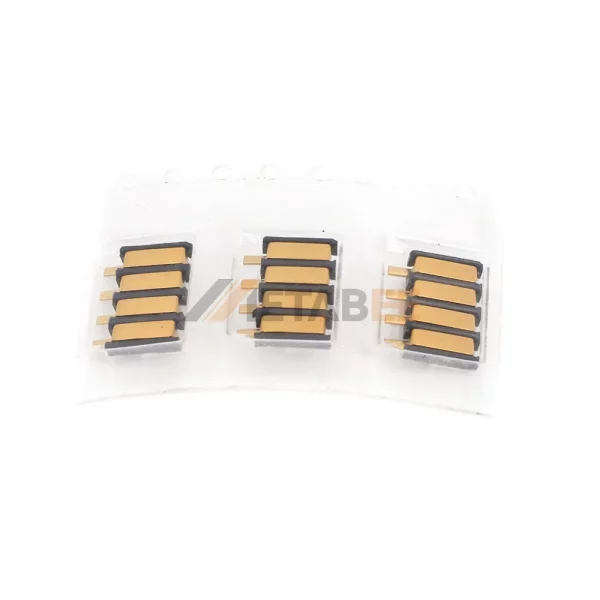

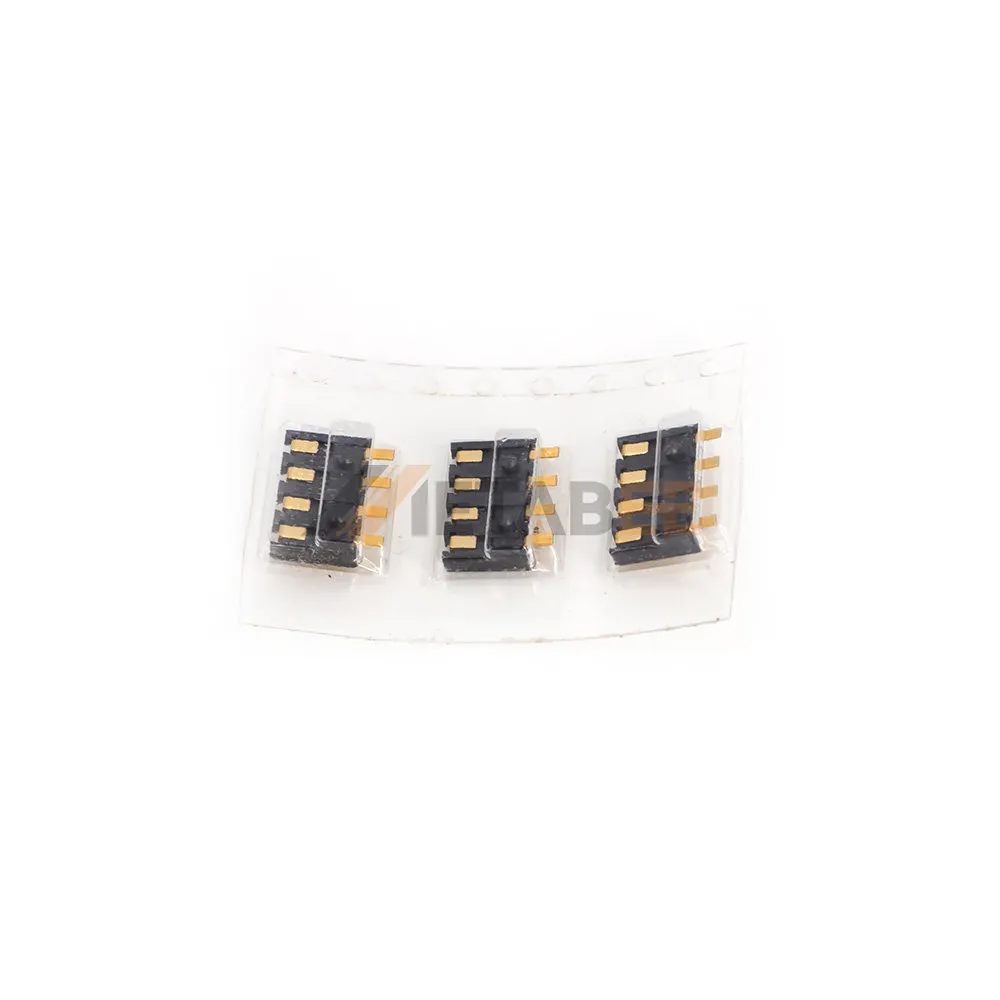

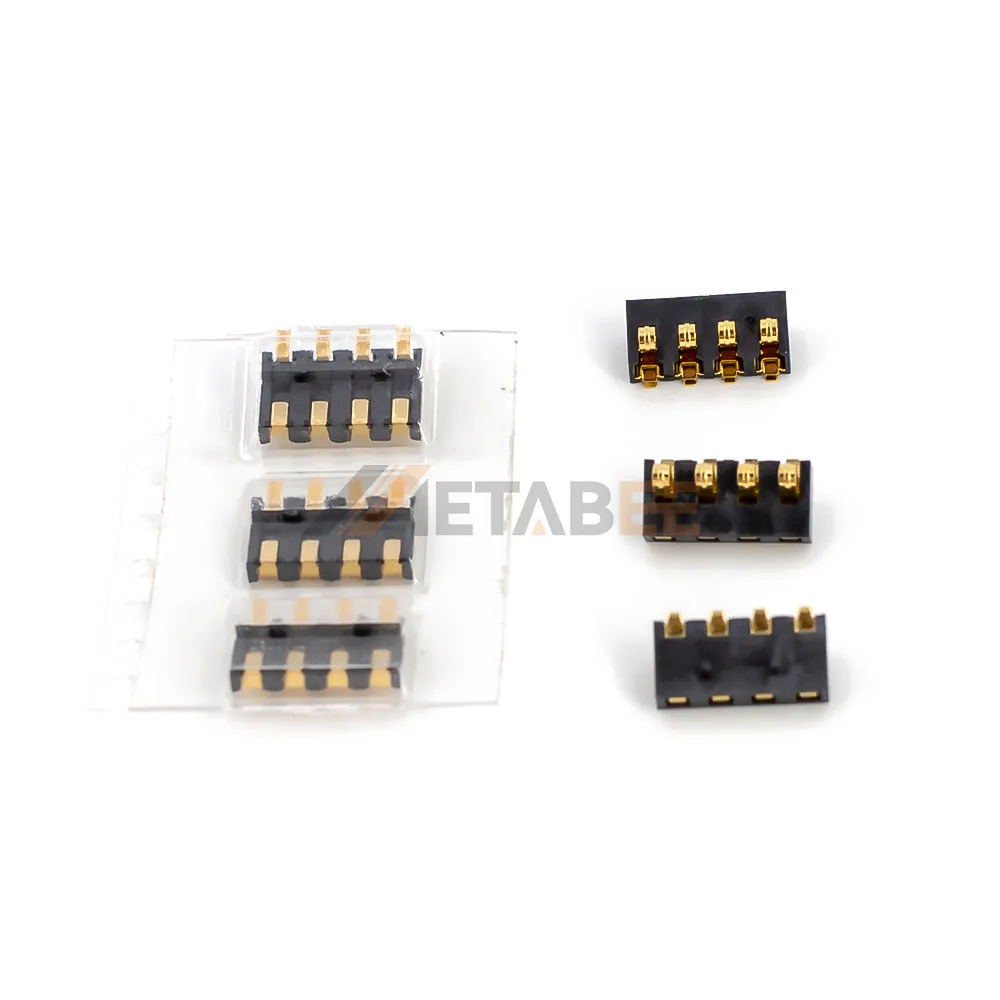

4P Spring Type Battery Connector for Mobile Phone, PCB Mount, SMT, 2.5mm Pitch
Introduction:
This 4-pin spring-type battery connector is the ideal solution for reliable power connections in mobile phones and other compact electronic devices. Engineered for seamless integration, it features a PCB surface mount technology (SMT) design with a 2.5mm pitch, ensuring a stable and secure connection. The spring-loaded contacts provide excellent vibration resistance and tolerance for minor misalignments, while the durable construction guarantees long-term performance. Its compact size and robust design make it perfect for space-constrained applications.
Features:
- Reliable spring-loaded contact design.
- Surface mount (SMT) for easy installation.
- Durable, compact, and lightweight.
- Ideal for mobile phone applications.
- Secure, stable 2.5mm pitch connection.
Main Specifications:
| Part Number: | YC-4P-2.5PH-4.3-1.6H | |
| Product Type: | Spring Battery Connector | |
| Pitch: | 2.5 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Brass C2680 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | SMT | |
| Current Rating: | 5A | |
| Voltage Rating: | 60V | |
| Insulation Resistance: | 500 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -40℃ to +105℃ | |
| Durability: | 5000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 4P Spring Type Battery Connector
Here are a few applications for a spring mobile battery connector:
- Smartphones and Tablets
- Wearable Devices
- Medical Devices
- Consumer Electronics
