Introduction:
This 4 pin magnetic pogo connector is a straight male terminal featuring a rectangular housing with a 2.50mm pitch for modular board-to-board docking. It is engineered with gold-plated brass contacts to handle a 2A current at 12V DC while maintaining a maximum contact resistance of 30 mohms. The assembly utilizes an integrated magnetic force for automatic self-alignment, ensuring the plungers center precisely on the target mating pads. With a 0.6mm working stroke and a robust 120gf spring force, it maintains consistent electrical conductivity across 30,000 mechanical cycles. This component serves as a durable power and signal link for handheld industrial devices and smart wearables in environments from -30°C to +85°C.
Key Features
- Magnetic Alignment: Self-aligning rectangular head ensures secure effortless docking.
- Standard Pitch: 2.50mm pitch 4-pin layout facilitates precise board integration.
- Power Rating: Supports 2A maximum current for stable 12V DC charging.
- Stable Force: High 120gf spring force ensures reliable electrical contact.
- Durable Plating: 5u” Gold plated finish maintains low contact resistance.
Main Specifications:
General Information:
| Product No.: | PH1-C25355-04-MVP-2635 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 4 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.5mm | |
| Working Stroke (mm): | 0.6mm@120gf max | |
| Life Test: | 30,000 Cycles min |
Electrical:
| Rated Current: | 2A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | PA46 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

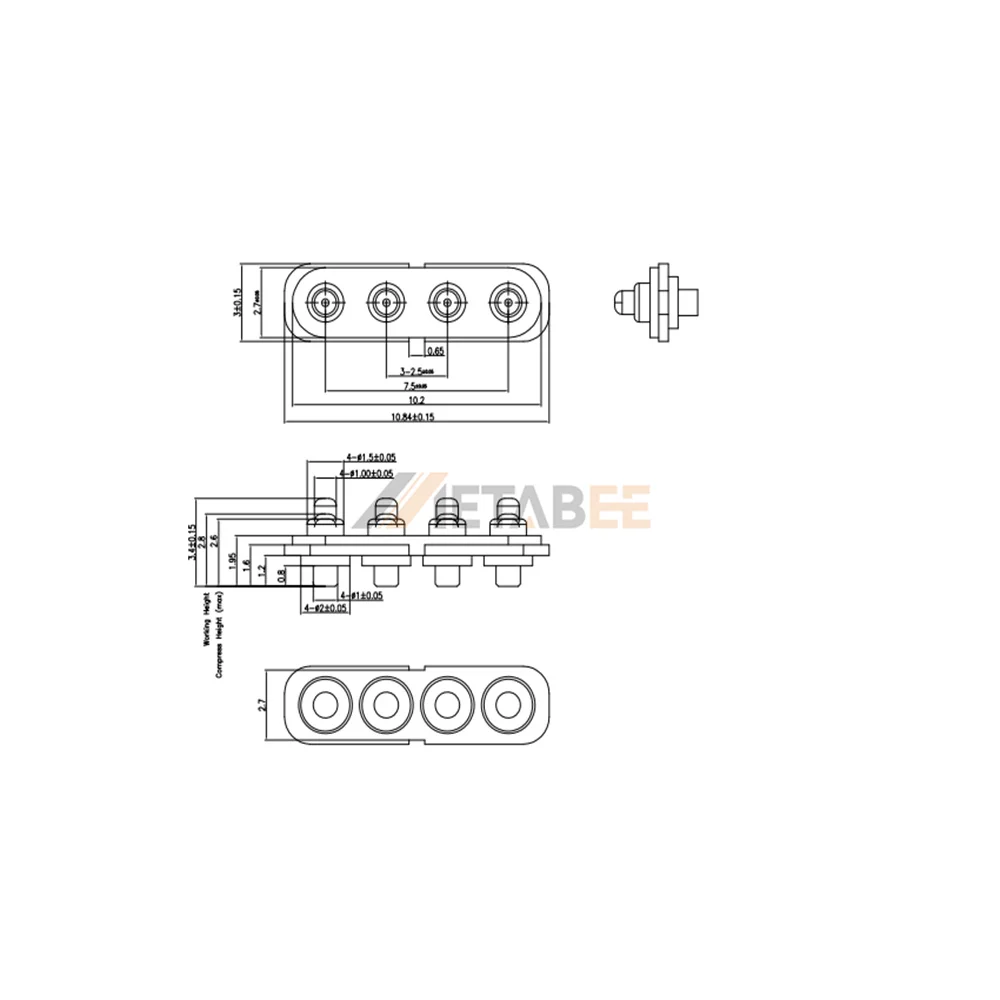

Structure of Magnetic Pogo Pin Connector
