Introduction:
Available in 2, 3, 4, and 5-pin configurations, this straight rectangular magnetic pogo pin connector delivers a versatile interface for 3A/12V DC power and signal transmission. Built with a standard 2.54 mm pitch, it integrates easily onto printed circuit boards with simple trace routing. Strong N52 NdFeB magnets with multi-layer Ni-Cu-Ni plating guide automatic polarized alignment, preventing reverse insertion and mechanical wear. The 5u” gold-plated contacts ensure low electrical resistance under 50 mΩ, while the heat-resistant HTN insulator withstands high assembly temperatures. Featuring clean magnetic breakaway detachment against cable snags, it serves as a dependable charging and data port for smart wearables, medical tools, and handheld devices.
Key Features
- N52 Magnetic Alignment: High-grade NdFeB magnets ensure fast, polarized auto-docking.
- 3A / 12V DC Rating: Supports high-current fast charging and steady signal transfer.
- 2.54mm Standard Pitch: Simplifies board-level routing across 2 to 5 pins.
- 5u” Gold Plating: Guarantees low contact resistance under 50 mΩ.
- High-Temperature HTN: Heat-resistant insulator withstands demanding wave and reflow soldering.
Main Specifications:
General Information:
| Product No.: | PH1-3L-02-FVMP-4560, PH1-3L-03-FVMP-4560, PH1-3L-04-FVMP-4560, PH1-3L-05-FVMP-4560 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 2/3/4/5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 3A max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | LCP | |
| Insulator Color: | Black | |
| Contact Material: | N/A | |
| contact plating: | N/A | |
| Spring Material: | N/A | |
| Magnet: | N52 NdFeB, Ni-Cu-Ni plated |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

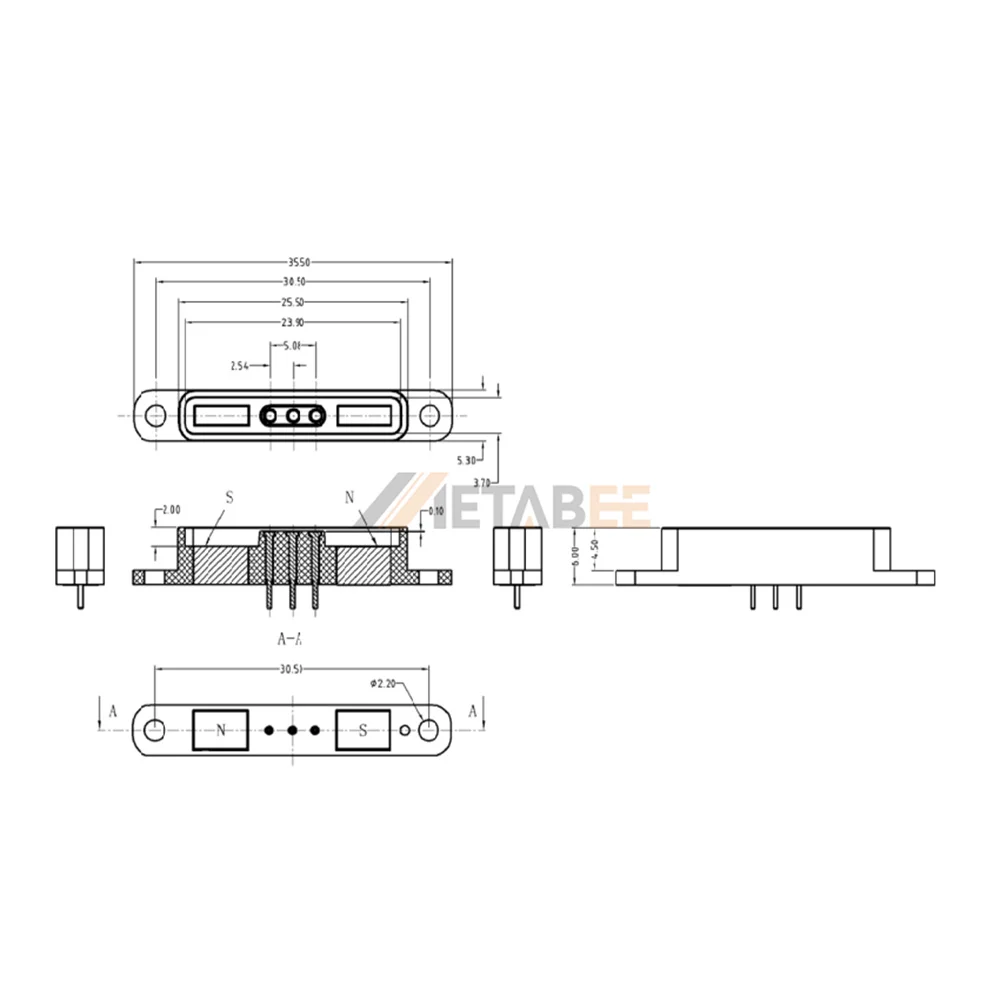

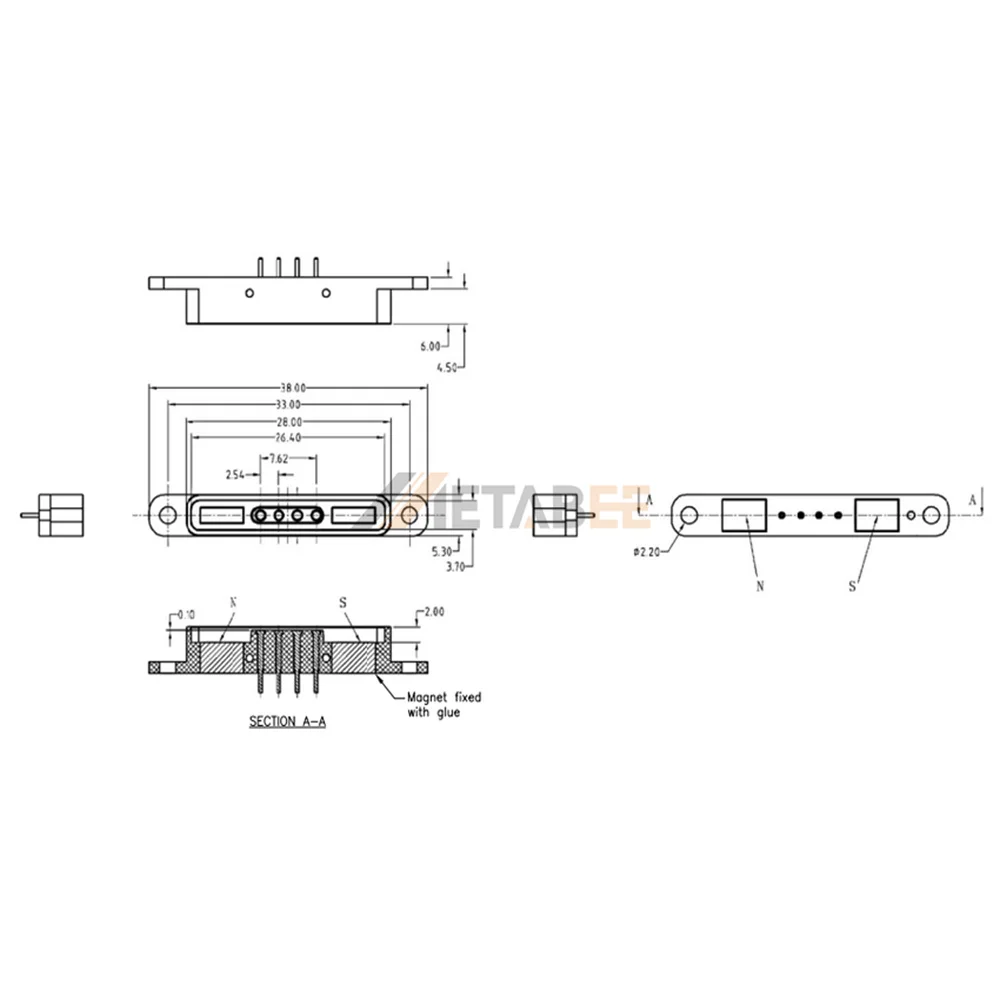

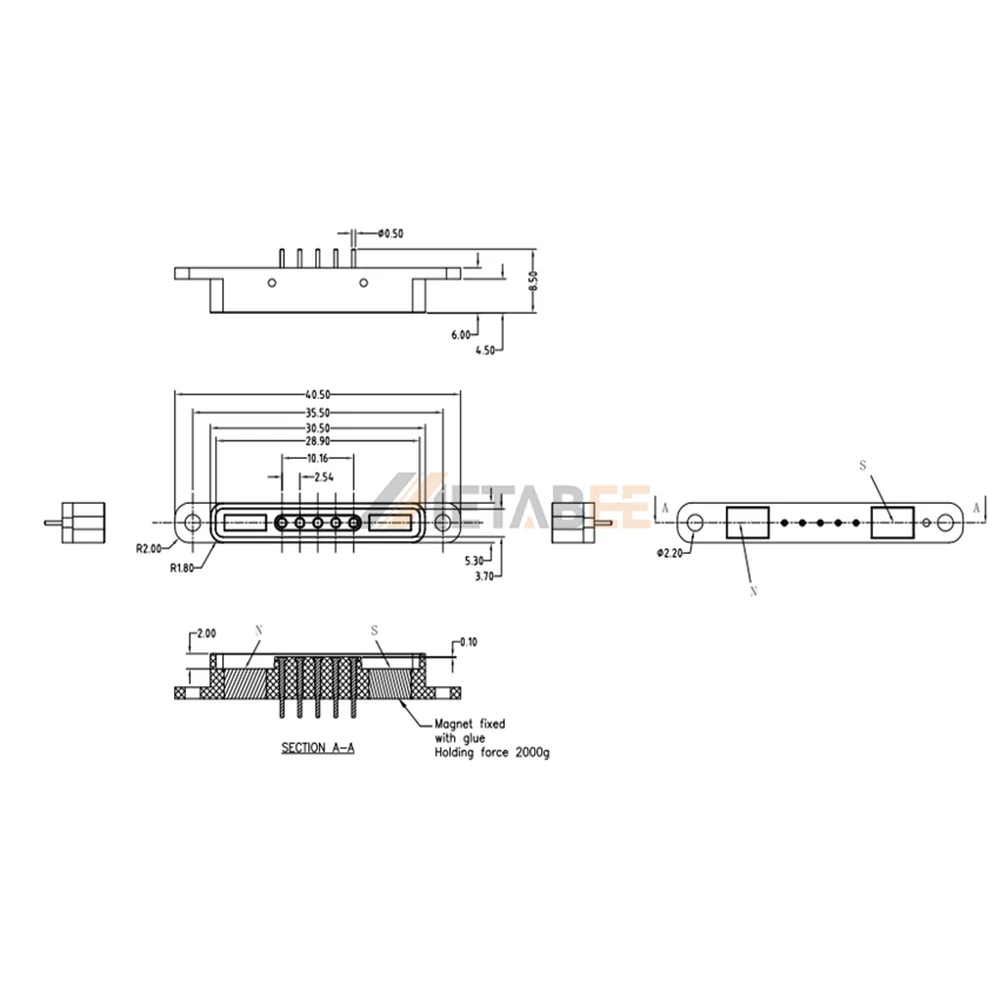

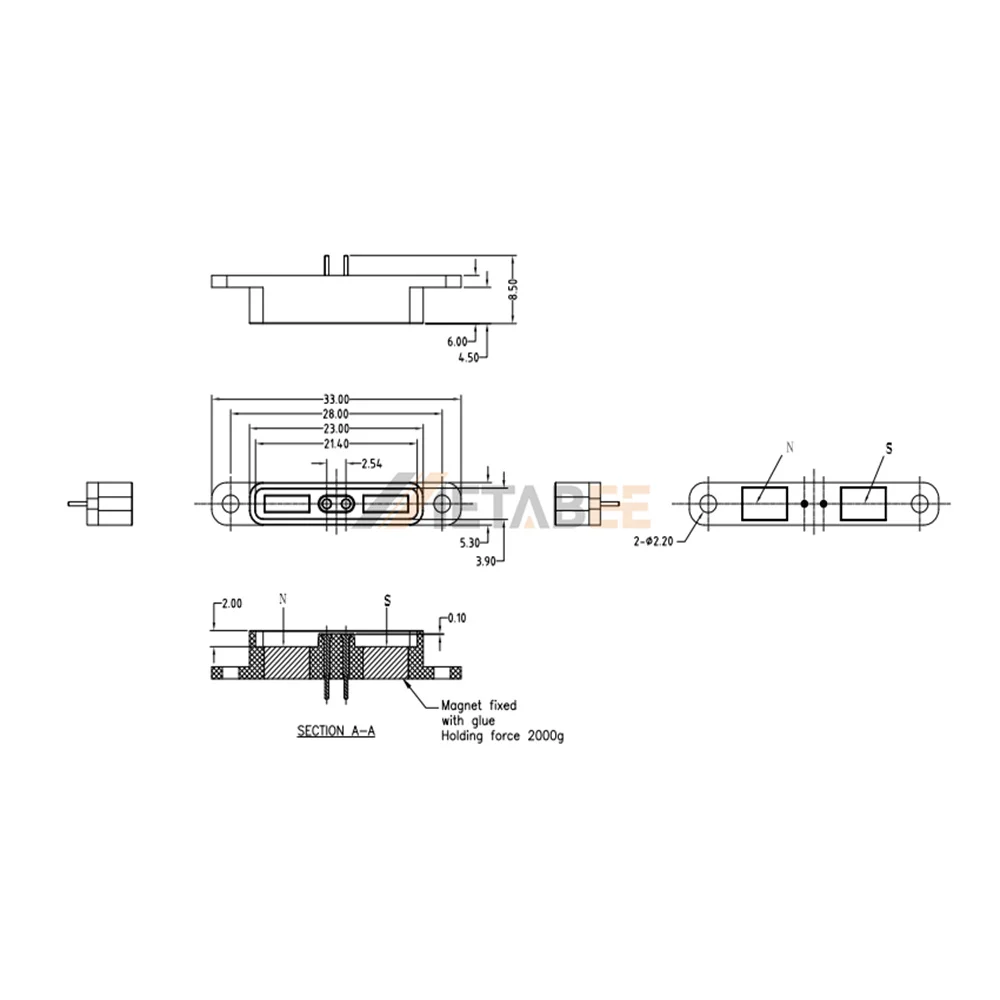

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
