Introduction:
Engineered for seamless charging docking, this straight 6-pin male magnetic pogo pin connector provides a reliable 2A/5V DC power and data interface. Its generous 6.00 mm pitch and rounded rectangular profile ensure robust electrical isolation between contacts, preventing short-circuit risks. Built with heavy-duty 5u” gold-plated brass pins, it delivers exceptional corrosion resistance and steady electrical conductivity. The integrated N35 zinc-plated magnets enable effortless self-aligning polarized mating and quick-release detachment to protect device ports from accidental cable snags. Housed in heat-resistant PA46 polymer rated from -30°C to +85°C, it serves as an ideal charging solution for smart handheld devices, charging cradles, and wearable docking stations.
Key Features
- N35 Polarized Magnets: Integrated magnets guide fast and safe self-aligning docking.
- 2A / 5V DC Rating: Delivers steady low-voltage current for portable device charging.
- 6.00mm Wide Pitch: Wide pin spacing maximizes electrical isolation to prevent shorting.
- 5u” Gold-Plated Brass: Thick gold coating ensures low resistance and corrosion resistance.
- Durable PA46 Housing: High-temperature plastic performs reliably from -30°C to +85°C.
Main Specifications:
General Information:
| Product No.: | PH2-C695-06-MVP-95117 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 6 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 6.0mm | |
| Working Stroke (mm): | 1.5mm@150gf max | |
| Life Test: | 30,000 Cycles min |
Electrical:
| Rated Current: | 2A max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | N/A |
Materials and Plating:
| Insulator Material: | PA46 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N35, Zinc plated |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

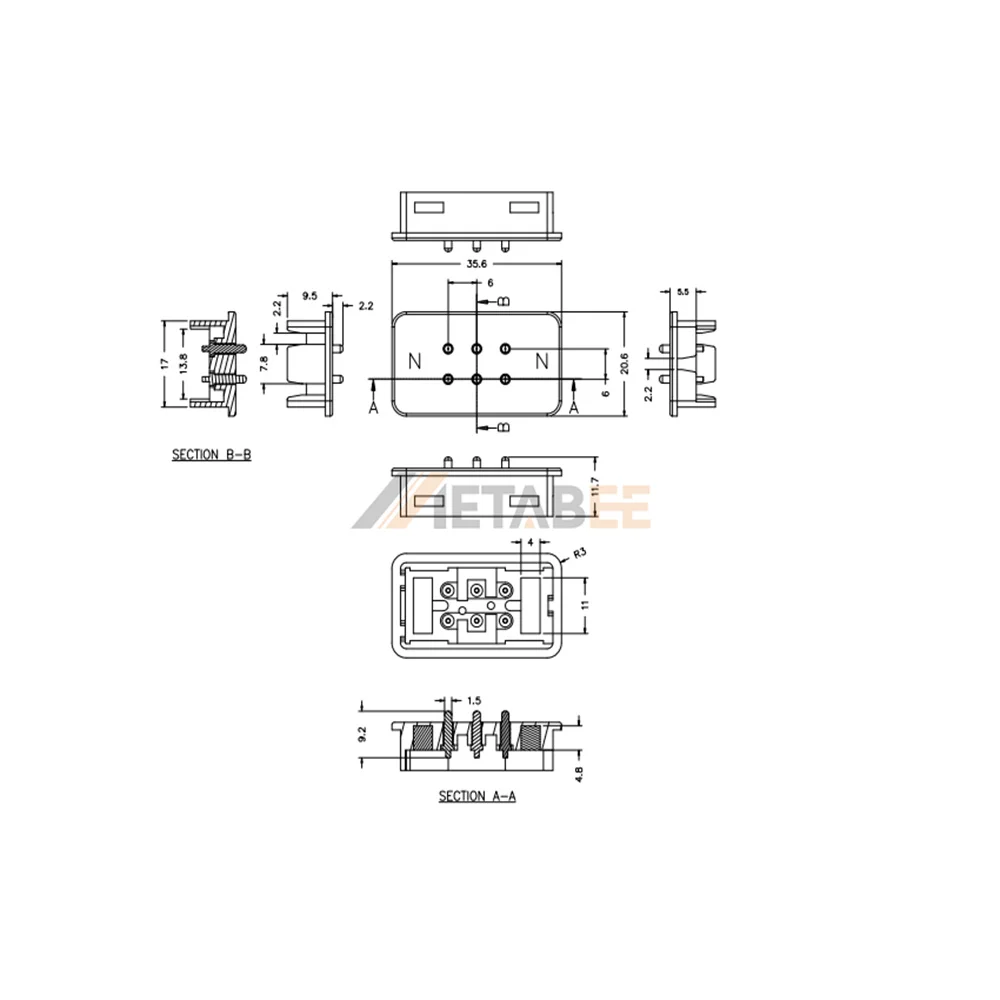

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
