Introduction:
This right-angle 8-pin male magnetic pogo pin connector delivers a low-profile power and signal interface rated at 1.5A and 12V DC. Engineered with a compact 2.4 mm pitch and horizontal mounting design, it maximizes vertical clearance on crowded circuit boards. Heavy-duty 10u” gold-plated brass pins and stainless steel springs ensure low contact resistance under 30 mΩ while achieving an exceptional lifespan of over 50,000 mating cycles. Supported by a heat-resistant PA46 housing that withstands reflow soldering up to 265°C, it provides smooth 1.5 mm stroke compression at 130g force. Its self-aligning magnetic mechanism prevents mis-mating, serving as a reliable side-docking connection for smart wearables, medical diagnostics, and slim handheld devices.
Key Features
- 50,000-Cycle Endurance: Heavy-duty SUS springs ensure ultra-long mating lifespan.
- Right-Angle Mounting: Low-profile horizontal layout saves vertical PCB height.
- 10u” Gold Plating: Thick gold finish guarantees contact resistance under 30 mΩ.
- 265°C Heat Resistance: High-temperature PA46 housing survives rigorous reflow soldering processes.
- Magnetic Self-Alignment: Polarized magnetic docking prevents mis-insertion and wear.
Main Specifications:
General Information:
| Product No.: | PH1-C2446-08-MHP-826996 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 6 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 2.40mm | |
| Working Stroke (mm): | 1.5mm@130gf±20gf | |
| Life Test: | 50,000 Cycles min |
Electrical:
| Rated Current: | 1.5A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | PA46, 265° Max | |
| Insulator Color: | N/A | |
| Contact Material: | Brass | |
| contact plating: | 10u” Gold over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

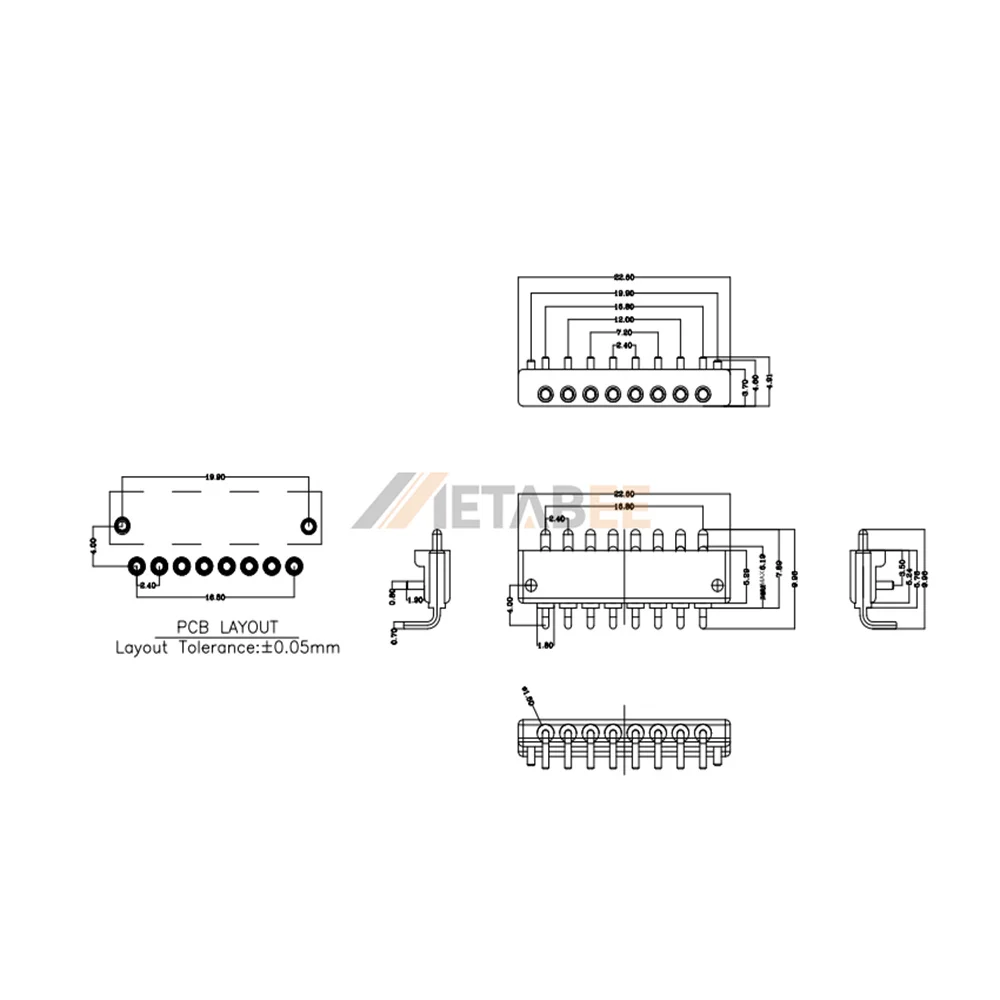

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
