Introduction:
This straight 14-pin magnetic pogo pin connector delivers a compact, high-density interface for 1A/12V DC charging and multi-channel data transmission. Featuring an ultra-compact 1.80 mm pitch and an asymmetrical trapezoid housing, it provides mechanical polarization to ensure correct alignment and prevent reverse mating. The contacts feature 5u” gold plating over nickel and SUS 430 stainless steel construction, maintaining an ultra-low contact resistance under 25 mΩ. With a heat-resistant LCP insulator engineered for surface mounting, its magnetic auto-alignment enables smooth blind docking and clean breakaway protection for precision test fixtures, medical equipment, and high-pin-count electronics.
Key Features
- Trapezoid Polarized Housing: Asymmetrical shape prevents reverse insertion and pin mismatching.
- 14-Pin High-Density Layout: 1.80mm pitch maximizes multi-channel signal routing space.
- Ultra-Low Contact Resistance: 5u” gold plating maintains low resistance under 25 mΩ.
- 1A / 12V DC Rating: Supports reliable low-voltage power and steady data connections.
- Heat-Resistant LCP: Durable polymer withstands rigorous surface mount soldering temperatures.
Main Specifications:
General Information:
| Product No.: | PH2-C18765-14-FHP-8, PH2-C18575-14-MHP-A55935 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 12 Pin | |
| Connector Gender: | Male/Female | |
| Connector Shape: | Trapezoid | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 1.80mm | |
| Working Stroke (mm): | 1.20mm Max | |
| Life Test: | 100,000 cycles [email protected] Stroke |
Electrical:
| Rated Current: | 1A max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | LCP | |
| Insulator Color: | Black | |
| Contact Material: | Constantan(C3604) | |
| contact plating: | 5u” Gold plated over Nickel | |
| Spring Material: | SUS 430 | |
| Magnet: | N50, Zinc plated |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

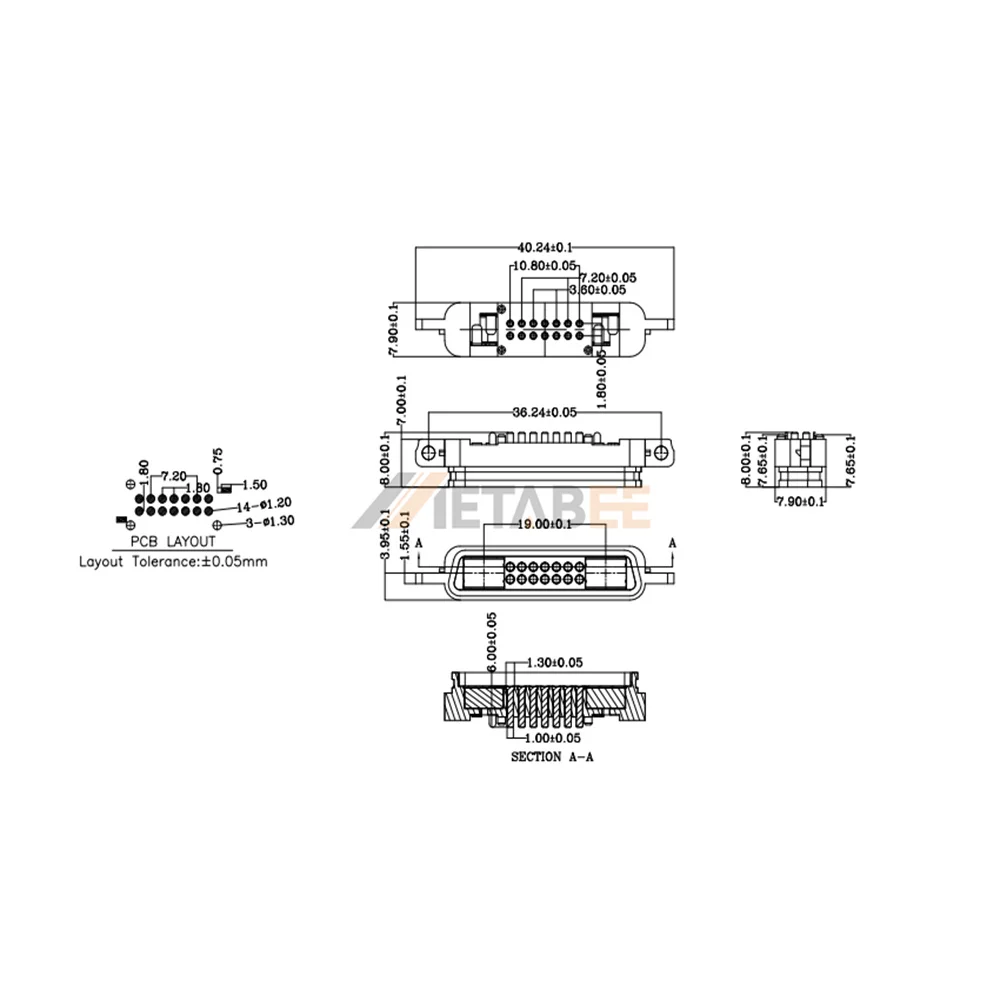

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
