Introduction:
This right-angle 8-pin female magnetic pogo pin connector provides a low-profile docking interface for 2A/5V DC power and signal transmission. Built with a compact 2.4 mm pitch and a white ABS housing, its horizontal side-mount design conserves vertical board space in slim consumer and medical devices. The precision brass contacts feature 10u” gold plating over nickel to ensure low electrical resistance, excellent corrosion protection, and reliable conductivity from -30°C to +85°C. With integrated magnets enabling effortless self-alignment and polarized mating, it protects internal electronics against reverse polarity while offering a safe quick-release interface for smart wearables, handheld terminals, and charging cradles.
Key Features
- Right-Angle Female Mount: Low-profile side-entry layout saves critical vertical PCB space.
- 10u” Gold Plating: Thick gold coating ensures high conductivity and corrosion resistance.
- 2A / 5V DC Rating: Delivers steady low-voltage power and reliable signal transmission.
- Magnetic Auto-Alignment: Built-in magnets guide precise mating and prevent reverse insertion.
- White ABS Housing: Clean aesthetic housing operates reliably from -30°C to +85°C.
Main Specifications:
General Information:

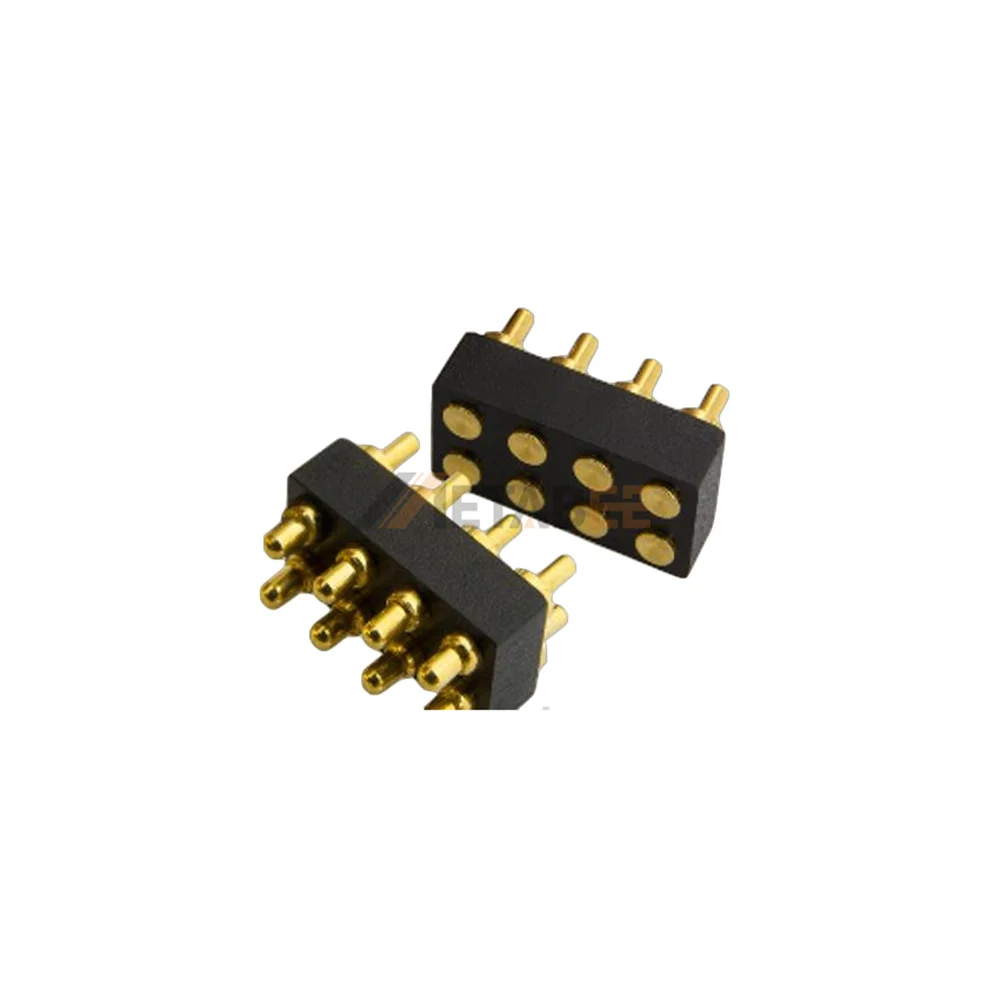

| Product No.: | PH2-C2528-08-MVP-40735 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 8 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.50mm | |
| Working Stroke (mm): | 1.30mm | |
| Life Test: | 10,000 cycles@Stroke range 0.5~4mm max |
Electrical:
| Rated Current: | 1A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | LCP | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 10u” Gold over Nickel | |
| Spring Material: | SUS 304 | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -40°C to 105°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
