Introduction:
This straight 12-pin male magnetic pogo pin connector provides a high-density interface for multi-channel power and signal transmission. Designed with a compact 2.00 mm pitch and a rectangular profile, it maximizes contact density in space-constrained device layouts. The black LCP insulator offers high thermal resistance and mechanical stability during surface mount soldering. Built-in polarized magnets ensure fast, automatic alignment to eliminate mis-mating and reduce contact wear. Featuring clean magnetic breakaway protection against accidental cable snags, it serves as a reliable docking link for testing equipment, modular hardware, and handheld electronic terminals.
Key Features
- 12-Pin High Density: 2.00mm pitch maximizes multi-channel signal routing efficiency.
- Magnetic Auto-Alignment: Polarized magnets ensure fast, error-free blind docking.
- High-Temperature LCP: Robust black insulator maintains stability during reflow.
- Straight Male Profile: Vertical mounting optimizes board layout in compact housings.
- Safe Breakaway Design: Quick detachment protects internal circuits from cable strain.
Main Specifications:
General Information:
| Product No.: | PH2-C266-12-MVP-66 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 12 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.00mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 1A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | LCP | |
| Insulator Color: | Black | |
| Contact Material: | N/A | |
| contact plating: | N/A | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |

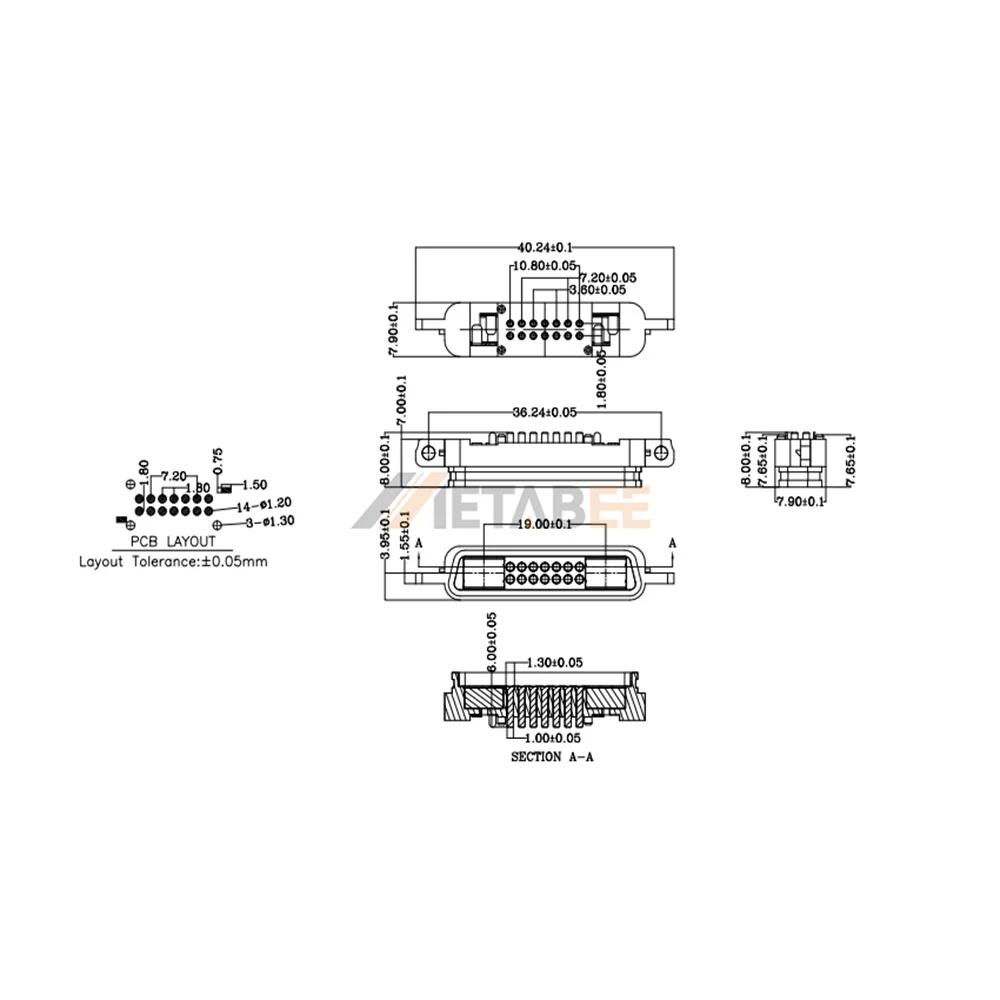

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
