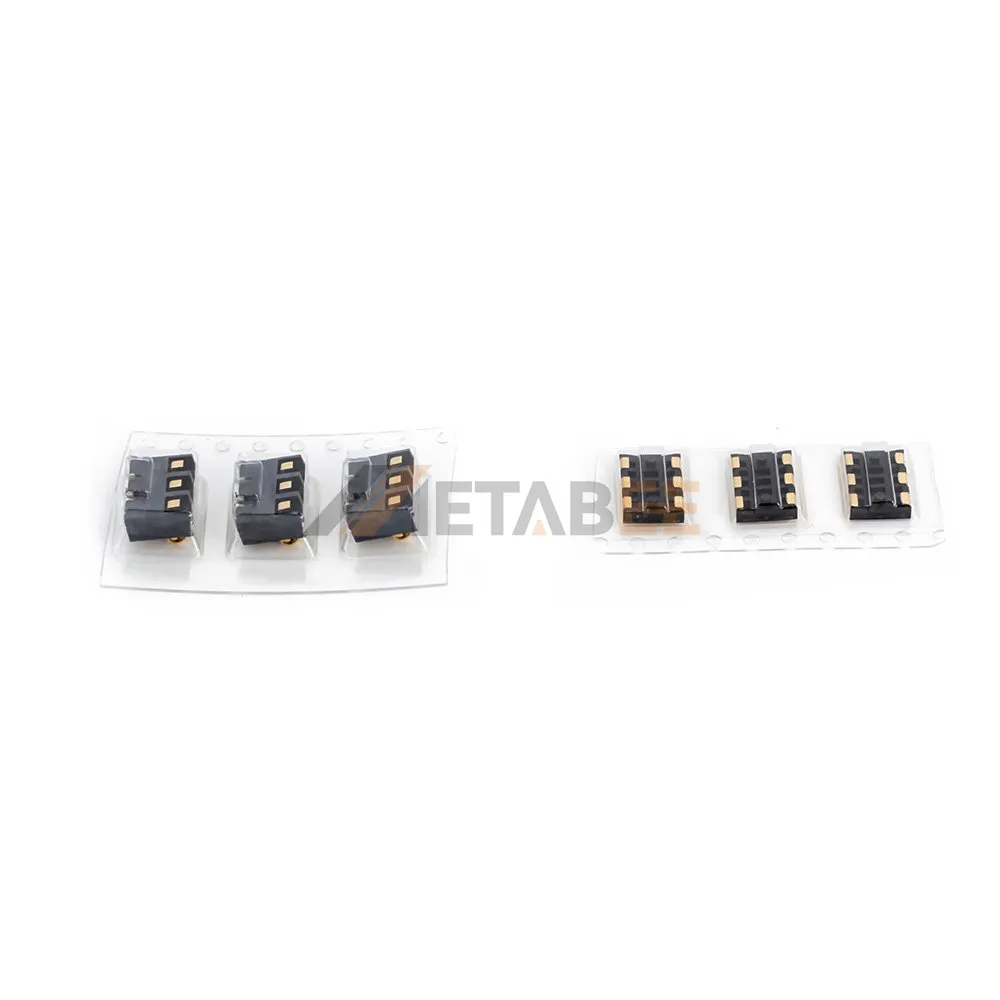

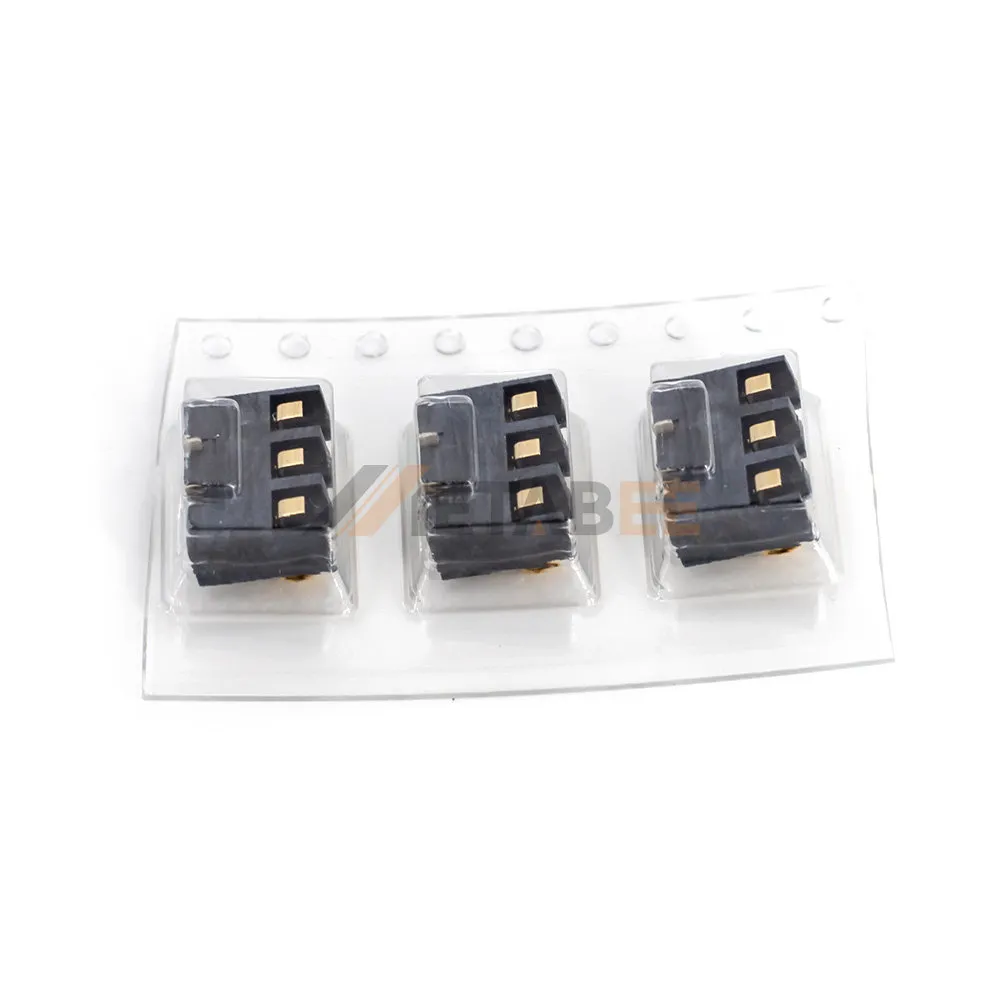

3P Spring Type Battery Connector for Mobile Phone, PCB Mount, SMT, 3.0mm Pitch
Introduction:
The 3P Spring Type Battery Connector is engineered for reliable power delivery in compact electronic devices. This connector features a durable spring-loaded design, ensuring a secure and consistent connection to the battery. Its PCB surface mount (SMT) design allows for easy integration onto printed circuit boards, making it ideal for high-volume production. With a 3.0mm pitch, it provides a stable and efficient link, perfect for applications such as mobile phones, tablets, and other portable electronics. Its compact size and robust construction guarantee long-lasting performance, even in devices that experience frequent handling and movement.
Features:
- Secure spring-loaded connection.
- Surface mount technology (SMT) for easy assembly.
- Ideal for mobile phones and small electronics.
- Durable and compact design.
- Reliable power transfer.
Main Specifications:
| Part Number: | YC-3P-3.0PH | |
| Product Type: | Spring Battery Connector | |
| Pitch: | 3.0 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Phosphor Bronze C5191 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | SMT | |
| Current Rating: | 5A | |
| Voltage Rating: | 30V | |
| Insulation Resistance: | 100 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -55℃ to +125℃ | |
| Durability: | 10000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 3P Spring Type Battery Connector
Here are a few applications for a spring mobile battery connector:
- Smartphones and Tablets
- Wearable Devices
- Medical Devices
- Consumer Electronics
