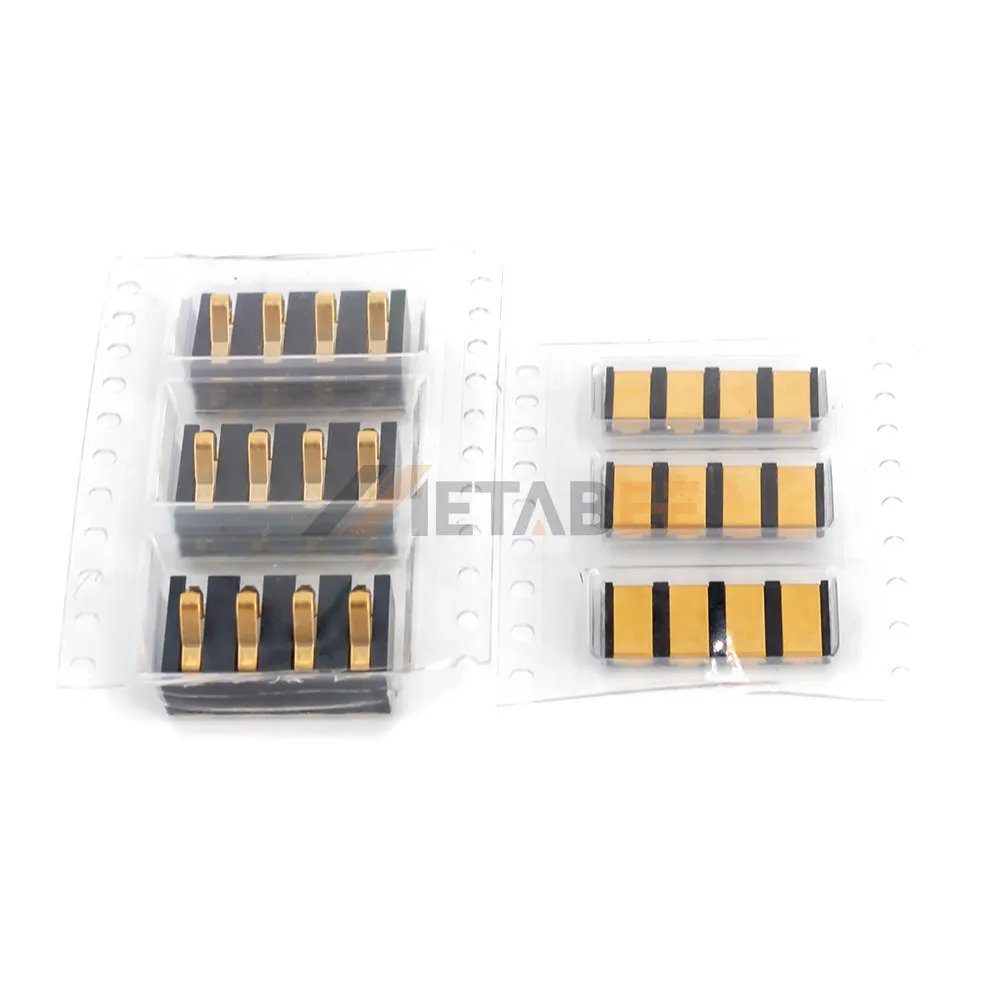

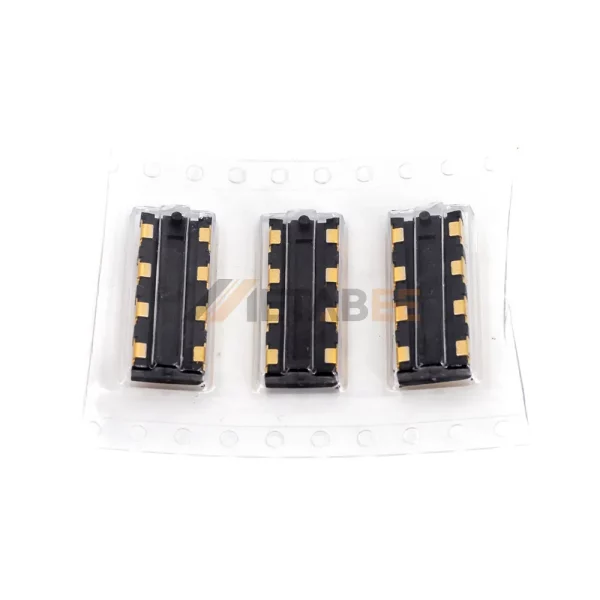

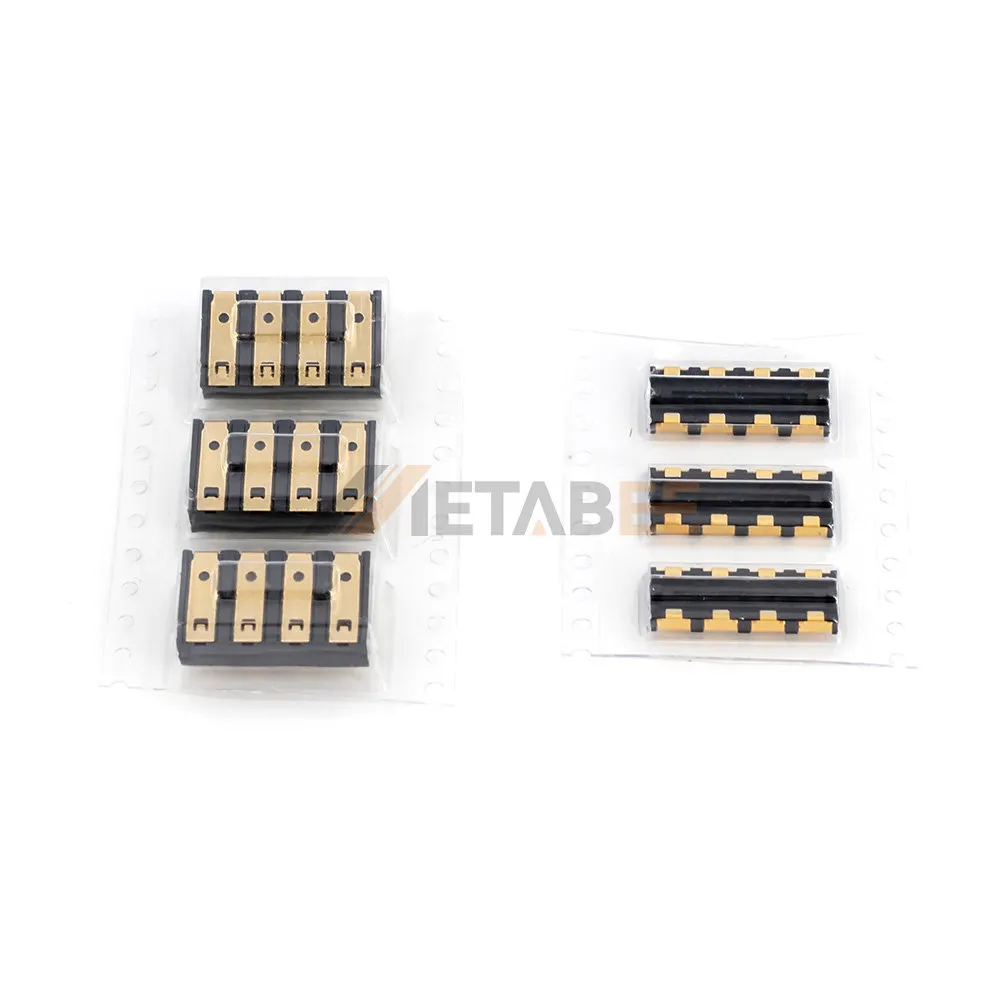

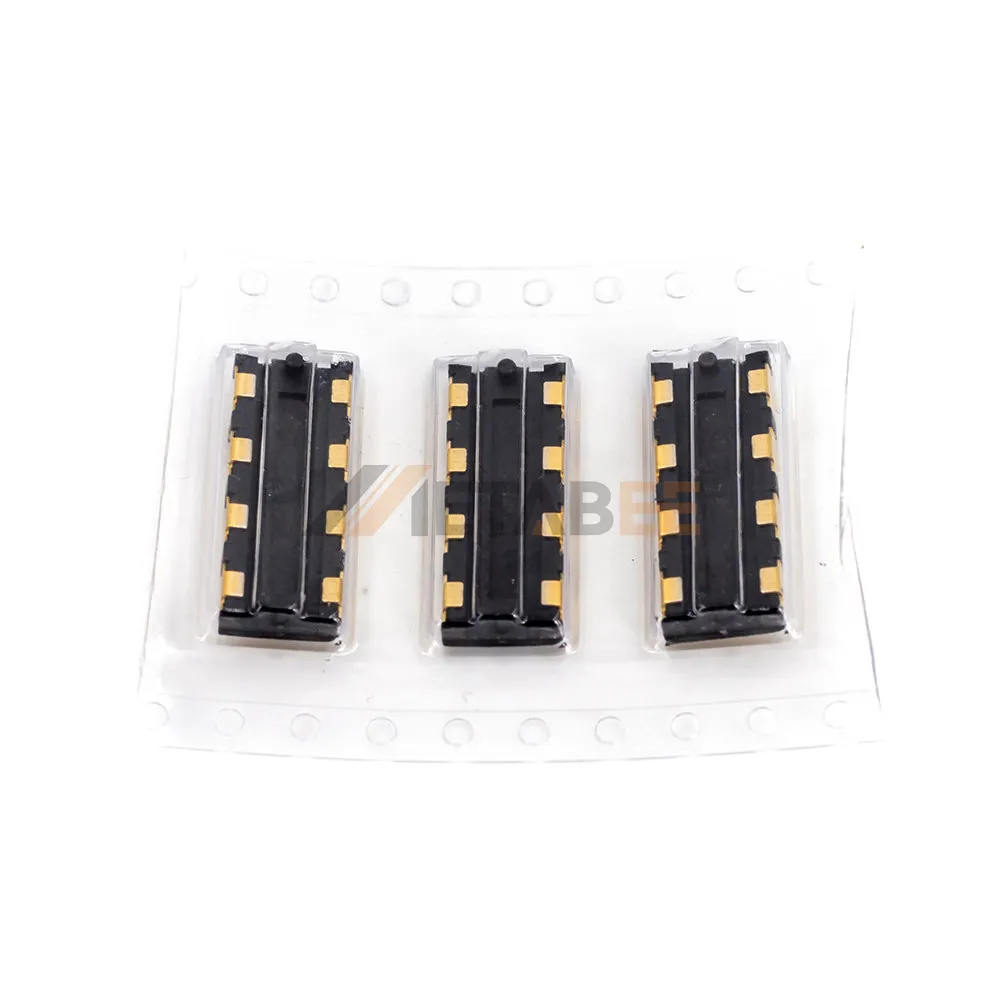

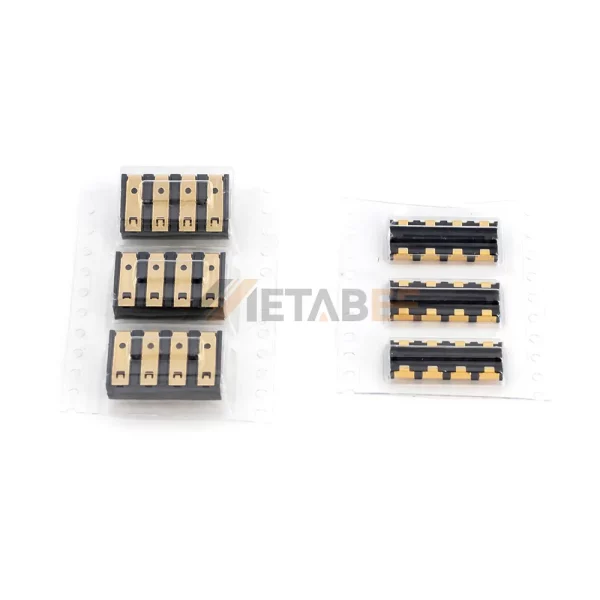

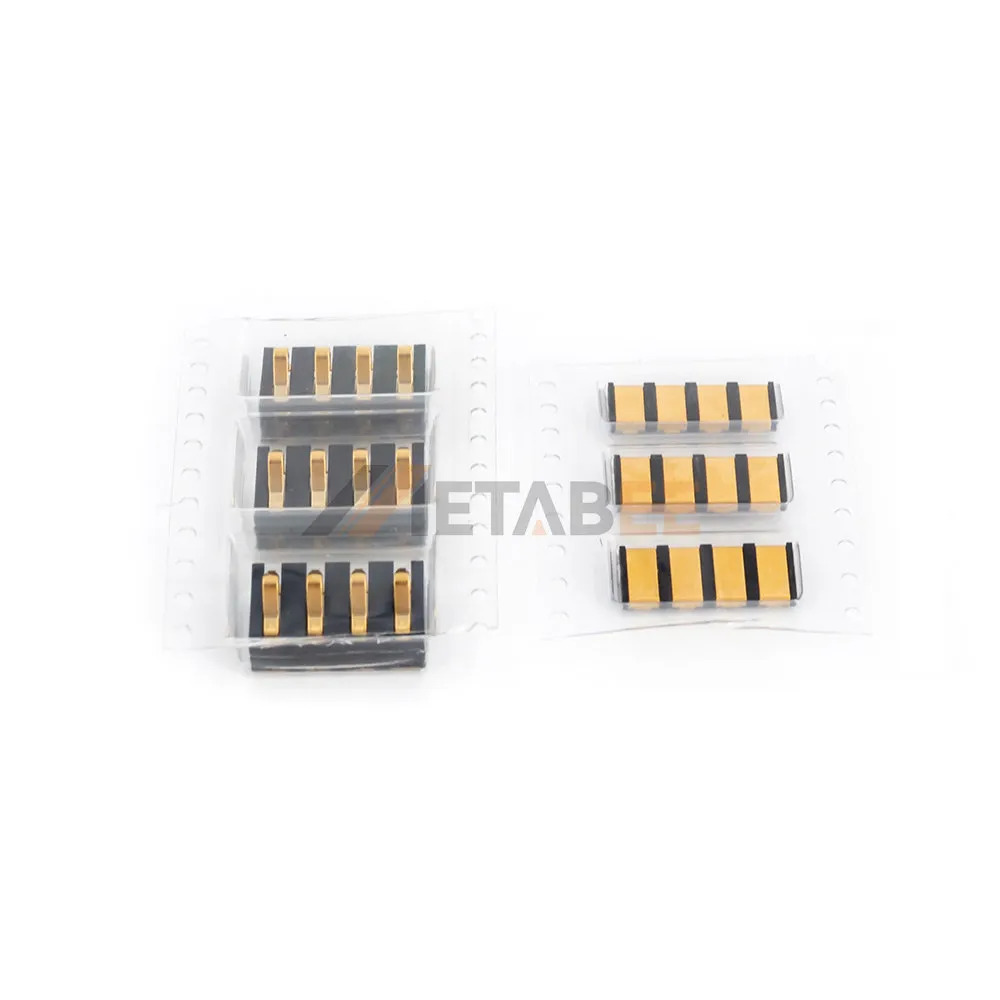

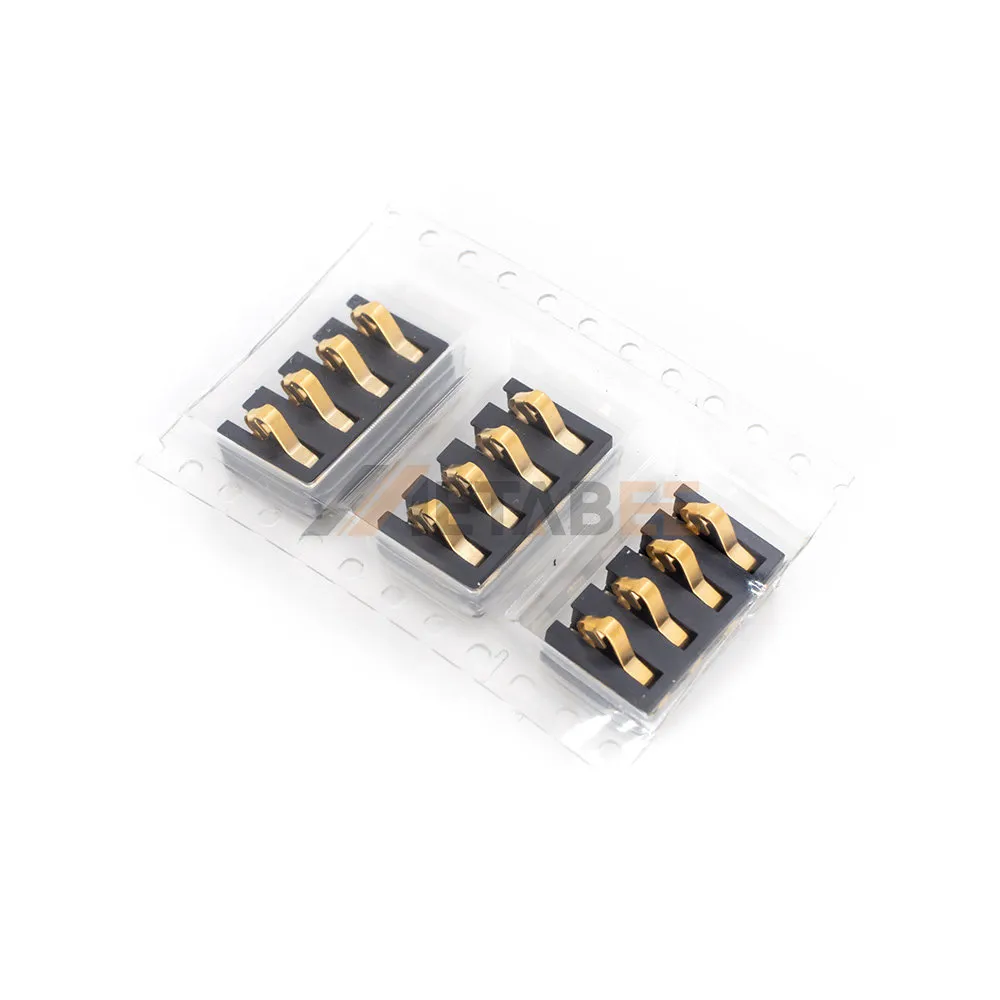

4P Spring Type Battery Connector for Cell Phone, PCB Mount, SMT, 4.25mm Pitch
Introduction:
This 4P spring type battery connector is engineered for reliable power delivery in compact electronic devices like cell phones. Designed for PCB mounting with a surface-mount technology (SMT) and a 4.25mm pitch, this connector ensures a secure and stable connection. The durable spring pins offer excellent contact force, adapting to slight misalignments and providing consistent performance. It’s an ideal solution for applications requiring a space-saving, robust, and dependable battery interface.
Features:
- Secure, reliable connection
- Designed for cell phone and PCB use
- Surface-mount technology for easy integration
- Durable spring pins ensure consistent contact
- Compact, space-saving design
Main Specifications:
| Part Number: | YC-4P-4.25PH-7.4-1.9H | |
| Product Type: | Spring Battery Connector | |
| Pitch: | 4.25 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Phosphor Bronze C5191 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | SMT | |
| Current Rating: | 5A | |
| Voltage Rating: | 30V | |
| Insulation Resistance: | 500 MEGAOHMS MIN | |
| Contact Resistance: | 50 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -45℃ to +85℃ | |
| Durability: | 5000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 4P Spring Type Battery Connector
Here are a few applications for a spring mobile battery connector:
- Smartphones and Tablets
- Wearable Devices
- Medical Devices
- Consumer Electronics
