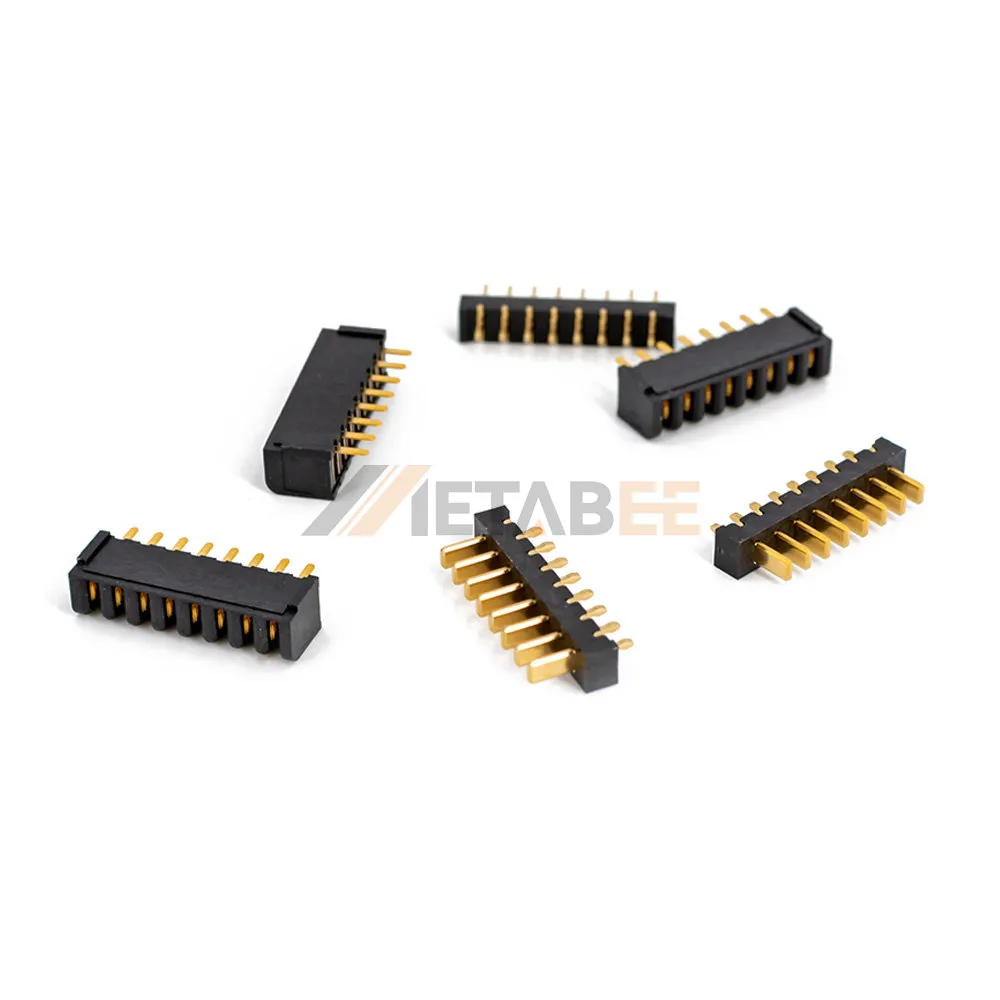

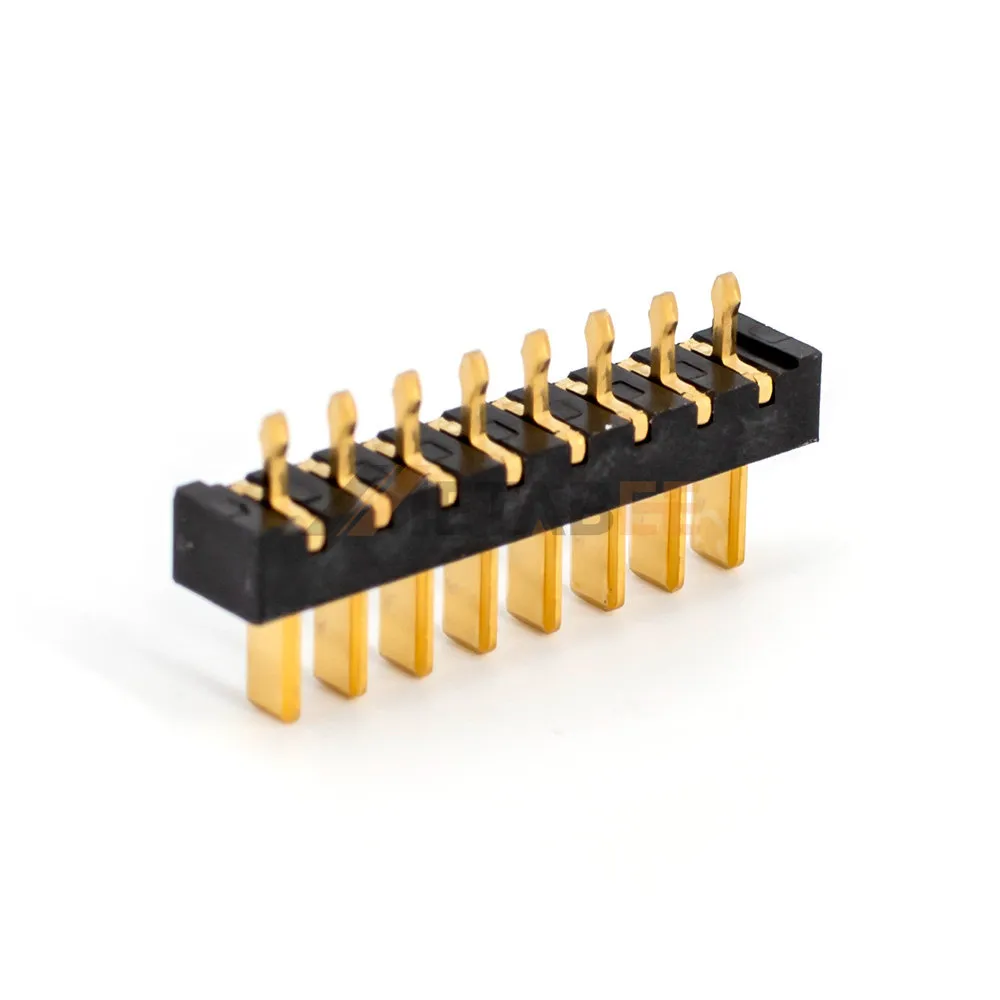

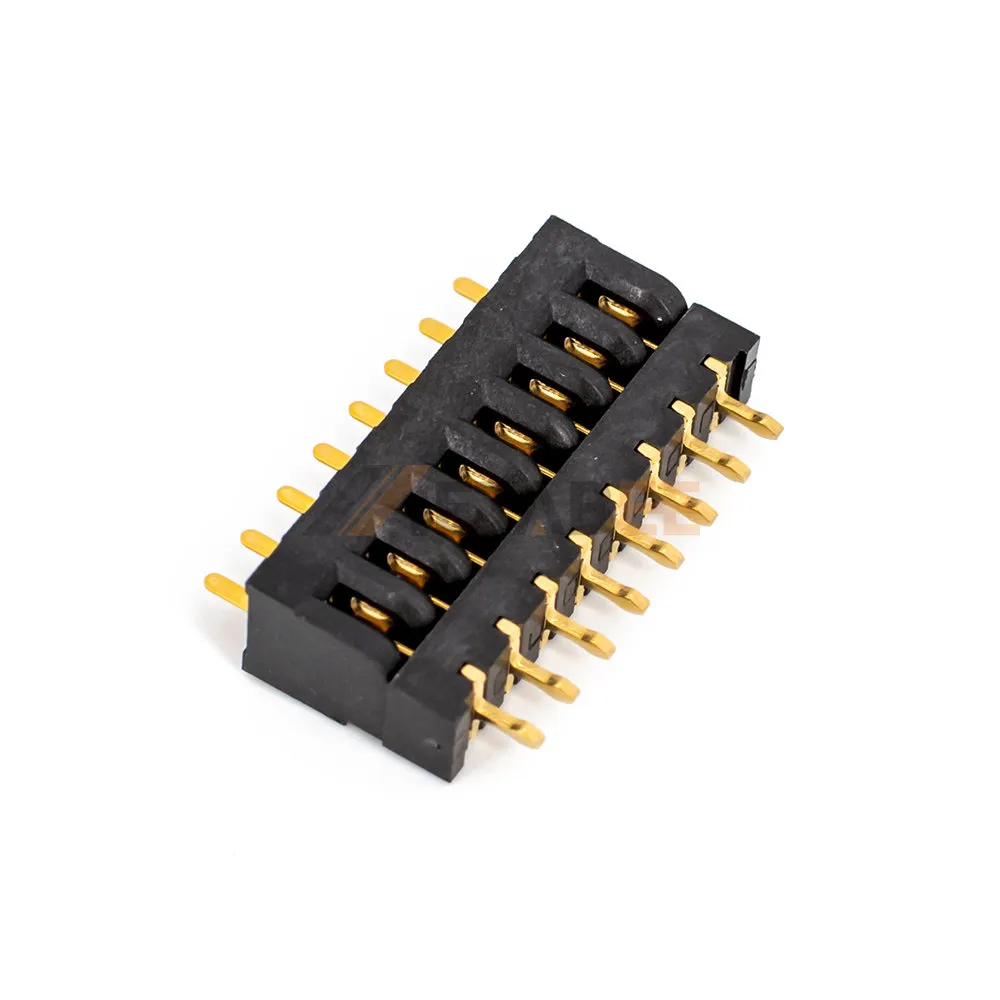

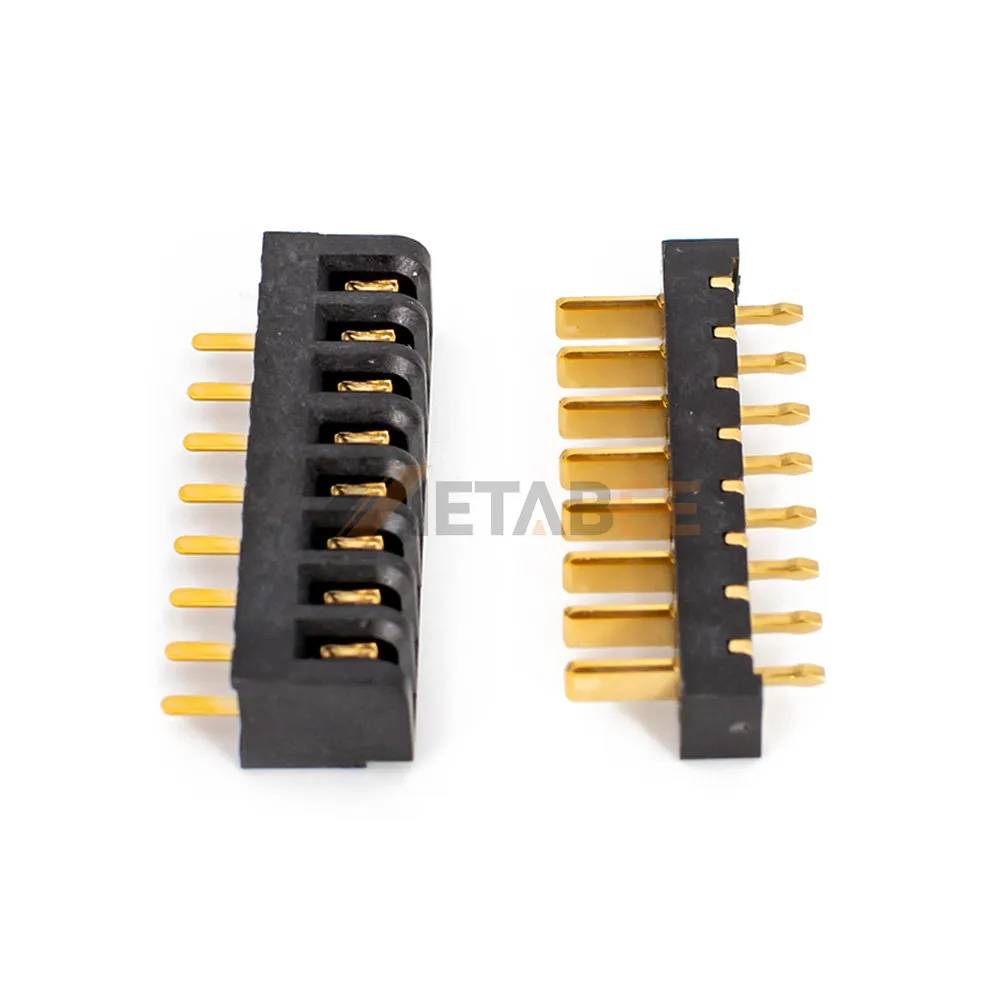

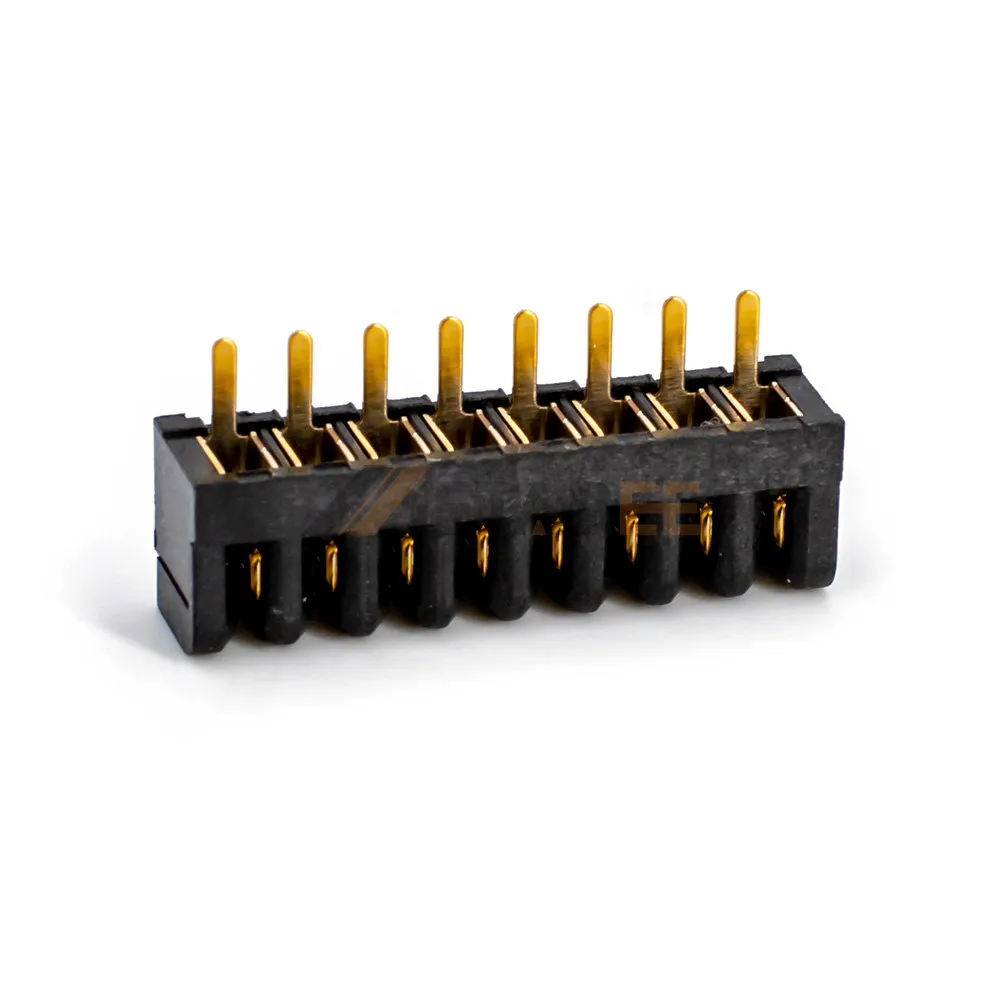

8P Battery Blade Connector for Laptop, PCB Mount, Through Hole, 2.0mm Pitch
Introduction:
The 8P Battery Blade Connector is a high-quality, reliable component designed for seamless power connectivity in modern laptops and other portable electronic devices. Featuring a durable PCB mount and a through-hole design, it ensures a secure and stable connection to the circuit board, minimizing the risk of disconnections. With a compact 2.0 mm pitch, this connector is perfect for space-constrained applications. It’s built to withstand frequent use, providing a safe and efficient power transfer for your device’s battery. This component is essential for manufacturers seeking robust and long-lasting solutions for their electronics.
Features:
- Secure through-hole design for stability.
- Compact 0mm pitch for space saving.
- Durable PCB mount for reliable connection.
- Designed for laptops and portable electronics.
- Facilitates safe and efficient power transfer.
Main Specifications:
| Part Number: | YC-B01MF-A-8P-S2 | |
| Product Type: | Blade Battery Connector | |
| Pitch: | 2.0 mm | |
| Insulation Material: | Nylon 9T (UL94 V-0) | |
| Contact Material: | Phosphor Bronze C5191 | |
| Contact Finish: | Gold Plating | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Current Rating: | 7A per Pin | |
| Voltage Rating: | 125V AC | |
| Insulation Resistance: | 100 MEGAOHMS MIN | |
| Contact Resistance: | 30 MILLIOHMS MAX | |
| Dielectric Voltage: | 500V | |
| Operation Temperature: | -40℃ to +105℃ | |
| Durability: | 5000 Cycles | |
| RoHS Compliant: | Yes | |
| SGS Compliant: | Yes |
Applications of this 8P Battery Blade Connector
Some common applications of blade-type laptop battery connectors include:
- Standard and Ultrathin Laptops
- Gaming Laptops
- 2-in-1 Devices and Convertibles
- Custom-Built Laptops and Mini PCs
