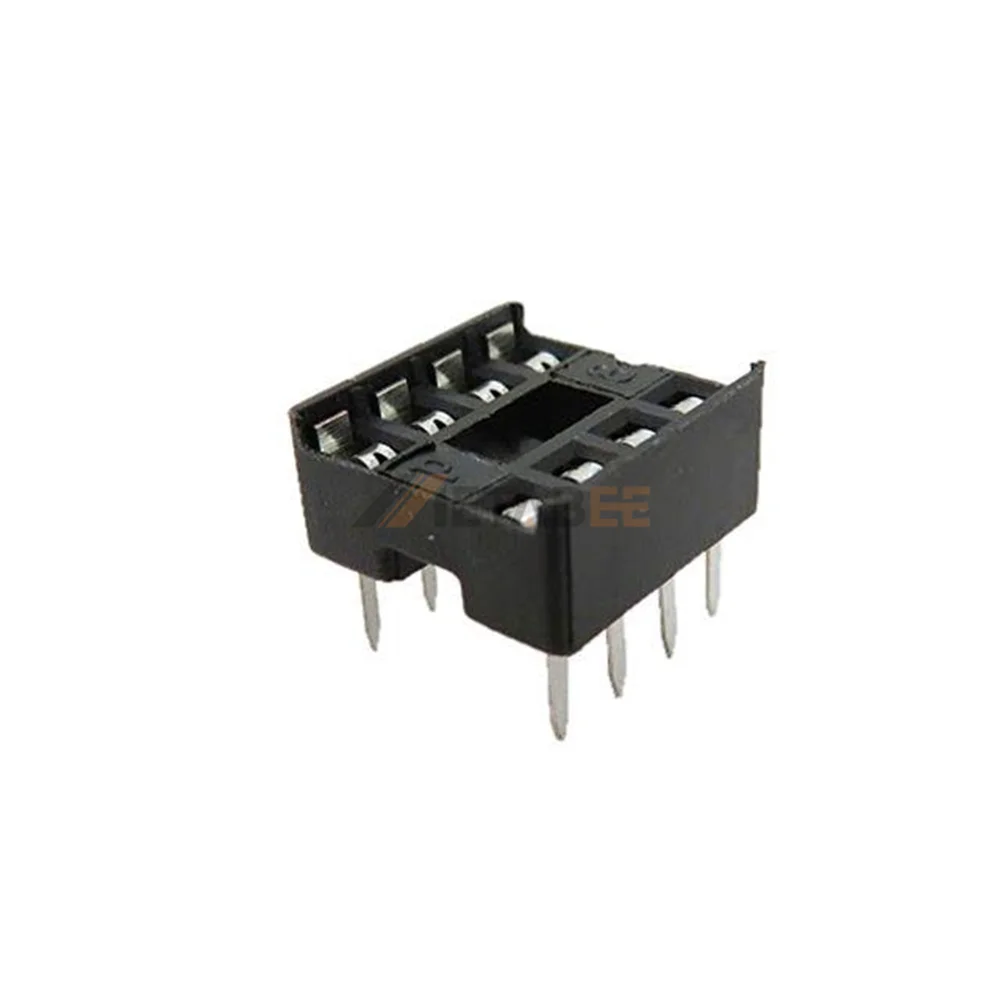

This is an 8 pin dual-row stamped 8 pin DIP socket featuring standard THT solder tails for reliable board-level interconnects. It utilizes dual-leaf stamped Phosphor Bronze contacts with a Tin-over-Nickel finish to ensure gas-tight electrical mating and low contact resistance. The insulator is molded from glass-filled PBT, meeting UL 94V-0 flammability standards to survive industrial wave soldering without housing distortion. With a standard 2.54mm mating pitch and 7.62mm row spacing, this component provides a secure low-profile carrier for 8-position integrated circuits. Technicians utilize this modular interface for rapid chip replacement or firmware updates without the risk of thermal damage to sensitive silicon.
Key Features
- 8 Pin Configuration: Fits standard 8-position dual-row integrated circuits.
- Stamped Contact Type: Ensures reliable electrical mating and low resistance.
- THT Solder Tails: Provides stable mechanical anchoring to the PCB.
- UL 94V-0 Material: Delivers high flame resistance and thermal stability.
- Standard Spacing: Features 2.54mm pitch and 7.62mm row spacing.
Main Specifications:
General Information:
| Product No.: | ICS-308-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 8 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
