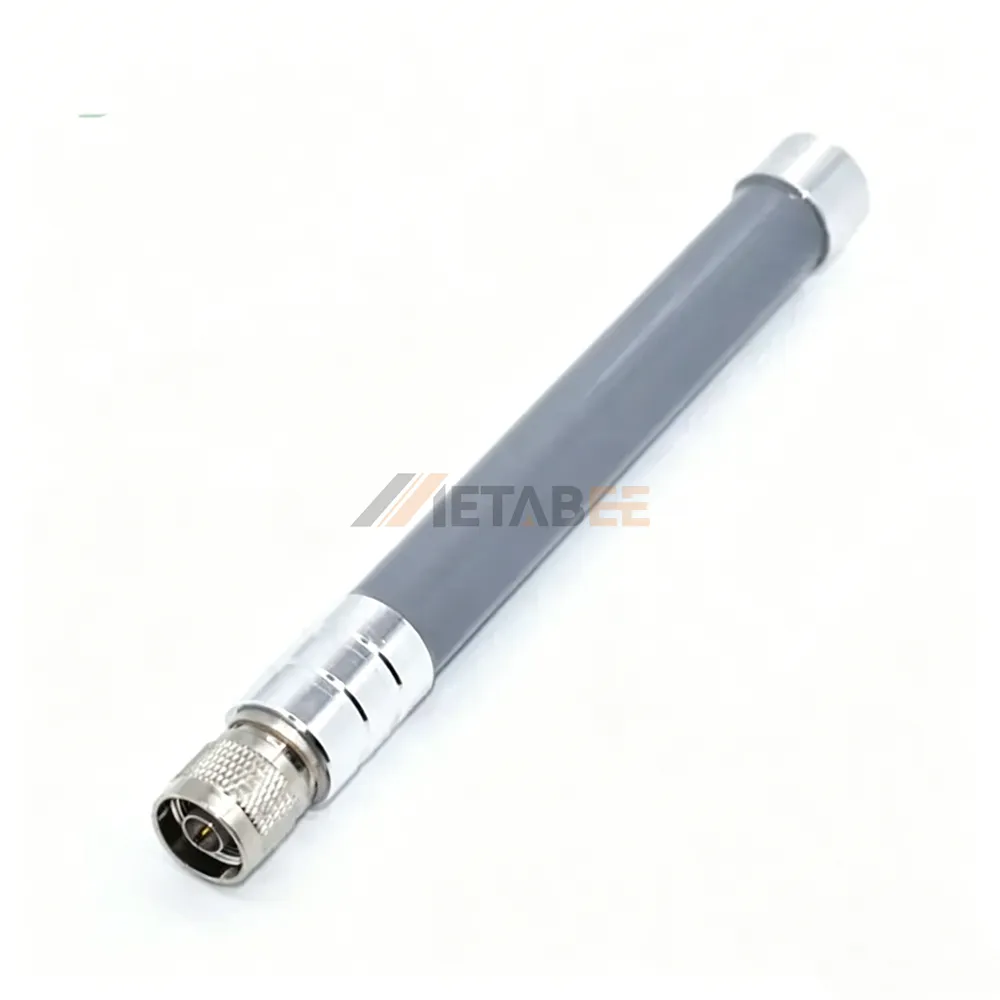

Ultra-Wideband 686-2700MHz 5dBi 4G LTE Outdoor Fiberglass Antenna, N Female, IP65
Introduction:
The Ultra-Wideband 686–2700MHz 5dBi 4G LTE Outdoor Fiberglass Antenna is engineered for multi-band wireless systems requiring stable, wide-range coverage. Supporting frequencies from 686MHz to 2700MHz, it enables seamless compatibility across 2G, 3G, and 4G LTE networks. With a consistent 5dBi gain and omni-directional radiation pattern, it delivers uniform 360° signal distribution. The vertical polarization design enhances transmission efficiency and reduces interference in complex RF environments.
Constructed with a rugged fiberglass radome, this antenna is optimized for harsh outdoor deployments. Its IP65-rated enclosure ensures reliable protection against dust and water ingress, while maintaining excellent RF performance with a VSWR of ≤1.92 and 50 Ohm impedance. The antenna supports up to 50W input power and operates reliably in extreme temperatures ranging from -40°C to +85°C. With wind survivability up to 60 m/s and integrated DC grounding for lightning protection, it ensures long-term durability and system safety.
Key Features
General Information:
| Product No.: | YC-FG00002 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 686-2700MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤192 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 686-2700MHz 5dBi 4G LTE Outdoor Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
