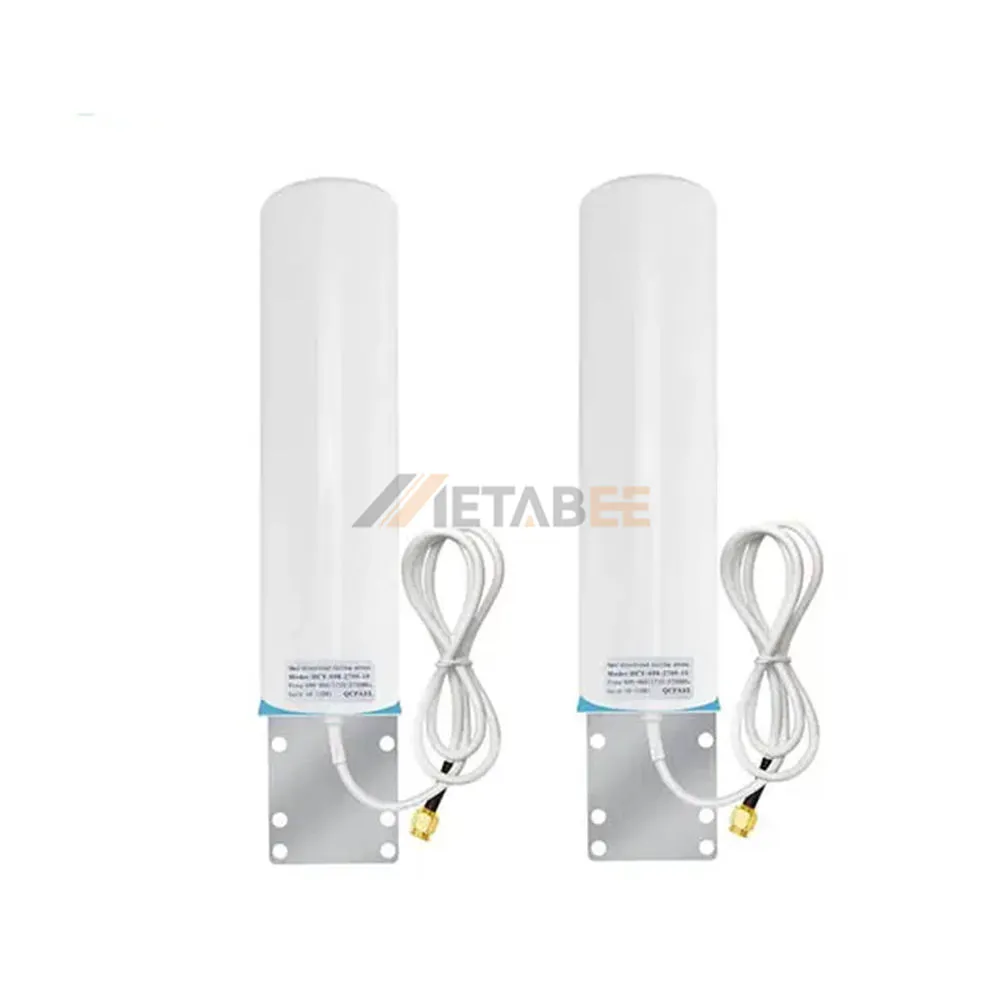

Ultra-Wideband 686-2700MHz 18dBi High Gain 4G LTE Fiberglass Antenna, SMA Male
Introduction:
xperience unparalleled connectivity with the Ultra-Wideband 686-2700MHz 18dBi High Gain 4G LTE Fiberglass Antenna. Engineered for comprehensive coverage across diverse wireless networks, this antenna supports critical 4G LTE frequencies alongside a broad spectrum of other applications, including cellular, IoT, and M2M communications. Its exceptional 18±1dBi gain and omni-directional radiation pattern ensure maximum signal strength and expansive, uniform coverage, minimizing dead spots and optimizing data throughput. The vertical polarization and a low VSWR of ≤2.0 guarantee superior signal integrity and efficient power transfer, making it an ideal solution for robust and high-performance wireless deployments.
Constructed with a resilient Fiberglass radome, this antenna boasts an IP65 rating, providing superior protection against dust and water ingress in severe outdoor environments. It maintains steadfast performance across an extensive operating temperature range from -40°C to 85°C and is engineered to withstand formidable wind speeds up to 60 m/s, ensuring continuous operation under extreme weather conditions. With a 50 Ohm impedance and a maximum input power of 50W, coupled with integrated DC Grounding for lightning protection, this antenna offers both reliable functionality and enhanced safety. The integrated SMA Male connector ensures straightforward and secure integration with compatible devices.
Key Features
General Information:
| Product No.: | YC-FG00012 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 200*62*20mm | |
| Color: | white | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 686-2700MHz | |
| Gain: | 18±1dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 686-2700MHz 18dBi High Gain 4G LTE Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
