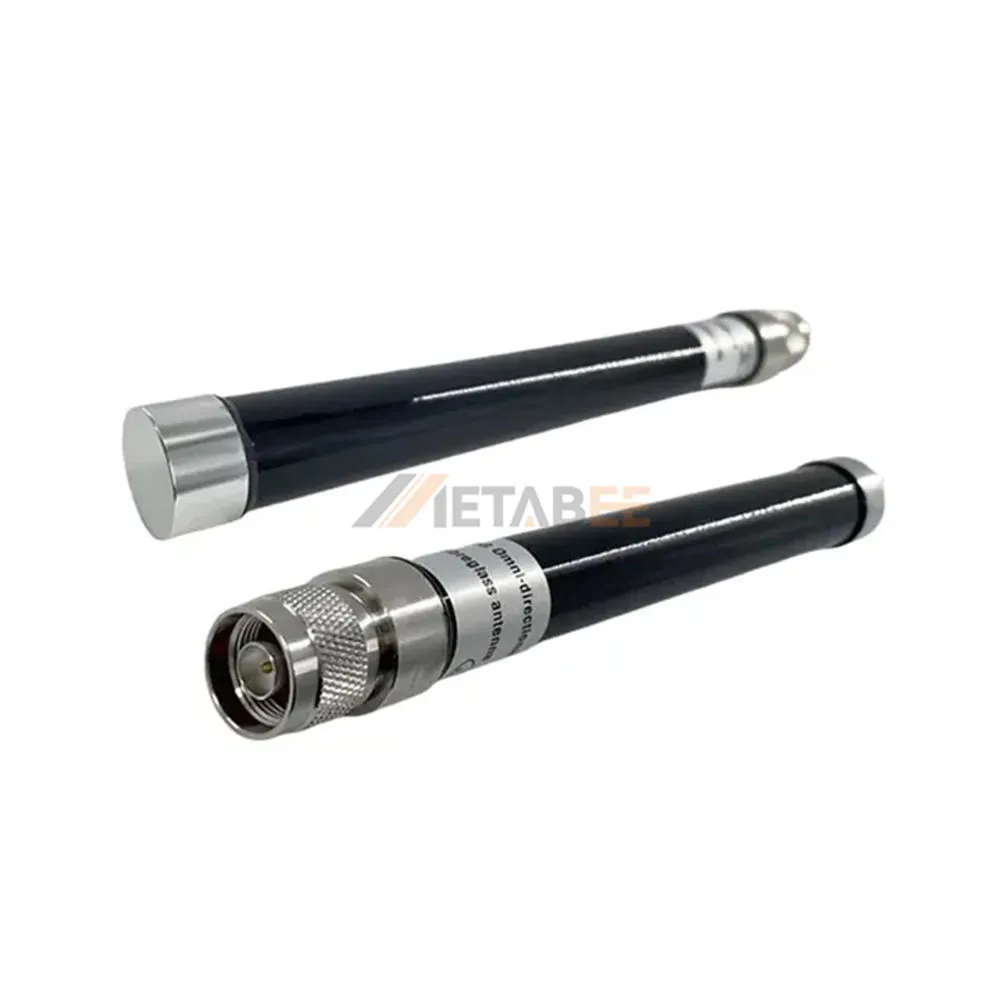

680-930MHz 3dBi Outdoor omni-directional Antenna for UAV, N Male, IP65
Introduction:
Designed for UAV countermeasure and wideband telemetry systems, the 680–930MHz 3dBi Outdoor Omni-directional Antenna delivers reliable, full‑sphere coverage across the 680 to 930 MHz range. The fiberglass radome houses a precision‑tuned vertical polarization element with VSWR ≤1.9, minimizing reflected power and maximizing radiated efficiency. Rated IP65 with an N Male connector, this antenna withstands direct weather exposure while maintaining stable 50Ω impedance and 50W maximum input power.
Engineered for harsh outdoor deployments, the antenna operates from -40°C to 85°C and survives wind loads up to 60 m/s. Integrated DC grounding provides inherent lightning protection, eliminating static buildup without external arrestors. The compact 3dBi gain characteristic offers a balanced footprint—sufficient for short‑to‑medium range links without over‑constraining elevation patterns. Ideal for UAV jammers, remote monitoring, and mobile base stations where reliability and wideband agility are critical.
Key Features
General Information:
| Product No.: | YC-FG00082 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |

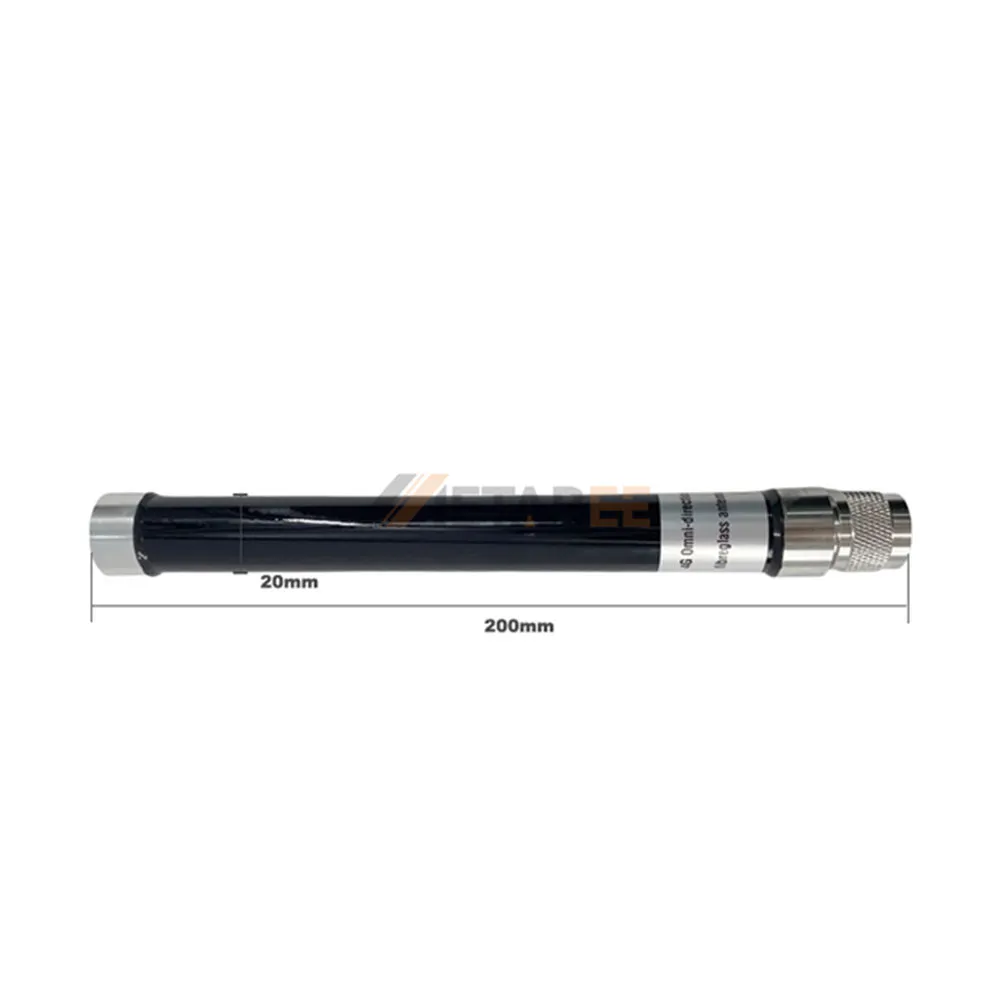

| Dimensions: | 200*20*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 680-930MHz | |
| Gain: | 3±1dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 680-930MHz 3dBi Outdoor Omni-directional Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
