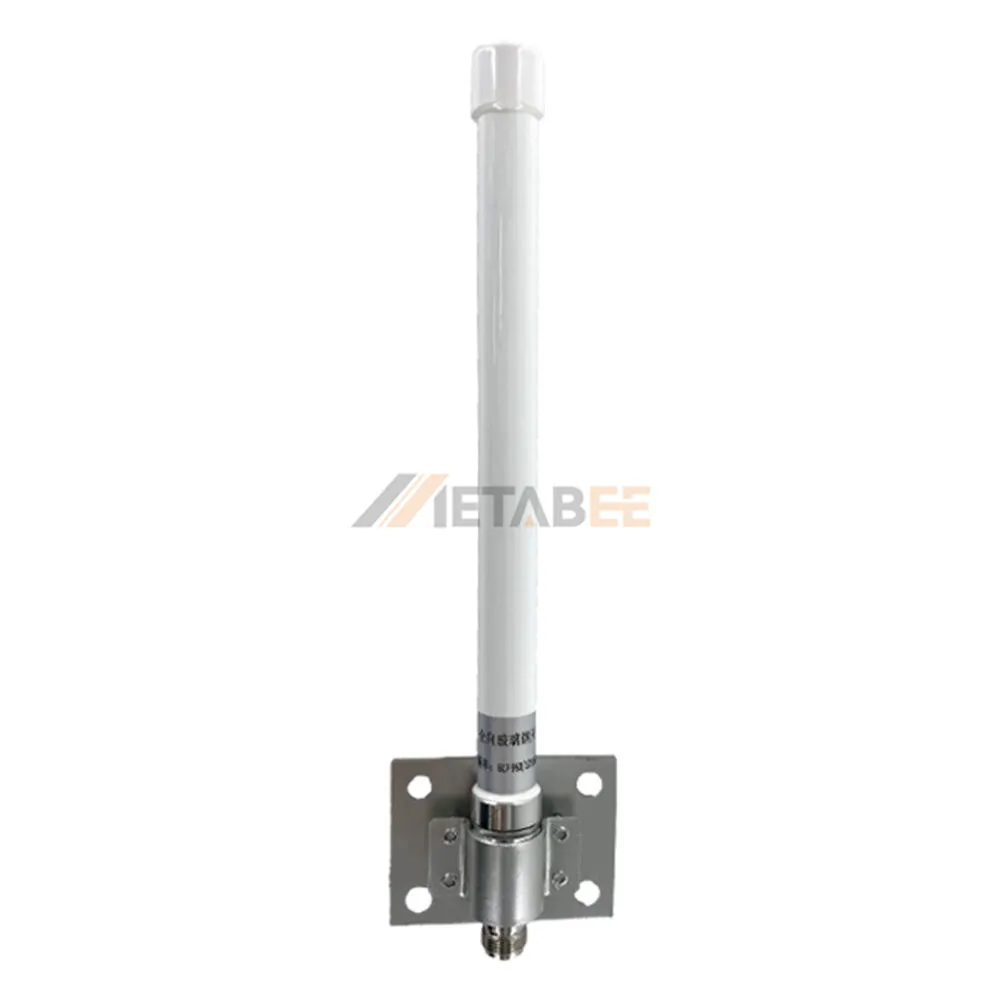

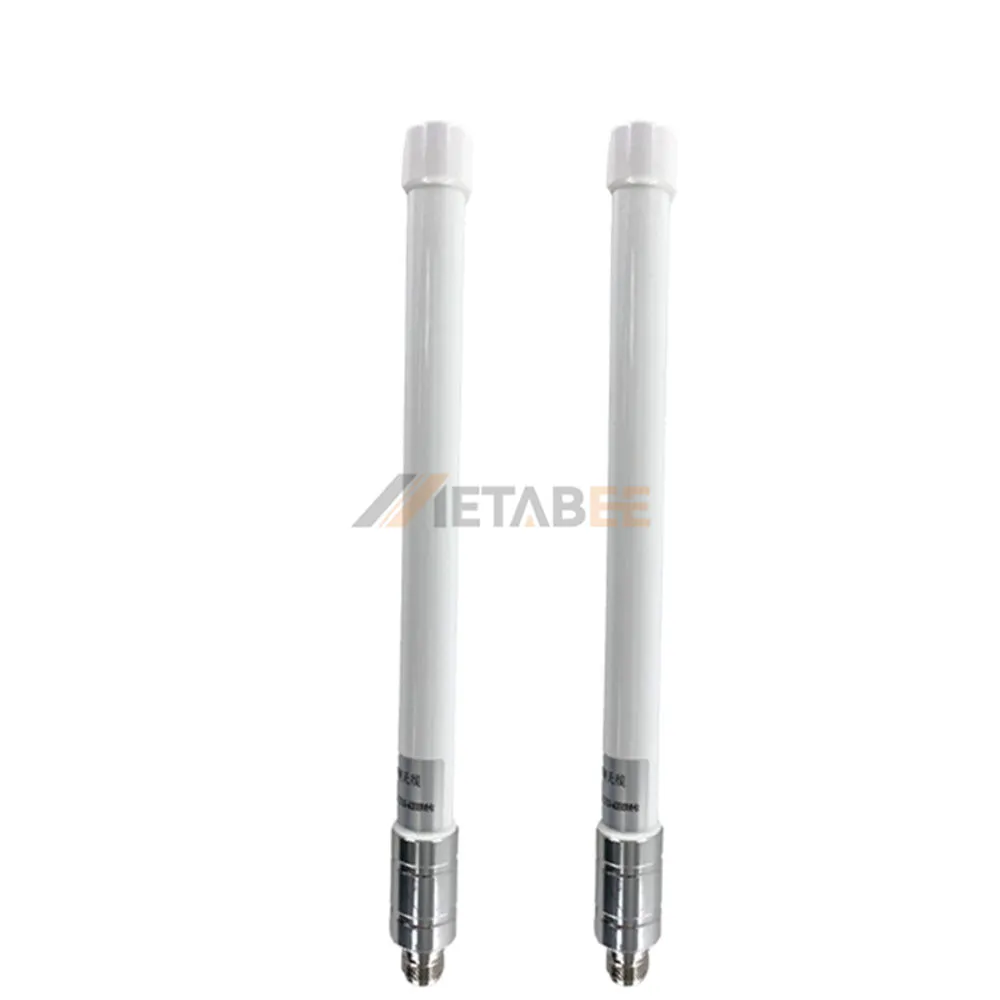

617-6000MHz 5G/4G/3G/GPRS Outdoor Omni Fiberglass Antenna, IP65
Introduction:
This 617-6000MHz Outdoor Omni Fiberglass Antenna is purpose-built for wideband 5G, 4G, 3G, and GPRS applications, covering an ultra-wide frequency range from 600 MHz to 2700 MHz. With a 3dBi gain and omnidirectional radiation pattern, it provides consistent 360° signal coverage, making it ideal for rural connectivity, remote monitoring, fleet telematics, and IoT gateways. The vertical polarization, low VSWR (≤1.92), and 50‑ohm impedance ensure minimal signal reflection and stable transmission across all supported bands.
Engineered for harsh outdoor environments, the fiberglass radome carries an IP65 rating, operating reliably from -40°C to 85°C. It withstands winds up to 60 m/s and includes DC grounding for lightning protection, safeguarding your equipment during storms. With 50W max input power and a durable, corrosion‑resistant body, this antenna delivers long‑term performance on masts, rooftops, or poles without the need for frequent maintenance.
Key Features
- Ultra‑Wide Band (617‑6000MHz) – Supports 5G, 4G, 3G, and GPRS on a single antenna.
- Omnidirectional Pattern – 360° coverage, no aiming required.
- 3dBi Gain – Balanced range and stable signal for outdoor use.
- Weatherproof & Rugged – IP65 fiberglass, -40°C to 85°C operation, 60 m/s wind survival.
- Built‑in Lightning Protection – DC grounding for safe outdoor installation.
- Low VSWR (≤1.92) – Efficient signal transfer with minimal reflection loss.
Main Specifications:
General Information:
| Product No.: | YC-FG00073 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 617-6000MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure

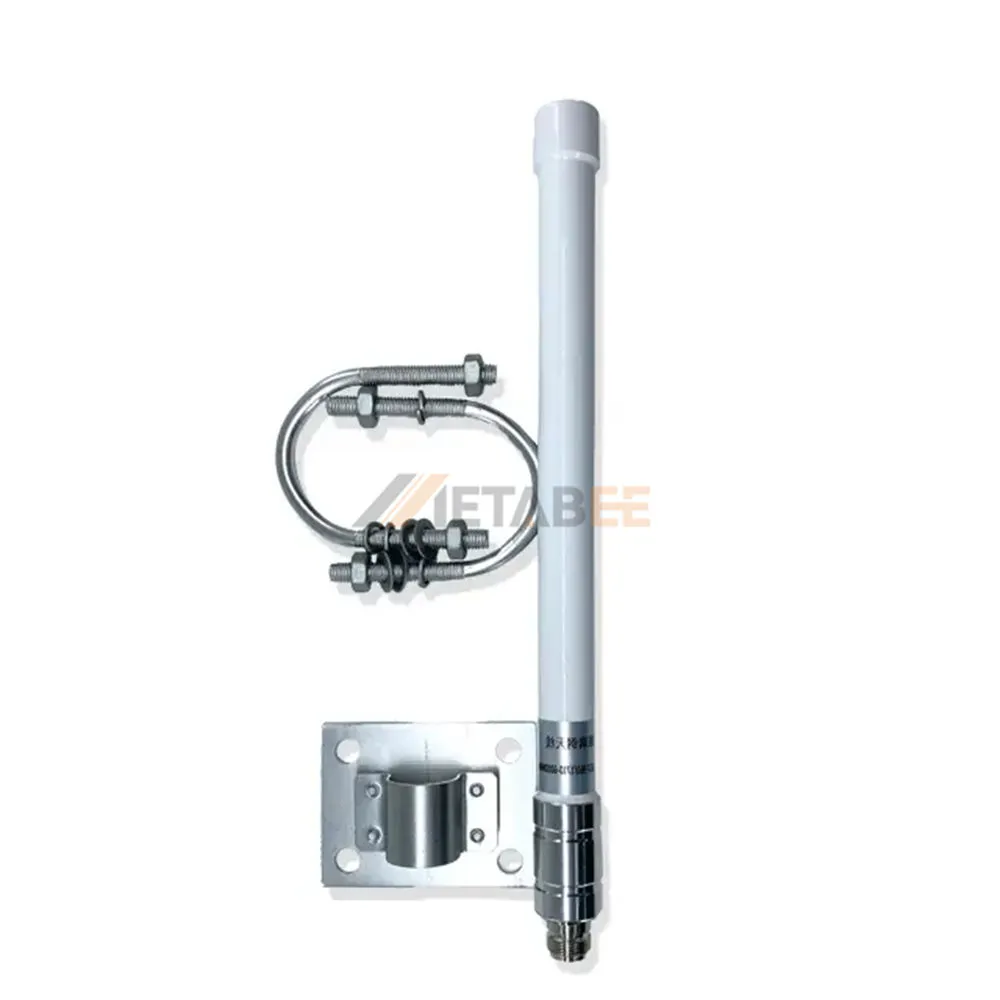

Installation Method of Fiberglass Antennas
Applications of this 617-6000MHz 5G/4G/3G/GPRS Outdoor Omni Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
