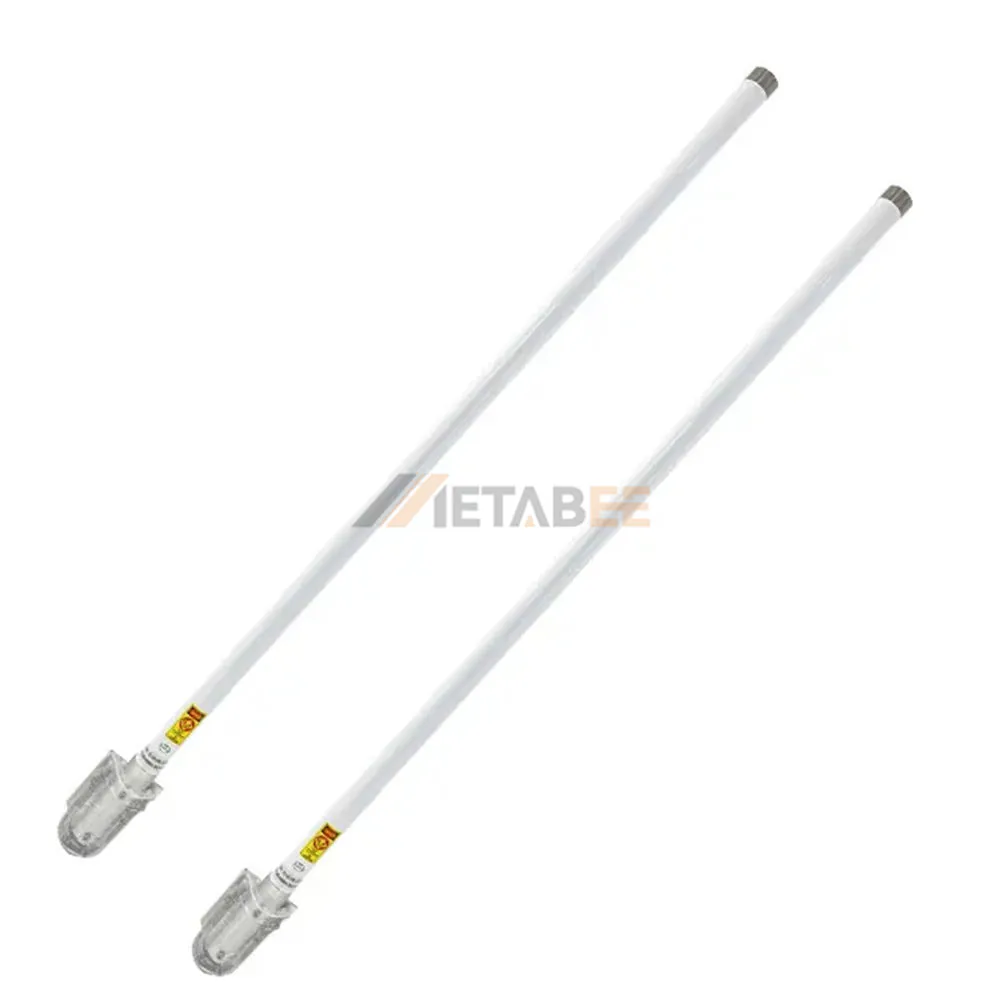

350-400MHz 4dBi Omni Fiberglass Antenna for UAV, N Female, IP65
Introduction:
The 350–400MHz 4dBi Omni Fiberglass Antenna for UAV is engineered for reliable low-frequency communication in demanding aerial and ground-based applications. Operating within the 350–400MHz band, it delivers strong signal penetration and extended coverage, making it ideal for UAV telemetry, command links, and long-range data transmission. With a stable 4 dBi gain and true omnidirectional radiation pattern, the antenna ensures uniform 360° coverage. Its vertical polarization and low VSWR (<1.5) significantly reduce signal loss, improving transmission efficiency and link stability.
Designed for harsh outdoor environments, the antenna features a robust fiberglass radome that provides excellent durability and resistance to weather exposure. The IP65 rating ensures protection against dust and water ingress, while DC grounding enhances lightning protection for safe operation. Supporting up to 50W input power and operating within a wide temperature range of -40°C to +85°C, it guarantees consistent performance in extreme conditions. The N Female connector enables secure and low-loss integration, and with wind survivability up to 60 m/s, it remains stable even in high-wind scenarios.
Key Features
- 350–400MHz band optimized for UAV communication
- 4 dBi gain with omnidirectional 360° coverage
- Low VSWR <1.5 for efficient signal transmission
- Durable fiberglass radome with IP65 protection
- Wide operating temperature: -40°C to +85°C
- DC grounding, lightning protection, and 60 m/s wind resistance
Main Specifications:
General Information:
| Product No.: | YC-FG00069 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 350-400MHz | |
| Gain: | 4dBi | |
| VSWR: | <1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure

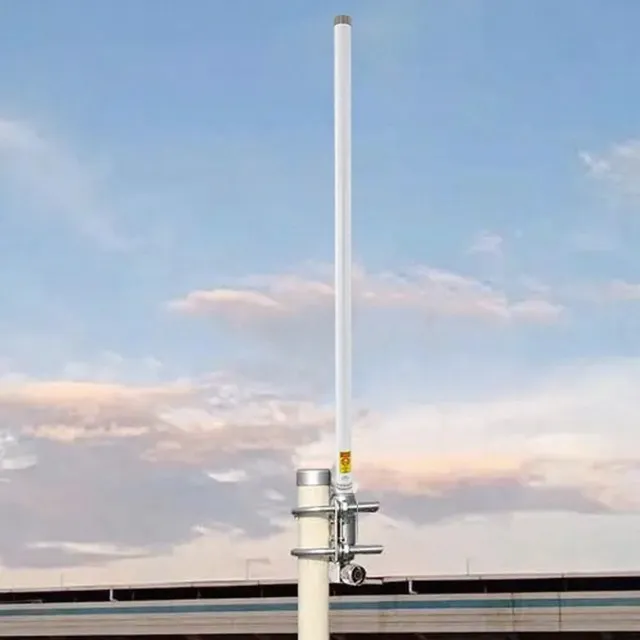

Installation Method of Fiberglass Antennas
Applications of this 350-400MHz 4dBi Omni Fiberglass Antenna for UAV:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
