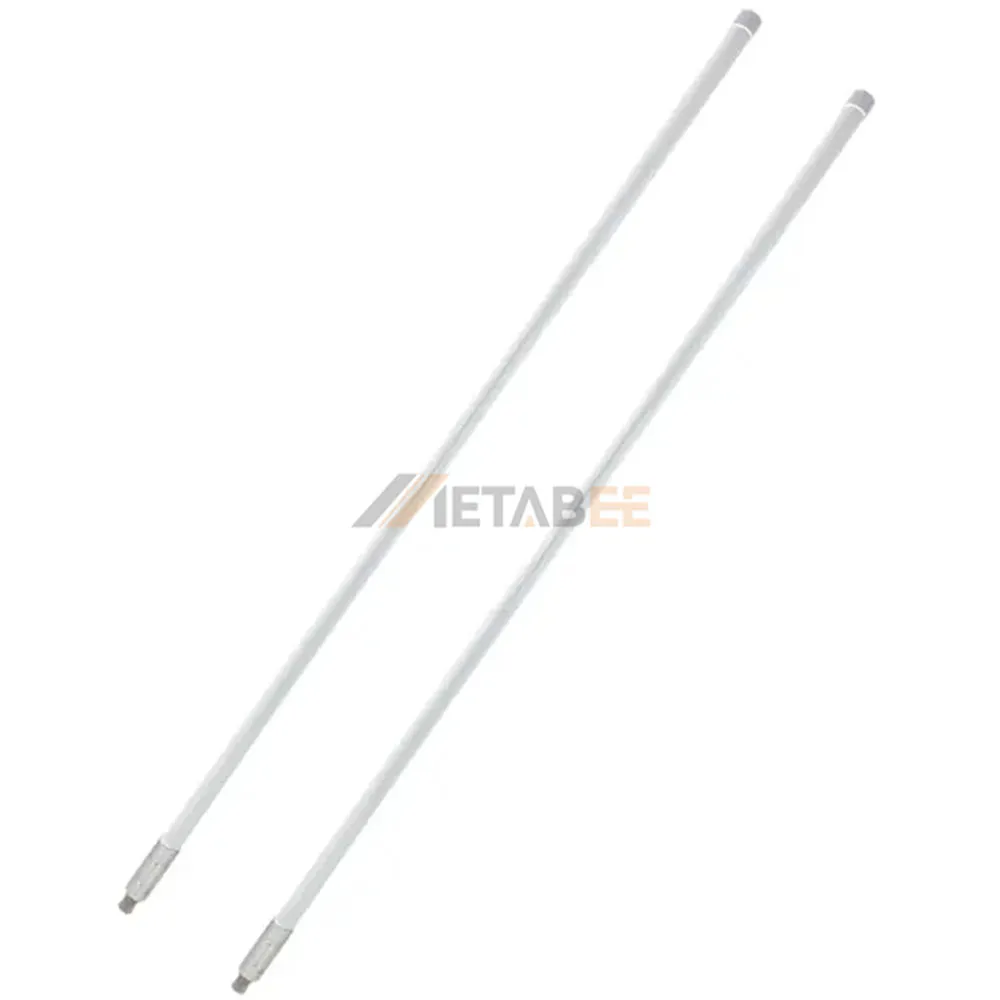

350-400MHz 4dBi LMR Communication Fiberglass Antenna with N Female, IP65
Introduction:
Experience superior reliability and extended range with the 350-400MHz 4dBi LMR Communication Fiberglass Antenna. Engineered for critical Land Mobile Radio (LMR) communication systems, this antenna provides a robust 4dBi gain and an omni-directional radiation pattern, ensuring expansive and consistent signal coverage across the designated frequency band. Its vertical polarization and exceptionally low VSWR of less than 1.5 optimize signal integrity, facilitating clear and uninterrupted voice and data transmission in demanding professional environments.
Constructed with a rugged Fiberglass radome, this antenna offers exceptional environmental resilience, boasting an IP65 rating for comprehensive protection against dust and water ingress. It maintains peak performance across an extreme operating temperature range of -40°C to 85°C and is fortified to endure wind speeds up to 60 m/s, guaranteeing operational continuity in harsh weather conditions. With a 50 Ohm impedance, a maximum input power of 50W, and integrated DC Grounding for lightning protection, this N-Female antenna delivers uncompromising performance and safety for long-term deployment.
Key Features
- Optimized LMR Performance: Specifically tuned for 350-400MHz LMR communication with a 4dBi gain for enhanced signal.
- Omni-directional Coverage: Delivers 360-degree signal propagation for wide and uniform network reach.
- Robust Environmental Protection: Features an IP65-rated Fiberglass radome, safeguarding against dust and water.
- Extreme Temperature Resilience: Reliably operates in temperatures ranging from -40°C to 85°C.
- High Wind Survivability: Engineered to withstand formidable wind speeds up to 60 m/s.
- Integrated Lightning Protection: Equipped with DC Grounding to mitigate lightning-induced damage.
Main Specifications:
General Information:
| Product No.: | YC-FG00068 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 350-400MHz | |
| Gain: | 4dBi | |
| VSWR: | <1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure

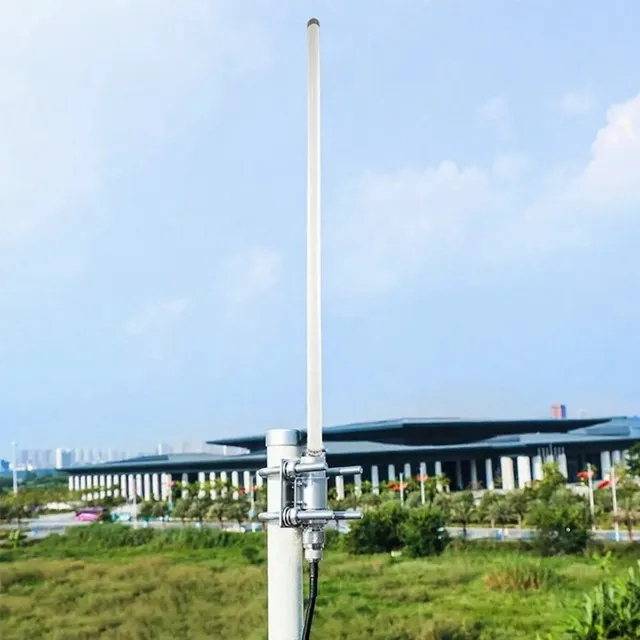

Installation Method of Fiberglass Antennas
Applications of this 350-400MHz 4dBi LMR Communication Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
