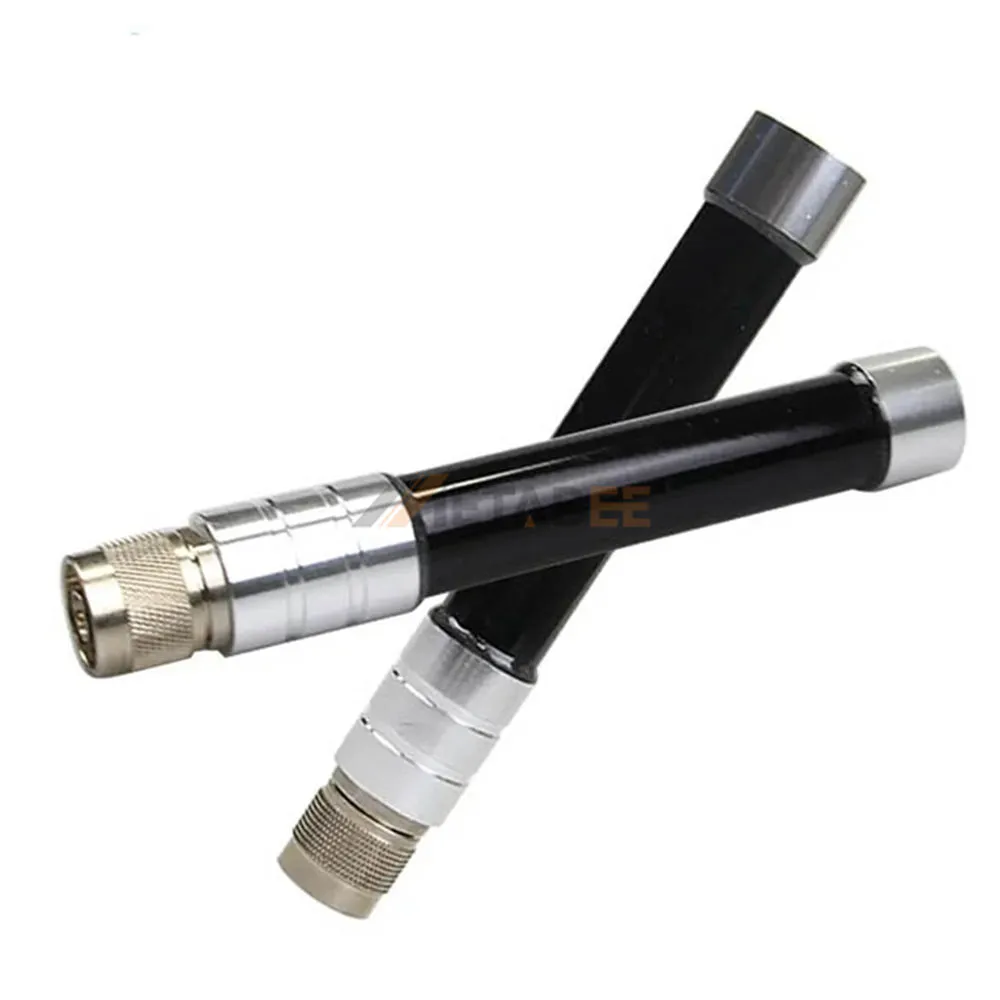

3.7- 4.2GHz Outdoor Omni-directional Satellite Fiberglass Antenna, N-Male, Waterproof
Introduction:
The 3.7–4.2GHz satellite fiberglass antenna is engineered for reliable performance in the C-band spectrum, a frequency range widely used for satellite communications and fixed wireless systems due to its strong balance between coverage and signal stability. Designed with a precision-tuned 3.7–4.2GHz frequency range and a 2±1 dBi gain, this antenna delivers consistent omnidirectional coverage, ensuring uniform signal distribution across 360 degrees. Its vertical polarization enhances transmission efficiency in typical outdoor deployments, while a VSWR of ≤1.92 guarantees minimal signal reflection and optimized RF performance.
Built for harsh outdoor environments, the antenna features a rugged fiberglass radome that provides excellent weather resistance and long-term durability. With an IP65 waterproof rating, it effectively withstands dust, rain, and extreme conditions. The N-Male connector ensures secure and low-loss connectivity, while DC grounding offers reliable lightning protection. Supporting up to 50W input power and operating within a wide temperature range of -40°C to +85°C, this antenna is ideal for satellite communication systems, wireless backhaul, and industrial network infrastructure. Additionally, its wind survivability of up to 60 m/s ensures stable operation even in severe weather conditions.
Key Features
- 3.7–4.2GHz C-band optimized for satellite and wireless applications
- 2±1 dBi gain with true omnidirectional 360° coverage
- Durable fiberglass radome with IP65 waterproof protection
- N-Male connector for secure and low-loss RF connection
- Wide operating temperature: -40°C to +85°C
- Lightning protection with DC grounding and 60 m/s wind resistance
Main Specifications:
General Information:
| Product No.: | YC-FG00018 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |

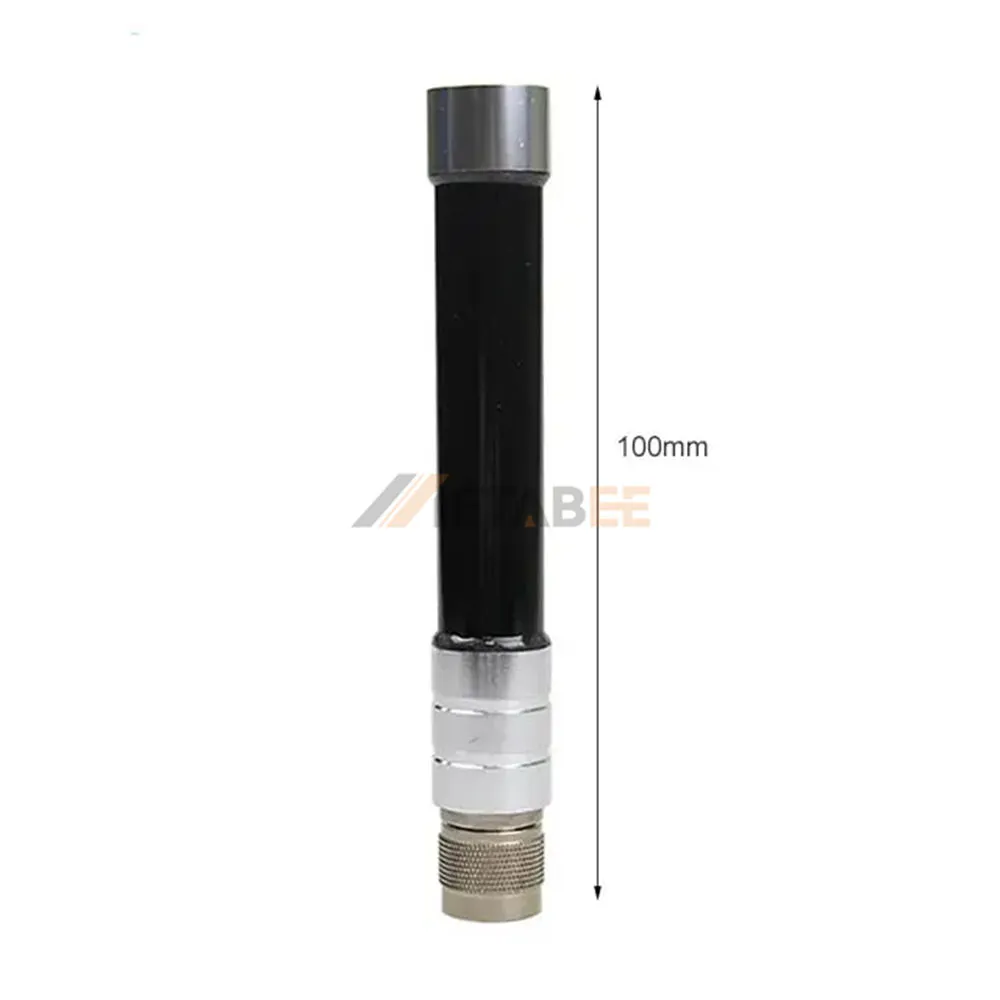

| Dimensions: | 100*16*20mm | |
| Color: | Black | |
| Other Feature: | Other Feature: |
Electrical Performance:
| Frequency Range: | 3.7-4.2G | |
| Gain: | 2±1dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 3.7- 4.2GHz Outdoor Omni-directional Satellite Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
