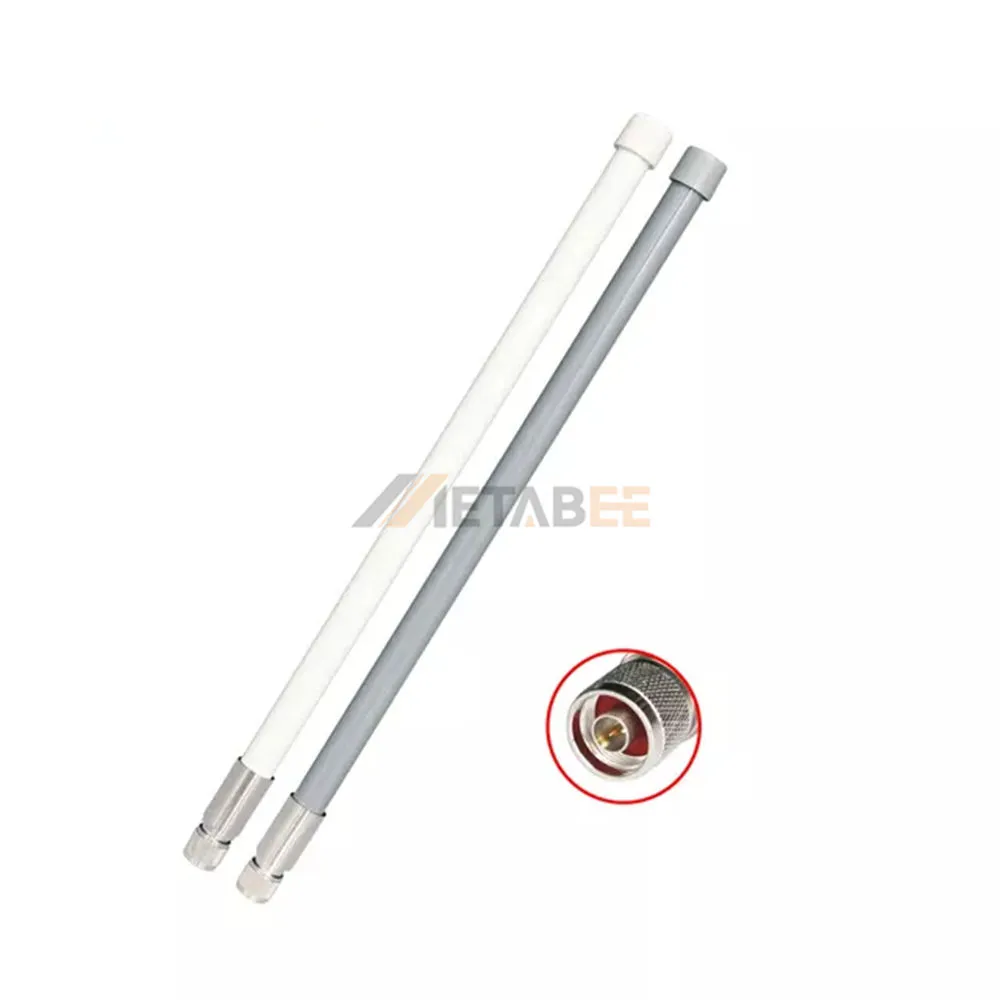

3.7- 4.2GHz 8dBi Satellite Fiberglass Antenna, N Female, IP65
Introduction:
Experience high-performance satellite connectivity with our 3.7-4.2GHz 8dBi fiberglass antenna. Specifically engineered for precision and durability, this omni-directional antenna provides seamless 360-degree coverage, making it an ideal choice for satellite communication systems and fixed wireless applications. Its high-gain 8dBi design ensures stable signal transmission over long distances, while the vertical polarization optimizes link reliability.
Built to withstand the most demanding environments, the antenna features a rugged fiberglass radome and an IP65-rated weatherproof seal. Whether facing extreme temperatures ranging from -40°C to 85°C or high-velocity winds up to 60 m/s, this antenna maintains peak performance. With integrated DC Grounding for lightning protection and a standard N-Female connector, it offers a “plug-and-play” solution that prioritizes both equipment safety and ease of installation.
Key Features
- High-Gain Performance: 8dBi gain ensures superior signal strength across the 3.7-4.2GHz spectrum.
- 360° Omni-directional Coverage: Provides consistent radiation patterns in all horizontal directions.
- Industrial Durability: IP65-rated fiberglass construction protects against dust, water, and corrosion.
- Extreme Weather Resistance: Operational in temperatures from -40°C to +85°C and winds up to 60 m/s.
- Enhanced Safety: Built-in DC Grounding provides essential protection against lightning surges.
- Reliable Connectivity: Low VSWR (≤1.92) and 50 Ohm impedance for maximum power efficiency.
Main Specifications:
General Information:
| Product No.: | YC-FG00004 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | Grey | |
| Other Feature: | Other Feature: |
Electrical Performance:
| Frequency Range: | 3.7-4.2G | |
| Gain: | 8dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 3.7- 4.2GHZ 8dBi Satellite Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
