3.5mm to 3.5mm RF Adapter, DC-26.5 GHz
Introduction

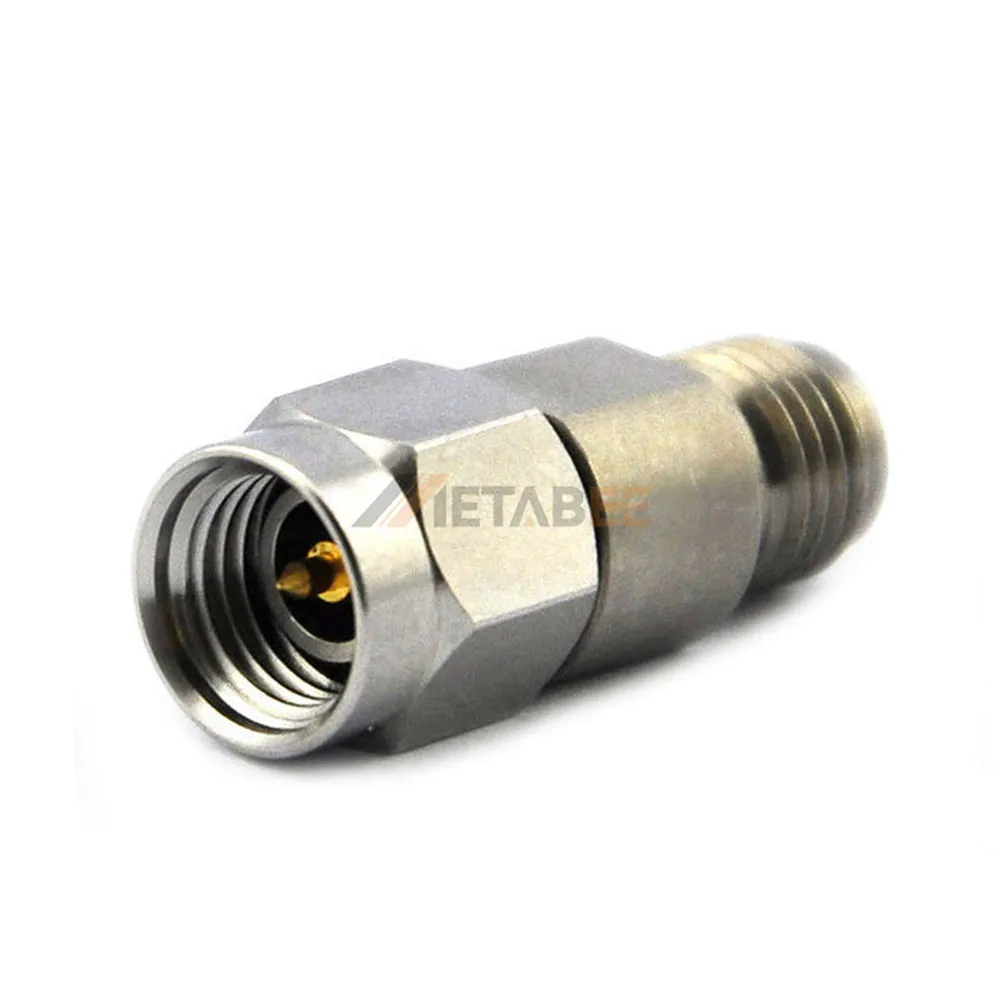

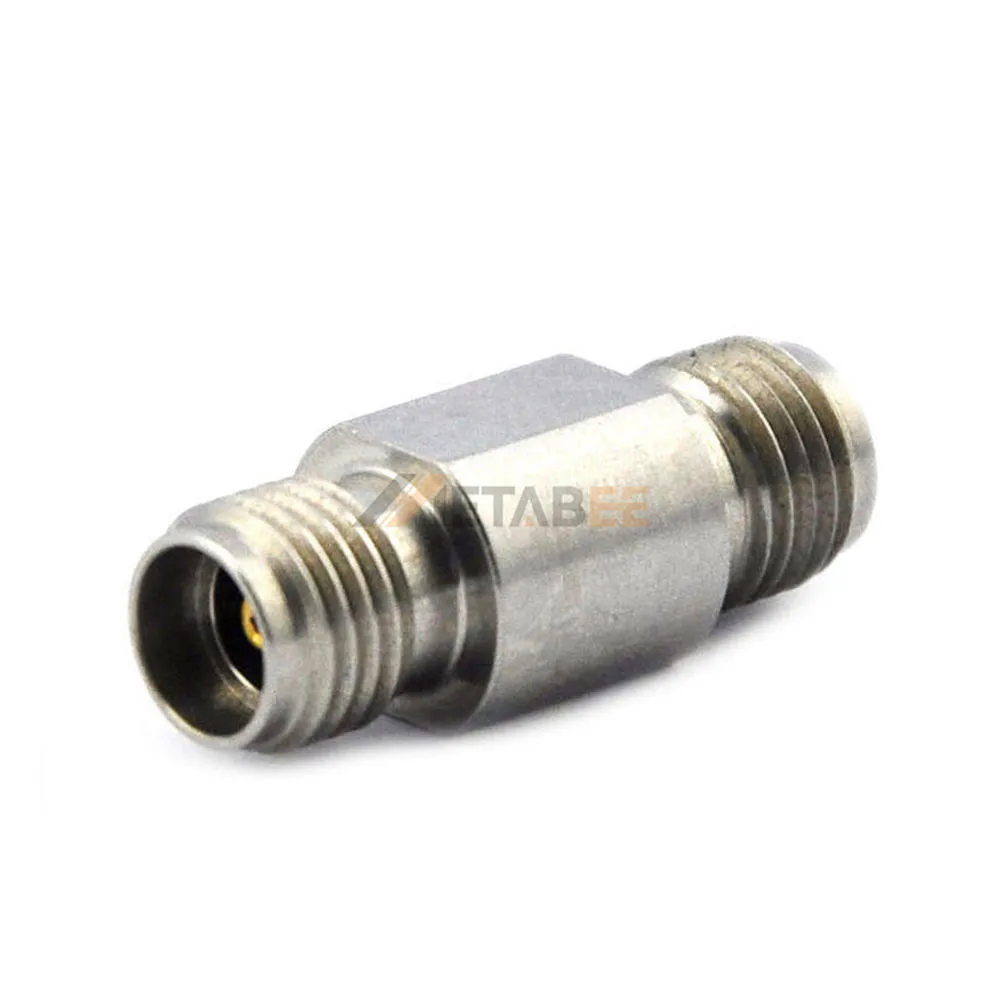

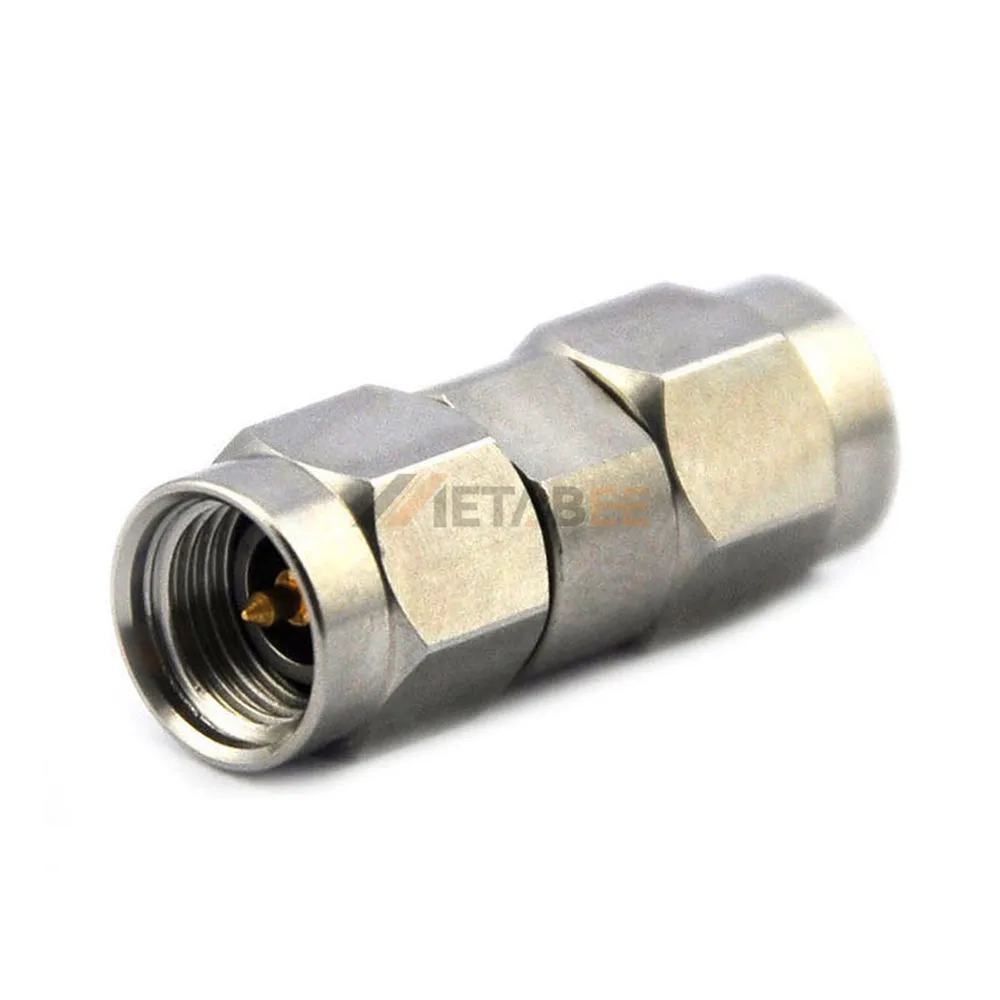

The 3.5mm to 3.5mm RF adapter is a high-performance coaxial adapter designed for seamless signal transmission in RF and microwave applications. Featuring a straight installation orientation, this adapter ensures reliable connectivity with a 50-ohm contact impedance, minimizing signal loss. Both connectors (male and female) are constructed with durable stainless steel and feature a passivated coating for enhanced corrosion resistance and long-term durability.
With an impressive frequency range of DC-26.5 GHz and a low VSWR of 1.15:1, this adapter guarantees superior signal integrity in demanding environments. It operates efficiently across a wide temperature range (-50°C to 85°C), making it suitable for industrial, telecommunications, and laboratory applications. The robust construction ensures stable performance even under high-frequency conditions.
Key features:
- 3.5mm to 3.5mm RF adapter for precise signal transmission;
- 50-ohm impedance for minimal signal loss;
- Stainless steel housing with passivated coating for durability;
- Straight installation for easy connectivity;
- Low VSWR (1.15:1) ensuring high signal integrity;
- Broad frequency range (DC-26.5 GHz) for versatile use;
- Wide operating temperature (-50°C to 85°C) for extreme conditions.
Main Specifications:
| Product No: | YC-3.5-JJS, YC-3.5-JKS, YC-3.5-KKS | |
| Product Series: | 3.5mm Adapters | |
| Adapter Type: | 3.5mm to 3.5mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 3.5mmConnector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 3.5mmConnector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15:1 | |
| Frequency Range: | DC-26.5 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 3.5mm to 3.5mm RF Adapter:
3.5mm RF adapters are a popular choice in the RF and microwave industry due to their excellent performance at high frequencies and their compatibility with SMA and 2.92mm connectors..
Here are some applications:
- Satellite Communications;
- Semiconductor Testing;
- Medical Imaging;
- Microwave Research;
- Microwave Instrumentation;
- Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
