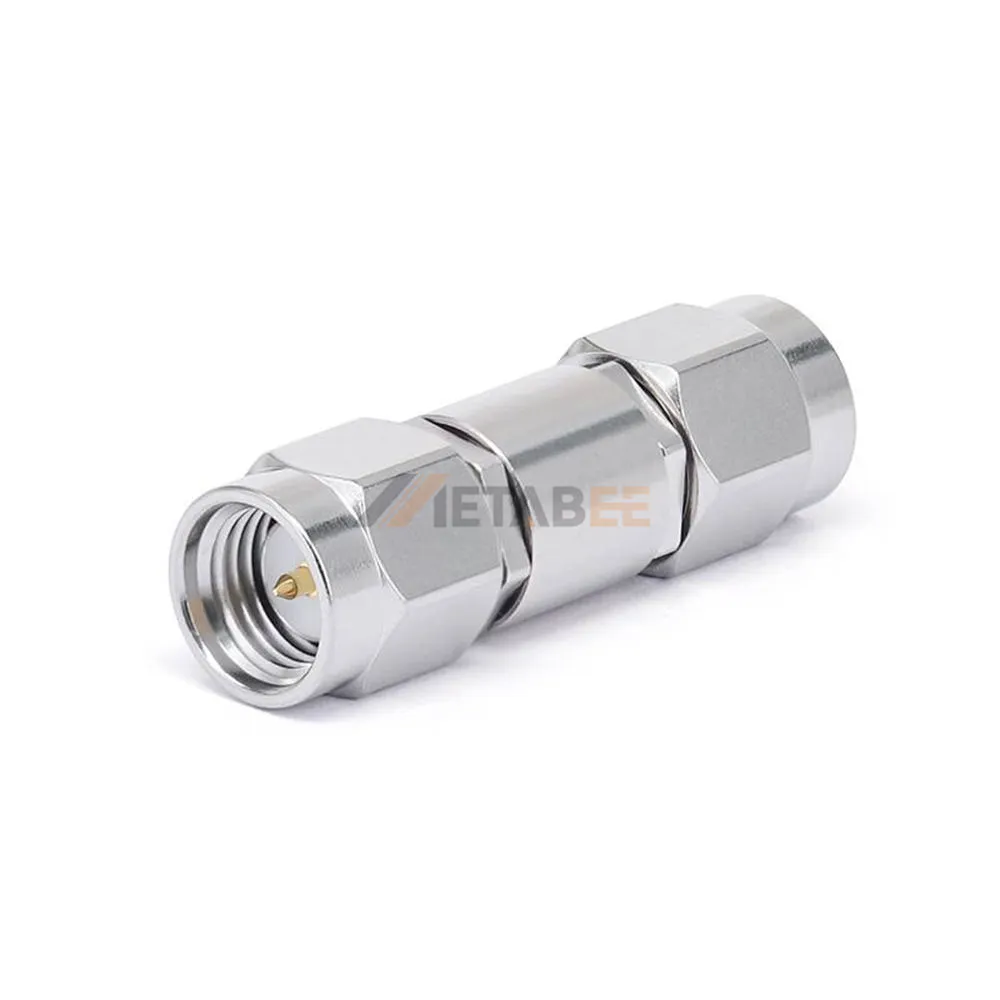

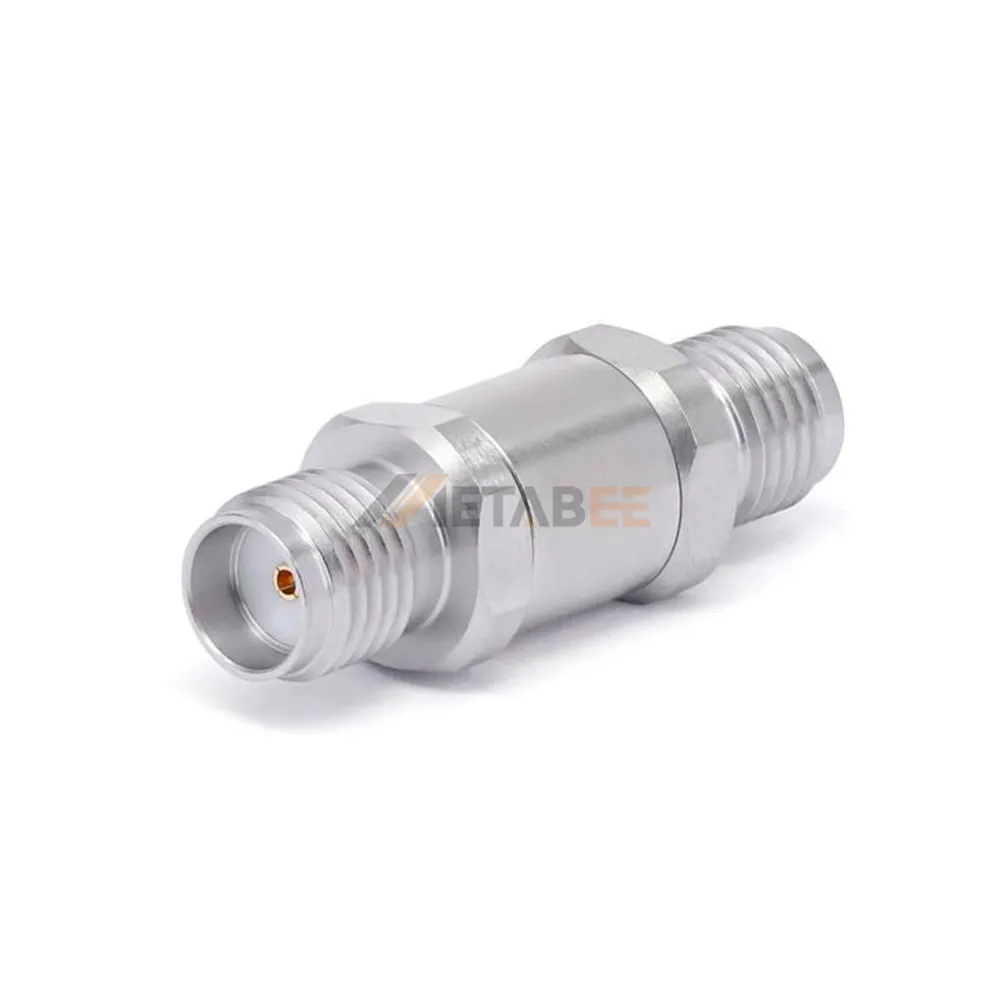

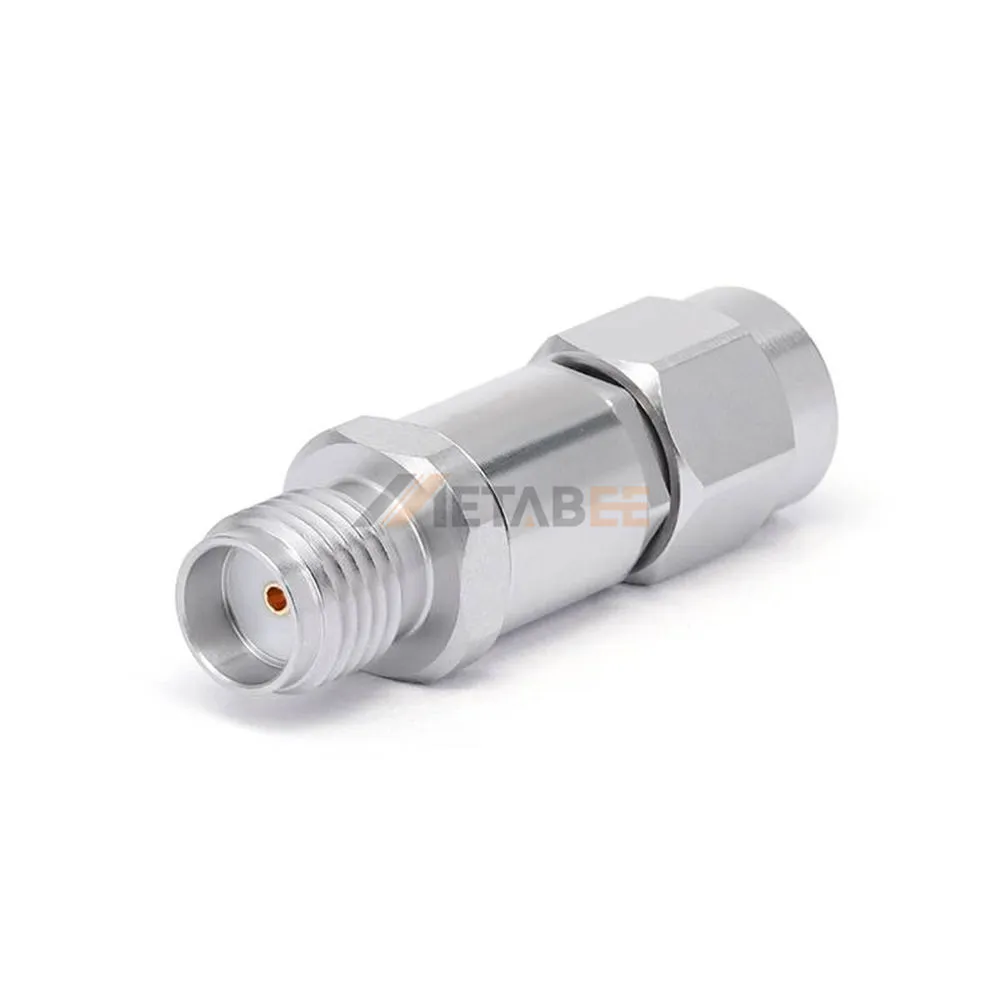

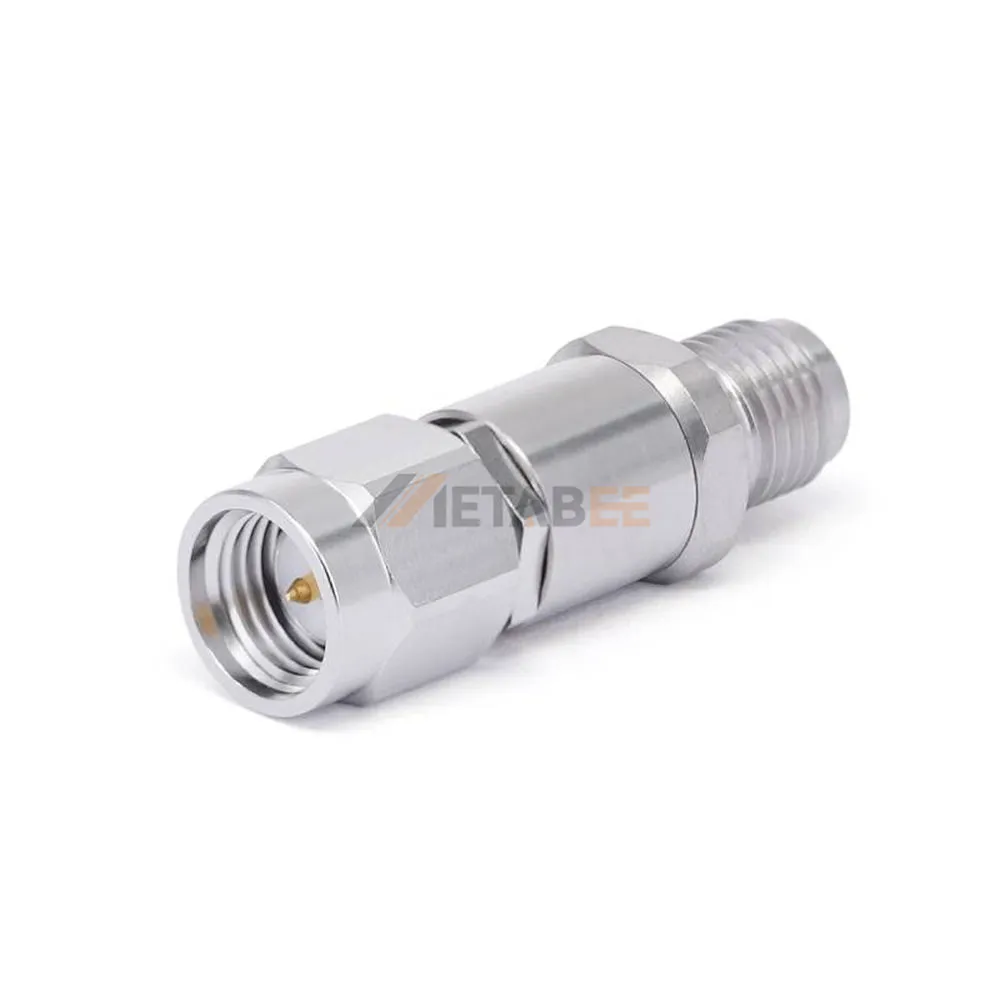

SMA to 3.5mm Adapter, DC-18 GHz
Introduction
The SMA to 3.5mm adapter is a high-performance RF interconnect designed for seamless signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and superior electrical performance. The straight installation design provides easy integration, while the stainless steel housing with passivated coating enhances durability and corrosion resistance. With a low VSWR of 1.15:1, it guarantees reliable signal integrity across a broad frequency range of DC-18 GHz, making it ideal for test equipment, telecommunications, and RF systems.
Engineered for extreme conditions, this adapter operates efficiently in temperatures ranging from -50°C to 85°C. The SMA connector (male/female) and 3.5mm connector (male/female) ensure compatibility with various RF components. Whether for lab testing or field applications, this adapter delivers precision and long-lasting performance.
Key features:
- 50-ohm impedance for optimal signal transfer;
- DC-18 GHz frequency range for wideband applications;
- Stainless steel housing with passivated coating for durability;
- Low VSWR (1.15:1) ensuring minimal signal reflection;
- Straight installation for easy connectivity;
- Operates from -50°C to 85°C for extreme environments;
- Reliable SMA to 3.5mm conversion for versatile RF setups.
Main Specifications:
| Product No: | YC-SMA/3.5-JJS, YC-SMA/3.5-JKS, YC-SMA/3.5-KJS, YC-SMA/3.5-KKS | |
| Product Series: | 3.5mm Adapters | |
| Adapter Type: | SMA to 3.5mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 3.5mmConnector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this SMA to 3.5mm Adapter:
3.5mm RF adapters are a popular choice in the RF and microwave industry due to their excellent performance at high frequencies and their compatibility with SMA and 2.92mm connectors..
Here are some applications:
- Satellite Communications;
- Semiconductor Testing;
- Medical Imaging;
- Microwave Research;
- Microwave Instrumentation;
- Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
