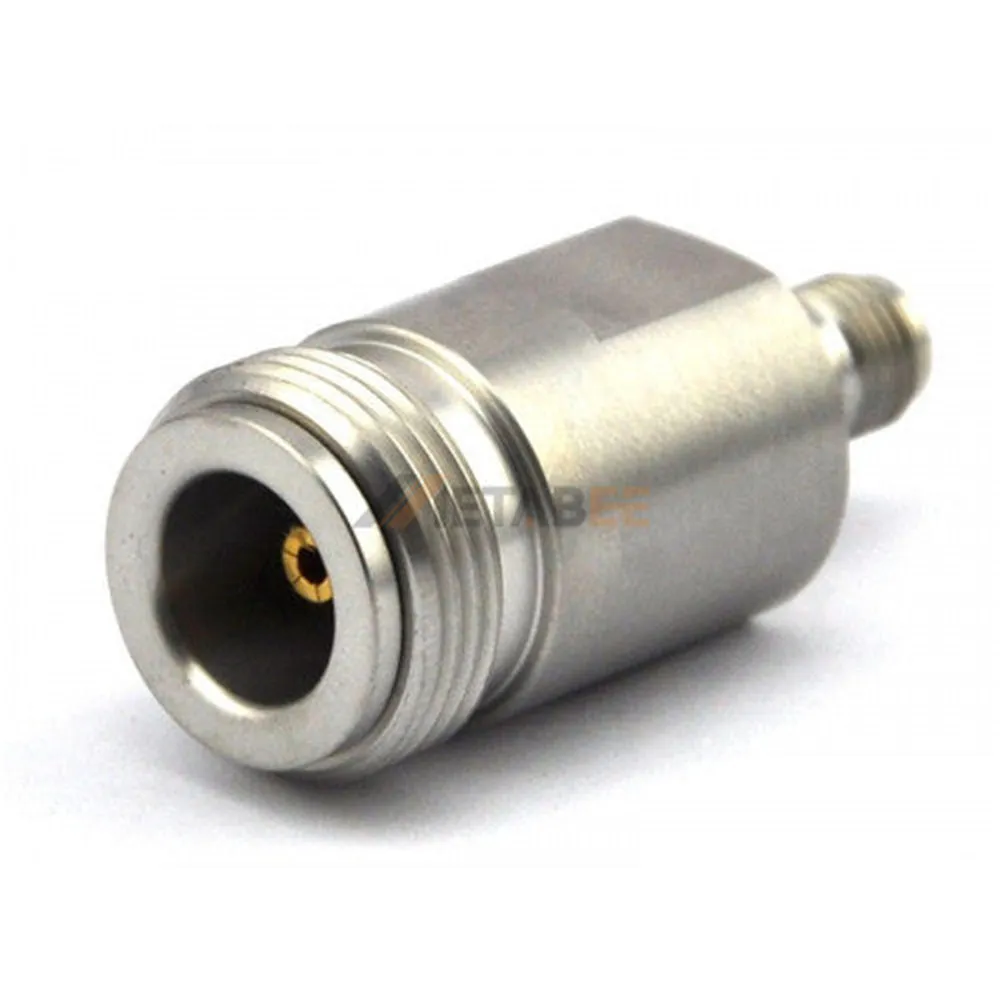

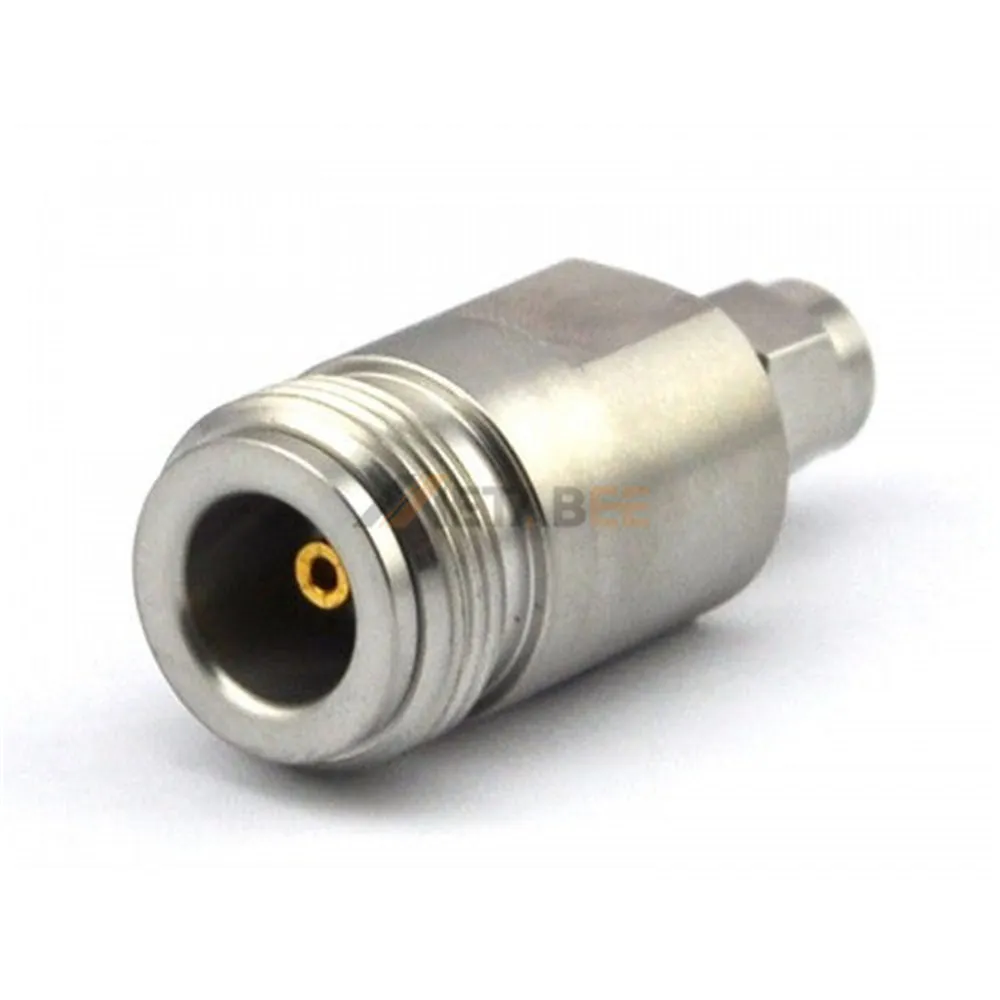

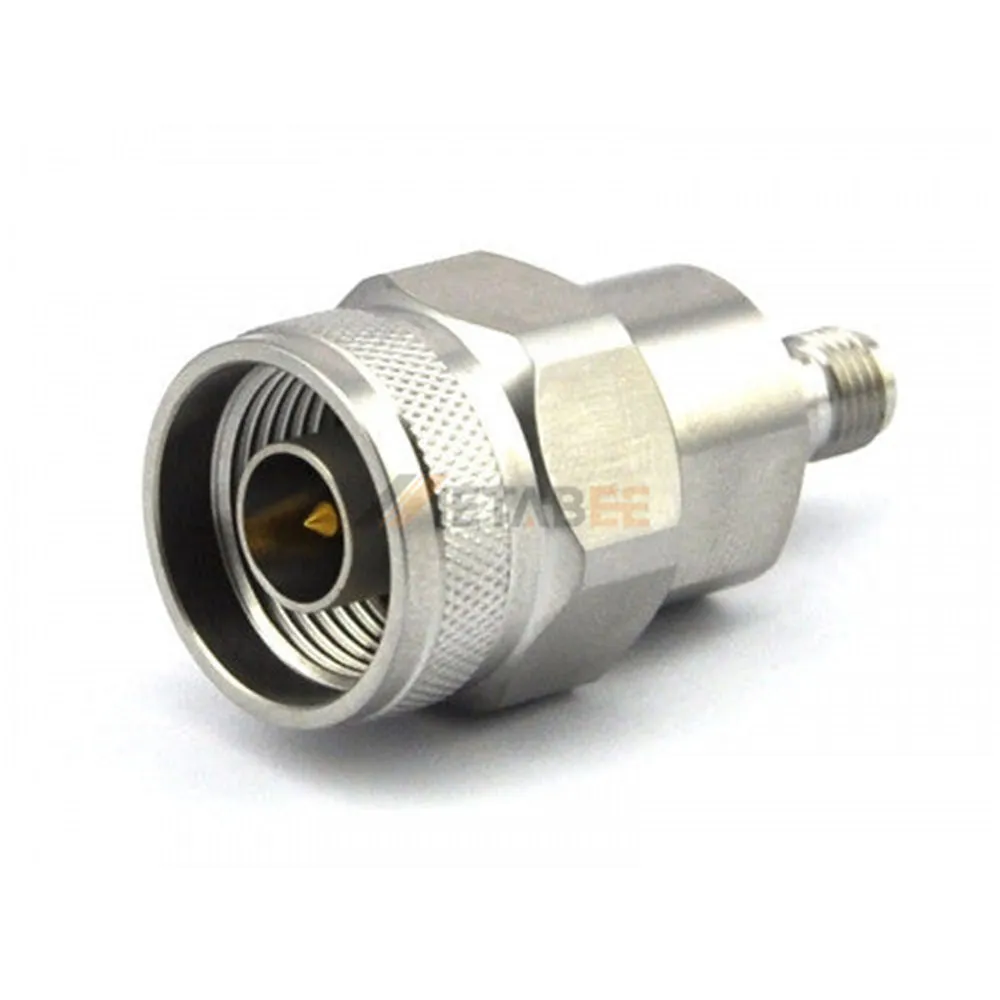

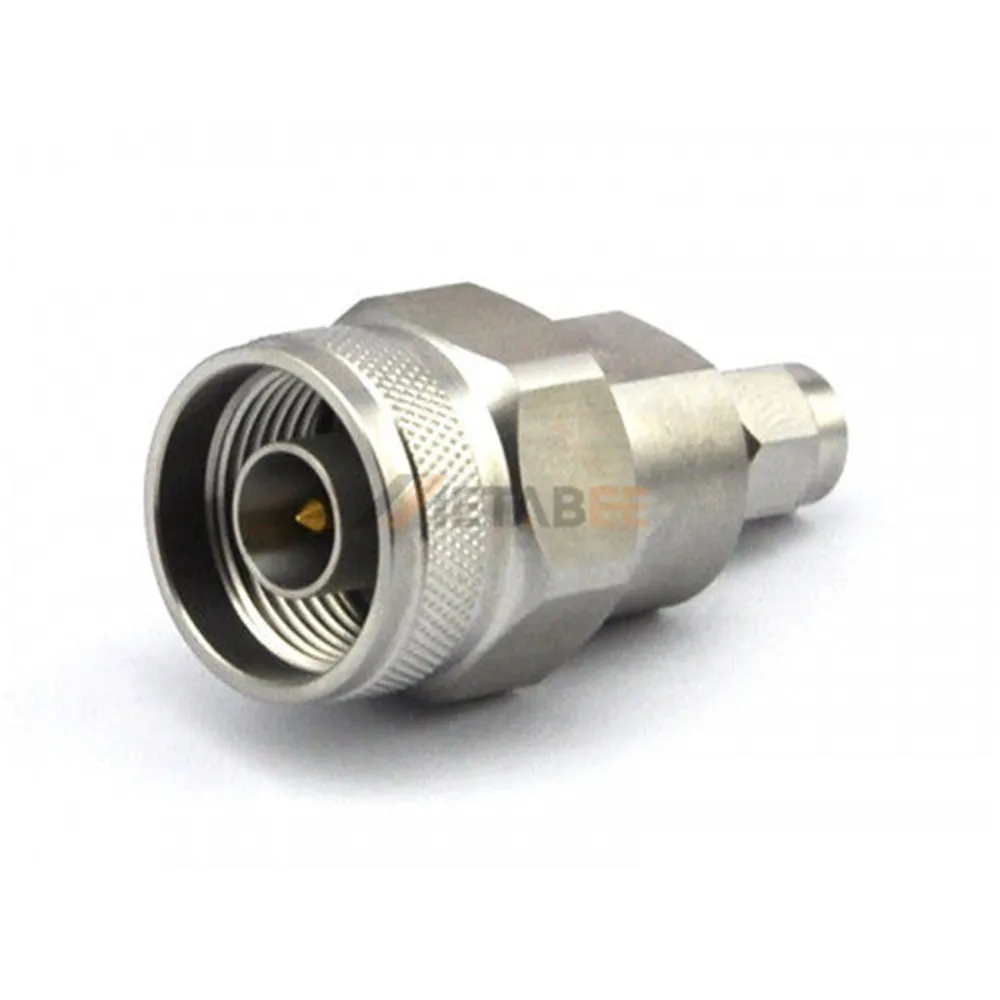

3.5mm to N-type Adapter, DC-18 GHz
Introduction
The 3.5mm to N-type adapter is a high-performance RF adapter designed for seamless connectivity between 3.5mm and N-type connectors. With a precision-engineered 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal transmission efficiency across a broad frequency range of DC to 18 GHz. Its straight installation design provides easy integration into test setups, communication systems, and RF applications.
Constructed for durability, both connectors feature stainless steel shells with passivated plating, offering excellent corrosion resistance and long-term reliability. The 3.5mm connector (male) and N-type connector (female) deliver secure mating with low insertion loss, supported by an impressive VSWR of 1.15:1. The adapter operates reliably in extreme conditions, with a temperature range of -50°C to 85°C, making it suitable for industrial, aerospace, and laboratory environments.
Key features:
- 3.5mm to N-type adapter for versatile RF connections;
- 50-ohm impedance ensures signal integrity;
- DC-18 GHz frequency range for broad applications;
- Stainless steel housing with passivated coating for durability;
- Low VSWR (1.15:1) minimizes signal reflection;
- Straight design for easy installation;
- Wide operating temperature (-50°C to 85°C) for harsh environments).
Main Specifications:
| Product No: | YC-N/3.5-JJS, YC-N/3.5-JKS, YC-N/3.5-KJS, YC-N/3.5-KKS | |
| Product Series: | 3.5mm Adapters | |
| Adapter Type: | 3.5mm to N-type | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 3.5mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | N-type Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15:1 | |
| Frequency Range: | DC-18 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 3.5mm to N-type Adapter:
3.5mm RF adapters are a popular choice in the RF and microwave industry due to their excellent performance at high frequencies and their compatibility with SMA and 2.92mm connectors.
Here are some applications:
- Satellite Communications;
- Semiconductor Testing;
- Medical Imaging;
- Microwave Research;
- Microwave Instrumentation;
- Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
