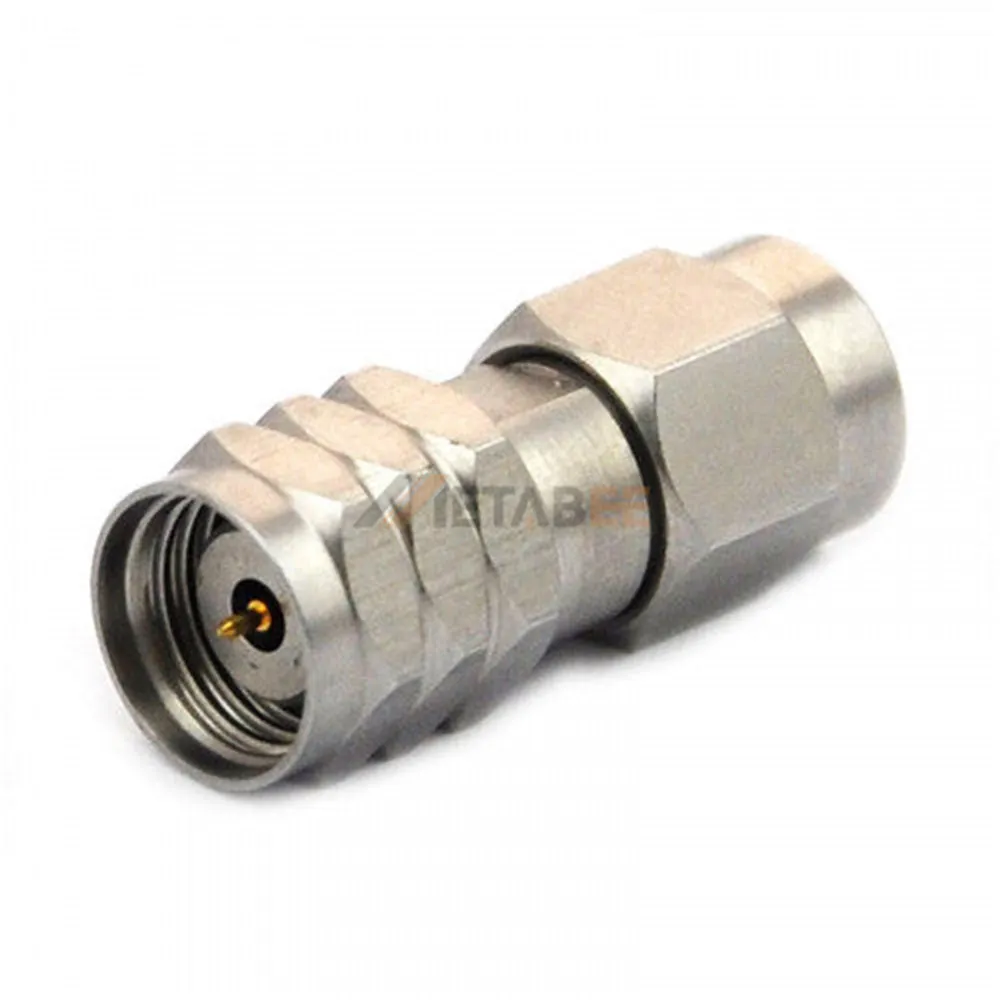

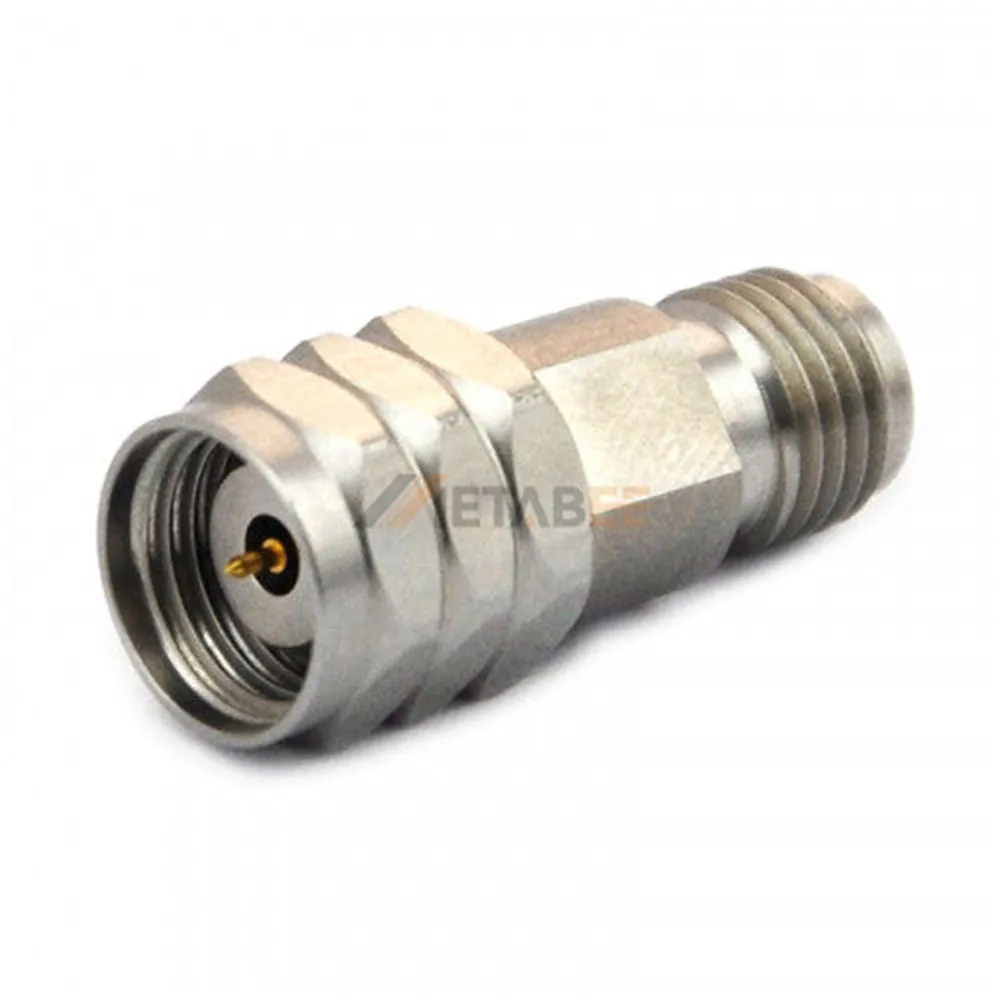

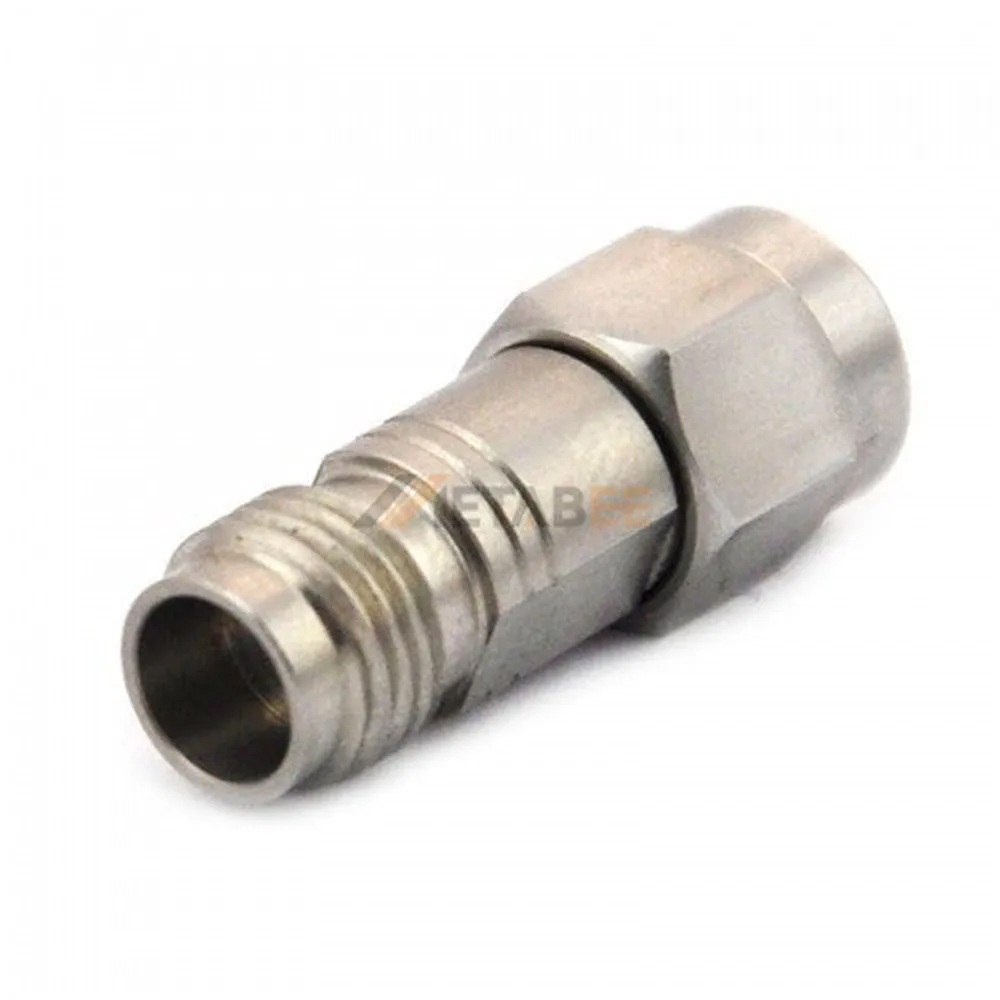

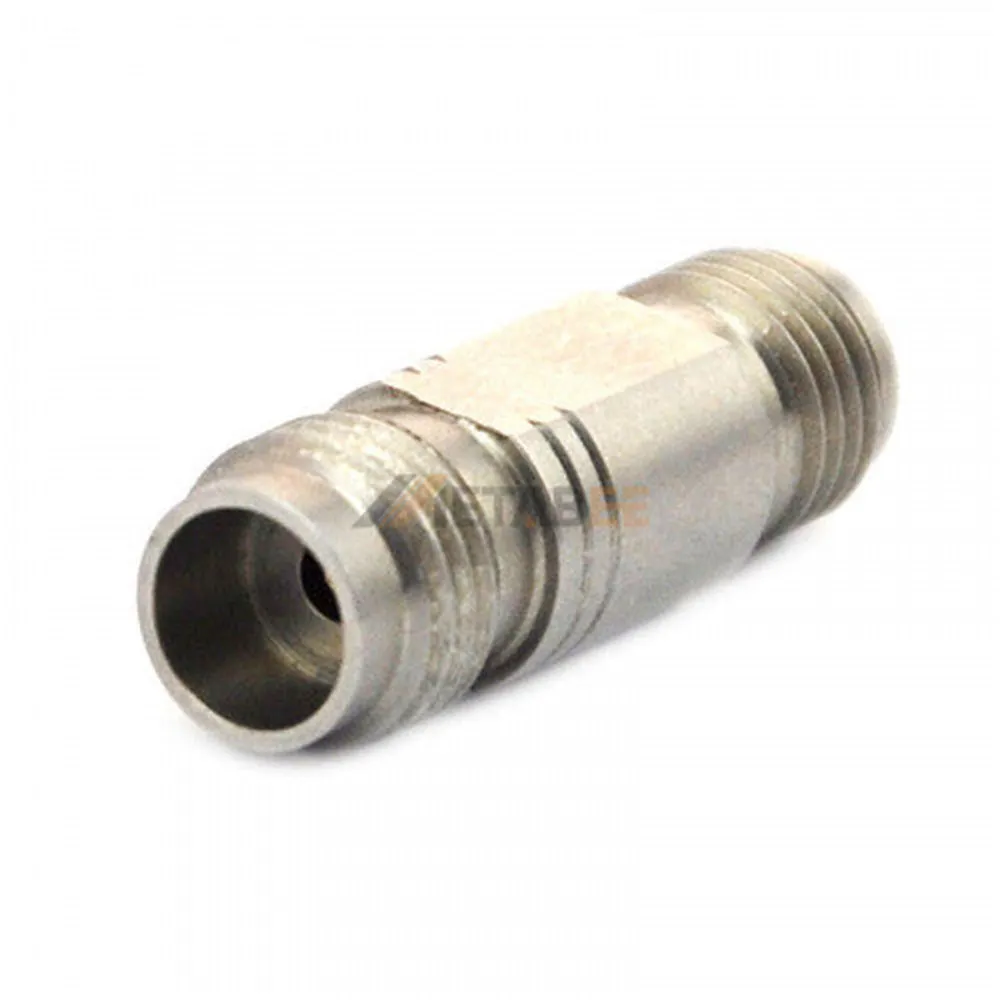

1.85mm to 3.5mm Adapter, DC-26.5 GHz
Introduction
This 1.85mm to 3.5mm adapter ensures seamless signal transmission in high-frequency applications, supporting a broad frequency range from DC to 26.5 GHz. Designed for precision, it features a 50-ohm contact impedance and an ultra-low VSWR of 1.15:1, minimizing signal loss and reflection. The straight installation orientation provides easy integration into test setups and RF systems, while the stainless steel housing with passivated plating ensures durability and corrosion resistance in harsh environments.
Engineered for reliability, this adapter maintains stable performance across an operating temperature range of -50°C to 85°C. The 1.85mm connector (male/female) and 3.5mm connector (male/female) are both constructed with stainless steel and passivated plating, offering robust mechanical strength and long-term signal integrity. Ideal for aerospace, telecommunications, and laboratory testing, this adapter delivers high-precision connectivity for demanding RF applications.
Key features:
- Frequency Range: DC – 26.5 GHz
- Impedance: 50 Ohms
- Low VSWR: 1.15:1
- Durable Housing: Stainless steel with passivated plating
- Operating Temperature: -50°C to +85°C
- Connector Types: 1.85mm to 3.5mm
- Straight Orientation for easy installation
Main Specifications:
| Product No: | YC-3.5/1.85-JJS, YC-3.5/1.85-JKS, YC-3.5/1.85-KJS, YC-3.5/1.85-KKS | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 1.85mm to 3.5mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.85mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 3.5mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15 | |
| Frequency Range: | DC-26.5 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 1.85mm to 3.5mm Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
