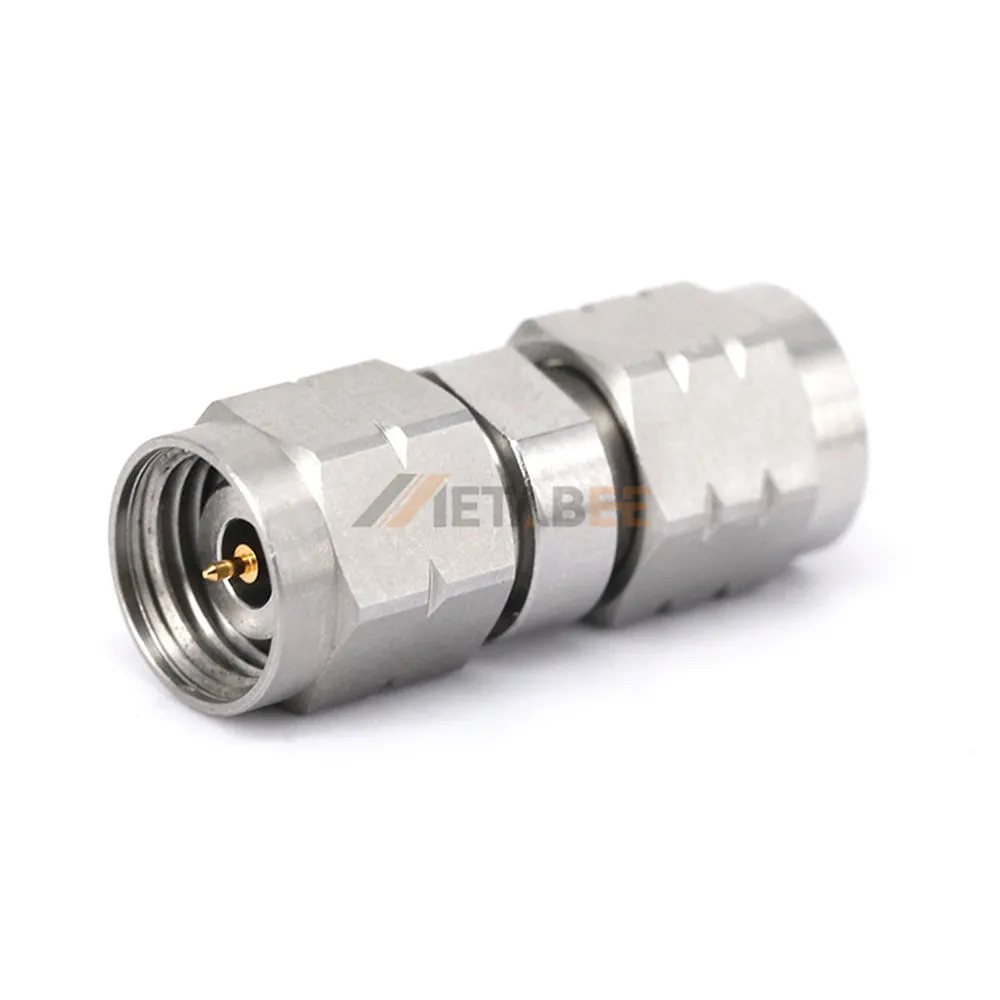

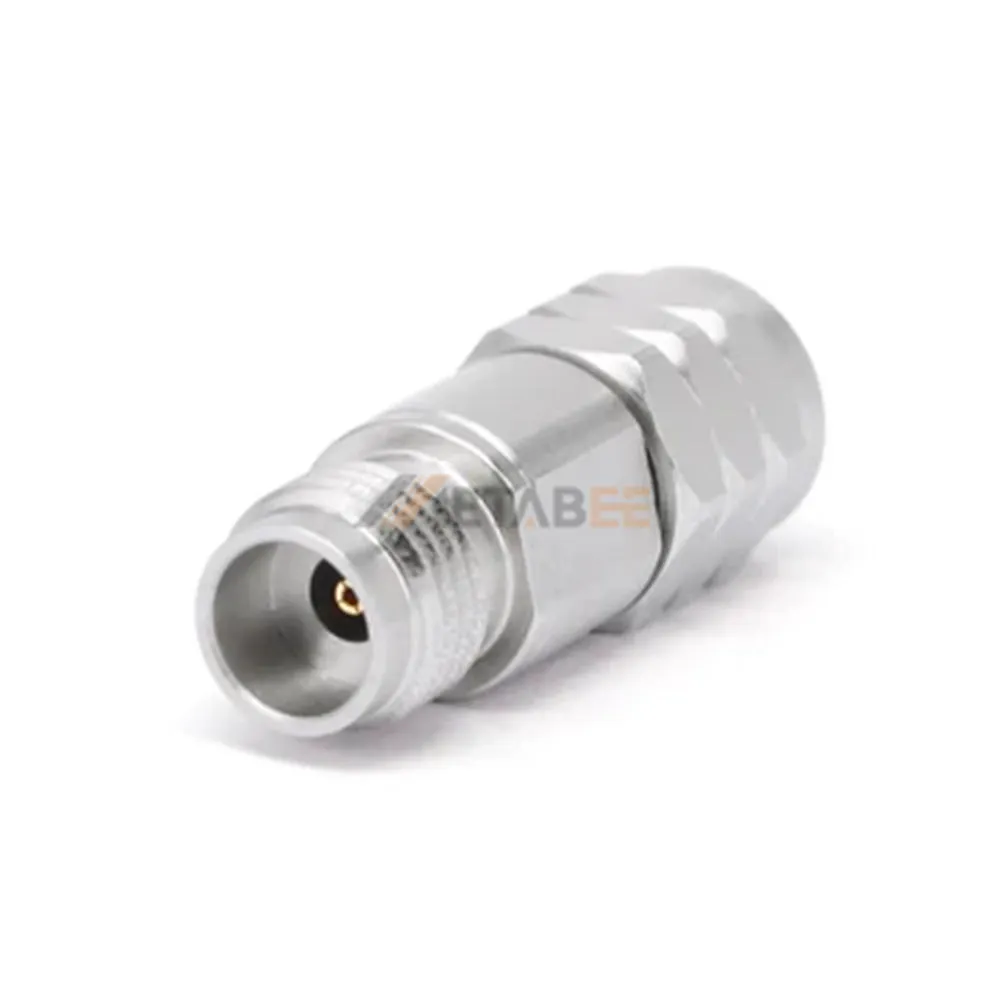

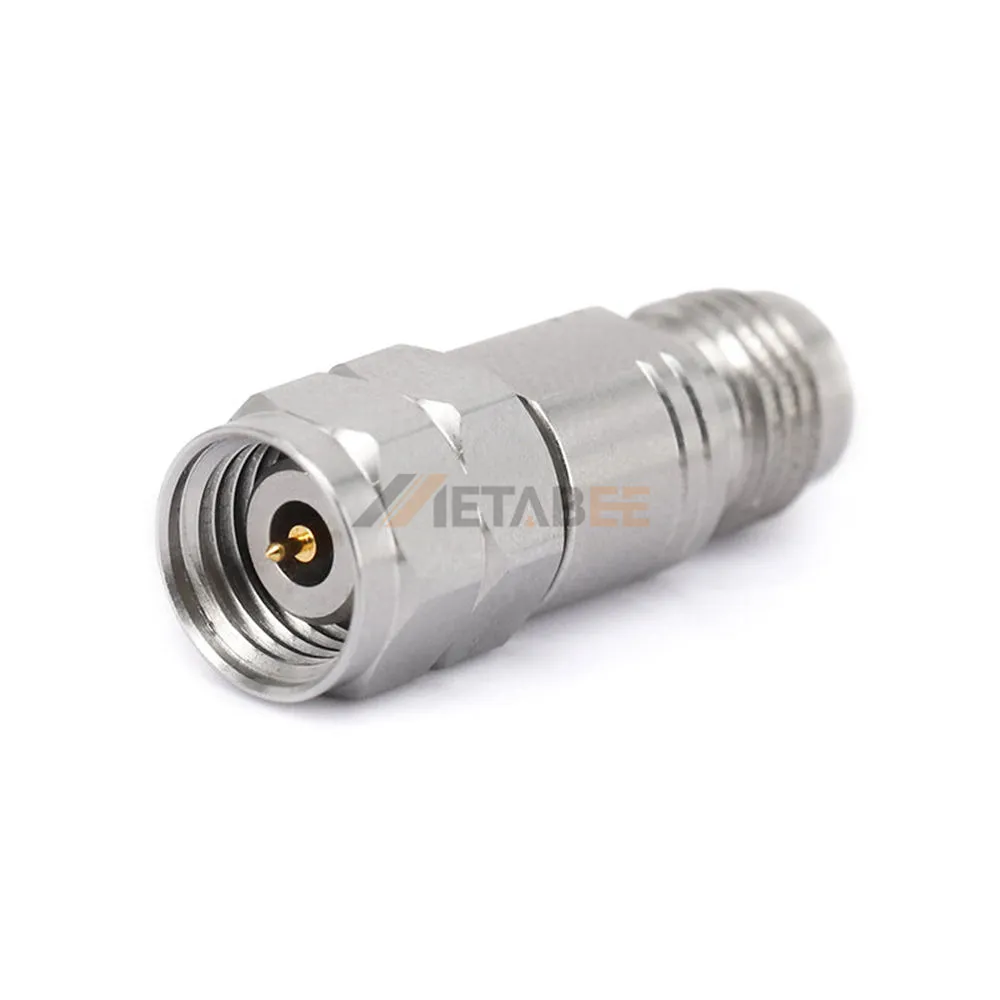

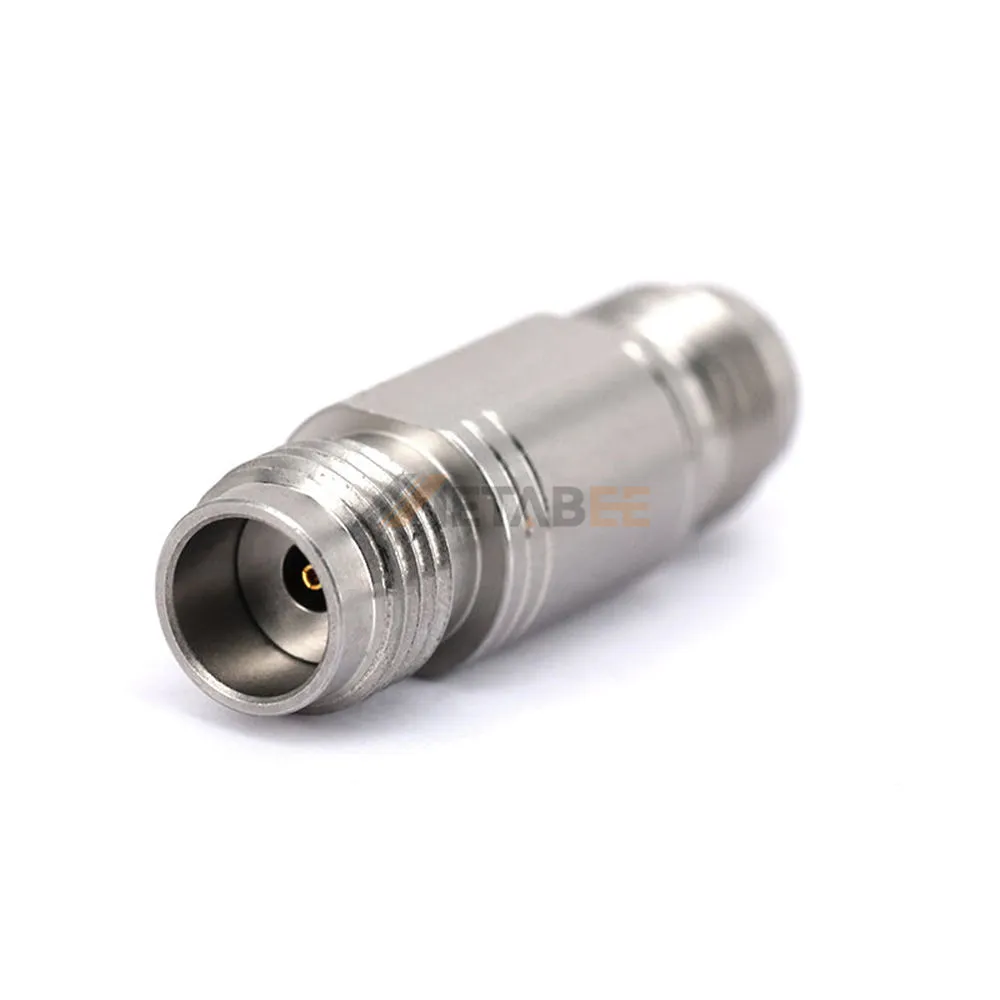

2.4mm to 1.85mm Adapter, DC-50 GHz
Introduction
The 2.4mm to 1.85mm Adapter is a high-performance RF adapter designed for seamless connectivity between 2.4mm and 1.85mm coaxial connectors. With a precision-engineered 50-ohm impedance and straight installation orientation, this adapter ensures minimal signal loss and superior transmission quality across a broad frequency range of DC to 50 GHz. Its robust stainless steel housing with a passivated finish enhances durability and corrosion resistance, making it ideal for demanding RF applications.
Featuring a low VSWR of 1.25:1, this adapter guarantees reliable signal integrity in high-frequency environments. The 2.4mm connector (male/female) and 1.85mm connector (male/female) provide secure, low-loss connections, while the operating temperature range of -55°C to 165°C ensures stable performance in extreme conditions. Whether used in test equipment, telecommunications, or aerospace systems, this adapter delivers precision and durability.
Key features:
- 2.4mm to 1.85mm high-frequency adapter
- 50-ohm impedance for optimal signal transfer
- Stainless steel housing with passivated coating
- Low VSWR (1.25:1) for minimal signal reflection
- Broad frequency range (DC-50 GHz)
- Straight orientation for easy installation
- Wide temperature range (-55°C to 165°C) for harsh environments
Main Specifications:
| Product No: | YC-2.4/1.85-JJS, YC-2.4/1.85-JKS, YC-2.4/1.85-KJS, YC-2.4/1.85-KKS | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 2.4mm to 1.85mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.4mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 1.85mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25 | |
| Frequency Range: | DC-50 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 2.4mm to 1.85mm Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
