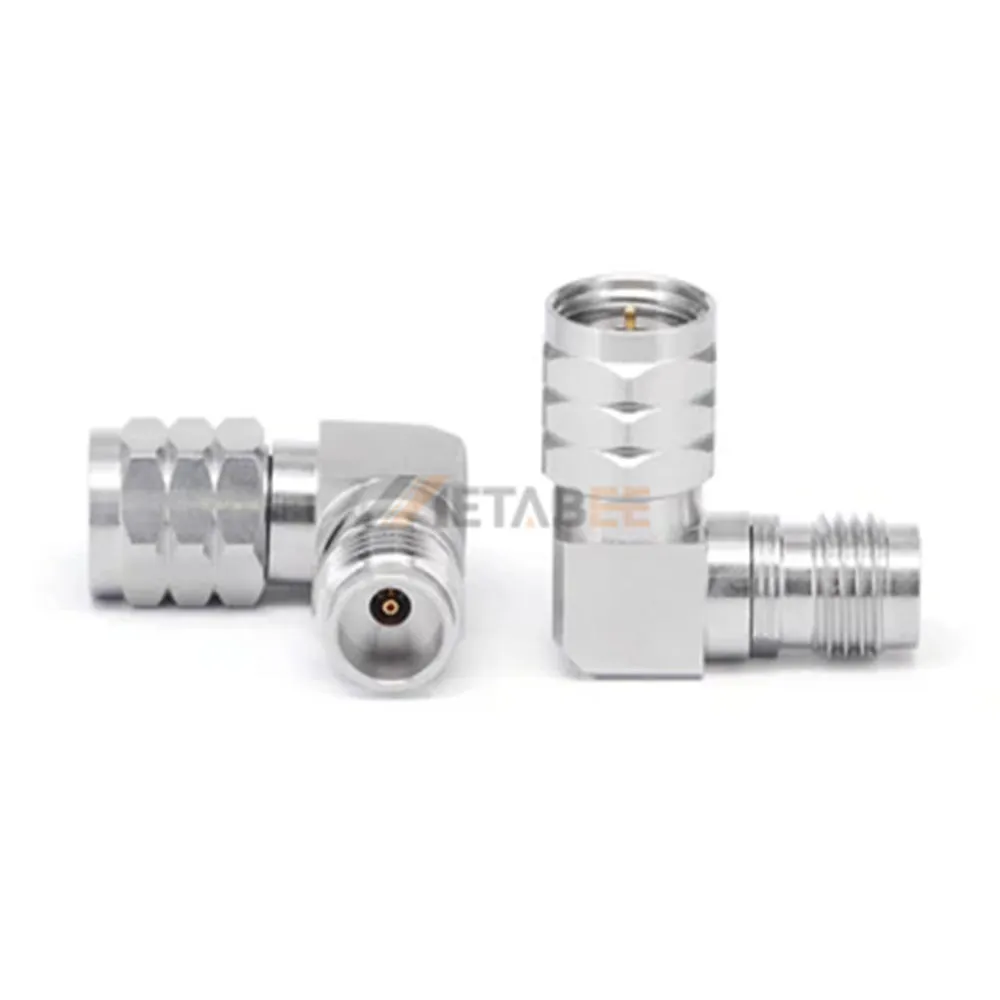

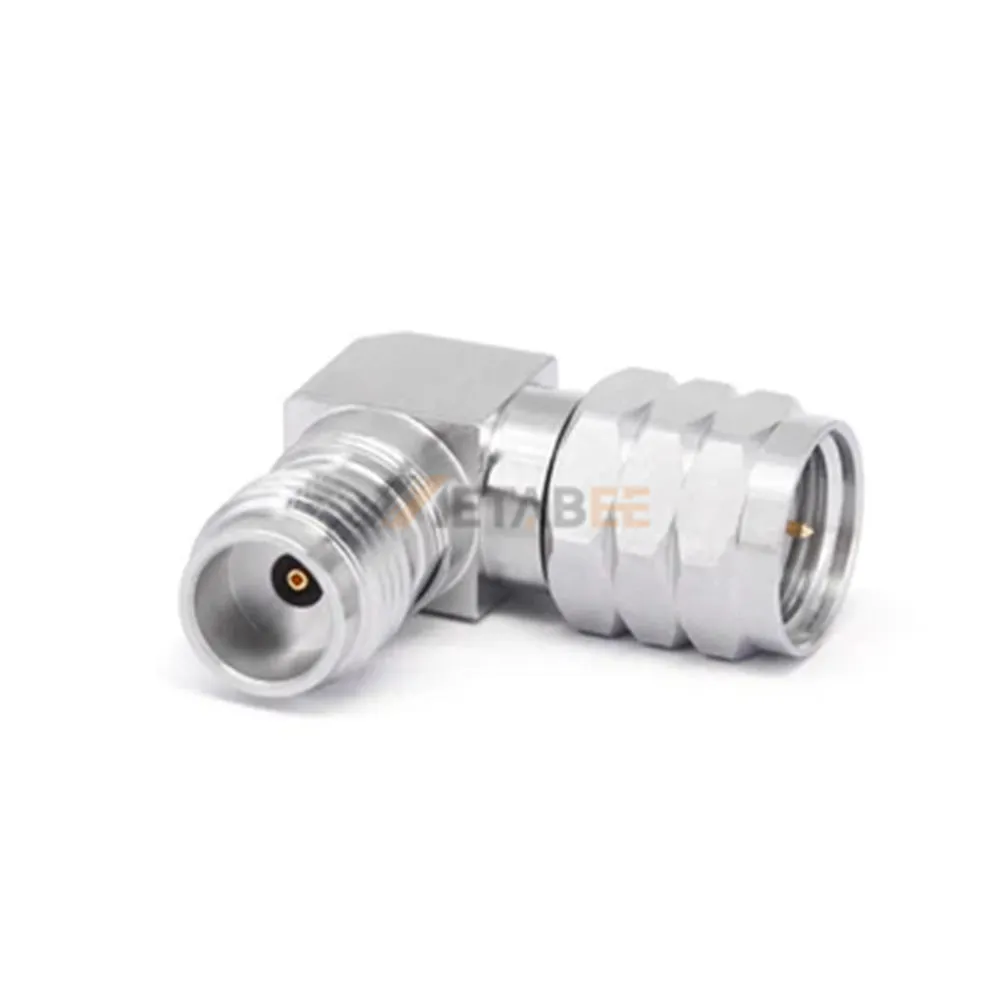

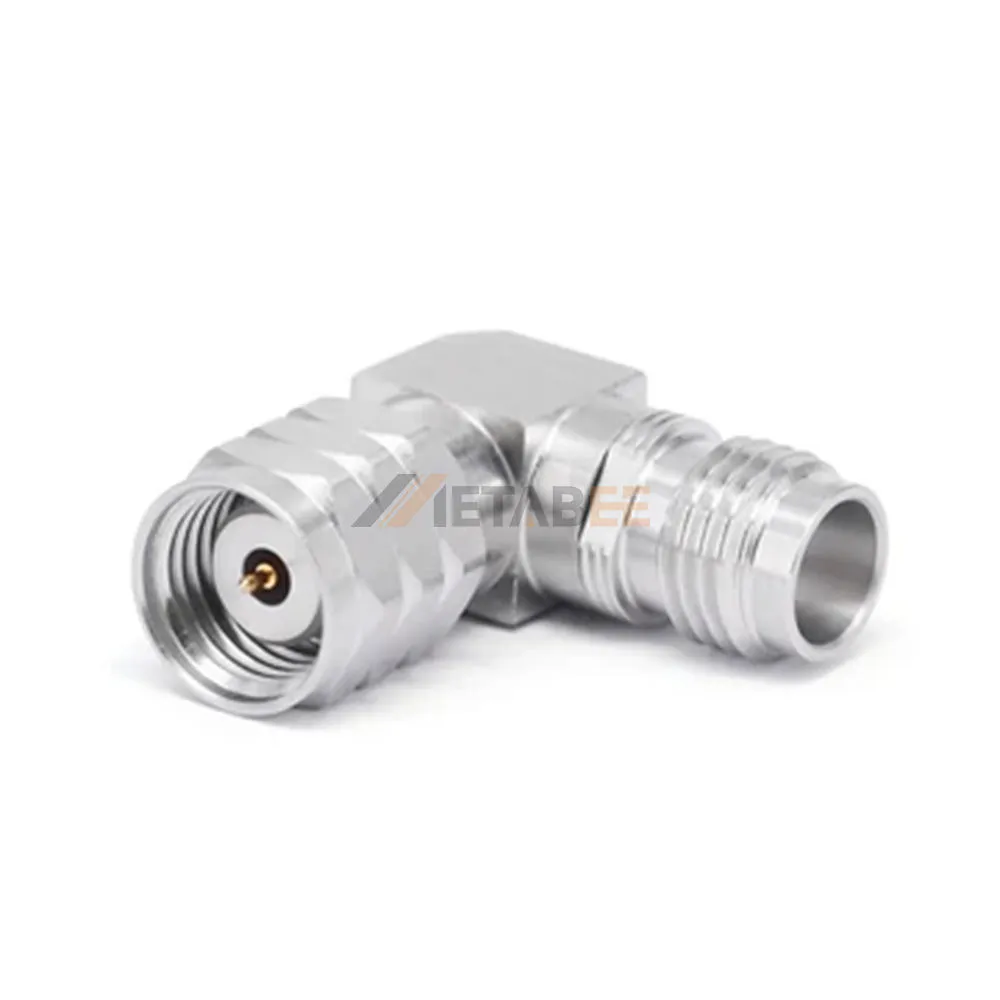

1.85mm Male to 1.85mm Female Right Angle Adapter, DC-67 GHz
Introduction
The 1.85mm Male to 1.85mm Female Right Angle Adapter is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm impedance and a right-angle configuration, this adapter ensures minimal signal loss and optimal performance across a broad frequency range of DC to 67 GHz. The stainless steel housing with a passivated finish provides superior durability and corrosion resistance, making it ideal for harsh environments. With a low VSWR of 1.4:1, this adapter maintains signal integrity even at high frequencies.
Engineered for reliability, this 1.85mm to 1.85mm adapter operates seamlessly in extreme temperatures ranging from -55°C to +165°C, ensuring stable performance in both industrial and aerospace applications. The precision-machined connectors guarantee secure mating and long-lasting connectivity. Whether used in test & measurement setups or high-frequency communication systems, this adapter delivers consistent performance with minimal insertion loss.
Key features:
- Right-angle design for flexible installation in tight spaces
- 50-ohm impedance for optimal signal transmission
- Stainless steel housing with passivated coating for durability
- Low VSWR (1.4:1) for superior signal integrity
- Broad frequency range (DC-67 GHz) for versatile applications
- Wide operating temperature (-55°C to +165°C) for extreme conditions
Main Specifications:
| Product No: | YC-1.85-JWKS | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 1.85mm to 1.85mm | |
| Brand: | Metabee | |
| Orientation: | Right Angle | |
| Connector 1 | 1.85mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 1.85mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.4:1 | |
| Frequency Range: | DC-67 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 1.85mm Male to 1.85mm Female Right Angle Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
