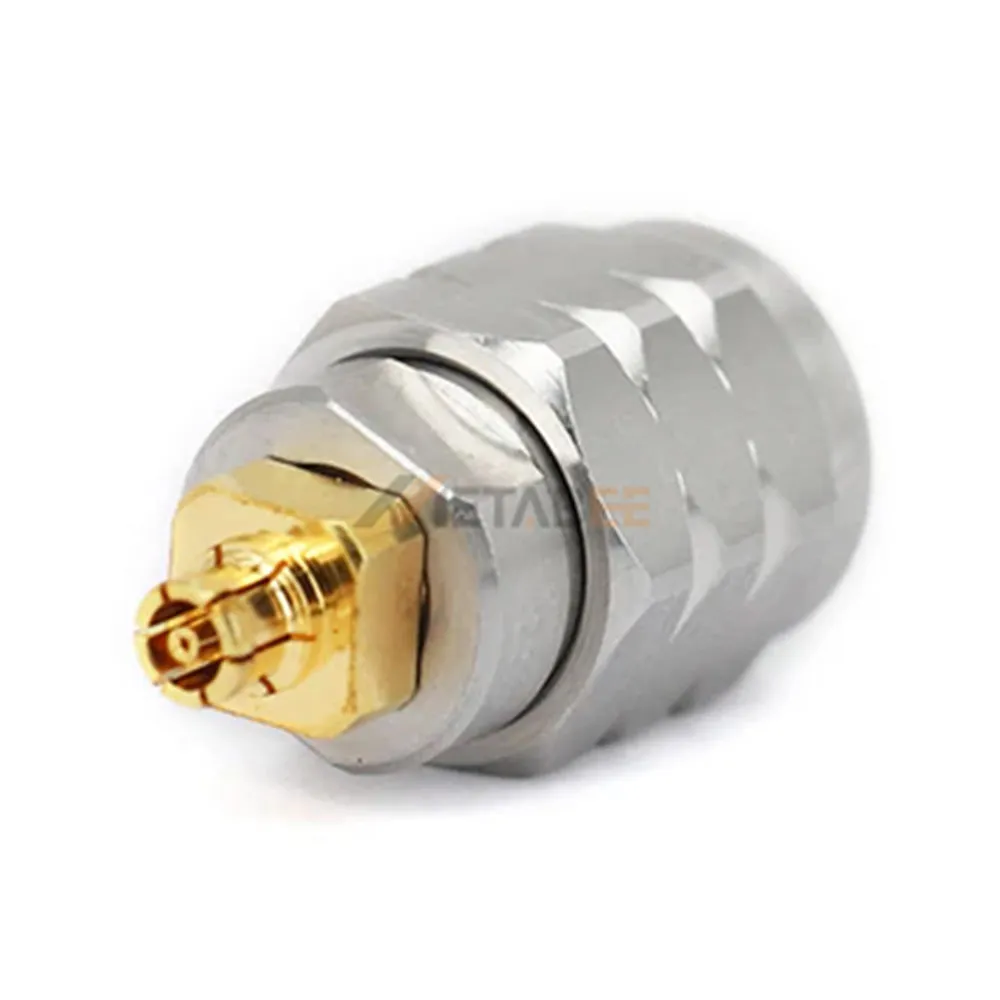

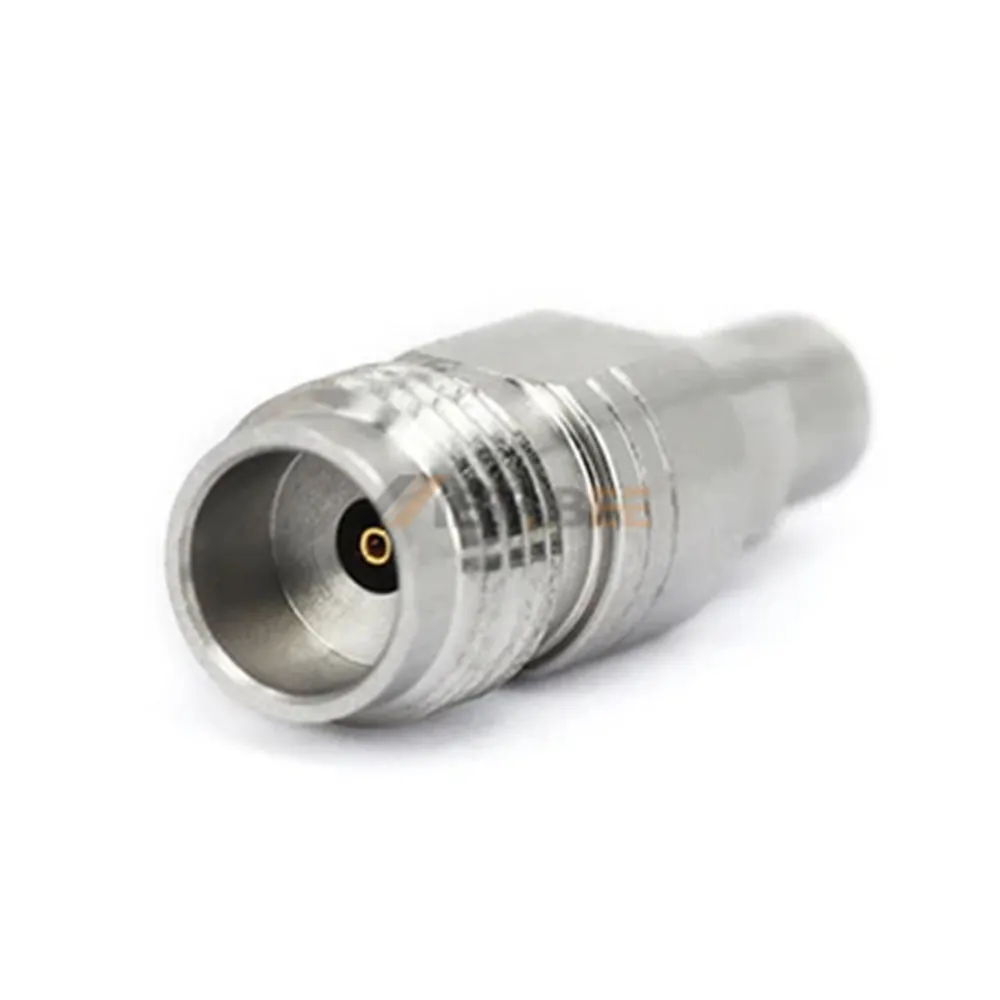

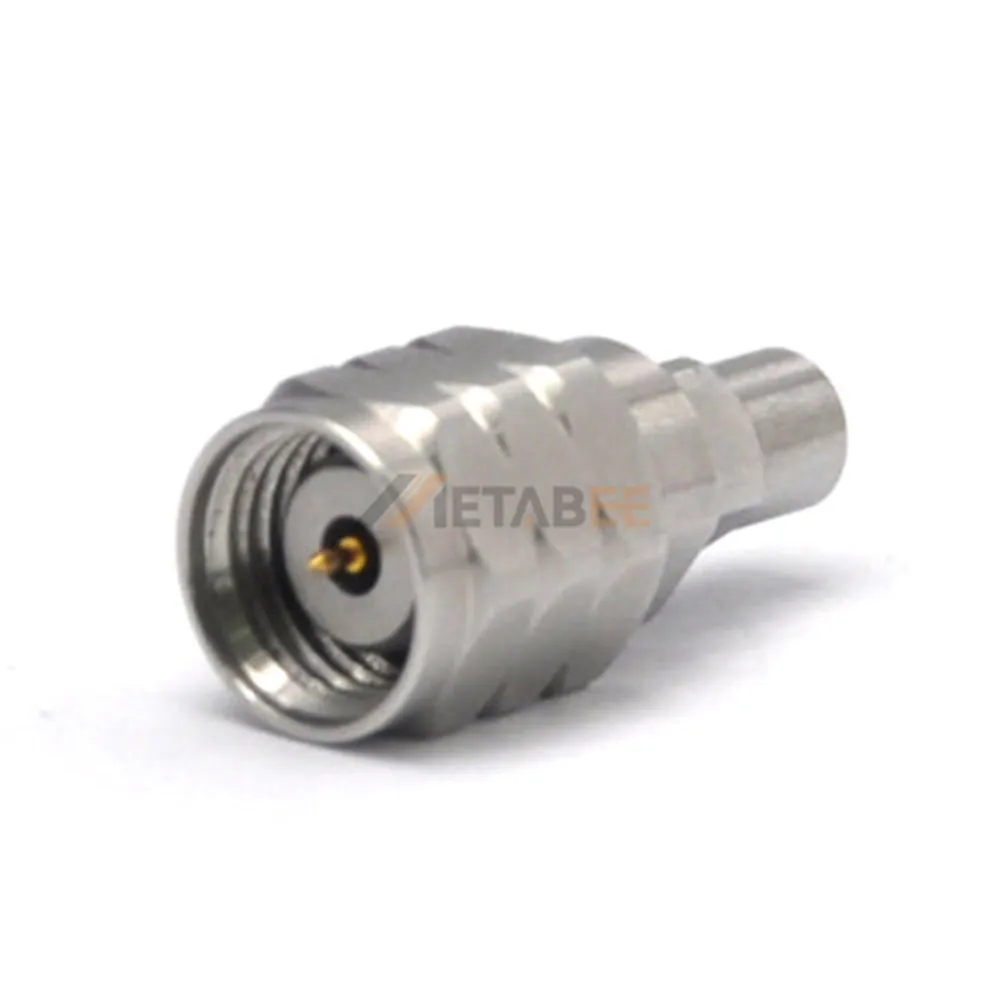

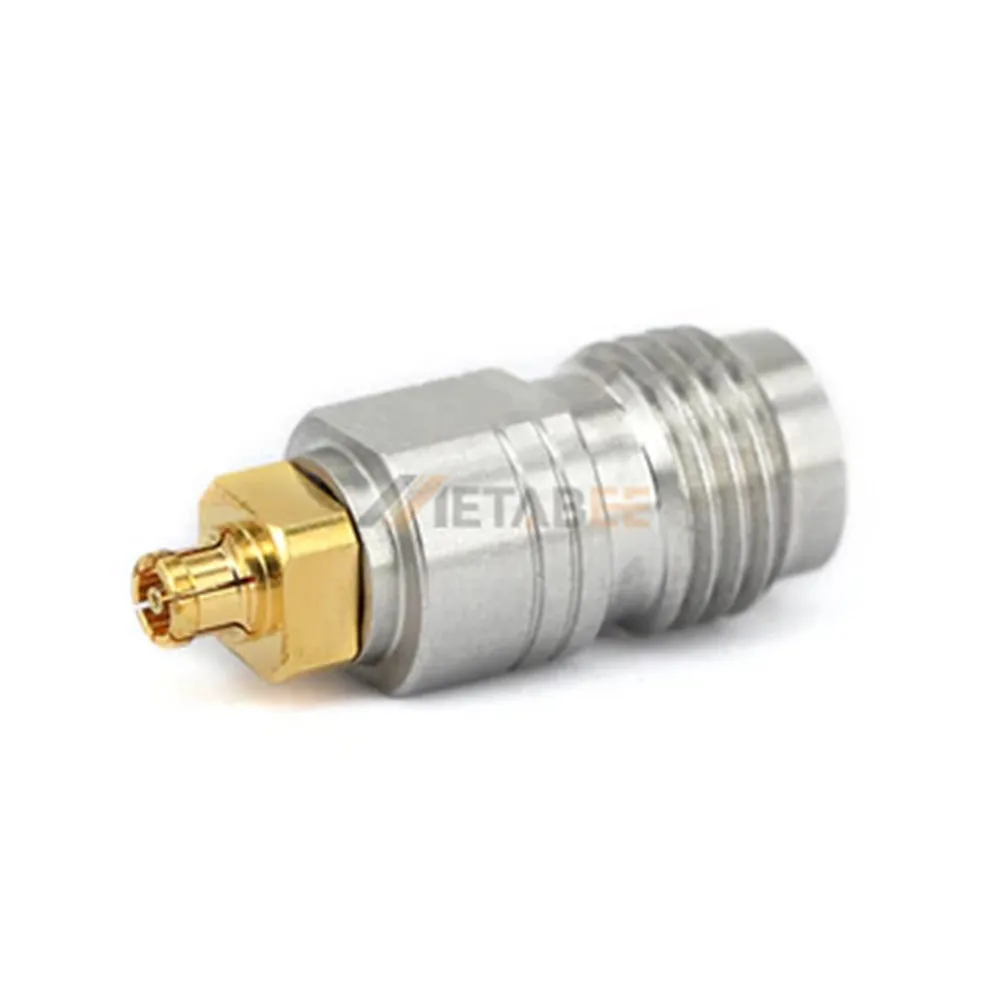

1.85mm to GPPO (Mini-SMP) Adapter, DC-67 GHz
Introduction
The 1.85mm to GPPO (Mini-SMP) Adapter is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and superior electrical performance. The straight installation design provides easy integration into test setups and communication systems. The 1.85mm connector (male/female) and GPPO (Mini-SMP) connector are both constructed with stainless steel housings and a passivated finish, offering excellent durability and corrosion resistance.
With an impressive frequency range of DC-67 GHz and a low VSWR of 1.3:1, this adapter guarantees reliable performance in high-frequency environments. It operates seamlessly across a wide temperature range of -55°C to +165°C, making it suitable for aerospace, military, and telecommunications applications. The robust construction ensures long-term stability even under harsh conditions.
Key features:
- 1.85mm to GPPO (Mini-SMP) adapter for seamless connectivity
- 50-ohm impedance for optimal signal integrity
- Stainless steel housing with passivated coating for durability
- Straight orientation for easy installation
- Low VSWR (1.3:1) for minimal signal reflection
- Broad frequency range (DC-67 GHz) for versatile use
- Wide operating temperature (-55°C to +165°C) for extreme environments
Main Specifications:
| Product No: | YC-1.85/GPPO-JJ, YC-1.85/GPPO-JK, YC-1.85/GPPO-KJ, YC-1.85/GPPO-KK | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 1.85mm to GPPO (Mini-SMP) | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.85mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | Mini-SMP Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.3 | |
| Frequency Range: | DC-67 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 1.85mm to GPPO (Mini-SMP) Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
