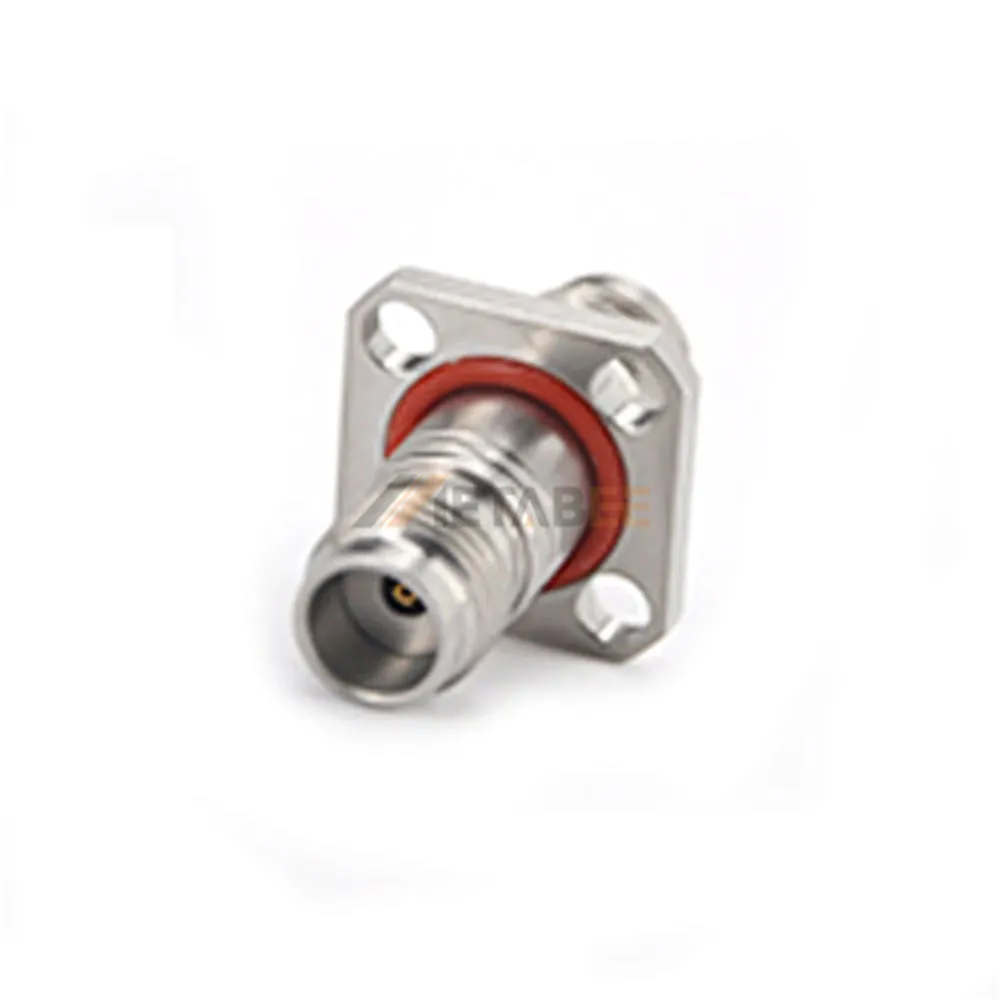

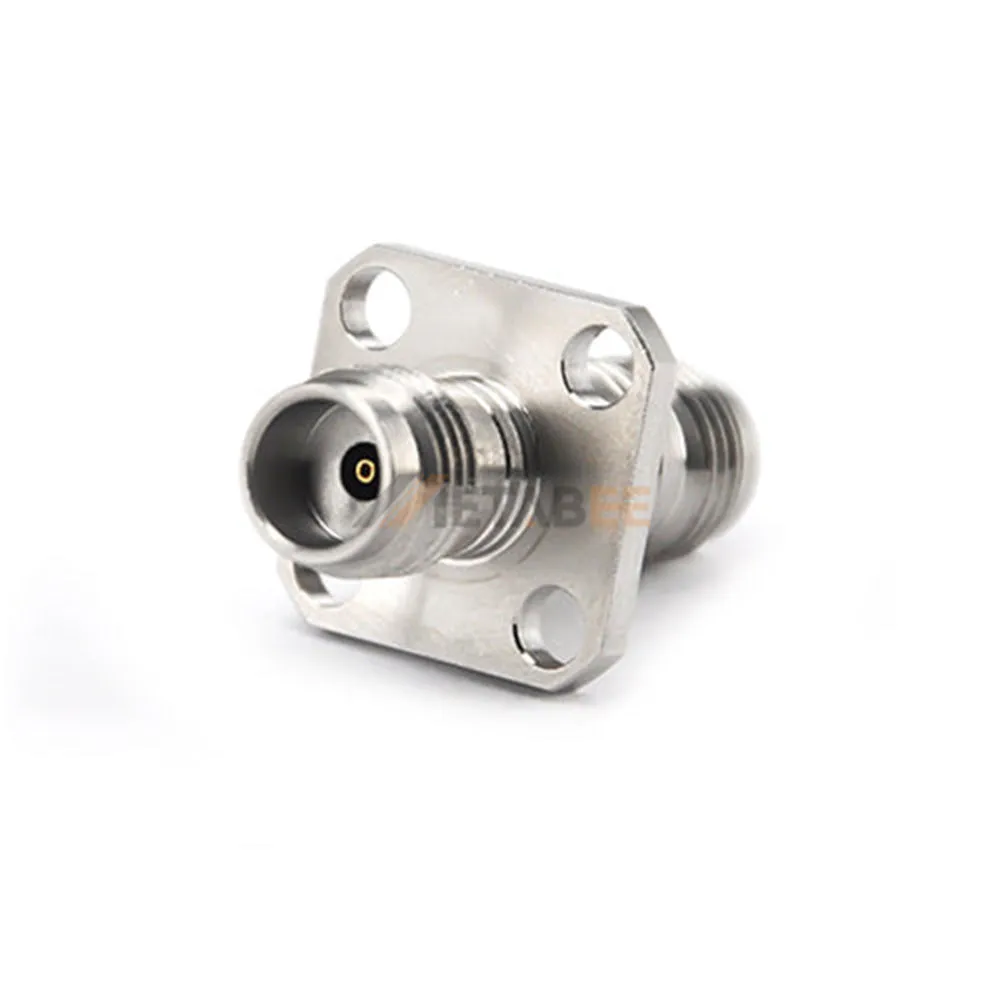

1.85mm Female to 1.85mm Female Adapter, 4-Hole Flange, DC-67 GHz
Introduction
The 1.85mm Female to 1.85mm Female Adapter is a high-precision RF component designed for seamless connectivity in demanding applications. Featuring a 4-hole flange for secure mounting, this adapter ensures stable performance across an ultra-wide frequency range of DC-67 GHz, making it ideal for high-frequency testing and communication systems. With a low VSWR of 1.25:1, it minimizes signal loss while maintaining a consistent 50-ohm impedance for optimal signal integrity. The straight installation design provides easy integration into existing setups without compromising space or performance.
Constructed for durability, both connectors feature stainless steel housings with a passivated finish, offering excellent corrosion resistance and long-term reliability. The adapter operates flawlessly in extreme conditions, with a temperature range of -50°C to +85°C, ensuring stability in harsh environments. Whether used in aerospace, defense, or telecommunications, this adapter delivers precision and robustness for critical RF connections.
Key features:
- 1.85mm Female to 1.85mm Female – Ensures seamless coaxial connectivity
- 4-Hole Flange – Provides secure and stable mounting
- DC-67 GHz Frequency Range – Supports ultra-wideband applications
- Low VSWR (1.25:1) – Minimizes signal reflection for high performance
- 50-Ohm Impedance – Maintains consistent signal transmission
- Stainless Steel Housings (Passivated) – Enhances durability and corrosion resistance
- Wide Operating Temperature (-50°C to +85°C) – Reliable in extreme conditions
Main Specifications:
| Product No: | YC-1.85-KFKG | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 1.85mm to 1.85mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.85mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 1.85mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Panel Mount-4-Hole Flange | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-67 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 1.85mm Female to 1.85mm Female Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
