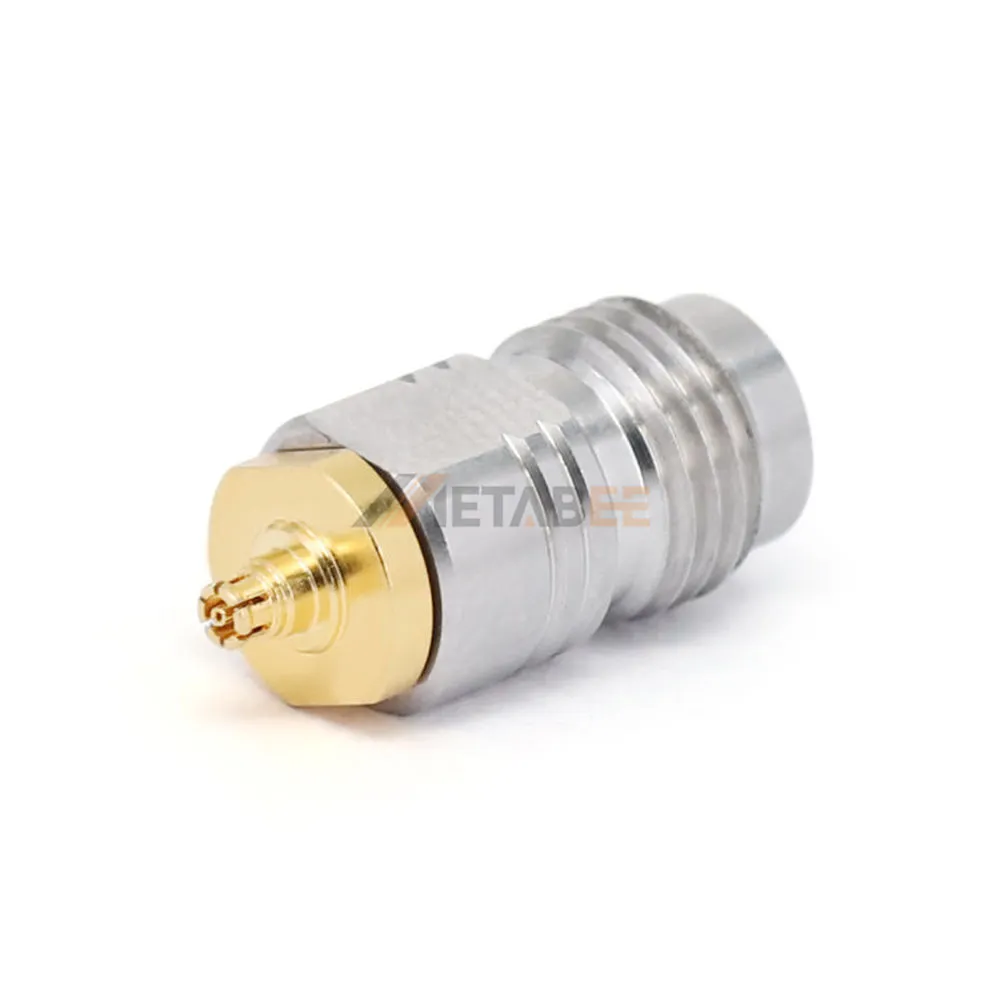

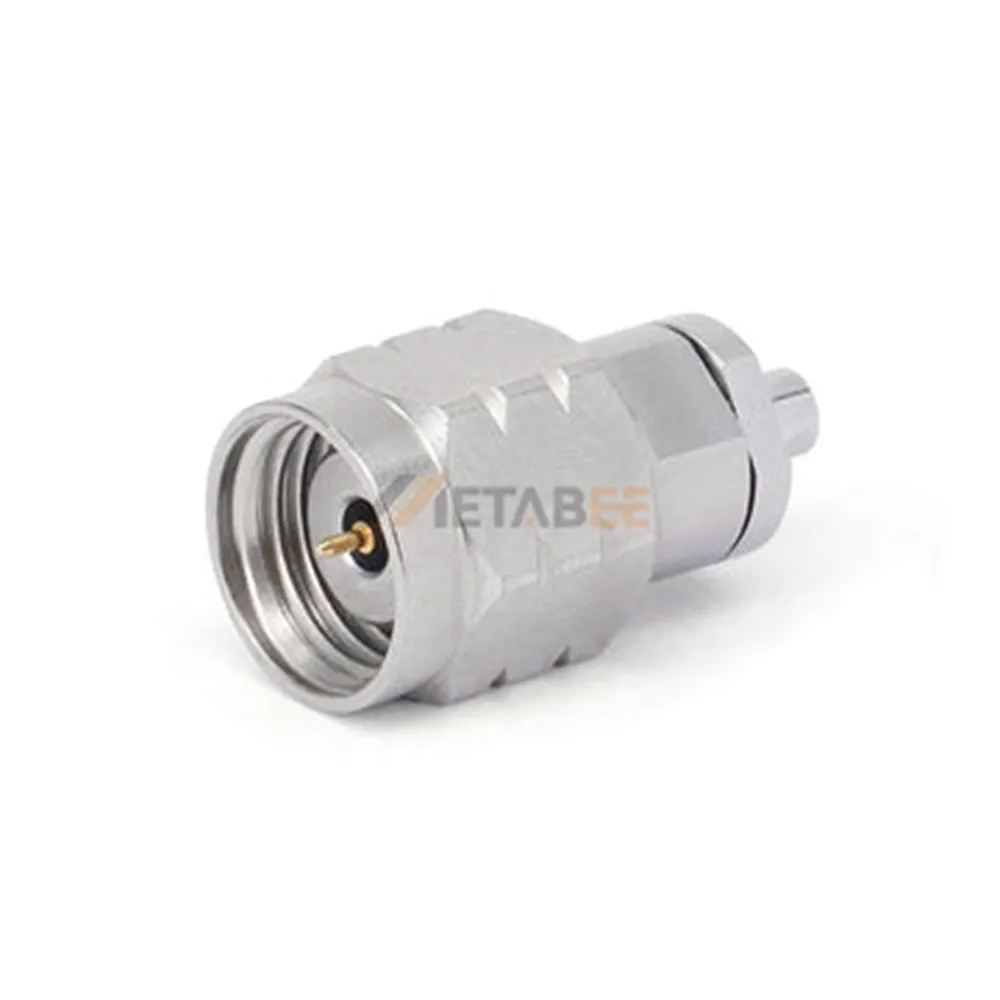

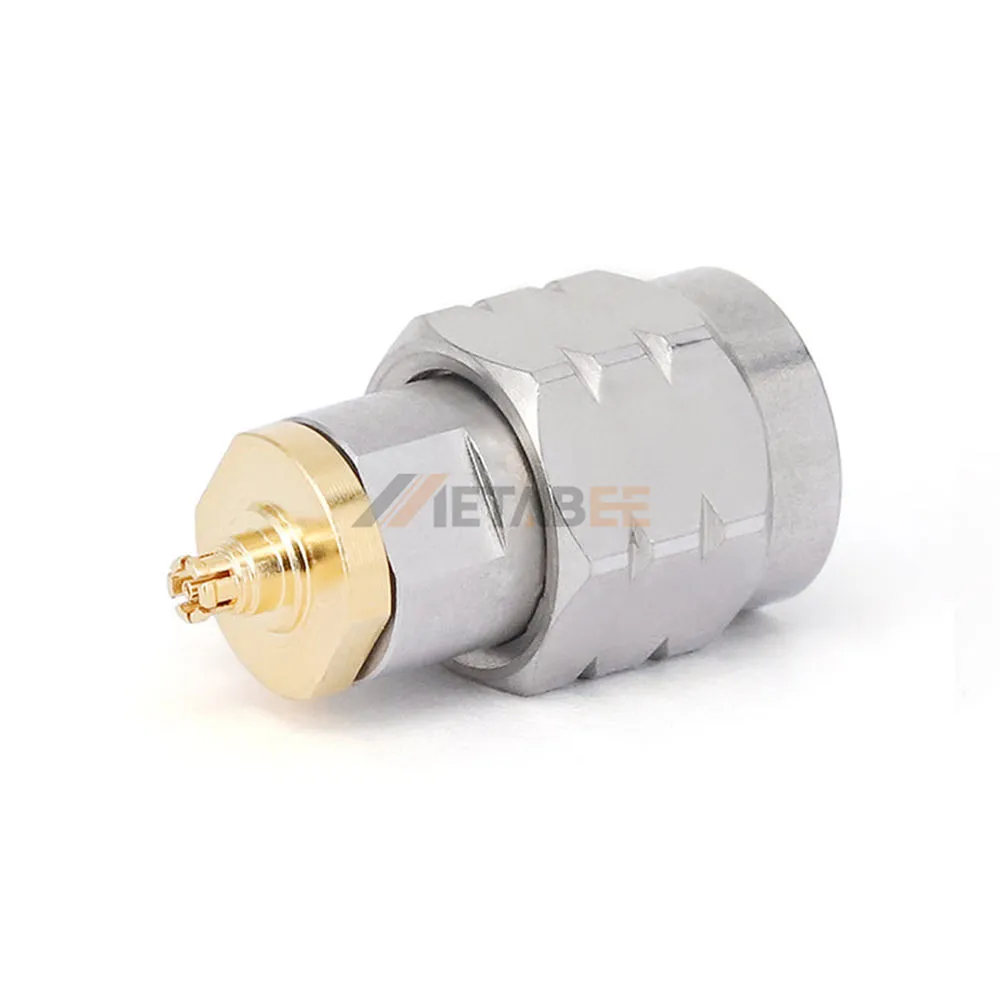

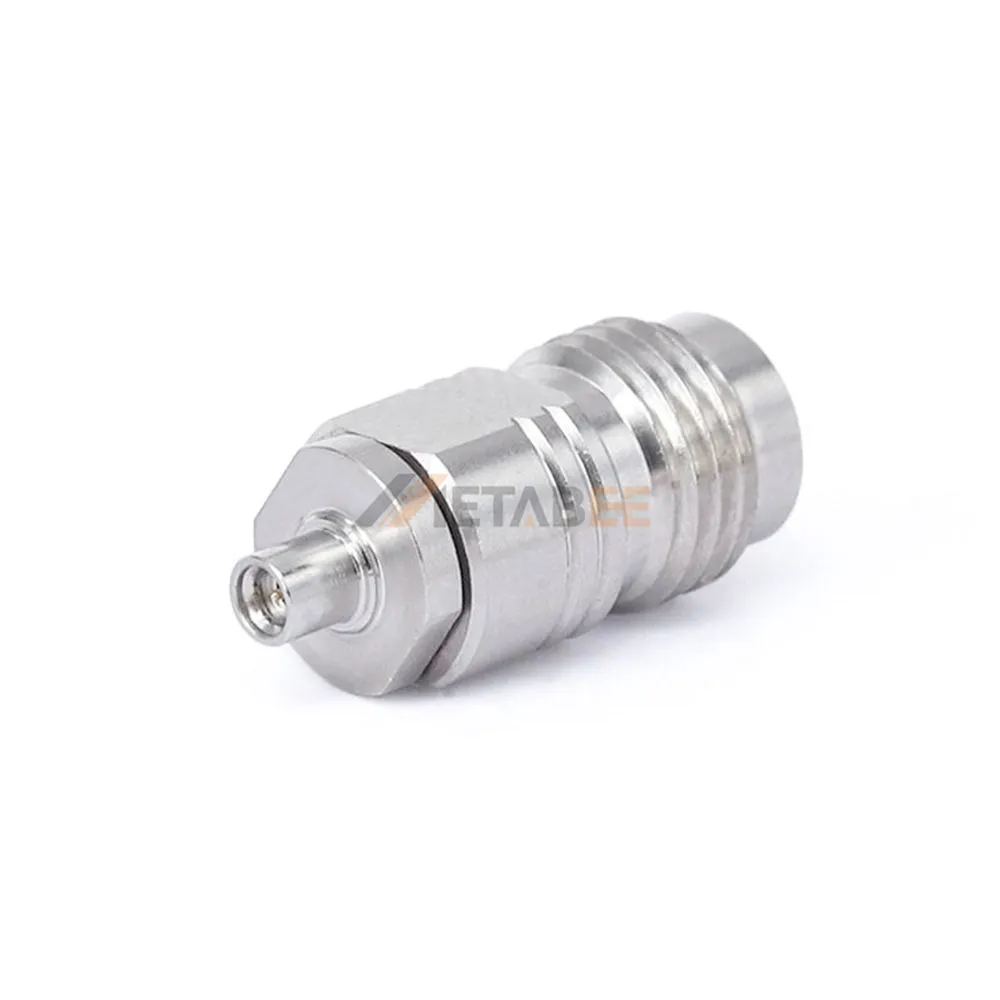

1.85mm to G3PO (SMPS) Adapter, DC-67 GHz
Introduction
The 1.85mm to G3PO (SMPS) Adapter is a high-performance RF adapter designed for precision connectivity in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal transmission efficiency across a broad frequency range of DC-67 GHz. Its straight installation design provides easy integration into various setups, while the stainless steel housing with passivated plating enhances durability and corrosion resistance.
With a low VSWR of 1.35:1, this adapter guarantees reliable signal integrity even at high frequencies. The 1.85mm connector (male/female) and G3PO (SMPS) connector are both constructed from stainless steel with passivated plating, ensuring robust mechanical strength and long-term performance. The adapter operates seamlessly across an extensive temperature range of -55°C to +165°C, making it suitable for harsh environments.
Key features:
- 1.85mm to G3PO (SMPS) adapter for secure RF connections
- 50-ohm impedance for minimal signal loss
- DC-67 GHz frequency range for high-frequency applications
- Low VSWR (1.35:1) ensures signal integrity
- Stainless steel housing with passivated plating for durability
- Straight installation for easy integration
- Wide operating temperature (-55°C to +165°C) for extreme conditions
Main Specifications:
| Product No: | YC-1.85/G3PO-JJ, YC-1.85/G3PO-JK, YC-1.85/G3PO-KJ, YC-1.85/G3PO-KK | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 1.85mm to G3PO (SMPS) | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.85mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | SMPS Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.35 | |
| Frequency Range: | DC-67 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 1.85mm to G3PO (SMPS) Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
