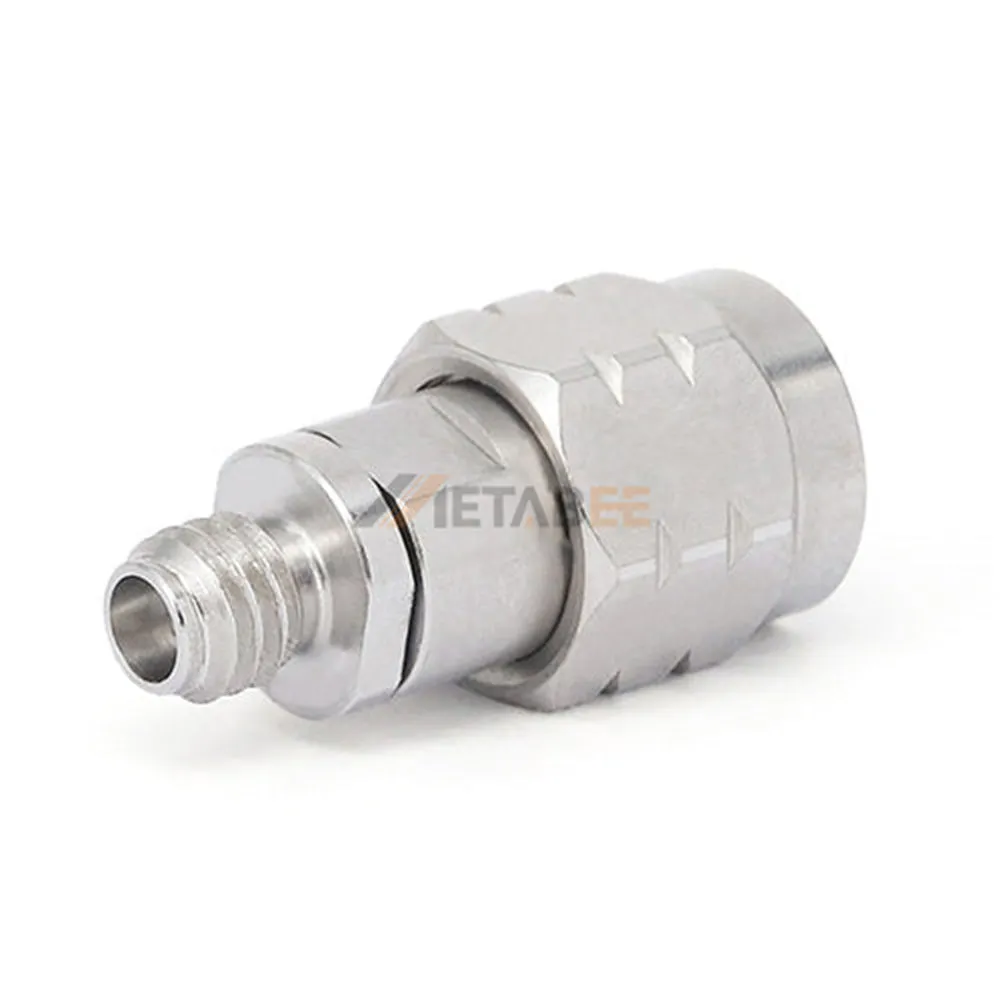

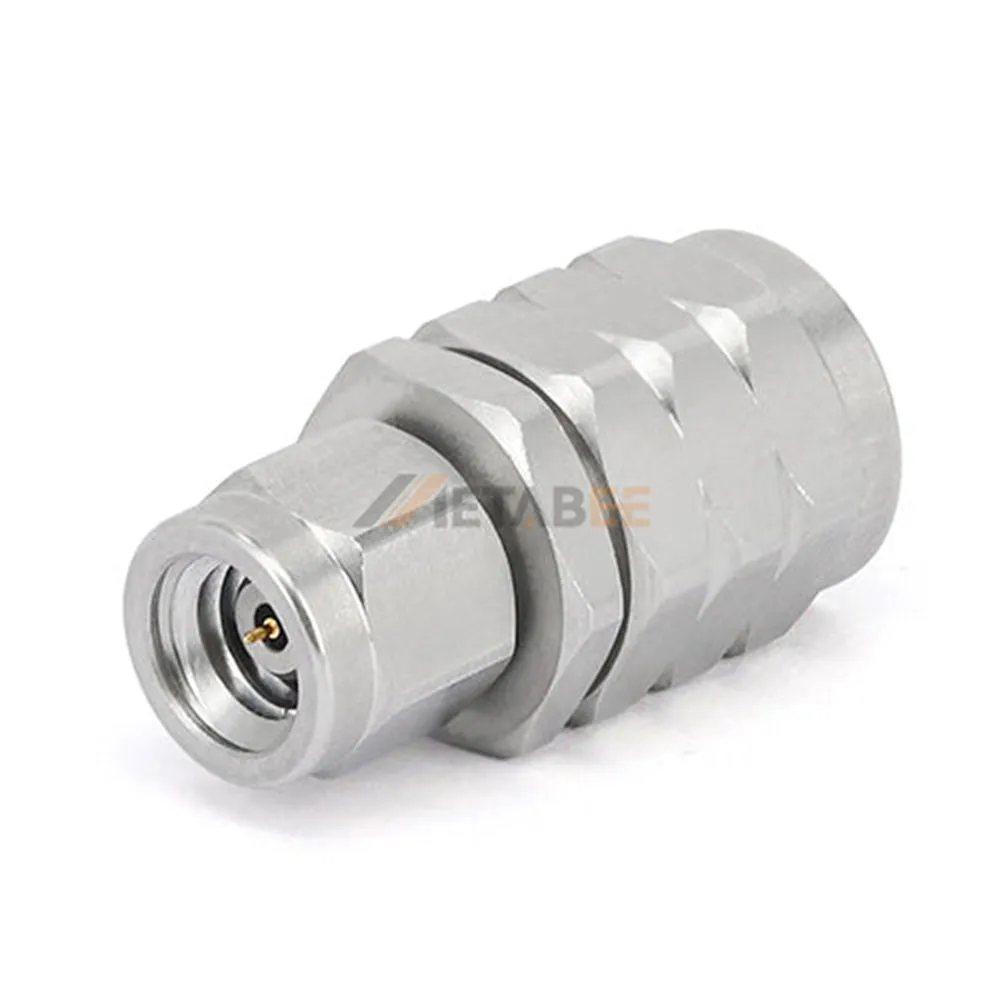

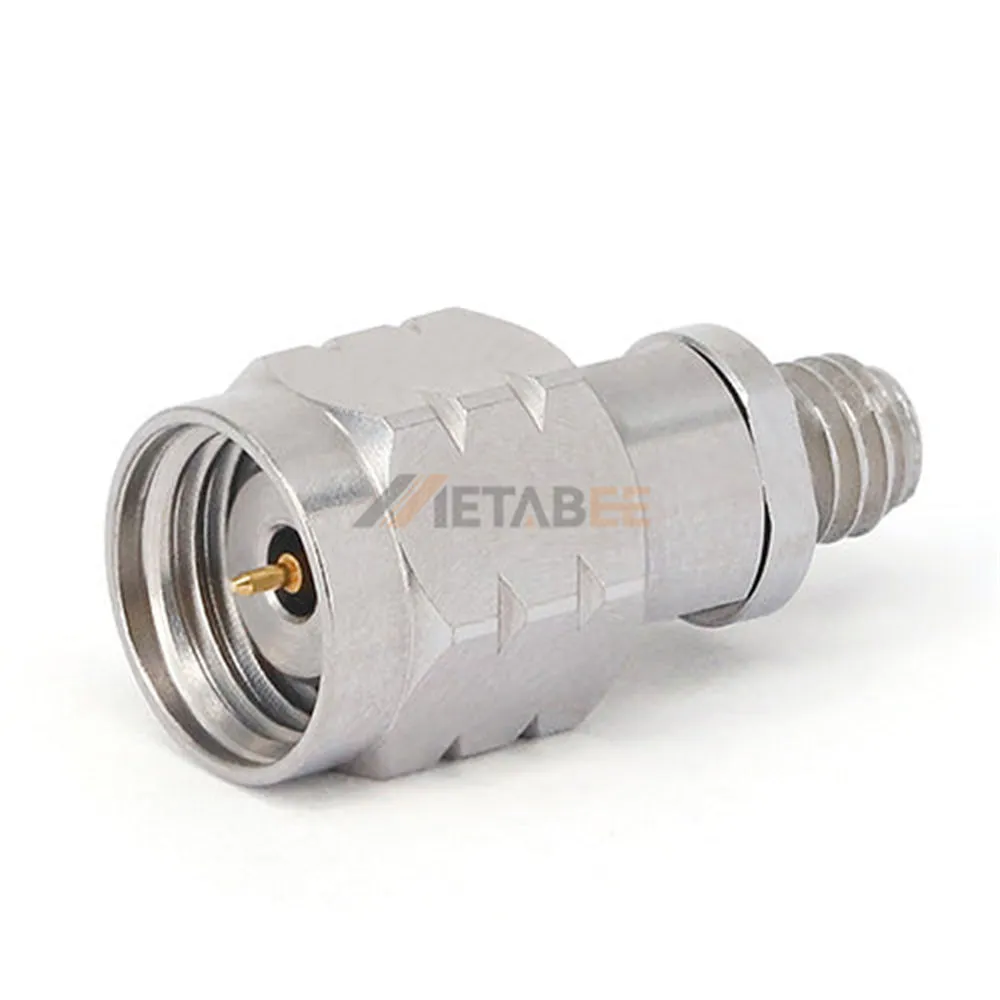

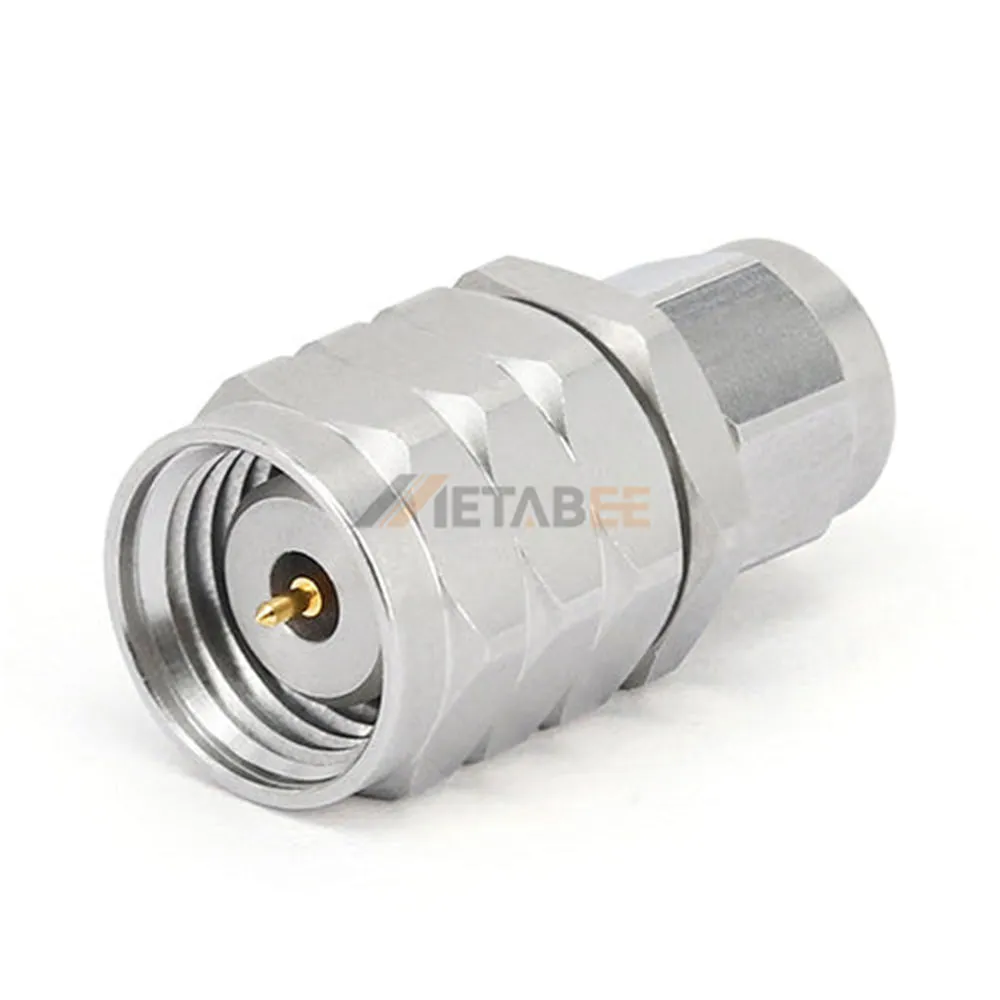

1.85mm to 1.0mm Adapter, DC-67 GHz
Introduction
Our 1.85mm to 1.0mm Adapter is a high-precision coaxial connector engineered for high-frequency signal transmission up to 67 GHz. Designed with a straight configuration and a 50-ohm impedance, this adapter ensures stable RF performance and reliable signal integrity in advanced test and measurement setups.
Connector 1 features a 1.85mm connector, while Connector 2 is a 1.0mm connector—both constructed from stainless steel with passivation for enhanced durability and corrosion resistance. With a low VSWR of 1.3:1, this adapter minimizes signal reflection and loss. It is optimized to operate in harsh environments, with a wide temperature tolerance from -55°C to +165°C.
Key features:
- 1.85mm to 1.0mm adapter for versatile connectivity
- Straight orientation for simplified integration
- 50 Ohm impedance for consistent RF performance
- DC-67 GHz ultra-wideband frequency range
- Stainless steel housing with passivated coating for durability
- Low VSWR (1.3:1) for superior signal integrity
- -55°C to +165°C wide operating temperature range
Main Specifications:
| Product No: | YC-1.85/1.0-JJS, YC-1.85/1.0-JKS, YC-1.85/1.0-KJS, YC-1.85/1.0-KKS | |
| Product Series: | 1.0mm Adapters | |
| Adapter Type: | 1.85mm to 1.0mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.85mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 1.0mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.3 | |
| Frequency Range: | DC-67 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 1.85mm to 1.0mm Adapter:
1.0 mm adapters are small connectors used in various electronic and electrical applications.
Here are some applications:
- Medical Devices;
- High-Speed Data Transmission;
- Industrial Control Systems;
- Semiconductor Testing;
- Quantum Computing;
- Satellite Communication;
- Automotive Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
