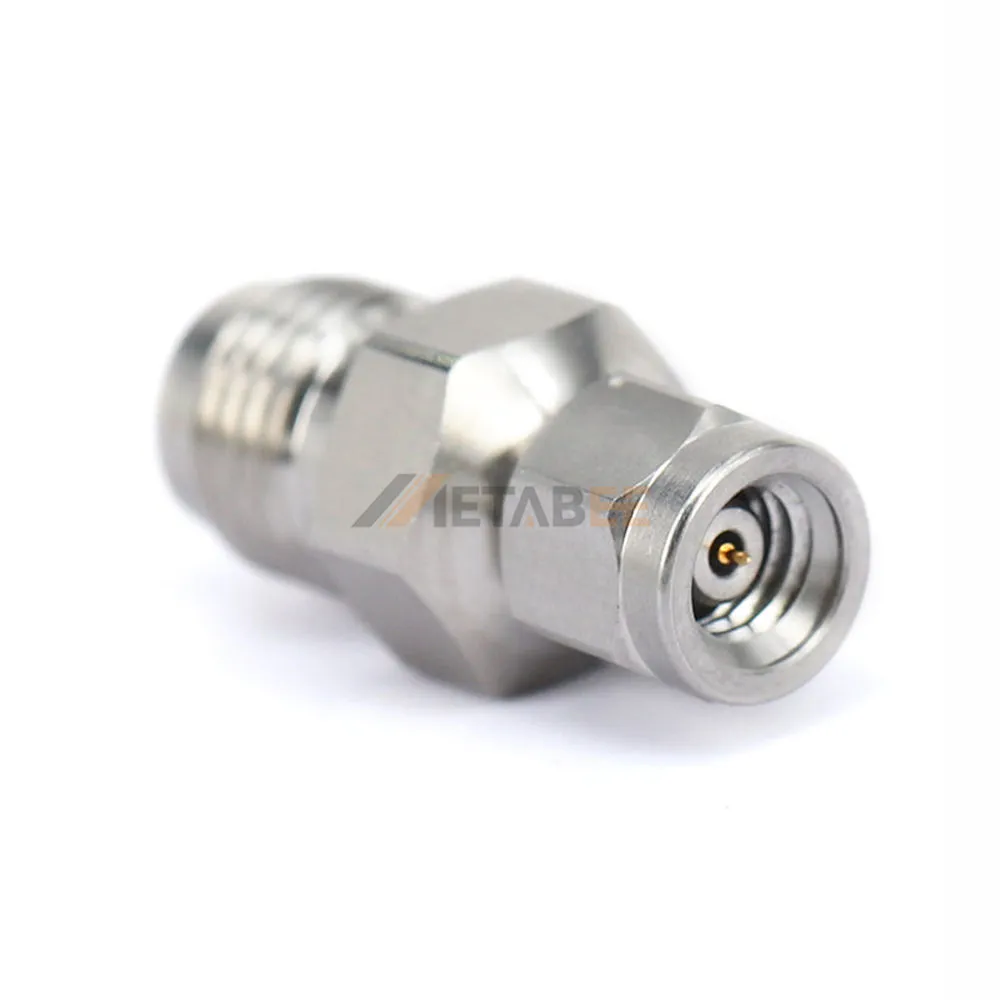

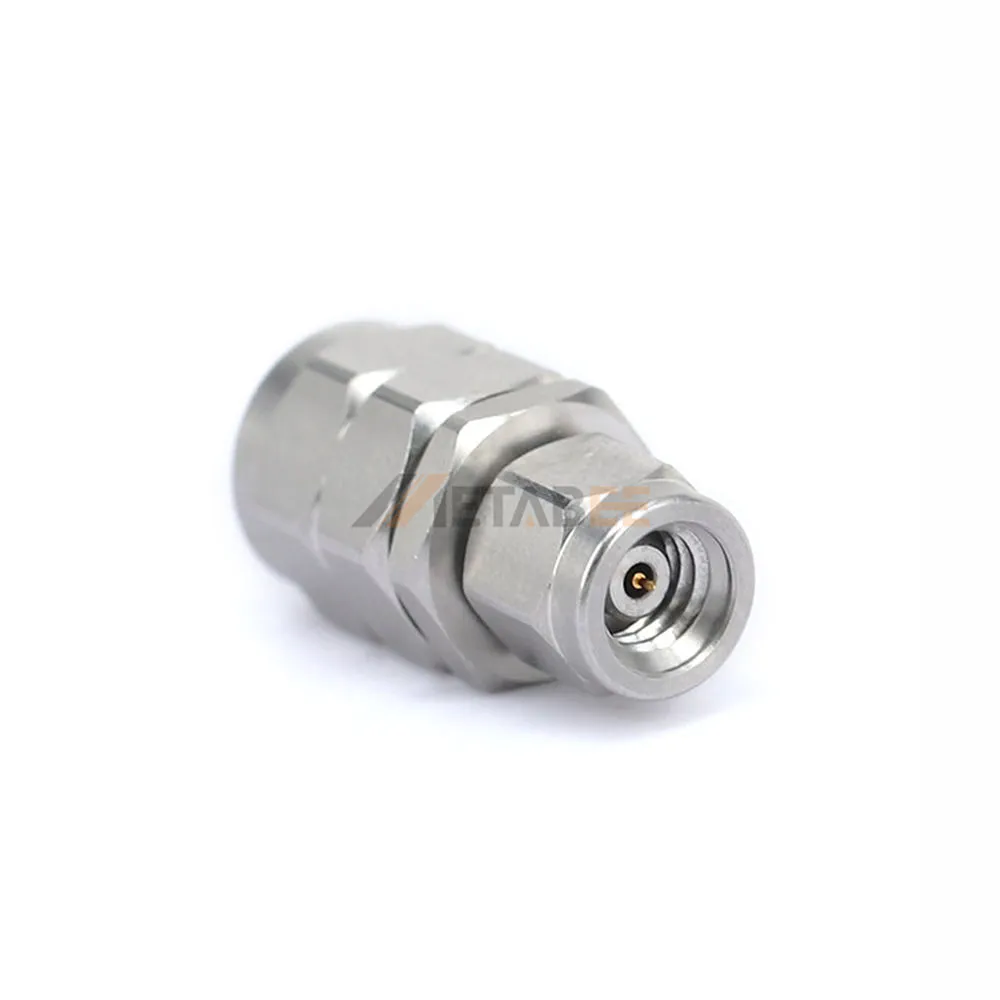

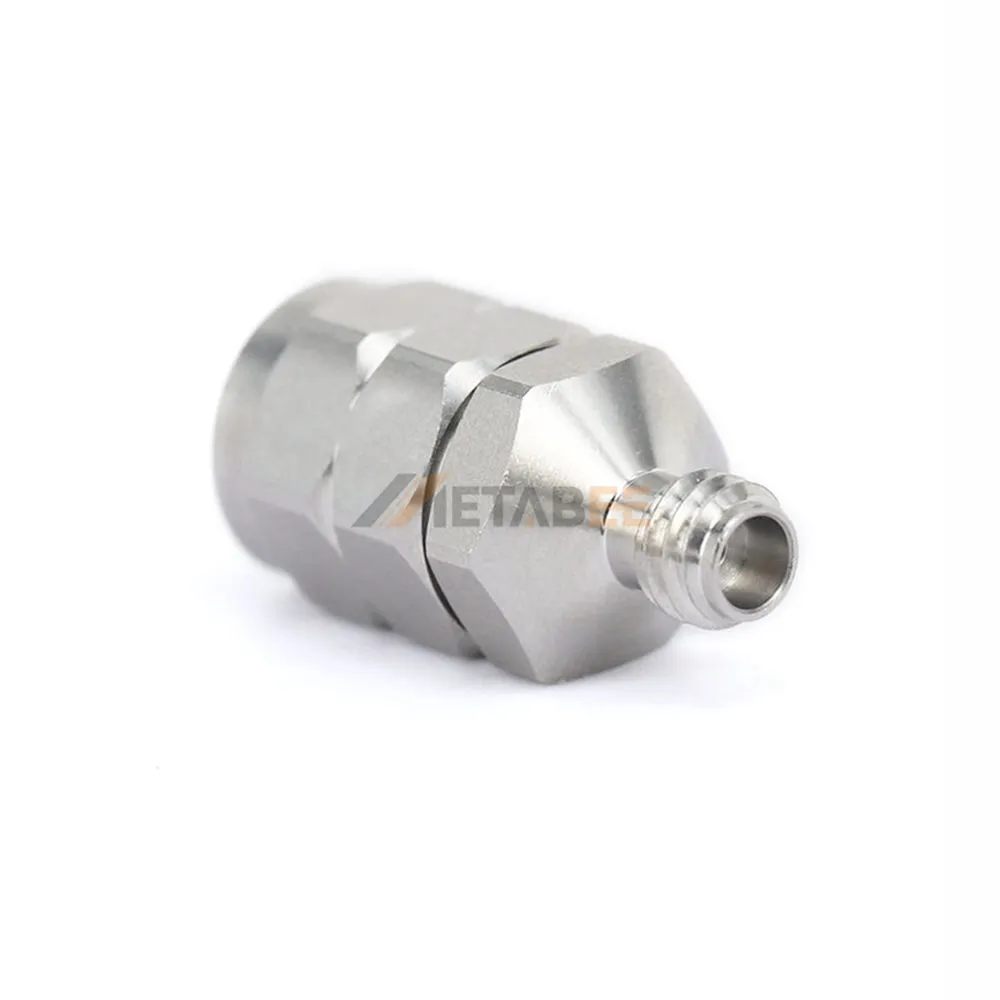

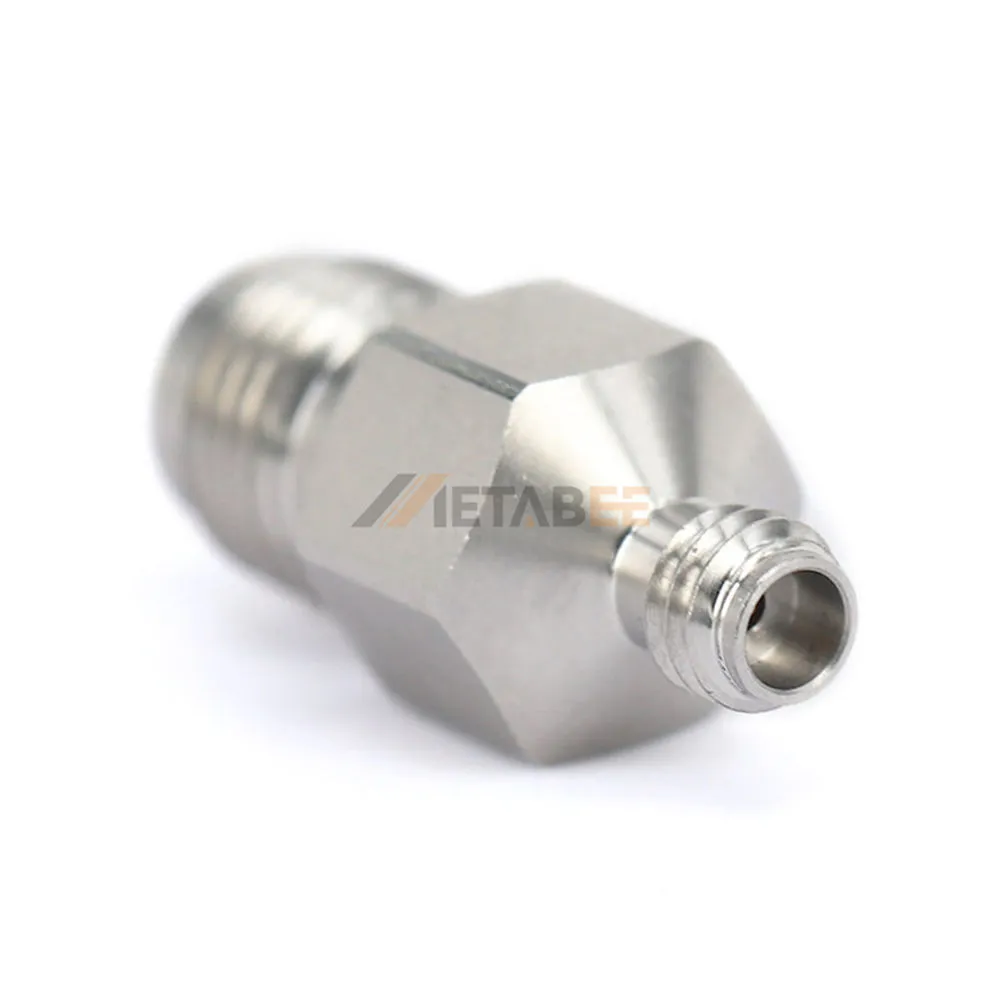

2.4mm to 1.0mm Adapter, DC-50 GHz

2.4mm to 1.0mm Adapter, DC-50 GHz

Introduction

Achieve seamless high-frequency signal transmission with our premium 2.4mm to 1.0mm Adapter. This straight-through adapter is engineered for exceptional performance across a broad frequency range, making it an indispensable tool for demanding RF and microwave applications. With a robust design and superior electrical characteristics, it ensures reliable connectivity from DC to 50 GHz.

Crafted for durability and precision, both the 2.4mm and 1.0mm connectors feature passivated stainless steel housings, offering excellent corrosion resistance and longevity. The adapter maintains a stable 50 Ohm impedance, crucial for signal integrity in sensitive measurement and communication systems. Its impressive Voltage Standing Wave Ratio (VSWR) of 1.3:1 guarantees minimal signal reflection, optimizing power transfer and system efficiency. Designed to withstand challenging environments, this adapter operates flawlessly across a wide temperature range, from -55°C to 165°C.

Key features:

• Wide Frequency Range: DC-50 GHz for versatile applications.
• Low VSWR: 1.3:1 for minimal signal reflection and optimal performance.
• Robust Construction: Passivated stainless steel connectors for durability.
• Stable Impedance: 50 Ohm for reliable signal integrity.
• Broad Operating Temperature: -55°C to 165°C for extreme environments.

Main Specifications:

Applications of this 2.4mm to 1.0mm Adapter:

1.0 mm adapters are small connectors used in various electronic and electrical applications.

Here are some applications:

• Medical Devices;
• High-Speed Data Transmission;
• Industrial Control Systems;
• Semiconductor Testing;
• Quantum Computing;
• Satellite Communication;
• Automotive Radar Systems.

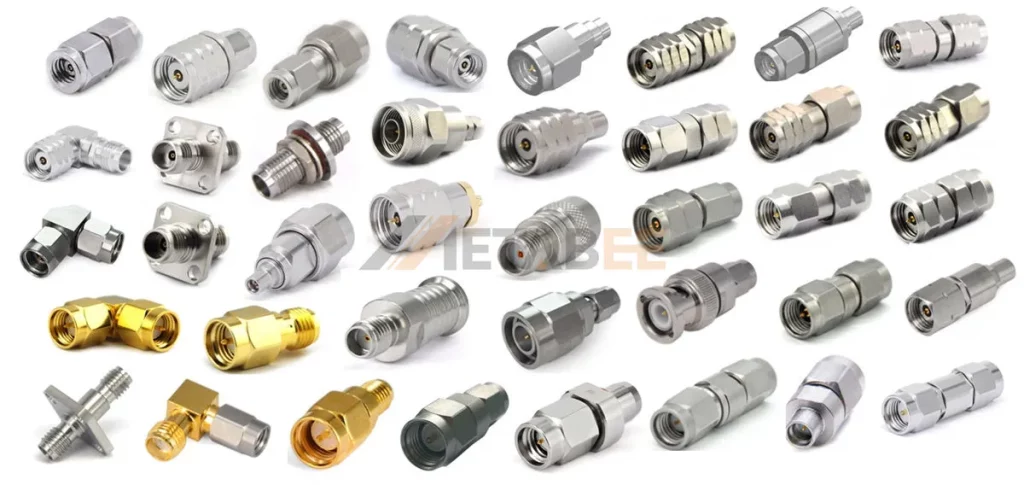

We can customize this RF Adapter according to your special requirements. Get a free quotation now!
