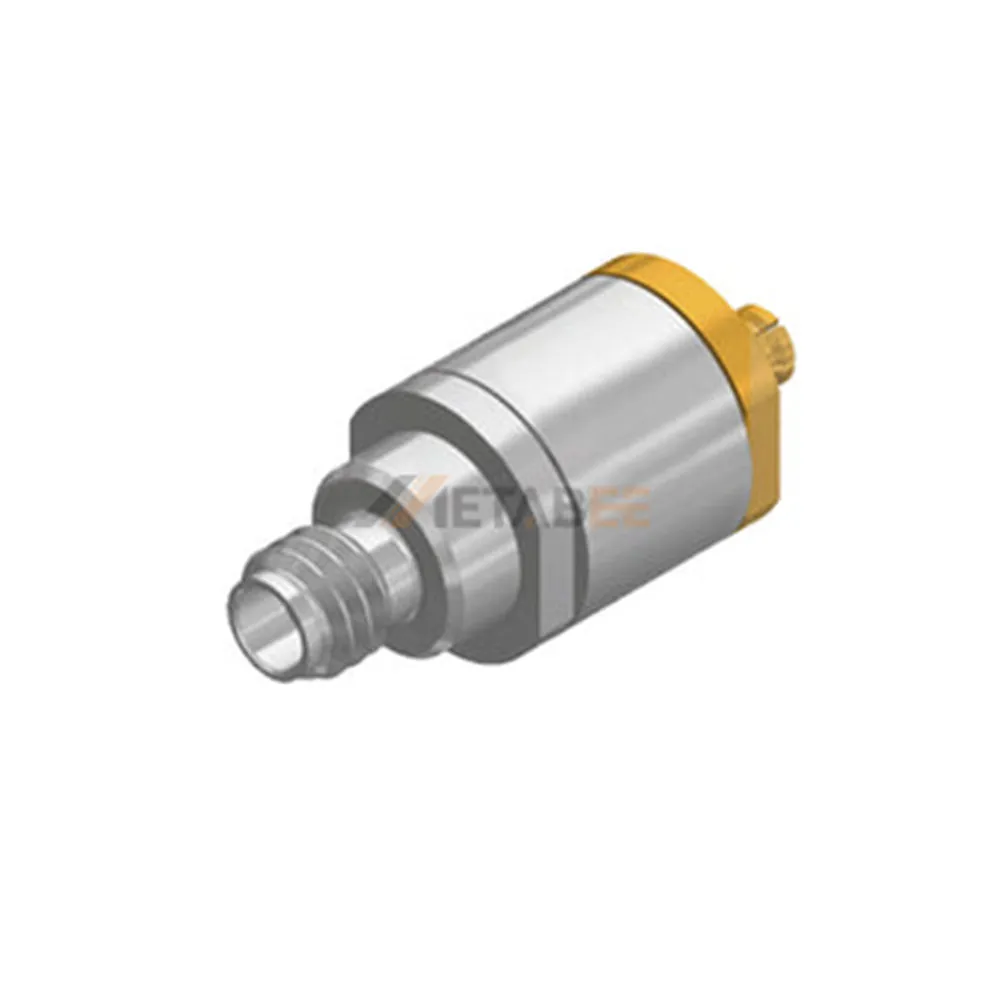

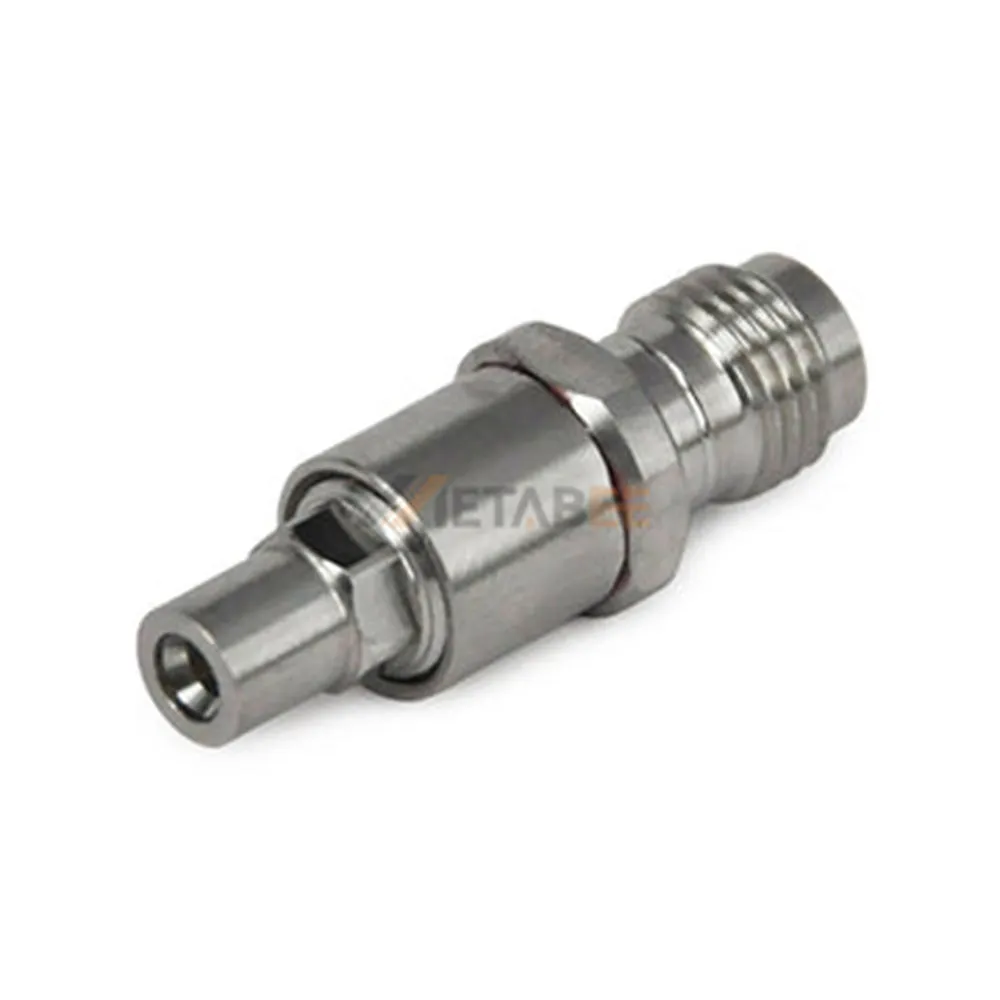

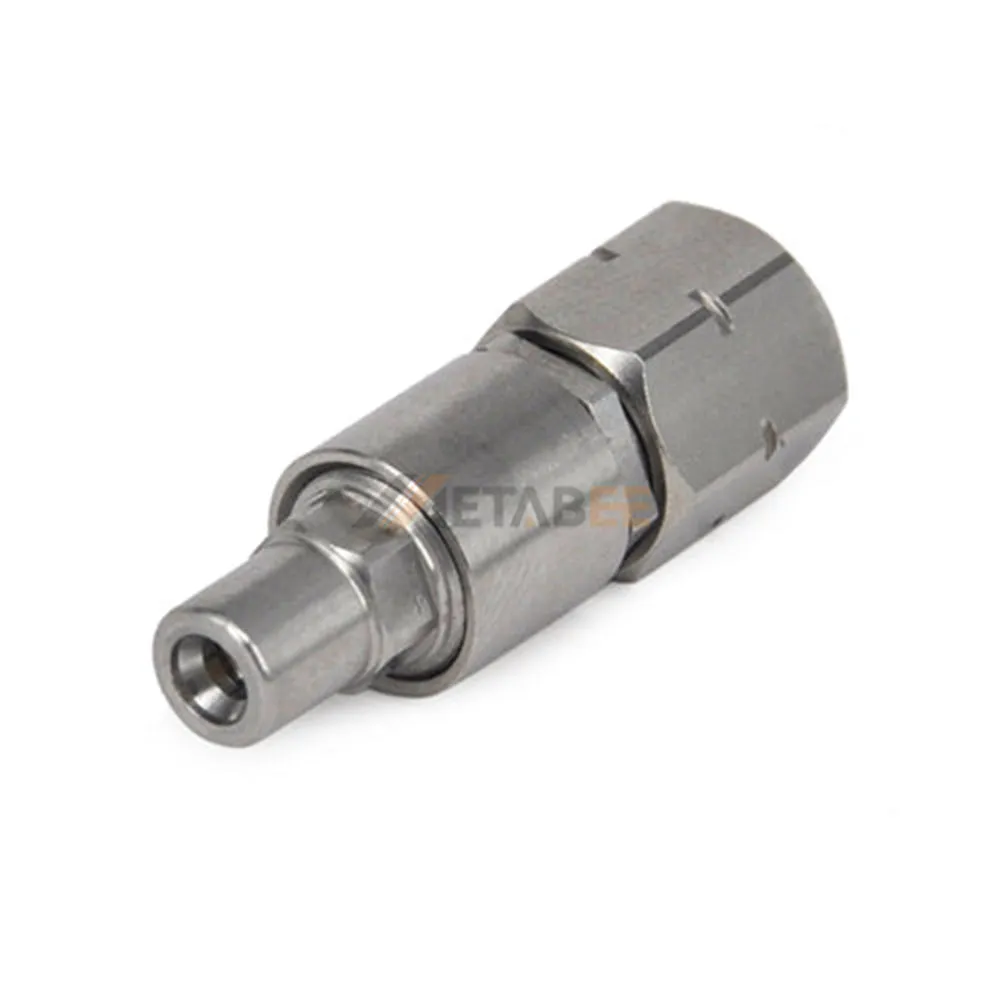

1.0mm to GPPO (Mini-SMP) Adapter, DC-65 GHz
Introduction
The 1.0mm to GPPO (Mini-SMP) Adapter, DC-65 GHz is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal performance across a broad frequency range of DC-65 GHz. The straight installation design provides easy integration into test setups and communication systems, while the stainless steel housing with passivated plating enhances durability and corrosion resistance for long-term reliability.
With a low VSWR of 1.35:1, this adapter maintains signal integrity even at high frequencies. The 1.0mm connector (male/female) and GPPO (Mini-SMP) connector combination offers seamless compatibility between different interface types. Built to withstand harsh environments, it operates reliably in temperatures ranging from -40°C to +85°C, making it ideal for aerospace, military, and high-frequency test applications.
Key features:
- 1.0mm to GPPO (Mini-SMP) Adapter for versatile connectivity
- 50-ohm impedance for consistent signal transmission
- DC-65 GHz frequency range for high-speed applications
- Stainless steel housing with passivated plating for durability
- Straight orientation for easy installation
- Low VSWR (1.35:1) ensuring minimal signal reflection
- Wide operating temperature (-40°C to +85°C) for harsh environments
Main Specifications:
| Product No: | YC-1.0/GPPO-JJ, YC-1.0/GPPO-JK, YC-1.0/GPPO-KJ, YC-1.0/GPPO-KK | |
| Product Series: | 1.0mm Adapters | |
| Adapter Type: | 1.0mm to Mini-SMP | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.0mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | Mini-SMP Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.35 | |
| Frequency Range: | DC-65 GHz | |
| Operating Temerature: | -40 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 1.0mm to GPPO (Mini-SMP) Adapter:
1.0 mm adapters are small connectors used in various electronic and electrical applications.
Here are some applications:
- Medical Devices;
- High-Speed Data Transmission;
- Industrial Control Systems;
- Semiconductor Testing;
- Quantum Computing;
- Satellite Communication;
- Automotive Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
