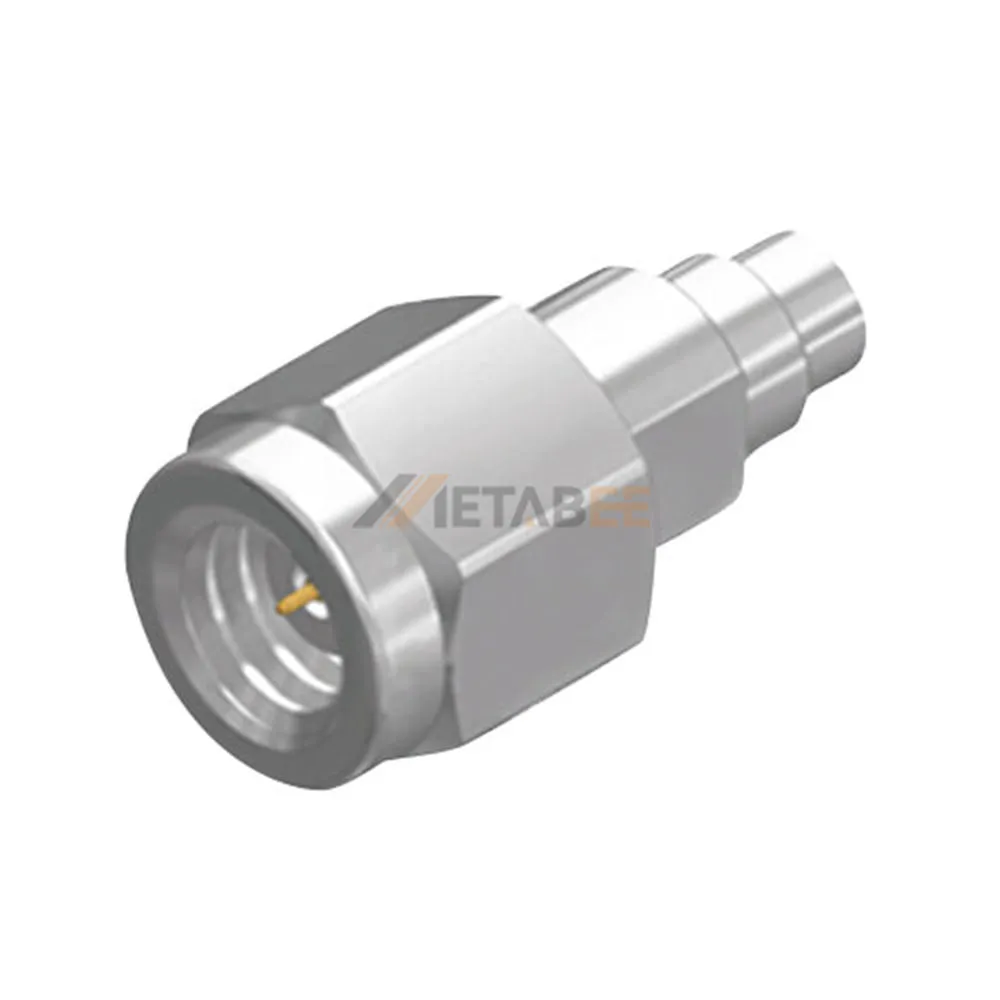

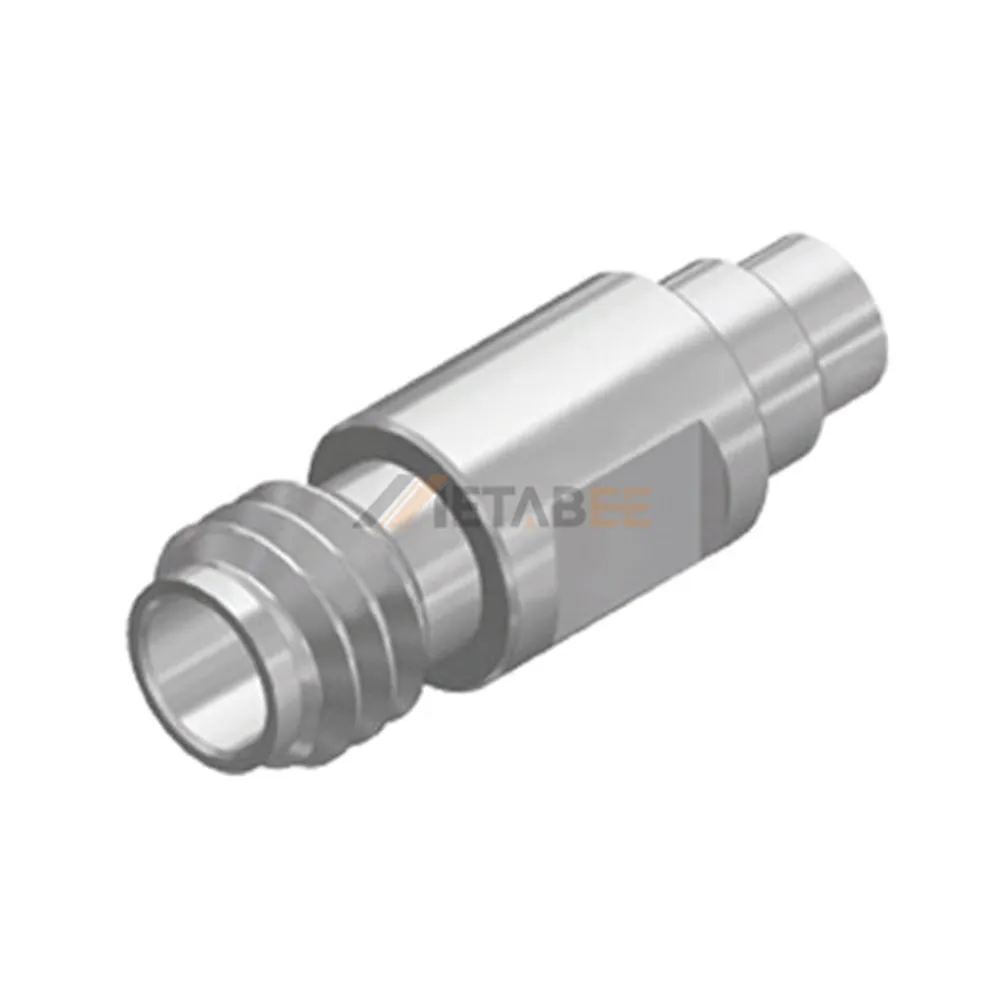

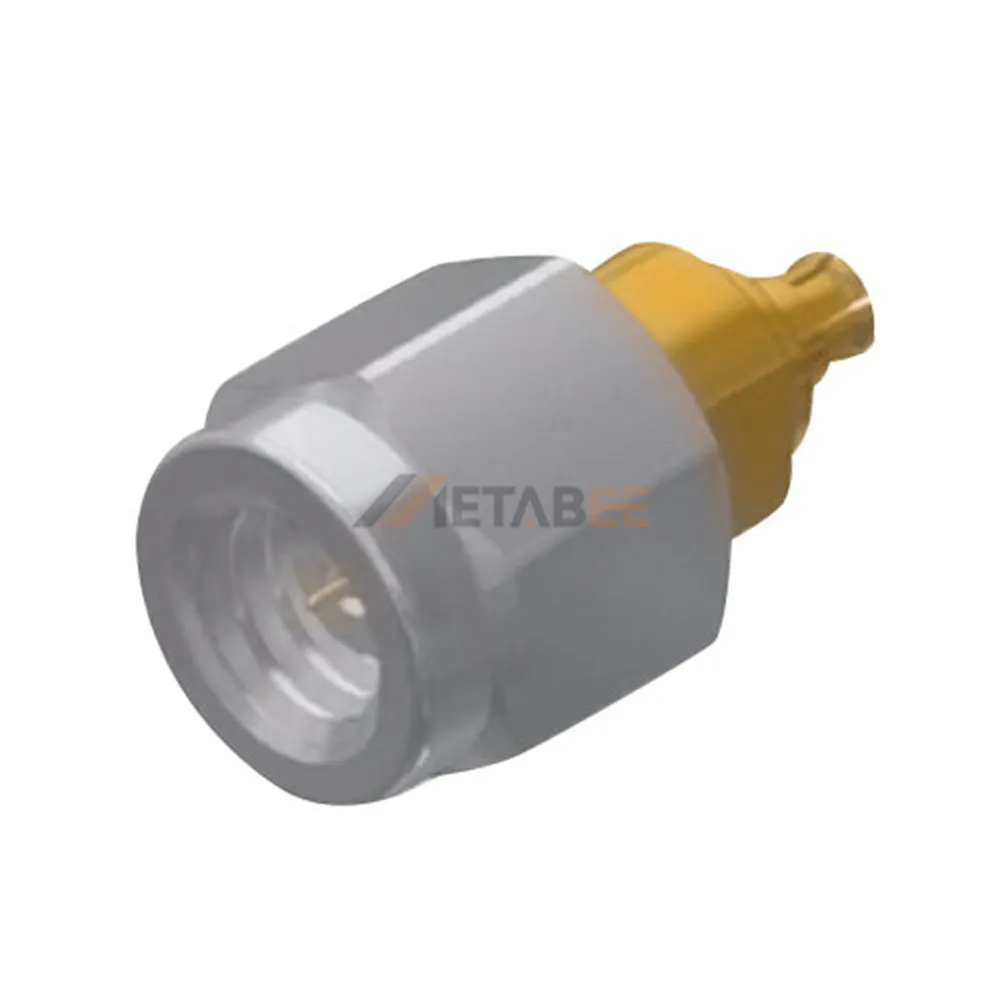

1.0mm to G3PO (SMPS) Adapter, DC-100 GHz
Introduction
The 1.0mm to G3PO (SMPS) Adapter is a high-performance RF interconnect solution designed for precision signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal performance across an ultra-wide frequency range of DC-100 GHz. Its straight installation design provides easy integration into test setups and systems, while the robust stainless steel housing with passivated plating enhances durability and corrosion resistance for long-term reliability.
This adapter seamlessly connects 1.0mm connectors to G3PO (SMPS) connectors, maintaining a low VSWR of 1.5:1 for superior signal integrity. Engineered to withstand extreme conditions, it operates reliably in temperatures ranging from -55°C to 165°C, making it ideal for aerospace, defense, and high-frequency testing environments.
Key features:
- Wide Frequency Range: DC-100 GHz for high-speed signal transmission.
- Low VSWR (1.5:1): Ensures minimal signal reflection.
- Stainless Steel Housing: Passivated for corrosion resistance.
- Precision 50-Ohm Impedance: Maintains signal integrity.
- Extended Temperature Range: -55°C to 165°C for harsh environments.
Main Specifications:
| Product No: | YC-1.0/G3PO-JJ, YC-1.0/G3PO-JK, YC-1.0/G3PO-KJ | |
| Product Series: | 1.0mm Adapters | |
| Adapter Type: | 1.0mm to SMPS | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 1.0mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | SMPS Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.5 | |
| Frequency Range: | DC-100 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 1.0mm to G3PO (SMPS) Adapter:
1.0 mm adapters are small connectors used in various electronic and electrical applications.
Here are some applications:
- Medical Devices;
- High-Speed Data Transmission;
- Industrial Control Systems;
- Semiconductor Testing;
- Quantum Computing;
- Satellite Communication;
- Automotive Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
