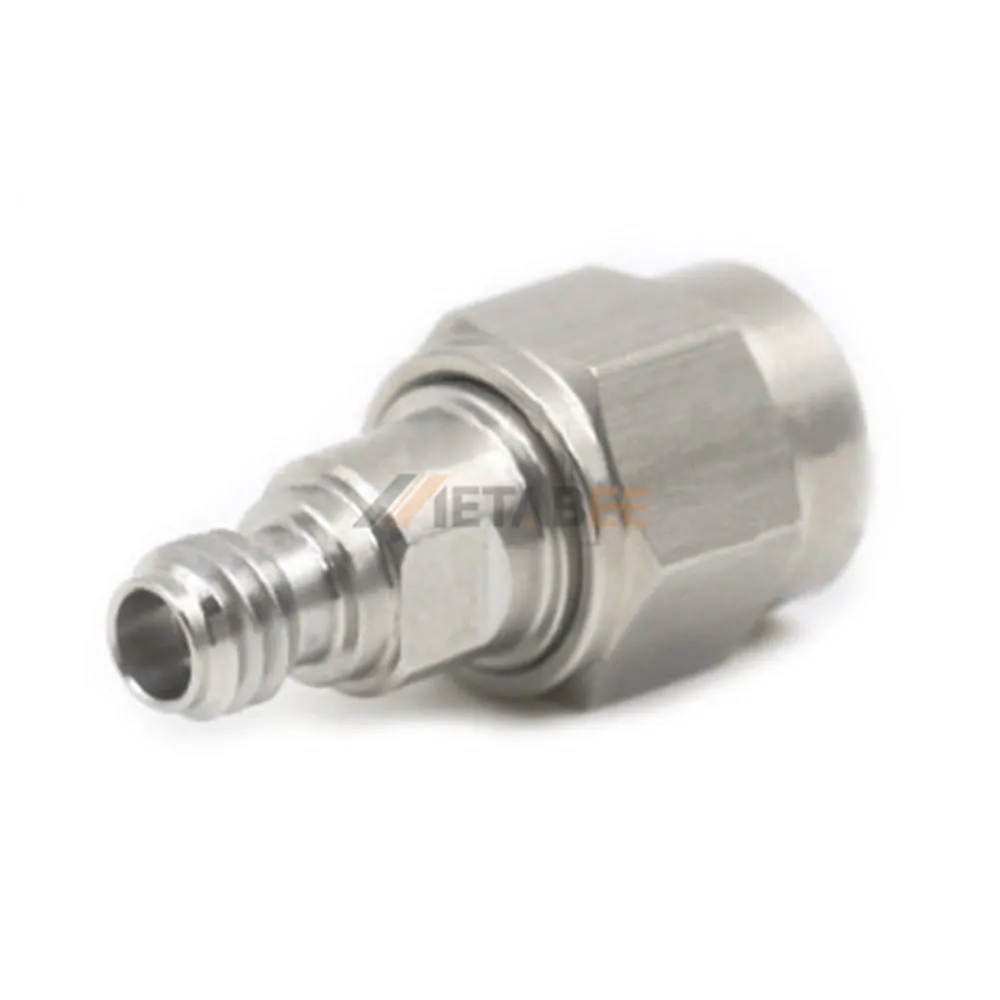

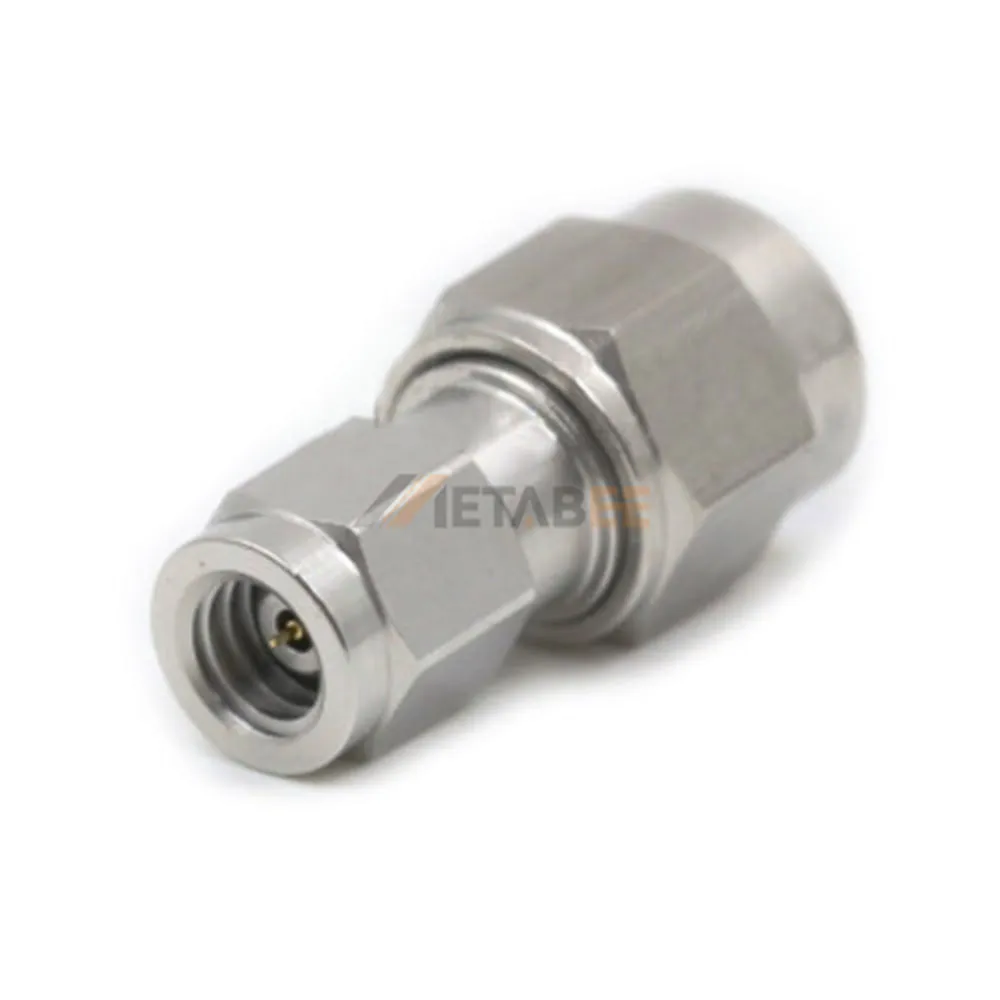

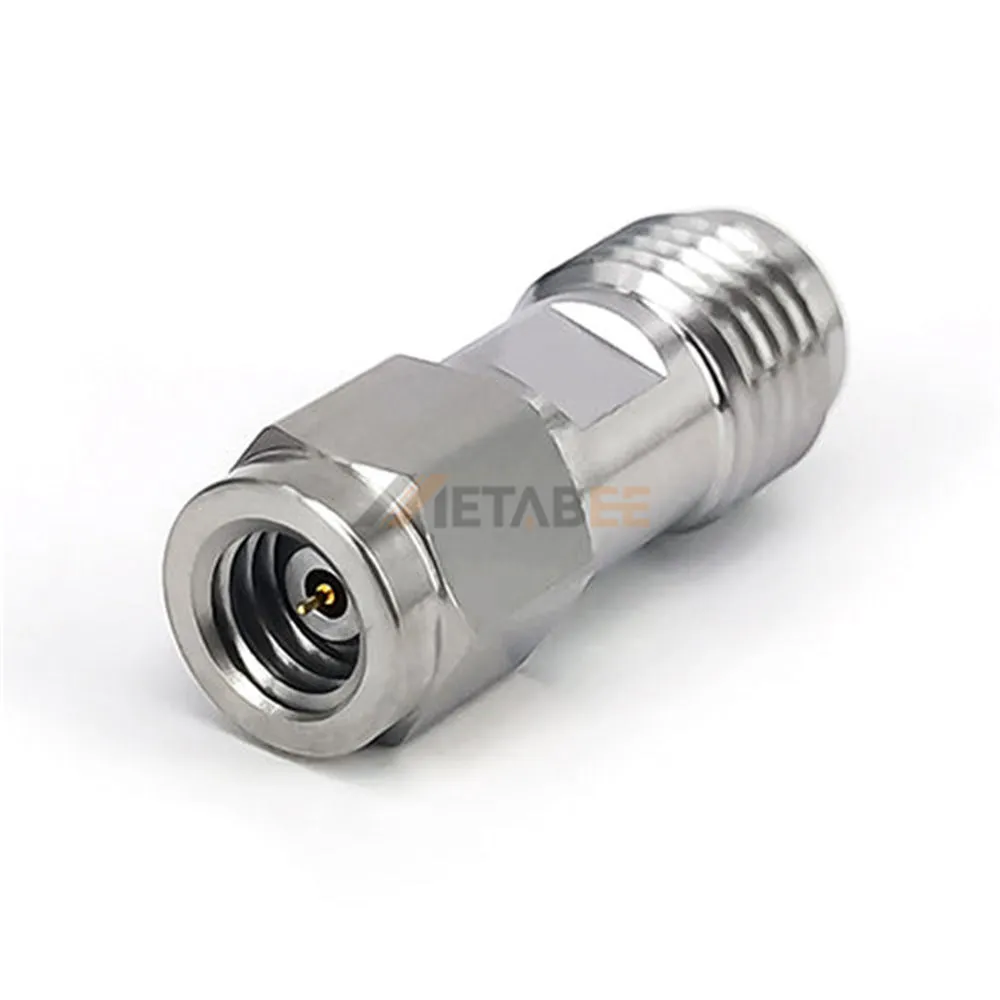

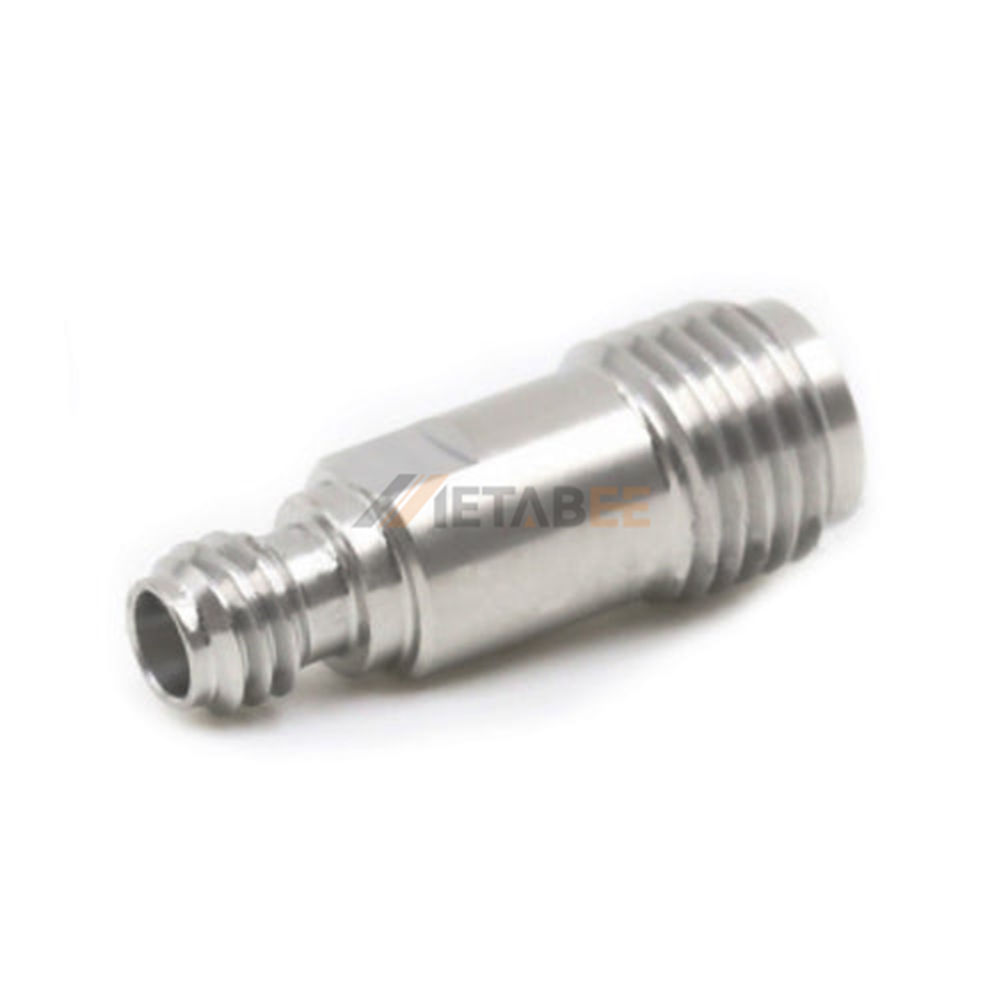

2.92mm to 1.0mm Adapter, DC-40 GHz
Introduction
Our 2.92mm to 1.0mm Adapter is a high-performance coaxial connector engineered for precision RF and microwave applications up to 40 GHz. This straight adapter ensures a precise 50 Ohm impedance match, guaranteeing optimal signal integrity and minimal reflection. Connector 1 is a 2.92mm Connector, while Connector 2 is a 1.0mm Connector, both meticulously crafted from robust stainless steel with a passivated finish for superior durability and excellent corrosion resistance. This adapter is an indispensable component for demanding test and measurement setups, telecommunications infrastructure, and other high-frequency systems that require reliable and accurate signal transmission.
This adapter boasts an impressive VSWR of 1.25:1, ensuring highly efficient power transfer across its broad operating frequency range from DC-40 GHz. Designed to excel in challenging environments, it maintains its integrity and peak performance across a wide temperature spectrum, from -55°C to +165°C. Its straightforward, straight configuration allows for seamless integration into existing systems, making it a versatile and dependable choice for your critical high-frequency connections.
Key features:
- 2.92mm to 1.0mm adapter for versatile connectivity
- Straight orientation for simplified integration
- 50 Ohm impedance for consistent RF performance
- DC-40 GHz ultra-wideband frequency range
- Stainless steel housing with passivated coating for durability
- Low VSWR (1.25:1) for superior signal integrity
- -55°C to +165°C wide operating temperature range
Main Specifications:
| Product No: | YC-2.92/1.0-JJS, YC-2.92/1.0-JKS, YC-2.92/1.0-KJS, YC-2.92/1.0-KKS | |
| Product Series: | 1.0mm Adapters | |
| Adapter Type: | 2.92mm to 1.0mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 1.0mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to 1.0mm Adapter:
1.0 mm adapters are small connectors used in various electronic and electrical applications.
Here are some applications:
- Medical Devices;
- High-Speed Data Transmission;
- Industrial Control Systems;
- Semiconductor Testing;
- Quantum Computing;
- Satellite Communication;
- Automotive Radar Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
