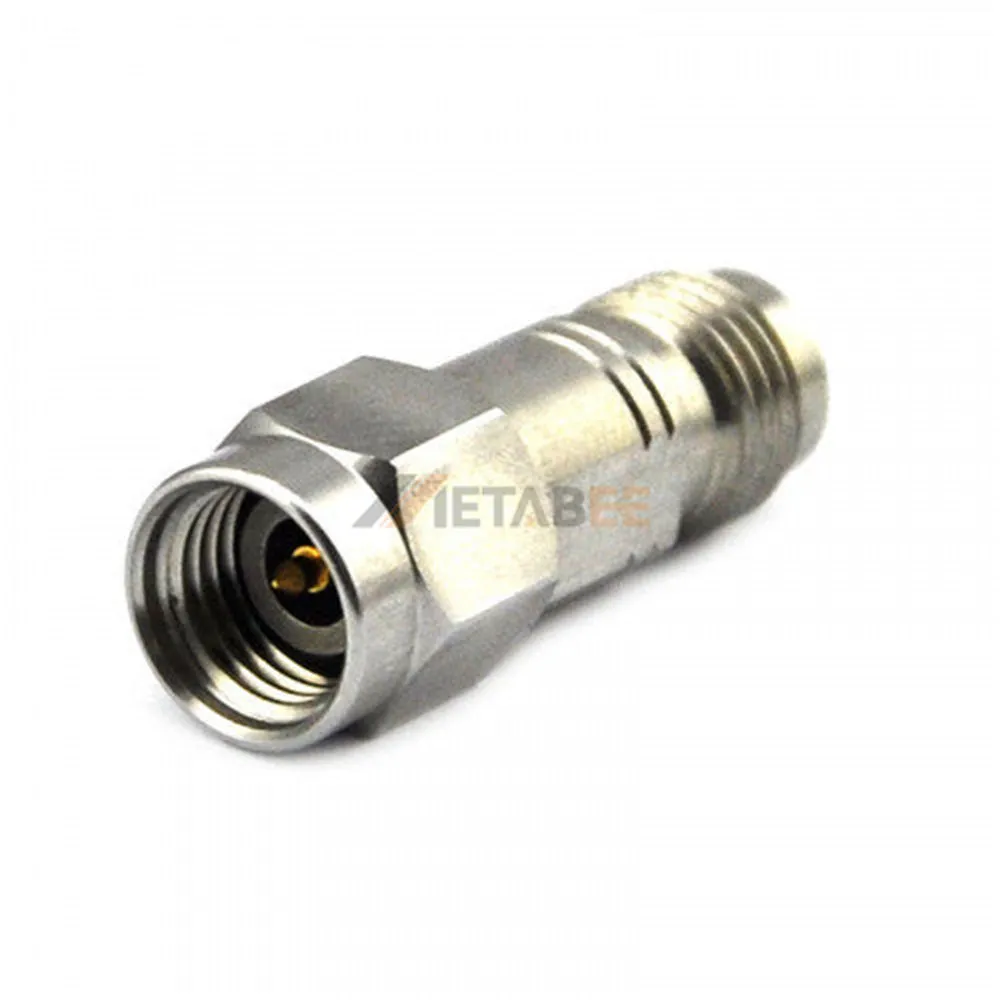

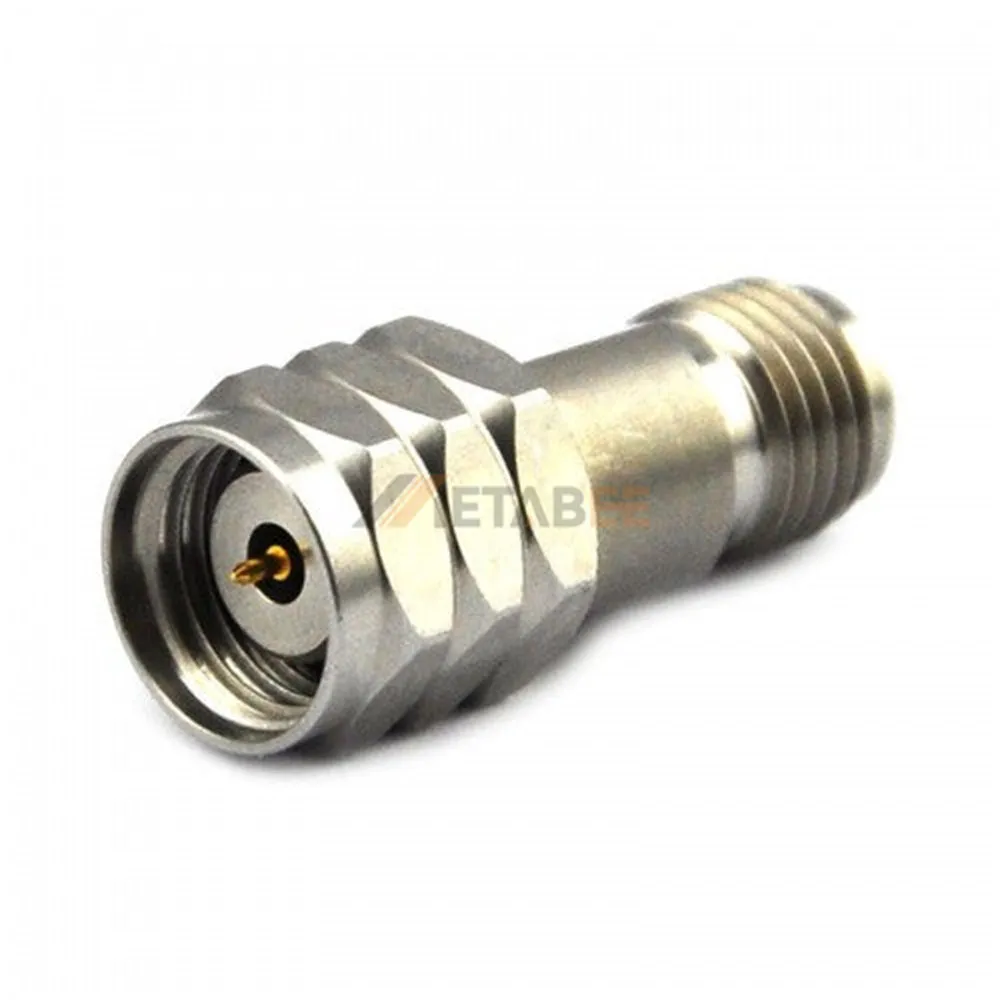

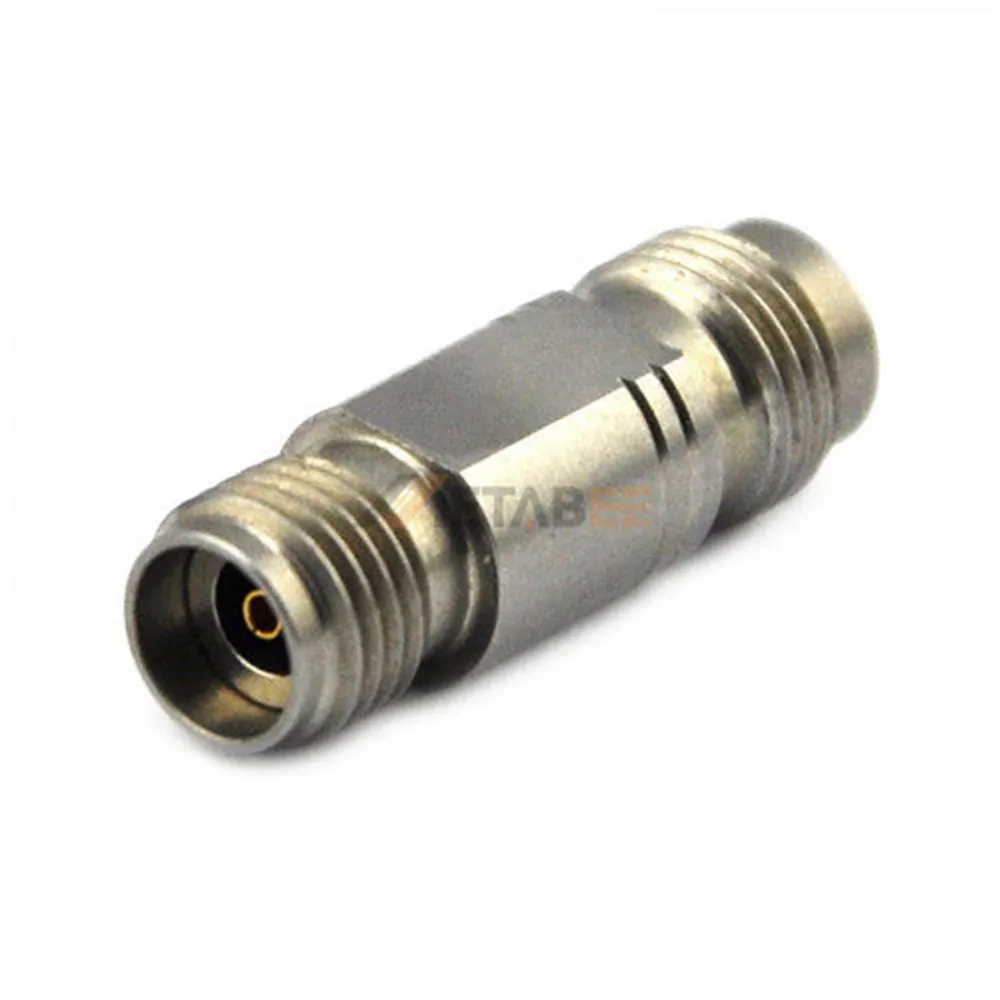

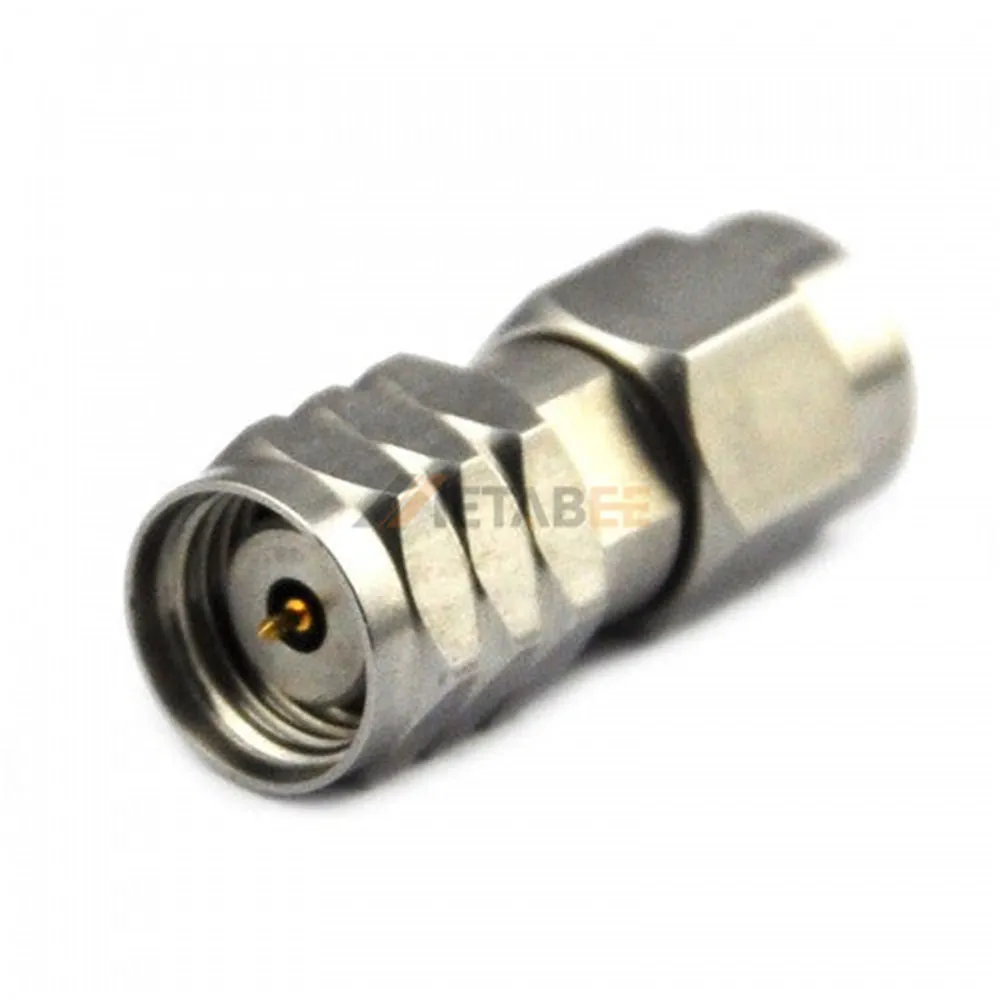

2.92mm to 1.85mm Adapter, DC-40 GHz
Introduction
The 2.92mm to 1.85mm Adapter is a high-performance RF adapter designed for seamless connectivity between 2.92mm and 1.85mm coaxial interfaces. With a precision-engineered 50-ohm impedance and straight installation orientation, this adapter ensures minimal signal loss and optimal transmission across a broad frequency range of DC-40 GHz. The stainless steel housing, featuring a passivated finish, enhances durability and corrosion resistance, making it ideal for demanding applications in test labs, telecommunications, and aerospace.
Featuring a low VSWR of 1.15:1, this adapter guarantees superior signal integrity even at high frequencies. The robust construction supports a wide operating temperature range of -55°C to +165°C, ensuring reliable performance in extreme environments. Both connectors—2.92mm (male/female) and 1.85mm (male/female)—are built to strict industry standards, providing secure and stable connections for precision RF systems.
Key features:
- 2.92mm to 1.85mm high-frequency adapter
- 50-ohm impedance for minimal signal loss
- DC-40 GHz ultra-wide frequency range
- Stainless steel housing with passivated coating
- Low VSWR (1.15:1) for superior signal integrity
- Straight design for easy installation
- Wide temperature range (-55°C to +165°C)
Main Specifications:
| Product No: | YC-2.92/1.85-JJS, YC-2.92/1.85-JKS, YC-2.92/1.85-KJS, YC-2.92/1.85-KKS | |
| Product Series: | 1.85mm Adapters | |
| Adapter Type: | 2.92mm to 1.85mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.92mm Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 1.85mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this 2.92mm to 1.85mm Adapter:
1.85mm coaxial adapters are precision RF/microwave components used in high-frequency applications where minimal signal loss and impedance matching are critical.
Here are some applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
