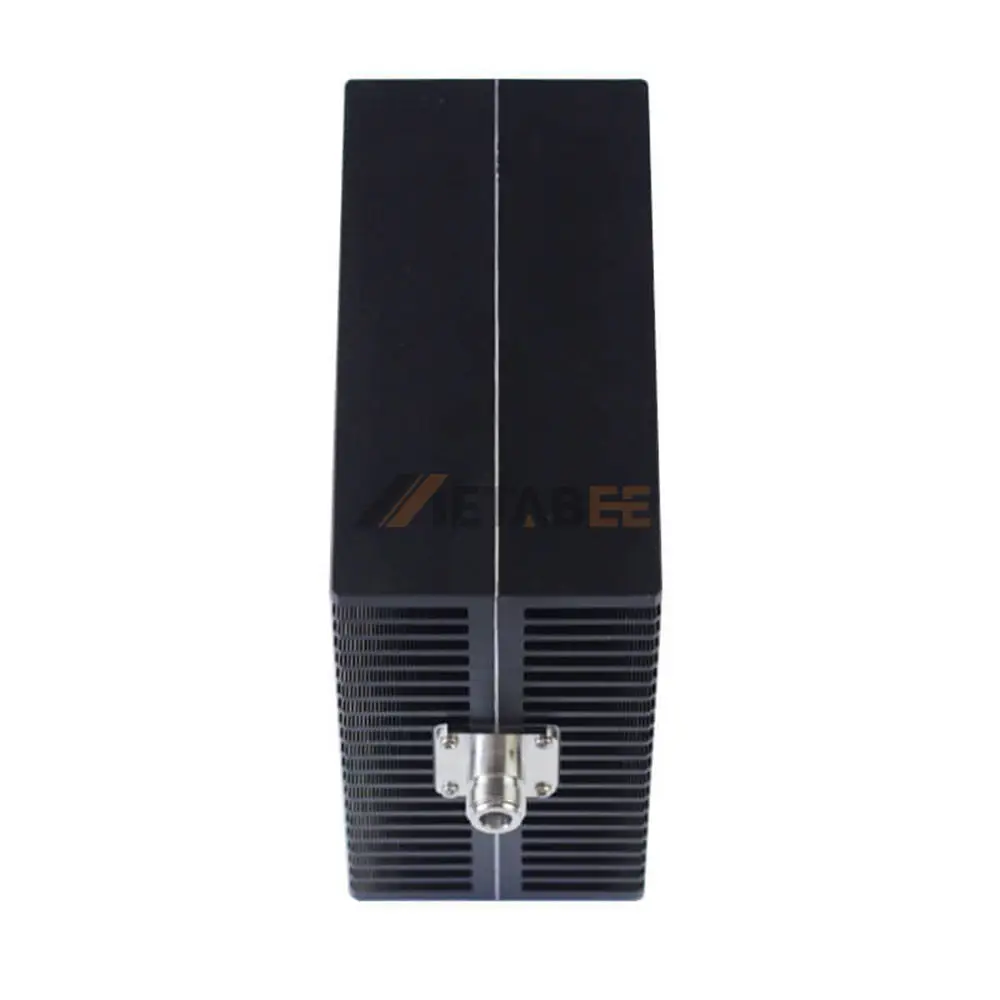

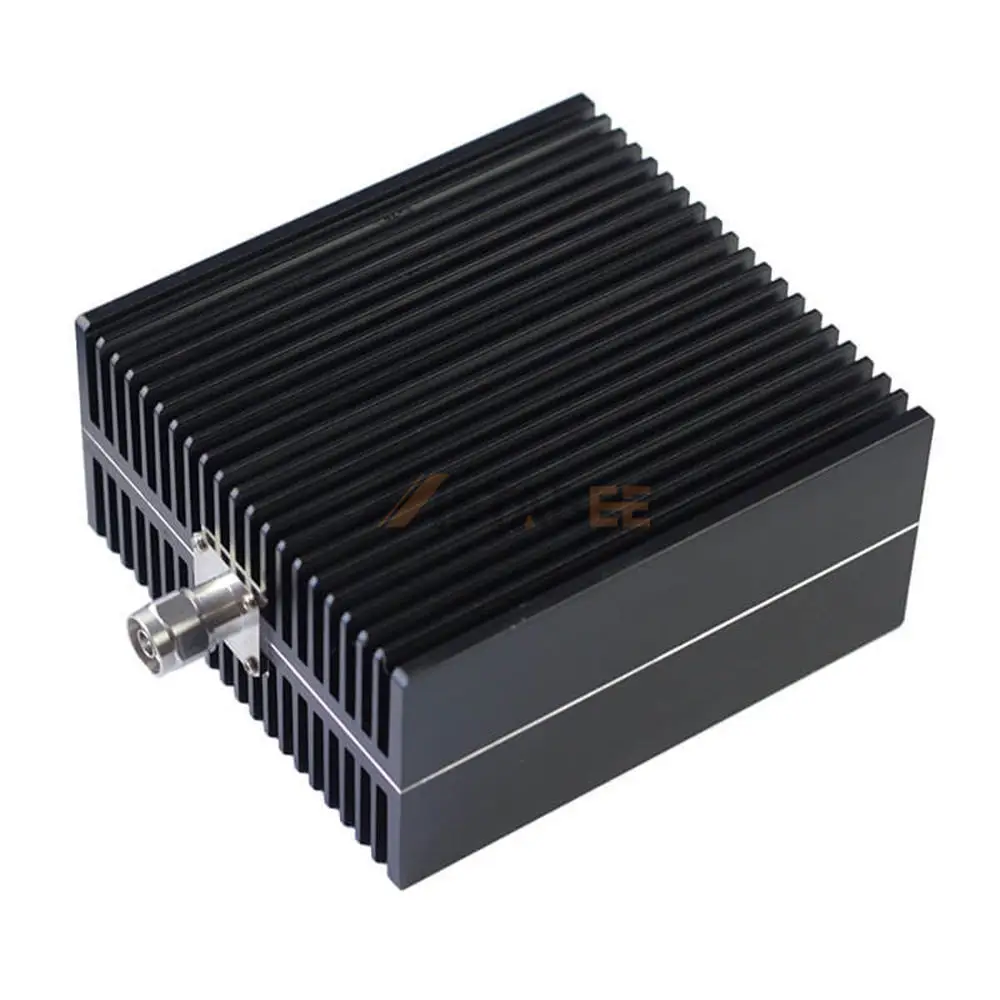

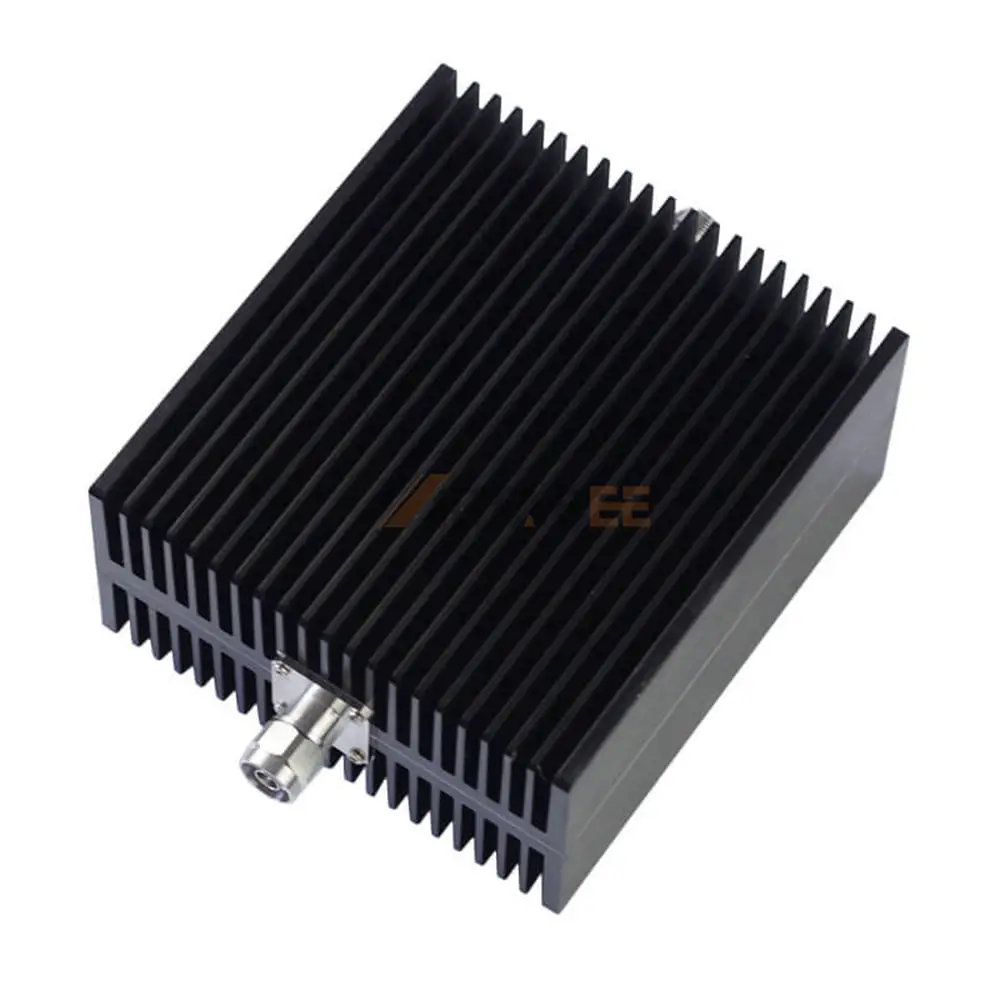

200 Watt N-type Male to N-type Female RF Attenuator, DC to 3GHz
Introduction
This high-performance 200-Watt N-type RF Attenuator is engineered for demanding applications requiring precise signal attenuation from DC to 3 GHz. Featuring robust N-type male to N-type female connectors, both constructed from durable stainless steel, this attenuator ensures reliable and stable connections in various RF systems. With a 50-ohm impedance, it’s perfectly suited for maintaining signal integrity and impedance matching within your setup.
Designed for exceptional durability and performance, this N-type attenuator boasts an impressive Voltage Standing Wave Ratio (VSWR) of 1.20:1, minimizing signal reflection and maximizing power transfer efficiency. Its broad frequency range of up to 3 GHz makes it versatile for a wide array of telecommunications, testing, and other RF applications. Built to withstand challenging environments, it operates flawlessly across a wide temperature range of -55°C to 125°C and has an IP20 ingress protection rating.
Key Features:
- High Power Handling: 200 Watts.
- Wide Frequency Range: DC to 3 GHz.
- Low VSWR: 1.20:1.
- Durable Connectors: N-type male to N-type female, Stainless Steel.
- Standard Impedance: 50 Ohms.
- Broad Operating Temperature: -55°C to 125°C.
- Robust Construction: IP20 Rated.
Main Specifications:
| Part No.: | 200W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 200W | |
| Attenuation: | 1DB, 3DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 200-Watt N-type Male to N-type Female RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
